CDX-434RF/530RF/535RF
SERVICE MANUAL
CD changer
System
Laser Diode Properties
Material
Wavelength
Emission Duration
Laser output power
* This output is the value measured at a distance of
200 mm from the objective lens surface on the
Optical Pick-up Block.
Transmitting frequency
Input/output terminals
Current drain
Operating temperature
Dimensions
Mass
Relay box
Input/output
Dimensions
Mass
MICROFILM

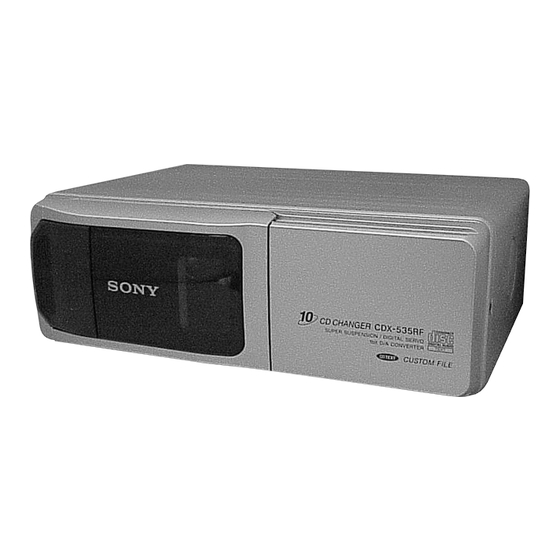

Photo: CDX-535RF
SPECIFICATIONS
Compact disc digital audio
system
GaAlAs
780 nm
Continuous
Less than 44.6 µW*
88.3 MHz/88.5 MHz/
88.7 MHz/88.9 MHz/
89.1 MHz/89.3 MHz/
89.5 MHz/89.7 MHz/
89.9 MHz (switchable)
Wired remote control (8 pin)
RF signal (FM) output
Power input (3 pin)
800 mA (at playback)
800 mA (at disc loading/
ejecting)
–10°C to +55°C
(14°F to 131°F)
Approx. 262 × 90 × 181.5 mm
× 3
× 7
(10
3
/
5
/
1
/
in.)
8
8
4
(w/h/d)
Approx. 2.1 kg (4 lb. 10 oz.)
Antenna input terminal
Antenna output cord
CD Changer input cord
Approx. 40 × 40 × 27 mm
× 1
× 1
5
5
1
(1
/
/
/
in.)
8
8
8
(w/h/d)
140 g (5 oz.)
COMPACT DISC CHANGER SYSTEM
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
Wired remote (RM-X88) (CDX-434RF)
Approx. 122 × 36.5 ×
Dimensions
15.5 mm
× 1
7
7
(4
/
8
(w/h/d)
Mass
Approx. 255 g (9 oz.)
Wired remote (RM-X87)
/Wireless remote (RM-X89) (CDX-530RF/535RF)
Dimensions
Wired remote:
Approx. 122 × 36.5 × 15.5 mm
× 1
3
7
(4
/
8
Wireless remote:
Approx. 40 × 6.5 × 86 mm
×
5
9
(1
/
/
8
(w/h/d)
Mass
Wired remote:
Approx. 255 g (9 oz.)
Wireless remote:
Approx. 20 g (1 oz.)
Battery
Wireless remote:
Lithium battery (CR2025)
Supplied accessories
Disc magazine (1)
Parts for installation and
connections (1 set)
Design and specifications are subject to change
without notice.
US Model
Canadian Model
CDX-434RF/530RF
AEP Model
UK Model
CDX-434RF
E Model
CDX-434RF/535RF
NEW
MG-251A-137
KSS-720A/K1NP
×
5
/
/
in.)
16
8
×
5
/
/
in.) (w/h/d)
16
8
× 3
1
/
in.)
32
2
