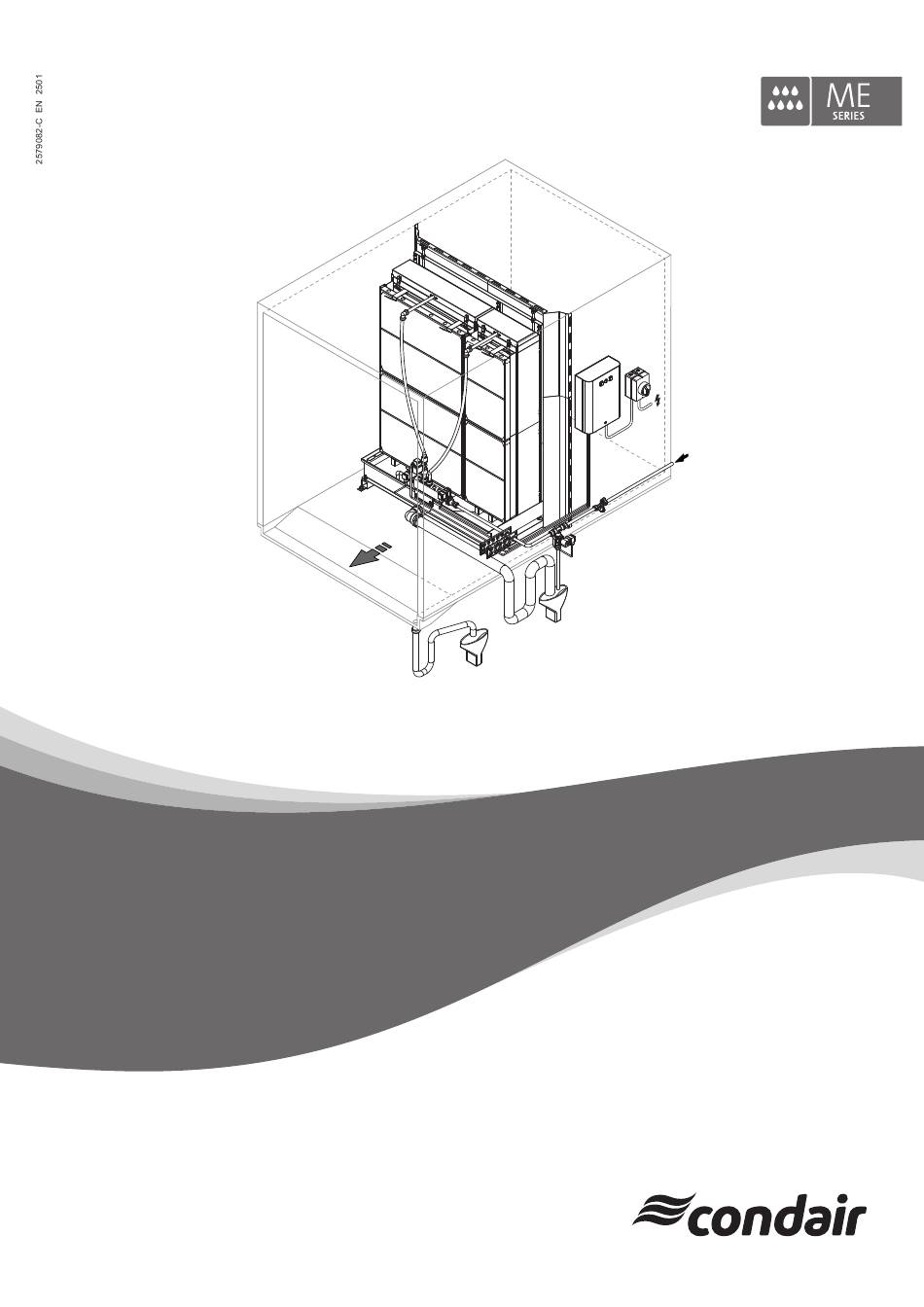

- Page 1 READ AND SAVE THESE INSTRUCTIONS INSTALLATION MANUAL Adiabatic air humidification/air cooling system Condair ME Direct Feed Humidification, Dehumidification and Evaporative Cooling...
- Page 2 Condair Ltd., except to the extent required for installation or maintenance of recipient's equipment. Liability Notice Condair Ltd. does not accept any liability due to incorrect installation or operation of the equipment or due to the use of parts/components/equipment that are not authorized by Condair Ltd.
-
Page 3: Table Of Contents
Storing/Transportation/Packaging Product designation / Which model do you have Installation Installation overviews 4.1.1 Typical installation Condair ME Direct Feed (internal installation) 4.1.2 Typical installation Condair ME Direct Feed (external installation) Mounting the evaporative module 4.2.1 Notes on positioning the evaporative module 4.2.2... -
Page 4: Introduction
Improper use of the Condair ME Direct Feed may result in danger to the user or third parties and/or impairment of material assets. - Page 5 If the documentation gets mislaid, please contact your Condair representative. Language versions This installation manual is available in various languages. Please contact your Condair representative for information. 2579082-C EN 2501...
-
Page 6: For Your Safety
For safety and warranty reasons any action beyond the scope of this manual must only be carried out by personnel with appropriate industry recognized qualifications or training. It is assumed that all persons working with the Condair ME Direct Feed are familiar and comply with the appropriate regulations on work safety and the prevention of accidents. - Page 7 Preventing unsafe operation All persons working with the Condair ME Direct Feed are obliged to report any alterations to the unit that may affect safety to the owner without delay and to secure such systems against accidental power-up.
-
Page 8: Important Notes
Check packing slip to ensure all parts has been delivered. All material shortages are to be reported to your Condair representative within 48 hours after receipt of the goods. Condair assumes no responsibility for any material shortages beyond this period. -
Page 9: Product Designation / Which Model Do You Have
The product designation and the most important unit data are found on the rating plate fixed to the evaporative module. Information regarding the rating plate and the product key can be found in the operation manual of the Condair ME Direct Feed. 2579082-C EN 2501 Important notes... -
Page 10: Installation
3 - Mounting the wall feed through --> see chapter 4.4 4 - Water installation --> see chapter 4.5 5 - Electrical installation supplied by others Fig. 1: Typical installation Condair ME Direct Feed (internal installation) Installation 2579082-C EN 2501... -
Page 11: Typical Installation Condair Me Direct Feed (External Installation)
3 - Mounting the wall feed through --> see chapter 4.4 4 - Water installation --> see chapter 4.5 5 - Electrical installation supplied by others Fig. 2: Typical installation Condair ME Direct Feed (external installation) 2579082-C EN 2501 Installation... -
Page 12: Mounting The Evaporative Module
Mounting the evaporative module 4.2.1 Notes on positioning the evaporative module The design and dimensioning of the AHU/air duct as well as the location of the evaporative module inside the duct are determined, recorded and set compulsory when planning the entire system. Prior to installation, however, make sure the following criteria have been taken into consideration: –... - Page 13 Recommended inspection access min. 600 mm / 24" 600 mm / 24" (min. 200 mm / 7.9" clearance) Dimension “a”: ME Direct Feed (internal install): 111 mm / 4.4" ME Direct Feed (external install): 111 mm / 4.4" Dimension “b”: F-Type fibre cassettes F75/F85/F95: 395 mm / 15.6"...
- Page 14 Air flow direction Recommended service access Recommended inspection access min. 600 mm / 24" 600 mm / 24" (min. 200 mm / 7.9" clearance) Dimension “a”: F-type fibre cassettes F75/F85/F95: 395 mm / 15.6" C-type fibre cassettes C85/C95: 525 mm / 20.7" Dimension “b”: F-type fibre cassettes F75/F85/F95: 208 mm / 8.2"...
-
Page 15: Installation Procedure Evaporative Module
4.2.2 Installation procedure evaporative module WARNING! A full risk assessment must be completed by suitably trained personnel prior to installing the ME unit. There may be increased risk when installing systems that necessitate working at height. The following risks should be considered (this list is not exhaustive, and there may be additional site specific risks that will need to be considered): –... - Page 16 1. Mounting the tank upstands to the tank: • Mounting the tank upstands supplied by Condair: fix tank upstands to the tank as shown in the figure below using the nuts (M8, AF: 13 mm) and washers supplied. Fig. 5: Mounting the tank upstands to the tank...
- Page 17 2. Mounting the tank: • Insert the tank into the AHU/air duct. WARNING! Use an appropriate lifting device or handle the tank with the help of another person to posi- tion it inside the duct. It is the customer's responsibility to ensure that operators are trained in handling heavy goods and to enforce the relevant lifting regulations.
- Page 18 3. Fix frame to the tank: • Fix the vertical supports to the tank using the nyloc nuts (M6, AF: 10 mm) and M6 washers. Then, align the vertical supports exactly vertical using a level and tighten the nuts. • Fix the cross member to the vertical supports using the nyloc nuts (M6, AF: 10 mm) and M6 washers.
- Page 19 4. Fix cross member of frame to AHU/duct ceiling: • Fix the cross member to the AHU/duct ceiling using appropriate fixings (supplied as part of the installation kit). Before tightening the screws (not supplied) align the vertical supports exactly vertical using a level. WARNING! If the cross member is not secured to the AHU/duct ceiling there is a risk that the evaporative module could fall over, potentially causing injury or damage.
- Page 20 The installer must take appropriate measures to ensure that the duct floor remains water proof once the lower blanking plates have been fixed to the duct floor. Fig. 9: Mounting the optional Condair blanking plates on the air inlet side Installation...
- Page 21 6. Mounting the crossbar: • This step must be carried out only on larger systems to prevent bending of the crossbar: Fix the supplied crossbar support(s) to the tank using the M6 cross-head bolt and the two stop nuts (M8, AF: 13 mm) according to the figure below. Fig.
- Page 22 • Put the cross bar on the corresponding cross bar bracket with a distance of "A" to the vertical support (see table below). The cross bar should be positioned so that the evaporative cassettes sit on the edge of the cross bar, and the slots in the side of the cross bar should face the air-off side of the evaporative module as shown below.
- Page 23 7. Mount distribution head assembly to the topmost evaporative cassettes: Note: The topmost evaporative cassettes will be the ones that are shortest (vertically). • Mount the appropriate distribution cassettes onto the corresponding evaporative cassettes, by hooking the return on the underside of the distribution cassette under the top strut of the evapo- rative cassette.
- Page 24 8. Mount evaporative cassettes: Note: to avoid damage to the evaporative cassettes during transit, we recommend that the evapo- rative cassettes are fitted on site. • Before installing the evaporative cassettes sweep the interior of the tank. • Starting with the tallest evaporative cassettes on the bottom and working up to the shortest evaporative cassette on the top, hook the cassettes into the vertical supports.
- Page 25 r r o Fig. 14: Mounting order and positioning of the evaporative cassettes 2579082-C EN 2501 Installation...
- Page 26 9. Mount the droplet separator cassettes (this step must only be carried out, if your system is equipped with a droplet separator): Note: to avoid damage to the droplet separator cassettes during transit, the droplet separator cas- settes must be fitted on site. 9a.
- Page 27 9c. Mounting the separator cassette banks: • Hook the lower separator brackets into the cross bar. • Then, starting on one side mount one separator bank after the other onto the lower separator brackets. Align with the evaporative cassette metalwork and ensure the framework of the droplet separator fits around that of the evaporative cassettes.
-
Page 28: Mounting The Hydraulic Manifold
1. Fix the Hydraulic manifold via the prefixed support to tank using the bracket, hexagon socket screws (M8, Allen key: 6 mm) and washers supplied. 2. Align the Hydraulic manifold to the middle of the tank, then tighten the screws. Fig. 18: Mounting the Hydraulic manifold of ME Direct Feed (internal installation) Installation 2579082-C EN 2501... -
Page 29: Mounting The Hydraulic Manifold (External Installation)
FURTHER 600 MM (23.62") CLEARANCE DETAIL A WHEN PLANNING THE INSTALLATION OF A RECOMMENDED FOR SERVICE ACCESS ME DIRECT FEED SYSTEM (WITH EXTERNAL HYDRAULICS) THE CLEARANCE REQUIRED (OUTSIDE THE AHU) FOR THE FOLLOWING SHOULD BE CONSIDERED: • DISTRIBUTION HOSES • FEED THROUGH PLATES •... - Page 30 1. Mark a horizontal line at the desired position on the AHU/duct wall. 2. Position and align the Hydraulic manifold at the desired position. Then, fix the Hydraulic manifold to the duct wall using appropriate fixings. Fig. 20: Mounting the Hydraulic manifold of ME Direct Feed (external installation) Installation 2579082-C EN 2501...
-
Page 31: Mounting The Wall Feed Through Plates
Mounting the wall feed through plates 1. Push out or pierce the centre of grommets that will have pipes or cable passing through them. Large grommets are for pipe work, and small grommets are for cables. Note: on feed through plates for use with externally installed hydraulics the large grommets are spaced to match the stage pipe spacing on the hydraulic manifold. - Page 32 3. Drill holes through the AHU wall for the pipes and cables. Holes should be as small as possible for the pipe or cable passing through them, and no larger than ø12 mm (ø0.47") for the (small) cable grommets, and ø20 mm (ø0.79") for the (large) pipe work grommets. Fig.
- Page 33 5. Screw the feed through plates to the AHU wall using appropriate fixings. Fig. 27: Fixing the feed through plate to the duct Fig. 28: Fixing the feed through plate to the duct wall external installation wall internal installation 2579082-C EN 2501 Installation...
-
Page 34: Water Installation
The water supply (internal mounting) should be fed through the provided wall feed through. Important: after installation the water supply pipe has to be sealed around the feed through using silicone-free sealant, if not using a Condair supplied feed through. –... - Page 35 – Notes on Water drain – The water drain is to be carried out according to the figures found in chapter 4.5.2 chapter and the applicable local regulations for water installations. The indicated connection speci- 4.5.3 fications must be observed. The installation material must be supplied by the customer. –...
- Page 36 ø50 mm typical ø69 mm (2.72") Tank spigot Push-on pipe fitting to connect drain pipe to tank spigot Pipe feed through ø64 mm (2.52") Fig. 30: Drain connection on tanks with side drain Installation 2579082-C EN 2501...
- Page 37 – Use the supplied ø15 mm or ø16 mm (0.625") flexible plastic hoses only. For hygienic reasons do not use other hoses (except products supplied by your Condair distributor). – When cutting hoses use an appropriate cutting tool providing straight, kink-free cuts.
-
Page 38: Water Installation (Internal Installation)
- allow air gap of min 20 mm (0.8"). The minimum inner diameter of the drain line after the funnel must be at least ø40 mm. Fig. 31: Water installation ME Direct Feed (internal installation) Installation 2579082-C EN 2501... -
Page 39: Water Installation (External Installation)
- allow air gap of min 20 mm (0.8"). The minimum inner diameter of the drain line after the funnel must be at least ø40 mm. Fig. 32: Water installation ME Direct Feed (external installation) 2579082-C EN 2501 Installation... -
Page 40: Electrical Installation
Electrical installation Controls to the Condair ME Direct Feed evaporative humidifier must be supplied by others. Installation 2579082-C EN 2501... -
Page 41: Appendix
ME. “Effluent treated water”, must be treated by an appropriate water treatment method and risk assessed to ensure it is safe and suitable for use in the Condair ME unit. It is the responsibility of the user to ensure that the water supply system is part of a managed, hygiene monitored water system, risk assessed and complies with the local regulations and bylaws. - Page 42 Fluoride Lead Mercury Nickel Pesticides Polycyclic aromatic hydrocarbons Selenium Tetrachloroethene and Trichloroethene Trihalomethanes Vinyl chloride Water Monitoring The Condair ME water system must be monitored for hygiene as part of the customers water safety control scheme. Appendix 2579082-C EN 2501...
-
Page 43: Warranty
The warranties set forth herein are in lieu of all other warranties expressed or implied by law. No liability whatsoever shall be attached to CONDAIR until said products have been paid for in full and then said liability shall be limited to the original purchase price for the product. - Page 44 QMI-SAI Global www.condairparts.com Buy authentic Condair parts factory direct. Would you recommend Condair? Take our two question survey. U.S.A. 1021 6th Street Racine, WI 53403 CANADA 2740 Fenton Road Ottawa, Ontario K1T 3T7 TEL: 1.866.667.8321 EMAIL: na.info@condair.com WEBSITE: www.condair.com...
