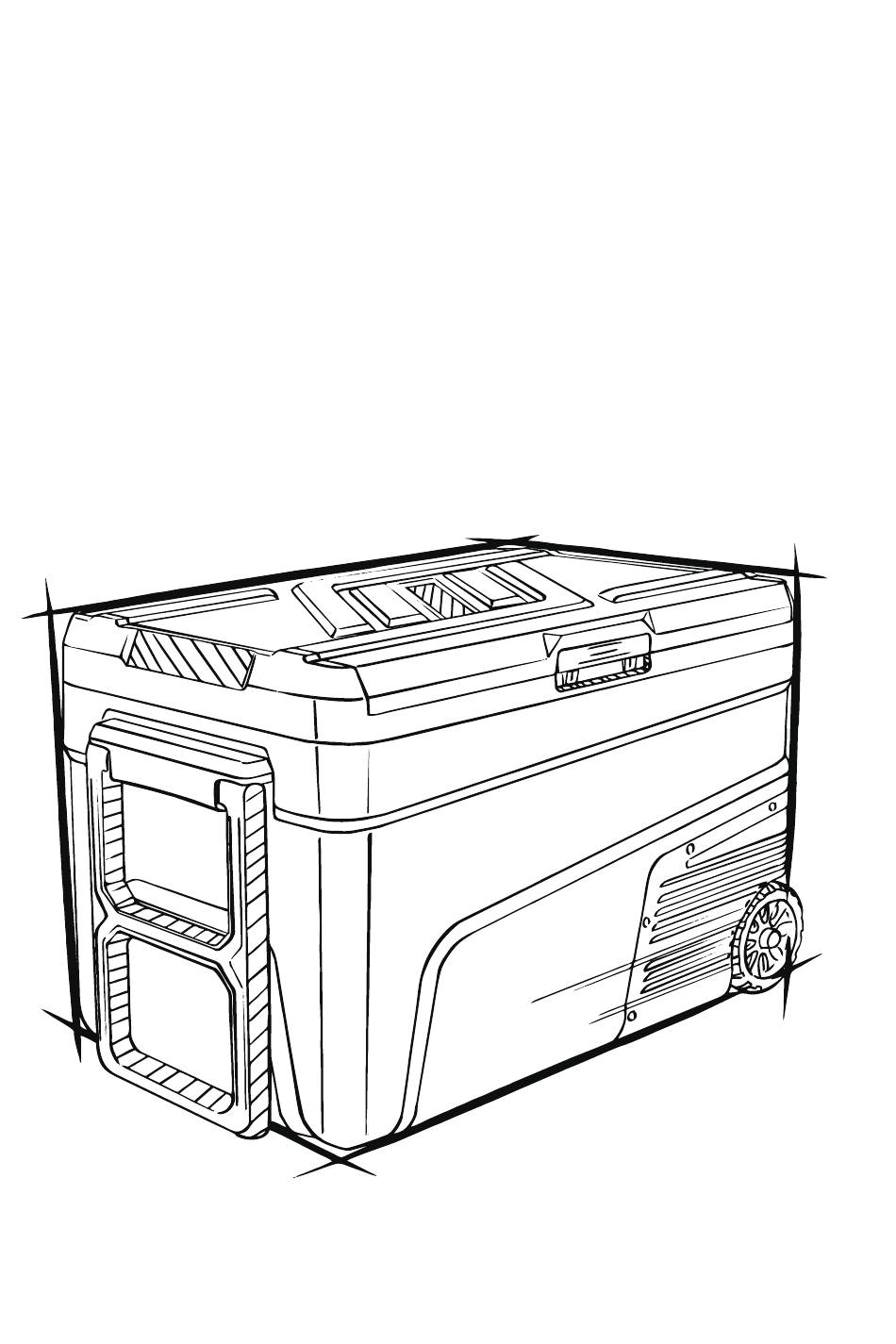

- Page 1 Car Refrigerator Instruction Manual SKU: CFG-45/CFG-55/CFG-65...
- Page 2 support@homyd.com support@homyd.com...
-
Page 3: Table Of Contents
Contents Safety Instructions 02-03 Product Features Product Structure Reversing Door Opening Direction 07-08 Function And Operation 09-10 Battery Operation (Optional) Care And Maintenance Troubleshooting Warranty Technical Information... -
Page 4: Safety Instructions
Safety Instructions WARNING! Do not operate this appliance if it is visibly damaged. Do not block any of the openings in the fridge with items such as pins, wires, etc. Do not expose the appliance to rain or soak it in water. Do not place the appliance near a flame or other heat source (heaters, direct sunlight, gas ovens, etc.) Do not store explosives such as spray cans with a flammable propellant. - Page 5 Safety Instructions CAUTION! Repairs may only be carried out by qualified personnel. Incorrect repair may cause a hazard. The lamp and supply cord must be replaced only by the manufacturer or qualified persons. Installation of DC power in the car must be handled by a qualified electrician. Children must not play with the appliance.
-
Page 6: Product Features
Product Features High-efficiency DC compressor and conversion module. CFC-free and great heat insulation. DC 12/24V or AC 100-240V (using a dedicated adapter) power supply or solar(12-50V)op- tional. Fast cooling to-20°C/-4°F (based on 25°C/77°F room temperature). Three-stage battery protection system prevents the vehicle from running out of battery. Built-in battery compartment for detachable battery (optional): 15600mAh/11.1V/173Wh. -
Page 7: Product Structure
Product Structure Storage compartment... -
Page 8: Reversing Door Opening Direction
Reversing Door Opening Direction The door opening direction can be changed according to actual needs, please follow the instructions below: Door Disassembly: Open the door Take off the door Take off thedoor at a 90° angle from one side from the other side DoorInstallation: Reverse the door Align the door shaft... -
Page 9: Function And Operation
Functi0n And Operation TEMPERATURE CONTROL LED DISPLAY ON/OFF Power supply： DC 12V/24V or AC 100～240V(using dedicated adapter) or solar(12-50V) optional power supply. Display Screen Initialization： When the fridge is powered on, the buzzer will emit a long-beep, and the display will be on for two seconds and then enter standby mode. Power ON/OFF：... - Page 10 Functi0n And Operation Rechargeable Battery (Optional)： There is a battery case for a detachable battery. If you want to charge the battery, connect the refrigerator to the DC/AC power supply and put the battery in the battery case; the display will show the charging status. It is recommended to turn off the refrigerator if you want to charge the battery quickly.
-
Page 11: Battery Operation (Optional)
Battery Operation (Optional) *Note： The old battery model has a DC charging port on the side; the new battery model does not have a DC charging port; refer to the instructions below for more details. It is recommended to use the new model battery. Battery ON/OFF: long-press the power button on the battery to switch it ON/OFF. - Page 12 Battery Operation (Optional) Note: It is recommended to switch off the refrigerator when charging the battery (the power supply mainly powers the compressor when the refrigerator is running). When connected to a solar panel, please place the refrigerator in a cool place to dissipate heat. The charging input power should be higher than the working power of the refrigerator (about 40-45W), or switch off the refrigerator;...
-
Page 13: Care And Maintenance
Care And Maintenance ■ Cleaning: Switch off and unplug the device first to avoid electric shock. Remove the cover and drain the fridge from the hole at the bottom of the device. Use a wet cloth to clean the device, then dry it. Do not immerse the fridge in water. -
Page 14: Troubleshooting
Troubleshooting Issues Cause/Suggestions Check if the switch is on. Check if the plug and socket are connected well. Check if the fuse has burned. Refrigerator does not work Check if the power supply is malfunctioning. Switching the fridge on/off frequently may cause a delayed start of the compressor. -
Page 15: Warranty
Warranty If the device malfunctions, a limited compressor warranty will be provided for 3 years from the date of purchase, except in the following situations: Contrived damage. Damage caused by force majeure such as earthquake, conflagration, etc. Damage from inappropriate use or violating this instruction. Damage or malfunction caused by disassembling. -
Page 16: Technical Information
Technical Information MODEL CFG-45 CFG-55 CFG-65 RATED VOLTAGE DC12/24VorAC100~240V(usingdedicated adapter)orsolar(optional) RATED POWER 45L/1.59Cu Ft. 54.6L/1.93Cu Ft. 64.2L/2.27Cu Ft. CAPACITY <45dB NOISE -20~20°C(-4~68°F) TEMPERATURE T/ST/N SETTING RANGE 692*416*465mm 692*416*53lmm 692*416*585mm DIMENSIONS 27 1/4*16 27 1/4*16 27 1/4*16 (L*W*H) 3/8*18 5/16inch 3/8*20 15/16inch 3/8*23 1/16inch 15.3kg/33.7lb...
