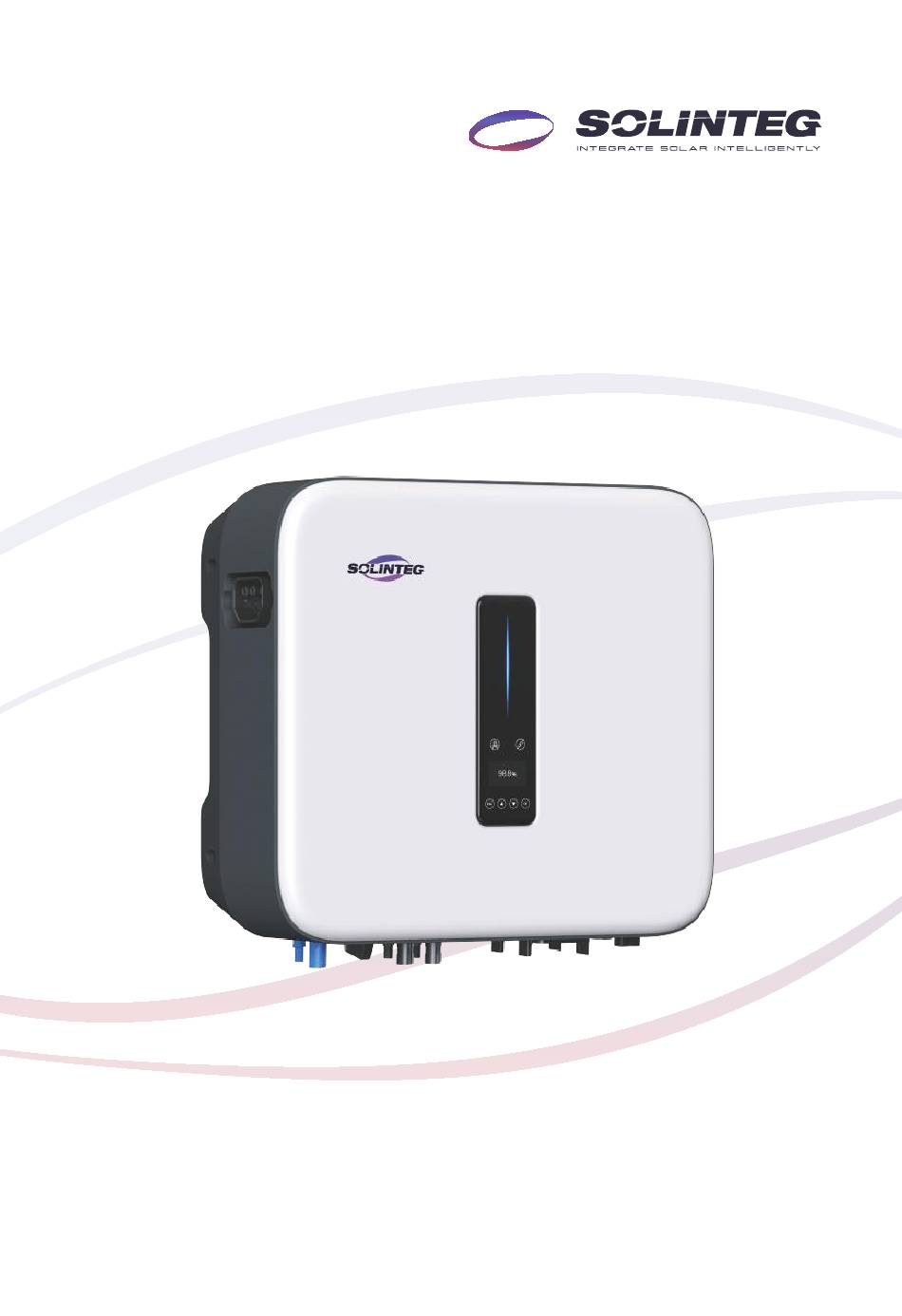

- Page 1 Integ Hybrid Inverter M 2 H S - 3 / 3 . 6 / 4 . 2 / 4 . 6 / 5 / 6 K- 3 0 Quick Installation Guide ENGLISH VERSION...
-
Page 3: Packing List
1 Installation Packing List On-grid AC connector set (1 pcs) Back-up AC connector set (1 pcs) Bolt assembly (5 pcs), M5 screws (1 pcs) PV connector (1 pair for M2HS-3K, CT (1pcs) Meter with CTs (1 set, optional) COM2 multi-function connector (1 pcs) CT connector (1 pcs) Communication module (1 pcs) COM3 multi-function connector (1 pcs) -
Page 4: Installation Angle
Installation Spacing Installation Angle ≥500mm ≥300mm ≥300mm ≥500mm Mark the Position and Drill Holes Fix Wall Bracket Mounting Inverter Rear view... -
Page 5: Electrical Connection
Grounding Terminal Connection 2 Electrical Connection Cable Requirements Cable requirements Cable types Outer diameter Conductor cross-section 3-Core AC Cable (On-grid side) 10-18mm 2.5-10mm 3-Core AC Cable (Back-up side) 10-15.5mm 2.5-6 mm PV cable 5.9-8.8mm 4 mm (12AWG) or 6mm (10AWG) Battery power cable 5-8mm (10AWG) -
Page 6: Electrical Wiring Diagram
Electrical Wiring Diagram Inverter connects with smart meter and CT AC Breaker AC Breaker AC Breaker Solinteg Smart Meter... - Page 7 Inverter connects with a single CT AC Breaker AC Breaker...
- Page 8 AC Connection On-grid AC terminal ① ② Wire Diameter:10-18mm Allen Key Strip Length:10mm Cross-sectional area 2.5~10mm2 50mm ③ ④ Back-up AC terminal ① ② Press Wire Diameter:10-15.5mm Strip Length:10mm Cross-sectional area 2.5~6mm2 30mm ③ ④ Allen Key ⑤ Remove AC terminal Step 2: rorate Step 1：push...
- Page 9 PV String Connection Power Cable of the Battery Connection ① ① 10mm 10mm ② ② 6-16 mm² Phoenix CRIMPFOX-RC 10 Phoenix CRIMPFOX 10S ③ ③ Open-end Wrench Open-end Wrench ④ ④ 550.0 ＋ ﹣ ⑤...
- Page 10 Meter and CT Connection M2HS-3~6K connection with a single CT Utility Grid 002456 Utility meter for billing purposes CT direction S1(Red) S2(Yellow) Load Grid AC Breaker Loads CT connector terminal definition Port Description Connect with CT S1 or the positive pole Connect with CT S2 or the negative pole ①...
- Page 11 CT direction To Solinteg Meter S1(Red) S2(Yellow) Load Grid AC Breaker Loads Solinteg RMM smart meter terminals definition Item Definition Function L/N connect to grid to detect power grid voltage *-S1 To detect the CT current and direction. Ground connection...
-
Page 12: Communication Connection
Communication Connection Port definitions for the COM2 multi-function connector: FRONT BACK Port Function Remark EMS 485A Communicate with the EMS device EMS 485B Stop+ Connect the Emergency Stop device. Normally open (NO) and normally closed (NC) status (Optional) Stop- DO1+ DO1- Digital output DO2+... - Page 13 Port definitions for the COM3 multi-function connector: FRONT BACK Port Function Remark Solink1 For parallel system communication between Solinteg hybrid inverters, or RJ45 for connections with other Solinteg devices Solink2 BMS1 Communicate with the battery RJ45 BMS2 Reserved Synchronization signal termination resistor for parallel systems. In the...
- Page 14 Assembling the multi-function connector ① ② Press COM2 Press COM2 COM3 COM3 ③ COM2 COM3 COM2 quick-connect port wiring steps ① Cross-sectional Area 0.5~1.5mm2 55mm ② ③ Press Loosen Click COM3 RJ45 port wiring steps Open side Click...
- Page 15 Insert the COM2 and COM3 connectors into the corresponding ports of the inverter. Communication Module Installation Sealing Ring Plastic Nut RJ45 Plug Ethernet Port(inside) 3 Commissioning App Preparation ① Install the Cloud monitoring App with latest version. ② Register an account on the Cloud monitoring App. If you have got the account and password from the distributor/installer or Solinteg, skip this step.
-
Page 16: Inspection Before Commissioning
Inspection Before Commissioning Check the following items before starting the inverter: ① All equipment has been reliably installed. ② DC switch and AC circuit breaker are in the "OFF" position. ③ The ground cable is properly and reliably connected. ④ The AC cable is properly and reliably connected. ⑤ The DC cable is properly and reliably connected. ⑥ The communication cable is properly and reliably connected. ⑦ The vacant terminals are sealed. ⑧ No foreign items, such as tools, are left on the top of the machine or in the junction box (if there is). ⑨ The AC circuit breaker is selected in accordance with the requirements of this manual and local standards. ⑩ All warning signs & labels are intact and legible. Commissioning Procedure If all of the items mentioned above meet the requirements, proceed as follows to start up the inverter for the first time. ① Turn on the AC breaker. ② Turn on the lithium battery switch. Power on the battery pack manually if a battery is equipped. ③ Turn on the DC switch, the DC switch may be integrated in the inverter or installed by the customer. Please wait for 5 minutes. ④ The inverter will operate properly if the PV and the grid meet inverter startup requirements. - Page 17 Green The inverter communicates with EMS or Master Flashing inverter through RS485 or CAN Communication Indicator The inverter isn’t communicating with Solinteg smart Orange Always on meter Always on The inverter isn’t communicating with the BMS Display the inverter's operational status, parameter settings, etc.
- Page 18 5 R2MD Communication Module The R2MD communication module is available in multiple versions, below is the feature introduction for the WiFi & LAN version. The WiFi & LAN R2MD module is designed for use with either WiFi or LAN communication, as well as for scenarios where both are connected simultaneously. When both WiFi and LAN are connected, the system prioritizes LAN communication: ① In the event of LAN communication failure or if the LAN cable is disconnected, the WiFi & LAN R2MD will automatically switch to WiFi communication. ② When LAN communication is restored or the LAN cable is reconnected, the WiFi & LAN R2MD will automatically revert to LAN communication. Inverter Server WiFi Smart phone...
- Page 19 6 Device Addition and Network Configuration in IntegHub APP After logging into the On the <Plants> APP, follow the on- interface, select the screen guidance to plant which you need create a power plant. to add new devices and enter it. After entering Click <Scan to add> the<Plants> section, and scan the QR code click on <Devices>, or barcode on the then click the <+> in inverter's nameplate. the upper right corner (Alternatively, tap "Add to add devices. device" to the next step.) Tap <Enable Bluetooth> to turn on Bluetooth on your phone. The APP will automatically scan for nearby devices via Bluetooth.
- Page 20 Proceed to network Once the scan is configuration. complete, the APP will The inverter has display the devices for two configuration addition. Select the methods: WiFi and device you want to add. LAN. Proceed to WiFi setting interface if you choose "WiFi". Select the desired WiFi network and enter the password. Tap <Next> to proceed, or tap <Setup later> to configure at a later time. Proceed to LAN setting interface if you choose "LAN". The DHCP function is enabled by default. If your router or switch has DHCP disabled, you can input the IP address, subnet mask, default gateway, and DNS server manually. Tap <Next> to proceed, or tap <Setup later> to configure at a later time.
- Page 21 After setting the WiFi or LAN information, the APP will go through three steps for network configuration. If any step fails, the reason for the failure will be displayed. Once the network configuration is complete, click <Complete>.
- Page 22 After finish network configuration, click <Confirm> to confirm the addition of the device. Click the edit button to rename the device. Entering the device details interface, you can view the device name, SN, device type, device model, communication mode (WiFi or LAN), IP address, MAC address, firmware version, and connection date.
- Page 23 • Serial number of the device • Date of the device • Fault code/name • Brief description of the problem China (HQ) Wuxi Solinteg Power Co., Ltd. Address: Building 10, No. 52-2 Changjiang South Road, Xinwu District, Wuxi, China Website: www.solinteg.com Service Mail: service@solinteg.com...
- Page 24 User Manual M11-00054-01...
