Summary of Contents for MUKKPET TANK

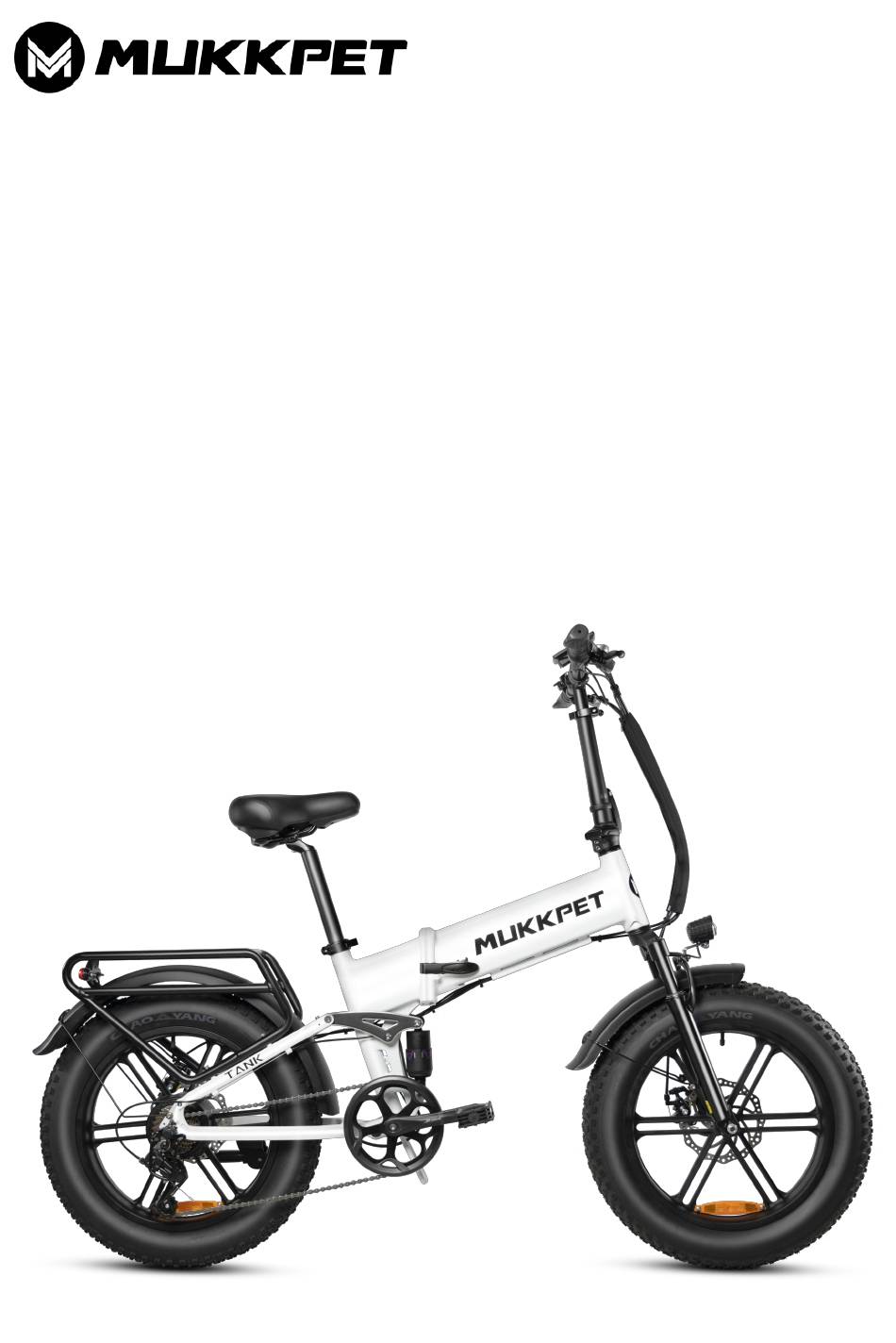

- Page 1 MUKKPET TANK User Manual...
-
Page 3: Table Of Contents
Contents Welcome to the Mukkpet ! ..........03 Product Overview ..............05 Specification ............... 06 Assembly Guidance ............. 07 - Package Content ............07 - Assembly Steps .............. 08 Pre-ride Check ..............12 Battery .................. 13 - Correct Key Position ............13 - Battery Charging .............. -
Page 5: Welcome To The Mukkpet
Welcome to the Mukkpet！ Congratulations on your purchase of a new Mukkpet E-bike! Thank you for choosing Mukkpet as your cycling companion! Please read and understand this manual thoroughly before assembling and cycling your ebike. The assembly video and other useful content about the ebike can be found in the QR code of this user guide. - Page 6 Failure to do so may result in property damage, serious injury or death. WARNING Mukkpet E-bike LLC assumes no liability for any harm, injury, or death of the rider. The bike comes 95% assembled and here is the guide that helps you get familiar with your new bike in unboxing.
-
Page 7: Product Overview
Product Overview LCD Display Shimano 7 Shifter Bell Brake Lever On/Off Switch Throttle Saddle Front Suspension Seat Post Rear Rack Front Light Rear Suspension Rear Light Pedal Crankset Wheel Chain Disc Brake Motor... -
Page 8: Specification
Specification Item Specification Model TANK Product Dimensions 178*66*123 CM Package Dimensions 101*46*85 CM Max Load 400 LBS Package Weight 40 KG E-Bike Weight 32 KG Max Speed 25 MPH 48V 15AH Battery/Charger INPUT 100-240V 50/60HZ OUTPUT 54.6V 2.0A Pedal-Assist Mode... -
Page 9: Assembly Guidance
Assembly Guidance Package Content Electric Bike*1 User Manual*1 Battery*1 Tool Bag*1 Seat*1 Display*1 Pedals*2 Charger*1 Please scan the following QR code to watch the assembly video. https://www.youtube.com/watch?v=U_G3SGbfHZI... -
Page 10: Assembly Steps
Assembly Steps Step 1: Handlebar 1. Push the clamp to lock the frame solidly. 2. Make sure the frame is tight. Step 2: Riser 1. Open the folding riser. - Page 11 2. Align the front stand tube. 3. Push the front stand tube in. 4. Back up the folding riser. 5. Fix the folding riser.
- Page 12 Step 3: Handlebar Adjust the height of the handlebar and fix the riser ring. Step 4: Pedals 1. Install the left and right pedals. "L" means to the left pedal and "R" means to the right pedal. 2. Twist to the left when installing the left side and twist to the right when installing the right one.
- Page 13 Step 5: Battery 1. Key Location (hung on the hand- lebar near the display). 2. Insert the key into the keyhole under the battery frame and turn the key to the right to acti- vate the battery. Step 6: Power on After turning on the battery, press the button for more than 3 secon- ds to turn on the display.
-
Page 14: Pre-Ride Check
Pre-ride Check 1. Make sure all components are tightened. Adjust the height of the handlebar and the seat post. DO NOT raise it above the safety line. 2.Make sure the brakes can cut off the power supply to the motor, and whether it is sensitive and reliable. 3.Make sure the display, brakes and lights can work properly. -
Page 15: Battery
Battery NOTICE Before turning on the bike, please turn the key to the correct position to ensure that the battery is active. Correct Key Position 1. Fix the Battery：Turn the key to the right to this position to fix the battery. 2. -
Page 16: Battery Charging
Battery Charging NOTICE Two charging ways: The first is to remove the battery and charge it. The second is to directly plug the charging cable into the charging port on the frame. Charging Port (On the battery) Keyhole Key-plug-in Location (Under the frame) Charging Port (On the frame) -
Page 17: How To Take Care The Battery
How to Take Care The Battery NOTICE Check the charger, charger cables, and battery for damage before each charge. The charger shows red during charging, and it would turn green when the battery is fully charged. 1. Always charge in a safe area that is cool, dry, indoors, away from direct sunlight, dirt, or debris, in a clear area away from the potential to trip on the charging cords, or for damage to occur to the bike, battery, or charging equipment while parked... -
Page 18: Display And Setting
Display and Setting Battery Level Indicator Speed Pedal Assist Level Trip Battery Level Remaining battery power Indicator Speed Real time speed while riding 0,1,2,3,4,5 Displays the current pedal Pedal Assist Level assisted mode. Shows the distance of a single trip. Data is automatically cleared when the bike is Trip powered off. - Page 19 “+” Button On/Off Button “-” Button Common How to Do Operation Press and hold the “ ” for 3 seconds Turn on/off till the display is on / off. bike Increase/Decrease Press "+" or "-" button to increase or the PAS Level decrease the PAS Level.
-
Page 20: Parameter Setting
Parameter Setting When the display is powered on, long press “+ ” and “ - ” at the same time, then will enter parameter setting mode. In this mode, you can change parameter values according to “ + ” or “ - ”. Short press “... - Page 21 Set Mode Operate Note 0: 16 inch 4: 24 inch P06: Wheel Short press "+" / "-" to 1: 18 inch 5: 26 inch size selection switch wheel size 2: 20 inch 6: 700C 3: 22 inch 7: 28 inch P07: Number of magnets Short press "+"...
-
Page 22: Error Code Definition
Error Code Definition When an error appears, M6C will notice users by different codes, please refer to the table for different codes: Code ( Decimal ) Signification Current anomaly Turn handle anomaly Motor phase deficiency Brake anomaly Communication anomaly NOTICE The display has generally been set to a normal state, and it is recommended not to modify the data of the display... -
Page 23: Operating Safety
Operating Safety 1. This E-bike will power off when braking. It ensures the safety of riding. 2. Don’t carry people in the rear seat. The weight limit of the rear seat is 25kg. 3. Don’t ride exceed the speed limit set by the local traffic laws. Comply with the CLASS 1 maximum speed limit: 20MPH. -
Page 24: Faq
Q: What if the battery cannot be charged, and the display shows an abnormal battery power? A: Use a multimeter to test the battery voltage. Check if the charger indicator is normal. (Red light means charging, green light means fully charged) If the battery case is damaged, stop using the battery and contact us. - Page 25 Q: I need to return the e-bike, what should I do? A: If you need to return the e-bike, please contact the Mukkpet customer support team within 14 days of purchase.
-
Page 26: Component Maintenance
— Pay attention to frame maintenance. Wipe the bike and keep it dry. —Any merchandise with electrical components is not recomm- ended to be exposed to water and the warranty of the Mukkpet does not cover water damage. So please try not to store or use the bike in wet condition. -
Page 27: Brake Maintenance
Brake Maintenance — Check brake pads regularly. — Check the brake disc regularly to prevent deform. — If it is a hydraulic brake, check regularly to see if any oil leakage. — Clean the brake regularly. Motor Maintenance —... -
Page 28: Warranty
Warranty The main parts of the warranty provisions. Warranty Component Performance Failure Remark Period Natural sealing off. Except damaged Front fork 1 Year Fracture key parts handlebar caused by riders. crack. Internal gear break. Bearing broken. The wheel hub shell ... - Page 29 We will replace any parts deemed to have been damaged during shipping. Shipping damage must be reported to Mukkpet E-bike within 14 days of shipment arrival. This applies to all products including bikes and accessories. Replacement parts will not be sent until photographic evidence has been provided to Mukkpet E-bike.
-
Page 30: Disclaimer
Mukkpet E-bike is not responsible for the repair or replacement of damaged bikes or parts. 4. Mukkpet E-bike reserves the right to change its warranty at any time and without notice. 5. Under no circumstances is Mukkpet E-bike responsible for any damage resulting from damaged, defective, or improperly secured parts. - Page 31 Contact us for more owner benefit. E-mail: support@mukkpetbike.com WhatsApp: +86 17825804876...
