GL SERIES
Ebike User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL Series and is the answer not in the manual?

Questions and answers

Related Manuals for MUKKPET GL Series

Summary of Contents for MUKKPET GL Series

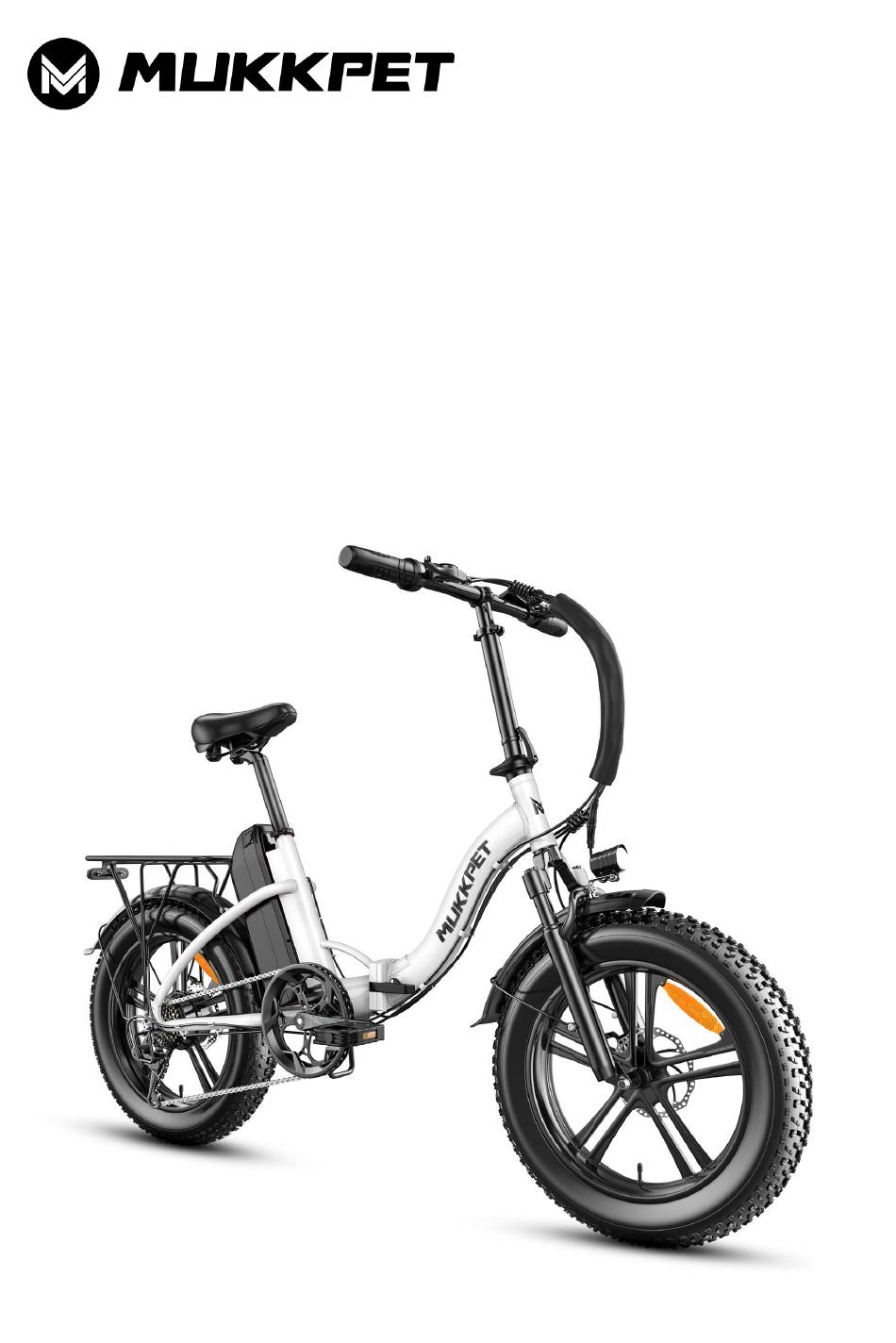

  • Page 1 GL SERIES Ebike User Manual...

  • Page 3: Table Of Contents

    Contents Warnings ..................2 Assembly Instructions ..............3 Adjustment ..................7 Check ..................... 9 Display ..................10 Operating Safety ................17 Troubleshooting ................18 Maintaining .................. 20 Warranty ..................22 Disclaimer ................... 24...

  • Page 4: Warnings

    Warnings Mukkpet Ebike LLC assumes no liability for any harm, injury, or death of the rider. Congratulations on your purchase of a new Mukkpet Ebike! The bike comes 85% assembled and here is the guide helps you get familiar with your new bike in unboxing. The bike may need adjustments in this process as shipping can sometimes be bumpy.

  • Page 5: Assembly Instructions

    Assembly Instructions 1. Unfold the Bike Step 1: The bike comes being folded as the picture one shown. Step 2: Unfold the bike and press the quick release according the direction.
  • Page 6 2. Install the Handlebar Step 1: Insert the stem of the handlebar into the top tube along the groove. Step 2: Adjust the height of the handlebar then tighten the screw and lock the release. 3. Unfold the Stem ① ②...

  • Page 7: Adjust The Seat

    ③ ④ 4. Adjust the Seat Step 1: Open the quick release. Step 2: Insert the seatpost, ensuring the minimum insertion point (safety tick marks) goes into the seat tube. Step 3: Search for a comfortable height of saddle by sitting on the saddle with your feet on the ground.
  • Page 8 5. Battery Step 1: Turn the key to lock/unlock the battery on bike according to the position attached to the battery as the picture shown. Step 2: Pressing the button on the battery to check the battery power. Step 3: The battery can be removed or not when charging.

  • Page 9: Adjustment

    Adjustment 1. Brake Adjust the rotor ② Adjust the brake ③ Adjust the rotor ① 1.Make sure the brake disc is in the middle of two brake pads. 2.Adjust the brake tension according to your riding habits. 3.Loosen the screw and adjust the brake wire to the suitable brake tightness.
  • Page 10 2. Serial Number There is a serial number attached on head-tube or on the bottom axis connecting the pedals as shown in the following picture. Please take a picture ahead once you received the bike. You may be asked for a picture of your bike’s serial number as a part of warranty requests and may also be asked to provide this number to law enforcement provided that your bike is stolen.

  • Page 11: Check

    Check 1.Make sure all components are tightened. Adjust the height of the handlebar and the seat post. DO NOT raise it above the safety line. 2.Make sure the brakes can cut off the power supply to the motor, and whether it is sensitive and reliable. 3.Make sure the front and rear axle nuts are tightened.

  • Page 12: Display

    Display Material & Dimension 1) Material Outer shell and button: ABS LCD window: PMMA 2) Outside and Mounting Dimension(mm)
  • Page 13 3) Installation Install the display in the middle of handlebar, then adjust to ● suitable angle, install the press button to left side of handlebar. Power off the device, connect the device to controller. ● Power on. ● Overview of LCD-P3H Functions 1) Display Function Speed display, Battery Indicator, fault indication, total distance...
  • Page 14 3.3 Long press “ ” for 3 seconds turn on/off the head light. ” key + “ ” key enter mode setting. 3.4 Long press “ Parameter value modification: In a parametric state, short press “ ” key to switch parameters, short press “ ”...
  • Page 15 4.1 Battery Power and BMS Remaining Power Display 4.2 Multifunctional Display Area ODO: Odometer, TRIP: trip distance (unit: mile, km), TIME: Single startup time, VOL: battery voltage, DST: distance-to-empty. 4.3 Speed Display Area AVG: average speed MAX: max speed SPEED: current speed. Unit Mp/h, km/h. The speed signal is obtained from the Hall signal inside the motor and sent to the instrument through a controller (the time for a single Hall cycle is 1 millisecond).
  • Page 16 4.4 Assist Level Adjustment 0-5 digital display and gear bar display. 4.5 E-bike Status Display Area : Motor failure : Brake warning : Headlight reminder Error code definition: Status Code Condition Meaning Brake Battery under-voltage Motor fault Throttle fault Controller fault Communication reception fault Communication transmission fault...
  • Page 17 5) Setting P01: Backlight brightness, Level 1 is darkest and level 3 is brightest. P02: Mileage unit, 0: KM; 1: MILE . P03: Voltage level: 24V, 36V, 48V, 60V (default 36V). P04: Auto shutdown time: short press “+” “-” to switch from “0” to “...
  • Page 18 Notices: The P09-P15 menu is only valid in communication status. P09: Zero start and non-zero start settings 0: zero start. 1: non-zero start. P10: Drive mode setting 0: pedal-assist drive (the output of pedal assist is determin- ed by the assist level, and the throttle is invalid at this time).

  • Page 19: Operating Safety

    Operating Safety This Ebike will power off when braking. It ensures safety of riding. Do not carry people on the rear seat. The weight limit of the rear seat is 25kg. Do not ride exceed the speed limit set by the local traffic laws.Comply with the CLASS 1 maximum speed limit: 20MPH.

  • Page 20: Troubleshooting

    Troubleshooting Q: The battery cannot be charged, the display shows an abnor- mal battery power. A: Use a multimeter to check if the battery still have voltage. Check if the charger indicator is normal. (Red light means charging, green light means fully charged).The battery case is damaged, stop using the battery and contact us.
  • Page 21 Q: Water leak into the display. A: Do not ride in rainy days, and it is forbidden to ride in heavy rain. Add protection to the display if you ride in rainy days. Warranty will not cover the display problems caused by water damage.

  • Page 22: Maintaining

    Pay attention to the frame maintain. Wipe the bike and keep it dry. Any merchandise with electrical components is not recommen- ded to be exposed to water and the warranty of the Mukkpet does not cover water damage. So please try not to store or use the bike in wet condition.
  • Page 23 Motor Maintenance Do not try to disassemble the motor. If there is any problems with the motor, contact Mukkpet with a video. Derailleur Maintenance Check the rear derailleur regularly to see if it hanged to every gear (contact us for the video about how to adjust the shifter).

  • Page 24: Warranty

    Warranty The main parts of the warranty provisions Warranty Component Performance Failure Remark Period Front fork Natural sealing off. Except amaged 1year handle bar Fracture key parts crack. caused by riders. Internal gear break. Bearing broken.The wheel hub shell cracking. Except damaged Motor 1year...
  • Page 25 We will replace any parts deemed to have been damaged during shipping. Shipping damage must be reported to Mukkpet Ebike within 14 days of shipment arrival. This applies to all products including bikes and accessories. You will NOT be refunded as compensation for your time or efforts replacing damaged parts.

  • Page 26: Disclaimer

    Mukkpet Ebike is not responsible for repair or replacement of damaged bikes or parts. 4. Mukkpet Ebike reserves the right to change it warranty at any time and without notice. 5. Under no circumstances is Mukkpet Ebike responsible for any damage resulting from damaged, defective, or improperly secured parts.
