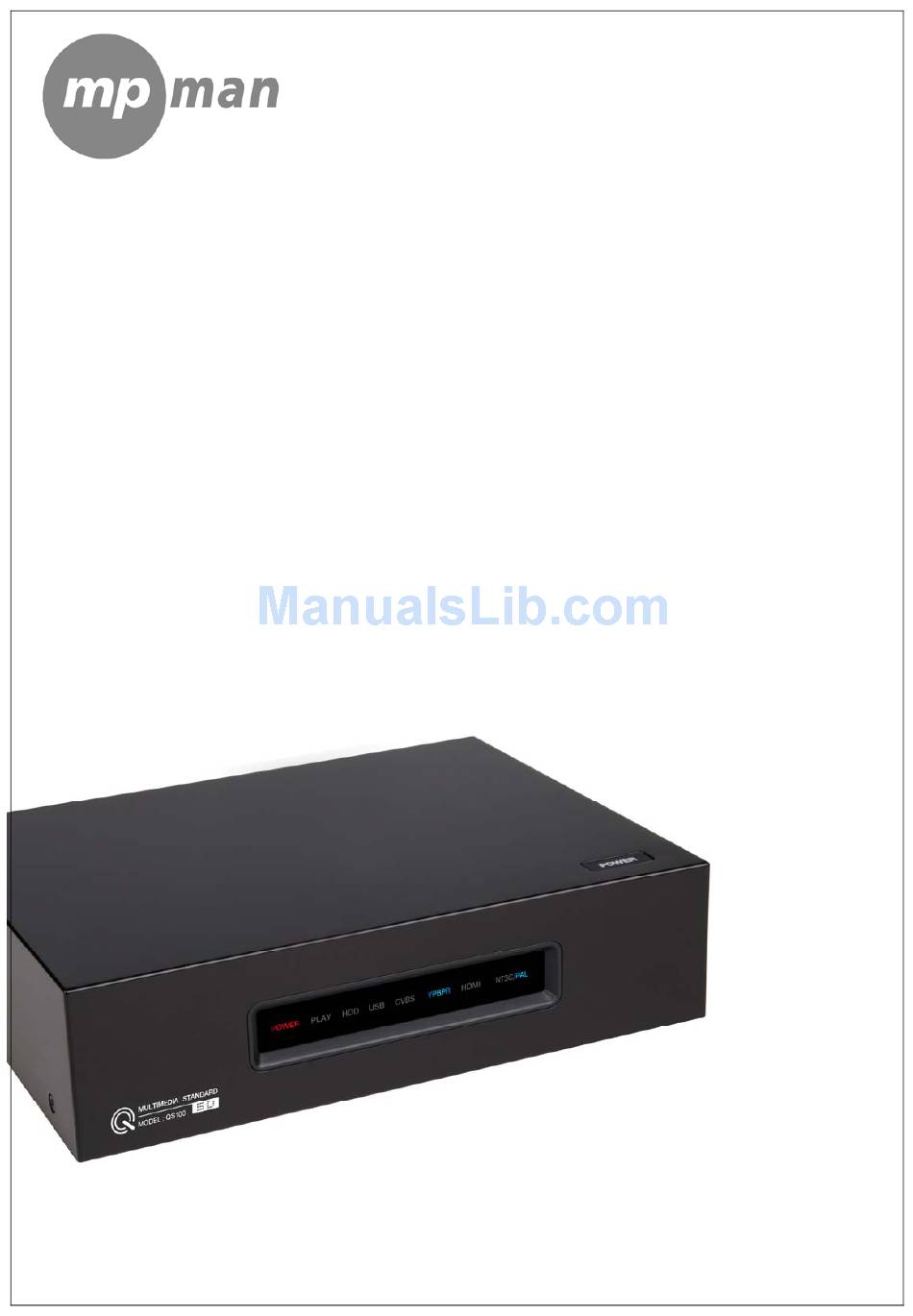

- Page 1 The Movie what you really wanted to watch The Music which is your favorite The Photos which has your happy memories TV Drama which you would never miss Relax yourself wherever and whenever so far Ultimate Digital Multimedia Player “Movie Clip”...
-
Page 2: Table Of Contents
2. Safety Precautions ........................4 3. Product Specification ......................7 4. System Requirements (for PC) ....................8 5. Descriptions & Product Contents..................9 5-1 QS-100 Description......................9 5-2 Product Contents......................10 6. Install HDD ..........................11 7. Partitioning and Formatting Hard Disk ................12 7-1 Setting and Formatting on Windows 98/ME.............. -
Page 3: Product Feature
User Manual Guide Model: QS- QS-100 is a new type of entertainment device with 3.5’’ hard disk mounted inside. You can play various multimedia data including video, music and image files saved in a PC by connection this device to PC with USB cable. -
Page 4: Safety Precautions
User Manual Guide Model: QS- Please note the following precautions before use, Also, please pay special attention to additional cautions marked [caution] in this User Guide Proprietary Data Proprietary contents such as software, sound sources and videos are protected under relevant laws including the Copyright Act or Privacy Law using this product. - Page 5 User Manual Guide Model: QS- Loading Do Not put heavy object on this product, this can result in damage to this product or person injury. Water and Moisture Do not let this product contact with water or liquids. If conductive liquids like water leaked into this products, Immediately disconnect power and turn it off as that could result in a fire hazard or electric shock Chemical Agents Do Not use chemical agents or detergents, this could damage the surface of this product.
- Page 6 User Manual Guide Model: QS- Any part of this user guide can not be copied in any form or by any means (including electrical copy, mechanical copy, copy by copy machine, disk copy, ect.), reproduced or saved, introduced or transmitted into search system without the written permission of Zioncom Technology Ltd. Except rights expressly granted to the user by Zioncom Technology Ltd upon the use of this product, supplying this document does not permit any license in relation to patent right, trademark right copyright or other property rights...
-
Page 7: Product Specification
User Manual Guide Model: QS- Specification MPEG 1,2,4(MPG, MPEG, AVI, DAT, VOB, IFO, ISO) Movie Divx, Xvid (except GMC, Qpel optitions) Supported File Formats Music MP3, WMA, WAV, Ogg, Vorbis Photo JPEG Video Output S-video, Composite, HD Component (480p,720p,1080i) Audio output 2CH Analog, 5.1CH Optical (AC3, DTS). -
Page 8: System Requirements (For Pc)
User Manual Guide Model: QS- -USB 2.0/USB1.1 Interface (USB 2.0 recommended) PC Requirement for -Operating System USB Connection Windows 98SE/ME/2000/XP, Linux 2.4 or later, Mac OS 9.1 or later... -
Page 9: Descriptions & Product Contents
User Manual Guide Model: QS- & & 5-1 QS-100 Description... -
Page 10: Product Contents
User Manual Guide Model: QS- Power - Turns QS100 on and off LED DISPLAY -Shows the player exactly working status Remote Control Sensor - Aim remote controller to this sensor - Cools down HDD. Cooling Fan - Dusty cooling fan causes noises. - Please clean this area often. -
Page 11: Install Hdd
User Manual Guide Model: QS- ● Follow following step-by-step instruction to install a HDD, It is not as hard as you think, just follow the steps slowly. 1. Unscrew the screws on both side of QS100 Use a screwdriver to unscrew the screw. 2. -
Page 12: Partitioning And Formatting Hard Disk
User Manual Guide Model: QS- Non-formatted hard disks are not detected by PC. If the hard disk is not formatted, please take the following steps to format it. Newly purchased hard disks are not normally formatted 7-1 Setting and Formatting on Windows 98/ME In Windows 98SE, install and exclusive driver before proceeding to partition and Caution formatting. - Page 13 User Manual Guide Model: QS- Among fdisk options, select options 5[change current fixed disk drive]. Type the hard disk number fro partitioning in [Enter Fixed Disk Number] and press the [Enter] key Select [1.creat DOS partition or Logical DOS Drive] in fdisk options by typing “1” and then press the enter key Select [1.Creat Primary DOS Partition] in ‘Create DOS Partition or Logical DOS Drive’...
- Page 14 User Manual Guide Model: QS- Wait for integrity check to be complete as below 10. After integrity check, say yes to the message ‘Do you wish to use the maximum available Size for a primary DOS partition and make the Partition active( Y/N)? By typing “Y”...
- Page 15 User Manual Guide Model: QS- 14. At hen C:\WINDOWS> prompt, type exit and then press[ENER] to return to window screen. 15. Disconnect QS100 from PC and then connect it again to PC. 16. Drive letter s created in [My Computer] of Windows Explorer.
-
Page 16: Setting And Formatting On Windows 2000 / Xp
User Manual Guide Model: QS- 7-2 Setting and Formatting on Windows 2000 / XP Non-formatted hard disks are not detected by PC. If the hard disk is not formatted, please take the following steps to format it. Newly purchased hard disks are not normally formatted Connect QS100 to a PC using a USB cable Select [Start>... - Page 17 User Manual Guide Model: QS- Select [Primary Partition(P)] and Click [Next] to continue Enter the desired partition size in [Partition size in MB] and Click [Next] to continue. 10. When the [driver letter] is assigned, Click [Next] 11. In the format partition windows, select [format this partition with the following settings] and FAT32, and then check [Perform a quick format] box.
- Page 18 User Manual Guide Model: QS- 13. A new NTFS partition was created. 14. Right-click an [Unallocated] drive in Drive Management and select [New Partition] from the menu that appears. 15. When the New partition wizard is shown Click [Next] to continue. 16.
- Page 19 User Manual Guide Model: QS- 19. In the format partition windows select [Format this partition with the following settings] and NTFS, and then check [Perform a quick format] box, Click [Next] to continue. 20. When [Completing the New Partition Wizard] appears, Click [Finish].
-
Page 20: Use On Linux (Available On Linux 2.4 Or Later)
Mount -t vfat / dev / sda / mnt / QS100 -> for HDD formatted with FAT32 Mount -t ntfs / dev / sda / mnt / QS100 -> for HDD formatted with NTFS it is assumed that QS-100 is detected as sda in the example above .Drive name Note may subject to change depending on user environment .Please type the name of... -
Page 21: Connecting Video Cable
Connected a yellow (Video) cable, red and white(audio) cables to the same colored jacks located on either rear or front of your TV. And the other end of the cables to the same colored jack of the QS-100. Turn on the TV, and select the appropriate input. - Page 22 User Manual Guide Model: QS- Connect an S-video cable from S-Video output jack of QS-100 to S-Video input jack of your TV. Audio signals should be connected separately using analog audio cable. S-Video cable is not supplied with QS-100 package.
-
Page 23: Connecting Audio Cable
Red (Stereo-R) White port of QS-100 White (Stereo-L) Connect red and white audio cables from QS-100 to same colored input jack of TV or audio device. Use of supplied audio cables is highly recommended Connect Digital optical Cable Connect to... -
Page 24: Remote Controller
User Manual Guide Model: QS-... - Page 25 Indicate the movie file in the frame MUSIC Indicate the audio file in the frame PHOTO Indicate the photo file in the frame You can return to QS-100 environment setting menu by pushing this button SETUP while DVD playback is stopped FUNCTION Special Function Menu Button...
- Page 26 PICTURE options sequentially by pushing the button repeatedly and make selection using left /right arrow keys Modifies TV out put supported by QS-100 sequentially. If your TV screen fails to show images, please push this button slowly . TV OUT As there are seven TV output modes, you will get images by pressing the button less than eight times.
-
Page 27: Setting The Setup Menu
User Manual Guide Model: QS- See below for the SETUP screen of QS-100.Menu options indicated in white on the left are setup options. Yellow item in the center are current settings. Items in white box on the right are values that can be set in the current menu option. - Page 28 User Manual Guide Model: QS- Video Output NTSC Outputs NTSC composite video signals Output PAL composite video signals NTSC 480i Output NTSC composition video signals and 480i component signals PAL 576i Output PAL composite video signals and 576i component signals 480P Outputs component 480P progressive signals.
- Page 29 User Manual Guide Model: QS- Subtitle Font Size Large Subtitle When playing video with subtitle, subtitle are indicate in large letter. Small Subtitle When playing video with subtitle, subtitle are indicate in small letter. Hide Subtitle When playing video with subtitle, do not display subtitles on screen. Subtitle Color Letter Color/Border color Choose from white –black / yellow –black / Blue green-black / white-blue / Yellow-blue...
-
Page 30: Special Menu Setting
User Manual Guide Model: QS- Press the "f1"button on remote under the selection of partition or file list. With the button, It will execution or end. You may use "ok" button for returning from Special Menu. Setting is using by an arrow button of Up/Down and Left/Right. ●... - Page 31 User Manual Guide Model: QS- Auto Run 1) Make the folder named "Autoplay" of the first partition. 2) Save some music files into the folder. 3) Press the "FUNCTION" button and select the “Auto Run " with "Use" 4) Press the "OK" or "FUNCTION" button to finish. 5) You may automatically listen to all of music in the Autoplay folder whenever booting including sub-folder Music Photo Slide...
-
Page 32: Additional Functions
User Manual Guide Model: QS- ● Additional Functions Setting. Multi Subtitle When you press the SUBTITLE button 2 times while playing some movie, it shows "SUBTITLE FONT SIZE & SUBTITLE LANGUAGE". You may change the SUBTITLE options with an arrow button of Up/Down. Audio Multiplex When you press the "FUNCTION"... -
Page 33: Main Screen Configuration
User Manual Guide Model: QS- QS-100 provides simple and intuitive user environment .All files that can be played are shown on screen. You can play files simply by pressing arrow keys to choose a desired option and pushing the [OK] button on the remote controller ●... - Page 34 All audio files that can be played are shown with this icon. (MP3,WMA, OGG, WAV) Image File ALL image file that can be played are shown with this icon (JPG, JPEG). Firmware File QS-100 's firmware file is shown with this icon. Select Bar Display selected option Current Directory Displays directory of the folder currently on screen.
-
Page 35: Playing Movie
User Manual Guide Model: QS- Plays AVI, MPG, MPEG, DAT, and VOB files. When the video contains subtitle, subtitle should be saved in the same folder as video. If the [OK] button on the remote controller is selected to play video, playback is started from the selected file to the last file sequentially and then stopped. - Page 36 User Manual Guide Model: QS- Button Function Description Skips to the point of time you want to view from current time GOTO Skip during playback. Type the point of time using arrow keys or numerical buttons and push the OK button to proceed Play the selected file.
-
Page 37: Playing Music
User Manual Guide Model: QS- Plays MP3, WMA, OGG and WAV files. Search function does not work for OGG files. If the [OK] button on the remote controller is selected to play audio, playback is started from the selected file to the last file sequentially and then stopped. -
Page 38: Playing Image
User Manual Guide Model: QS- Plays JPEG files If the [OK] button on the remote controller is selected to play images, only selected files are displayed on screen. Push the [play] to start slide show. Push the [stop] to stop slide show Button and function for image playback ●... -
Page 39: Using Virtual Dvd
User Manual Guide Model: QS- Virtual DVD function is used to play ripped DVD data saved in QS-100 as is played on DVD player. Basically, QS-100’s remote controller is designed to support all function provided by DVD. Now, enjoy DVDs to the full without damaging your valuable DVD collection. -
Page 40: Firmware Upgrade
User Manual Guide Model: QS- The upgrade version of firmware for QS-100 is released occasionally with function updates and bug fixed depending on the development situation by customer demands. Check your firmware version at the upper right corner of the screen Download the latest firmware file from “Download”... - Page 41 The device reboots automatically. Post-upgrade firmware version can be seen at the upper right corner of the SETUP menu If power is turned off accidentally during firmware upgrade, QS-100 cannot operate as Note normal,. In this case, please restore firmware using firmware rescue mode...
-
Page 42: Firmware Recovery Mode
User Manual Guide Model: QS- When the main body is turned off during firmware upgrade, QS-100 system get damaged and the screen turns blank. In this situation, follow the steps below to restore firmware. See the picture above for reference Connect QS-100 to pc and copy firmware file to QS-100. -
Page 43: Troubleshooting
USB 2.0 host card to speed the copying of files. QS-100 is not detected in my computer or Windows Explorer after connecting the device to PC. - If you are using Windows 98 SE ,you have to install drivers. - Page 44 - Damaged by using accessories or parts not supplied by the ZIONCOM Technologies. - Damaged by any natural disaster such as fire, lightening ,flooding, etc - Damaged by any other misuse of the product by the user Recording Items Product name : QS-100 Date of Purchase: Place of Purchase: Serial Number:...
