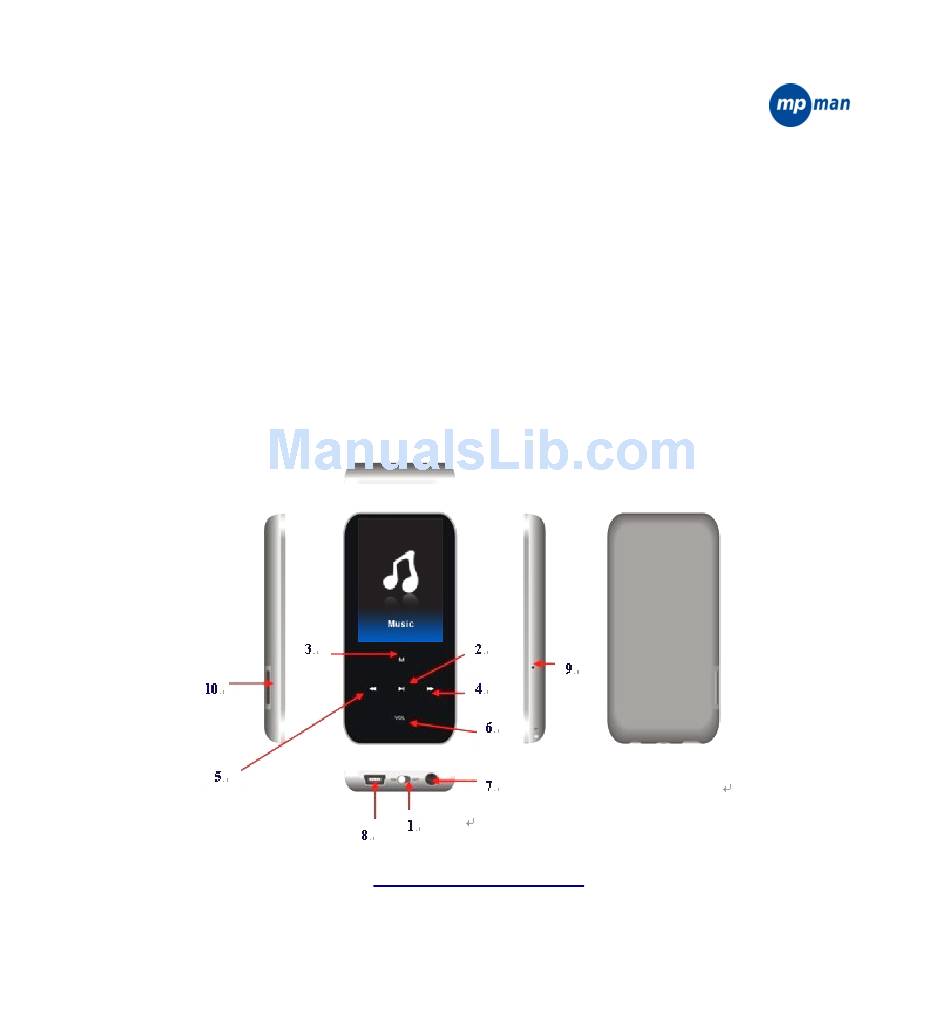

- Page 1 TK200 MP4 Player USER’S MANUAL About your player www.mpmaneurope.com PDF 文件使用 "pdfFactory Pro" 试用版...
- Page 2 KEYPAD Function ON/OFF Turn on/off the player PLAY/PAUSE Switch on/switch off/play/pause Enter the menu Nextsong/option,fast NEXT forward,volumeup Previous song/option,fast backward, volume down Volume control HEADPHONE Connect with 3.5mm stereo headset JACK Charging, data transfer with PC INTERFACE MICROPHONE Microphone www.mpmaneurope.com PDF 文件使用...
- Page 3 TF CARD SLOT Connect with TF card Main Functions Enter the Menu When the “M” key is pressed for a short time, all main menus and the submenus can be entered. If you want to quit from them, then long press “M” key. Main menu Main menus as below: www.mpmaneurope.com...
- Page 4 Power Switch Slide the power switch to ON position and long press the “►;”key to power on the player. When the MP4 player is at working status, also long press “►;”key to power off the player. Play/Pause The “►;”key for play or pause. Sound Volume Adjustment When the player is playing, press “VOL”...
- Page 5 Music Playing Interface: The operation steps are shown as follows .Insert the earphone in the earphone jack of the MP4 player. 2.Power on: slide the power switch to “ON” position, long press the “►;” key to power on, press the “M” key to enter the music playing interface, and finally press the “►;”...
- Page 6 and press the“7”key to choose the previous song. 4.Sound volume adjustment: at first, short press the “VOL” key, then press the “8”key to increase the sound volume, or press the “7”to reduce the sound volume. Display the name of the song and the lyrics The player can support the synchronous display of lyric with the “*.LRC”...
- Page 7 with the name of the song and will display it syn-chronously. Video playing Interface as below: 1.Press the button M to enter interface of video mode. 2.Press the button “7/8”to select your favourite video. 3.Press the button “►;” to start or pause playing video. 4.Long press the button “7/8”to fast backward or forward the video.
- Page 8 button “7”to decrease the volume and press the button “8”to increase the volume. This player support AVI format only, its general operation is similar to music playing. To convert your video files please use MPMANAGER software as included in your player and CDROM FM Radio Interface as below 1.Press the button M to enter interface of FM.
- Page 9 2.Press the button M to enter its submenus: manual, auto, mem, preset, del. 3.Press the button “7/8”to select submenu. Then press the M button to enter its interface. Volume adjustment 4.Press the button VOL to enter volume control interface. Press the button “7”to decrease the volume and press the button “8”to increase the volume.
- Page 10 the button “7/8”to select saved channel. Press the button M to enter the stations saving interface. Press the button again to save the channel. And press the button VOL back to FM interface. Stations preset: Press the button M to select “preset” ,then “7/8”to switch preset channels.
- Page 11 Photo Browsing 1. Enter the main menu of the photo browsing 2. Press the “M” key to enter the photo browsing list, if there is no photo file, the list will display “emptiness”. 3. Browsing the picture 1.Use “7/8”to select photo. Then press“►;” to see the photo you selected.
- Page 12 files required to be deleted in the photo list at the end of the navigation, short press “PLAY” key to enter the prompt for deleting the file, select “YES” option, and finally, short press “M” key to confirm. E-book 1. Enter the main menu 2.
- Page 13 state. 4. Press “7/8”key for a short time to perform the page up and page down operations Long press “M” key return to the main menu. The machine only supports the TXT format Record 1.Record mode menu: 2. Short press “M” key enter into the record interface. 3.
- Page 14 4. Long press “M” to preserve the recording file. Recording file will be automatically preserved in the subfolder of “VOICE”. If there is no enough space to store recording files in the subfolder, the promoting message such as “No Space” will be displayed on the screen, and you must delete some files to release the space.
- Page 15 1. Choose FM and press “ M” to enter the FM interface. 2. Shortly press M, the Preset /Scan/Record will show press . “7/8”to select and press M to confirm. When select scan, shortly press “7/8”to manual scan, long “7/8”to semi-scan, shortly press “►;” to save press stations and press “7/8”...
- Page 16 will be showed and long press M to save and exit. 5. Switch VOL to adjust the volume. Navigation 1. Navigation Men 2. Short press “M” key enter into the navigation contents. 3. Short press “7/8”key to select the folder, and press “M” key for a long time to enter the folder.
- Page 17 operation steps are shown as follows: 1） Short press “7/8” key to select the files to be deleted, then short press “M” key enter into the tip on deleting the files. 2） Short press “7/8”key to select “YES”/“NO” option. 3） Short press “M” key to confirm the deletion. If you want to perform the deleting operation from the computer that the player is be connected, and you must ensure that after the windows magnetic disc hardware is...
-
Page 18: Table Of Contents
1.Setting the menu 2.Short press “M” key enter into the Setting contents Serial Number Contents Playback setting Recording setting Auto-browsing setting Display setting System setting Standby and Power-off Time Language selection www.mpmaneurope.com PDF 文件使用 "pdfFactory Pro" 试用版... -
Page 19: Playback Setting
3. Short press “7/8”key to select the corresponding setting, and then short press “M” key to enter the setting interface. Playback Setting Press “7/8” key to select “Playback Setting”, and short press “M” key enter into the submenu of the Playback Setting Repetition Playing once for a single song, repetition setting... -
Page 20: Recording Setting
Set the sound effect you favourite User EQ adjustment Recording Setting Press “7/8”key to select “Recording Setting”, and short press “M” key enter into the submenu of the Recording Setting Recording Quality 1.High quality: when recording playing, 64KBPS .WAV format can be generated. 2.Ordinary quality: when the recording is playing, the 32KBPS .WAV format can be generated Recording Sound Volume... -
Page 21: Auto-Browsing Setting
and press “M” key for a short time to confirm. Auto-browsing Setting Press “7/8”key to select the “Auto-browsing setting”, and short press “M” key enter into the submenu of the Auto-browsing Setting. Text Browsing The unit of the setting time of text browsing is showed as second, the browsing time can choose 2 seconds, 4 seconds, 6 seconds, 8 seconds and 10 seconds in the time set by the user. -
Page 22: Display Setting
time can choose 2 seconds, 4 seconds, 6 seconds, 8 seconds and 10 seconds in the time set by the user. Under the condition that the operation is performed without pressing the key, the next page will be browsed automatically. Display Setting Press “7/8”key to select the “Display Setting”, and press “M”... -
Page 23: System Setting
3. Display mode of Set the backlight display of the screen, which are divided as “normal” and the backlight “power saving” Wherein, “Brightness adjustment” represents that setting of the brightness of the screen. 5 is the brightest, in contrast, 1 is the darkest. -
Page 24: Standby And Power-Off Time
Firmware Upgrade The interface is used for upgrading with firmware. When the firmware is upgraded, the interface should be entered firstly. Restoring the system default value When the menu is set, the ex-factory setting state can be restored by using the menu. Standby and Power-off Time Press “7/8”key to select “Standby and Power-off Time”, and press “M”... -
Page 25: Language Selection
Language Selection Press “7/8”key to select “Language Selection”, and press “M” key to enter the submenu of the Language Selection setting: There are 21 languages to be chosen under the menu, such as: simplified Chinese, traditional Chinese, English and the like. Short press “M”... - Page 26 1. Check whether the sound volume is too small. 2. Determine whether the earphone connection is No Sound good, and the earphone is good. 3. Check whether the MP3 file is complete and correct. Strange characters Check the language selection for the accuracy. on display Unable to 1.
- Page 27 Technical Specifications Overall 74 mm (length)*37 mm (width)*8 mm (height) Dimension Display 1.8-inch TFT screen Screen Connecting to High-speed USB2.0 Computer 128MB-4GB Memory Normal, 3D, rock, popular, classical, supper EQ Selection bass and jazz Supporting Music formats such as MP3, WMA, WAV and Format JPEG picture format Operating...
- Page 28 Language 5 languages such as, English, Italian，German， Selection Dutch and French. Supporting Windows98/SE/ME/2000/XP/VISTA the operating system For more information please visit our website www.mpmaneurope.com www.mpmaneurope.com PDF 文件使用 "pdfFactory Pro" 试用版...
