MPMan MPH100 User Manual

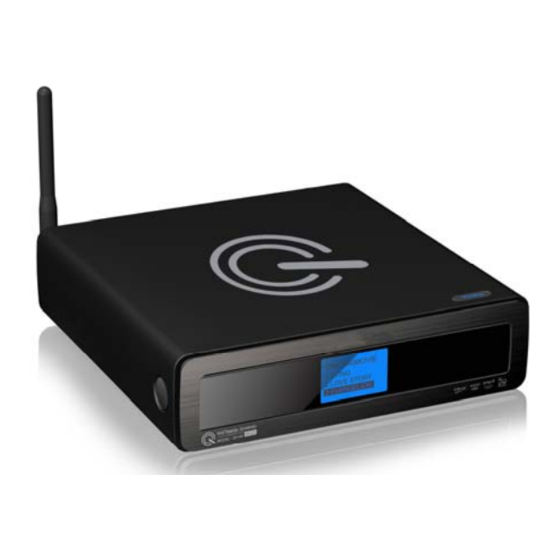

Hard disk multimedia player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Hard Disk Multimedia Player QH100
User Manual
Hard Disk Multimedia Player
QH100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPH100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MPMan MPH100

Summary of Contents for MPMan MPH100

  • Page 1 Hard Disk Multimedia Player QH100 User Manual Hard Disk Multimedia Player QH100...

  • Page 2: Table Of Contents

    Hard Disk Multimedia Player QH100 Table of Contents ※Product features ※Safety and Other Instructions ※Product Specification ※Product Contents and Descriptions ※HDD Installation ※Network-based Data Sharing with a PC ※HDD Partition Setup and Format (Win2000/XP) ※Video Cable Connection ※Audio Cable Connection ※Remote Controller ※Setup Menu Setting ※Main Menu Screen...

  • Page 3: Product Features

    Hard Disk Multimedia Player QH100 PRODUCT FEATURES ● ● ● ● ● ● PLAYER is network-based Home Media Center which , with a built-in 3.5’ high-capacity HDD, can play various media files(e.g.movies,MP3,photos,etc.) through a TV and, if connected to a PC, can also play shared movie files via the network.

  • Page 4: Safety And Other Instructions

    Hard Disk Multimedia Player QH100 SAFETY AND OTHER INSTRUCTIONS ● ● ● ● ● ● Pls use the products after carefully reading the following instructions. Particularly , pls give more attention to warning parts. Copyrights Do not attempt to disassemble or modify >>>...

  • Page 5: Product Specification

    Hard Disk Multimedia Player QH100 Do not watch a TV or hear loud sound for hearing problem. long time. This may cause a vision or Fire Power >>> >>> During the use of the product, if you detect Do not use many electronic products with a smoke or an unusual smell, turn off the single outlet.

  • Page 6: Product Contents And Descriptions

    Hard Disk Multimedia Player QH100 PRODUCT CONTENTS & DESCRIPTIONS ● ● ● ● ● ● PLAYER/ Remote Controller /Batteries/ A/V Cable/Adapter/Power Cable/ CD/Manual - 4 -...
  • Page 7 Hard Disk Multimedia Player QH100 PART DESCRIPTIONS ● ● ● ● ● ● 1. LCD Condition Display Window PLAYER s current condition is displayed on this window 2. Wireless Connection LED - 5 -...
  • Page 8 Hard Disk Multimedia Player QH100 When the wireless connection is established, it turns on 3. LAN Connection LED When the LAN connection is established, it turns on 4. HDD Operation LED When the HDD is in use, it turns on. 5.

  • Page 9: Hdd Installation

    Hard Disk Multimedia Player QH100 A component video cable with a red, blue, and green terminal is connected to this terminal. When using this connection, the TV output of the player should be set to be supported by your TV. 21.
  • Page 10 Hard Disk Multimedia Player QH100 1. Press the lateral buttons at the same time and slide the hard disk bracket out 2. Fit the bracket with the hard disk well Connect SATA cable and power cable. 4.Set right the two plastic strips to protect hard disk drive from moving. 5.Slide the hard disk bracket in and make sure the buttons fit the holes well.

  • Page 11: Network-Based Data Sharing With A Pc

    Hard Disk Multimedia Player QH100 7. Press the lateral buttons at the same time and slide the hard disk bracket out 8. Fit the bracket with the hard disk well Connect SATA cable and power cable. 10.Set right the two plastic strips to protect hard disk drive from moving. 11.Slide the hard disk bracket in and make sure the buttons fit the holes well.
  • Page 12 Hard Disk Multimedia Player QH100 port of PLAYER to a LAN port of the hub or Internet router using a LAN cable. Note: To be connected to PLAYER,a PC (Notebook) should have a 10/100Mbps LAN card. Either a cross or direct LAN cable can be used for the connection. You can buy one of these cables in online shopping malls or PC stores near your place.
  • Page 13 Hard Disk Multimedia Player QH100 2. Check “Sharing” and type “[Share Name]. EX my movie” WARNING! “Share name” should be less than 12 English Alphabets. Set Access Type to Ready-Only. Do not give passwords 3. If the folder is share, you will see a hand mark on the folder icon. My Movie 4.
  • Page 14 Hard Disk Multimedia Player QH100 5. After checking “Specify an IP address ” enter your IP address and subnet mask. Then click “OK”. Ex) IP Address : 192.168.1.3 Subnet Mask : 255.255.255.0 WARNING! If your PC already has “Obtain IP address automatically ” checked and the IP is auto matically assigned from an internet router or DHCP server, You may not need this setup.
  • Page 15 Hard Disk Multimedia Player QH100 6. Configure PLAYER’s network environment. After pressing “SETUP” buttom, select “IP SETUP” among the “NETWORK” setup items and IP address and subnet mask. Ex) IP Address : 192.168.1.10 Subnet Mask : 255.255.255.0 After finishing the setup, save the setup value by pressing the “Setup” button once again WARNING! If IP address of your PC is automatically assigned by an internet router or...
  • Page 16 Hard Disk Multimedia Player QH100 mask from the router manufacturer or network administrator. 2.2 Data sharing setup for Windows2000 1. Select a folder your want to share and select “Sharing” menu using the mouse right button. 2. Check “Sharing” and type “Share Name” Ex) My Movie WARNING! “Share Name”...
  • Page 17 Hard Disk Multimedia Player QH100 4. If the folder is share, you will see a hand mark on the foloder icon. MY Movie 5. Go to “Control Pannel—Administrative Tools—Computer Management—Local Users and Group” and, among the displayed items, double –click the Guest item. - 15 -...
  • Page 18 Hard Disk Multimedia Player QH100 6. After Checking “User cannot change password” and “Password never expires”, keep the other checkboxes unchecked. Then click on “OK”. 7. Go to “Control Panel—Network and Dial up Connections”. Select “Local Area Connection” and open its property window by using the mouse right button and selecting “Properties”.
  • Page 19 Hard Disk Multimedia Player QH100 8. Among the displayed items , double-click “Internet Protocol(TCP/IP)”. 9. After checking “Specify an IP address ”,enter your IP address and subnet mask. Then click on “OK”. Ex) IP address :192.168.1.3 Subnet Mask: 255.255.255.0 - 17 -...
  • Page 20 Hard Disk Multimedia Player QH100 WARNING ! If your PC already has “Obtain IP address automatically” checked and the IP is automatically assigned from an Internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router manufacturer or network administrator.
  • Page 21 Hard Disk Multimedia Player QH100 2.3 Data sharing Setup for Windows XP 1. Select a folder your want to share and select “Sharing and security” memu using the mouse right button. 2. Checking “Sharing this folder on the network” and type “Share Name”. MY Movie WARNING ! “Share Name ”...
  • Page 22 Hard Disk Multimedia Player QH100 - 20 -...
  • Page 23 Hard Disk Multimedia Player QH100 3. If the folder is share, you will see a hand mark on the folder icon. MY Movie 4. Go to “Control Panel –Administrative Tools –Computer Management –Local Users and Group ” and, among the displayed items, double –click the Guest item.
  • Page 24 Hard Disk Multimedia Player QH100 6. Go to “Control Panel—Network Connections”. Select “Local Area Connections”. Select “Local Area Connection ” and open its property window by using the mouse right button and selecting “Properties”. WARNING ! 1. If you cannot see the “Network connections”, click on “Switch to Classic View”...
  • Page 25 Hard Disk Multimedia Player QH100 7. Among the displayer items, double-click “Internet Protocol (TCP/IP)”. After checking “Specify an IP address” enter your IP address and subnet mask. Then click on “OK”. Ex) IP address: 192.168.1.3 Subnet Mask: 255.255.255.0. - 23 -...
  • Page 26 Hard Disk Multimedia Player QH100 WARNING ! If your PC already has “Obtain IP address automatically” checked and the IP is automatically assigned from an Internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router manufacturer or network administrator.
  • Page 27 Hard Disk Multimedia Player QH100 8. Configure PLAYER’s network environment. After pressing “Setup” button, select “IP SETUP” among the “NETWORK” setup items and set this to manual Setup. Then enter your IP address and subnet mask. Ex) IP address:192.168.1.10 Subnet Mask: 255.255.255.0. A PC cannot recognize an unformatted HDD.
  • Page 28 Hard Disk Multimedia Player QH100 If Disk Signature and Upgrade Wizard appear, click on “NEXT”. Select the new HDD and click on “Next”. If the wizard is completed, click on “Finish”. Under “Disk Management”, select the new HDD marked unallocated and click on “New Partition”...
  • Page 29 Hard Disk Multimedia Player QH100 HDD Partition Setup&Format (win2K/XP) ● ● ● ● ● If “New Partition Wizard” is executed, click on “Next”. Check “Primary Partition” and click on “Next”. After entering a partition size in the partition size in MB box, click on “Next”. - 27 -...
  • Page 30 Hard Disk Multimedia Player QH100 If a new drive letter is assigned to the HDD ,click on “Next”. Under “Format this partition with the following setting ”, Set “File System” to the FAT32 and check “Perform a quick format”. Then click on “Next”. - 28 -...
  • Page 31 Hard Disk Multimedia Player QH100 If [Competing the New Partition Wizard] appears, click on [Finish]. Now, a PLAYER partition (Formatted in FAT32) is created. In the next step, a NTFS partition will be created. Under [Disk Management], select the rest, Unallocated part of the disk and click on [New Partition] using the mouse right Button.
  • Page 32 Hard Disk Multimedia Player QH100 10. Check [Primary Partition] and click on [Next] 11. In the Partition Size in MB box, keep the current size unchanged and click on [Next].(The default size indicates the remaining unallocated part of the disk.) - 30 -...
  • Page 33 Hard Disk Multimedia Player QH100 If a new drive letter is assigned to the HDD, click on [Next]. Under [Format this partition with the following settings], set [File system] to NTFS and check [Perform a quick format]. Then click on [Next]. - 31 -...
  • Page 34 Hard Disk Multimedia Player QH100 If [Competing the New Partition Wizard] appears, click on [Finish]. Warning: A NTFS-formatted drive can only be recognized in a Window 2000 or XP system. That is , it cannot be recognized in a Windows 98 or ME system, if you creat a FAT32 file system.
  • Page 35 Hard Disk Multimedia Player QH100 Installtion Cable Connection ● ● ● ● ● ● １、 Connection with ordinary (Composite) TV output Connect Player and your TV using the yellow video cable . Turn on the Player and TV . Select appropriate video input mode on your TV until you can get the initial Player screen.
  • Page 36 Hard Disk Multimedia Player QH100 、 Connection with HDMI output Connect the player and your TV with HDMI cable, Turn on the player and your TV, please confirm your TV is on HDMI mode, then set the player to HDMI mode by pressing “TV out”...
  • Page 37 Hard Disk Multimedia Player QH100 、 Connection with 2 CH of Normal TV Connect left (white ). right (red) sound output appropriate terminal of your TV or Hi-Fi 、 Connection with Coaxial output When you have a multi channel decoder/amplifier with coaxial input , you can enjoy 5.1CH high quality sound through coaxial cable .
  • Page 38 Hard Disk Multimedia Player QH100 、 Connection with Optical output When you have a multi channel decoder/amplifier with optical input, you can enjoy 5.1 high quality sound through optical cable .The illustration on the top shows how to connect with optical cable. 、...

  • Page 39: Remote Controller

    Hard Disk Multimedia Player QH100 Remote Controller ● ● ● ● ● ● - 37 -...
  • Page 40 Hard Disk Multimedia Player QH100 Power Button Used to turn the power on or off Local Disk Mode Switches to the Local Disk mode Mute Cuts off the sound Play / Pause Starts or pauses the playback of movie, music, or picture files Selects a menu item or select a file to be played Volume Adjusts volume...
  • Page 41 Hard Disk Multimedia Player QH100 the button 3 times and select a subtitle language using the UP and DOWN arrow. Then click on the OK button.) Audio Selects a specific audio source when multiple audio sources exist in the movie file. Zoom-in / Zoom-Out Zoom-in or Zoom-out the screen 1-click (Screen Zoom-in )
  • Page 42 Hard Disk Multimedia Player QH100 Bookmark Saves a bookmark in the middle of media playback (Using the bookmark button to go to a desired bookmarked frame) PC Network Mode Switches to the PC Network search mode Remote Controller Condition Display When a button is pressed, a red LED blinks to show the operation of the controller.
  • Page 43 Hard Disk Multimedia Player QH100 Arrow Buttons They are used for navigating and selecting menu items. In case of a movie playback, do the following functions. Up/Down: Changing the position of a subtitle Left/Right Movie: Forward or backward search of the current movie. Music: Jumping forward/ backward by 15 seconds SYNC When a movie is not in sync with a subtitle, use this button to sync the movie and...

  • Page 44: Setup Menu Setting

    Hard Disk Multimedia Player QH100 the following order. (Brightness -> Contrast -> Color) Change the value of each property by using the left and right arrow button. Setup Menu Setting ● ● ● ● ● ● The figure below is PLAYER’s SETUP screen For each menu item, possible options are described below.
  • Page 45 Hard Disk Multimedia Player QH100 This aspect ratio displays the content based on its horizontal length. Black horizontal bars are place by the player at the top and bottom of the screen to be displayed in a wide mode. 4:3 Pan & Scan This aspect ratio displays the content based on its vertical length.
  • Page 46 Hard Disk Multimedia Player QH100 Sets a slideshow duration Initialize (Default Setting) Resets all the settings to the default values, 3. Network Wired / Wireless: Wired: IP Setting Automatic Setting: Assigns an IP address automatically from an Internet router or DHCP serer Manual Setting: Assign an IP Setting...
  • Page 47 Hard Disk Multimedia Player QH100 Automatic Setting: Assigns an IP address automatically from an Internet router or DHCP server Manual Setting: Assign an IP Setting 1. enter setup interface,remote control operation as following: power on ur player, press">" key to "setup" option then enter "ok" 2.

  • Page 48: Main Menu Screen

    Hard Disk Multimedia Player QH100 1Turn on the PLAYER and select the TV OUT mode by pressing “TV out” button of the remote controller (NTSC Composite -> NTSC Component -> NTSC HDMI -> PAL Composite -> PAL Component ->PAL HDMI) Main Menu Screen ●...

  • Page 49: Movie Play

    Hard Disk Multimedia Player QH100 devices that are connected via a USB HOST port. You can play a media file from an eternal HDD, memory, etc. Movie Play ● ● ● ● ● ● PLAYER can play the following files: AVI, MPG, MPEG, DAT, VOB, TP, TRP, WMV, ISO etc, Playback order and method are determined by a selected repeat mode.

  • Page 50: Music Play

    Hard Disk Multimedia Player QH100 3-Click Regardless of the aspect ratio of a file, fills up the screen 4-Click Sets the screen to the original aspect ratio of a file SYNC Subtitle When a movie is not in sync with a subtitle, use this Display button to sync the movie and subtitle, Each click and Timing...

  • Page 51: Photo Play

    Hard Disk Multimedia Player QH100 Control Button BOOKMARK Continuous Support two types: stopped points and bookmarked Play points(up to 9 in order) Volume Adjust Adjusts volume MUTE Sound mute Cuts off the sound Playing Play a selected file selected file PLAY Start/Pause Starts or pauses the playback...

  • Page 52: Virtual Dvd

    Hard Disk Multimedia Player QH100 Prev. To move to a upper-lever folder on a file lst Folder SKIP Next/Prev. Jumps to a next file during a playback File Next/Prev. When used on a file list screen, it jumps Page forward/backward to different pages ZOOM 1-Click Customizes a zoom level using the arrow...

  • Page 53: Firmware Upgrade

    Hard Disk Multimedia Player QH100 list SKIP Next/Prev. File Jumps to a next file during a playback Next/Prev. When used on a file list screen, it jumps Page forward/backward to different pages SEARCH Quick Search Forward or backward search of the current movie (Each click doubles up the search speed -2,4,8,16,and 32 speeds).
  • Page 54 Hard Disk Multimedia Player QH100 2. The firmware upgrade is in progress. When the firmware upgrade is successfully completed, the system will be automatically rebooted. - 52 -...

  • Page 55: Trouble Shooting

    Hard Disk Multimedia Player QH100 Warning During the firmware upgrade process , Do not turn off the power or disconnect the adapter The latest firmware can be downloaded from www.zioncom.net Trouble Shooting ● ● ● ● ● ● 1. When the power is on, nothing appears on the screen or the screen is shaking.
