Summary of Contents for MPMan BT18cSP
- Page 1 For Model No. User Manual BT18cSP...
- Page 2 For your safety – read this user guide carefully to ensure proper use of the product and to avoid any danger of physical damage - Be cautious while using your MP4 player to avoid explosion, re, electric shock, etc. - When using your player, pay attention to your health, especially the hearing power. - Do not leave the player in a place subject to moisture or temperature higher than 35℃...
-
Page 3: Key Features

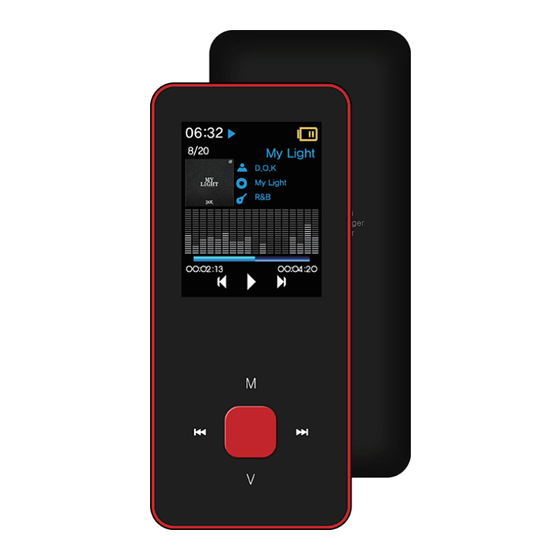

Key features Support Bluetooth function (by connecting it to Bluetooth speakers and headphones) MP3/WMA/WAV/OGG/APE/FLAC music le format supported. Support USB 2.0 capability, much faster than USB 1.1, to enable faster communication with your PC Support voice recording function. Support repeat function. Support sleeping mode. - Page 4 Nomenclature M : Previous menu, Sub menu >> : Forward V : Volume control << : Backward ▶ : Enter, Play, Pause, Power on/o LCD display USB port Main power on/o switch Earphone jack Micro SD slot Page 3...
- Page 5 Charging battery safely 1. Connect to device’s USB port with the provided USB cable. 2. Battery indicator will blink while charging and once full, it will stop blinking. 3. If device is full charged, disconnect the USB cable. Note - Before using it for the rst time, please charge device. - Do not overcharge device, or it may shorten the battery’s life.
-
Page 6: Basic Operations
Basic operations Turn on device When Main Power Switch is turned off, slide button to turn on device When Main Power Switch is turned on, long press [▶] to turn on device. Turn off device When device is turned on, long press [▶] to turn off device. If device functions abnormally, slide Main Power Switch button to forcefully turn off device. -
Page 7: Key Function
Key function [Backward/Forward] : move up/down or right/left. [M] : short press to go back to previous menu and long press to show sub-menu option. [▶] : short press to enter into menu, play or pause and long press to turn off device. [V] : press to show volume control and use [Backward/Forward] key to adjust volume. -
Page 8: Adding/Removing Files/Folders
Adding/Removing files/Folders - use device as a removable USB storage 1. Connect device to computer using provided USB cable. 2. Select ”USB Disk” and Add files/folders into it by dragging or copying and pasting them. 3. Delete files from the removable USB storage (use the "Delete" command). Page 7... - Page 9 Disconnecting device from PC - Follow the steps to avoid damaging device or losing data. 1. Left click mouse on the icon that is on the taskbar at the bottom right corner of the desktop. 2. Click "Safely remove USB Mass storage Device” . 3.
-
Page 10: Turn On/Off Bluetooth
Connecting to Bluetooth speaker/ headphone This device can connect to Bluetooth speaker and headphone that supports A2DP, AVRCP profiles. Turn on/off Bluetooth Select “Setting” on main menu. Press [▶] to enter, select “Bluetooth” and press [▶]. Select “Bluetooth status” and press [▶] to show on/off menu. Press [Backward/Forward] to select On/Off and press [▶] to turn on or off. - Page 11 Connecting/Disconnecting/Unpairing device Go to “Device list” and press [▶] to see list of devices. Select desired device and press [▶] to show pop-up menu shown below. Connecting device : select “Bluetooth connecting” and press [▶] to connect. Once connected a sound will be played through the speaker or headphone. Unpairing device : select “Bluetooth unpairing”...
- Page 12 Music Select “Music” on main menu and press [▶] to enter. Press 【Forward/Backward】 to select music files and press [▶] to playback and pause. Music Playback Submenu On music playback mode, short press 【M】 to enter submenu and short press 【Forward/Backward】 to select your desired mode.
- Page 13 Now playing : Enter into music playback mode of currently playing music All Music : show all music from internal memory Artist : show music sorted by artist Album : show music sorted by album Genre : show music sorted by genre My Music list : show playlist chosen by user Dir list : show le/folder of internal or external memory Record list, My rating, Tag list : show recorded les, rating les and tag list...
-
Page 14: File Browsing
Video In order to play video files on this device, you must convert the video files to AMV format. Select “Video” on main menu and press [▶] to enter. File browsing Now playing : Enter into video playback mode of currently playing video. Dir List : browse video files from external or internal memory. -
Page 15: Photo Viewing
Photo Select “Photo” on main menu and press [▶] to enter. File browsing Dir List : browse image files from external or internal memory Photo viewing Play/Pause slide show : On viewing photo, press [▶] to play/pause slide show. View next/previous photo : On viewing photo, 【Forward/Backward】 to view next/previous photo Setting Scan mode : Select viewing mode. -
Page 16: Sound Recording
Recorder Select “Recorder” on main menu and press [▶] to enter. Sound recording Start/pause recording : Press [▶] to start recording and press it again to pause. Save recording file : while recording, long press 【M】 to save file. Return to Main Menu : while recording is paused, press 【M】 to return to Main Menu Page 15... - Page 17 FM Radio Select “FM Radio” on main menu and press [▶] to enter. Select FM Station Previous/Next station : Press 【Forward/Backward】 to adjust FM station. Setting On FM radio mode, long press 【M】 to enter pop-up menu and adjust device’s function according to user’s preference.
- Page 18 Browser Select “Browser” on main menu and press [▶] to enter. Browse image files from external or internal memory and choose your desired files including video files, music files, photo files, recorded files, etc. Setting Select file/folder, long press 【M】 to enter pop-up menu and select move, copy or delete according to user’s preference.
- Page 19 Setting Select “Setting” on main menu and press [▶] to enter. Display : Adjust brightness and Backlight time Power saving : Adjust idle time and sleep time Date & Time : Adjust date and time Language : Select menu language Advanced : View device information, adjust Effect Setting, Select Key tone, Format memory, etc Page 18...
- Page 20 MPmanager For movie and music synchronization and conversion, use MPMANAGER software included in device memory. This software can be used also for update of device. MPmanager manual is included in device memory. Page 19...
-
Page 21: Specification
Specification Display 1.8" (128x160pixel) MicroSD up to 32GB USB interface USB2.0 Support Bluetooth speaker, streo headset Bluetooth Pairing, remember paired device Pro le : A2DP, AVRCP Power 5V 500mA Dimension 42x93x14mm Weight Page 20... - Page 22 For more information please check our website www.mpmaneurope.com Page 21...
