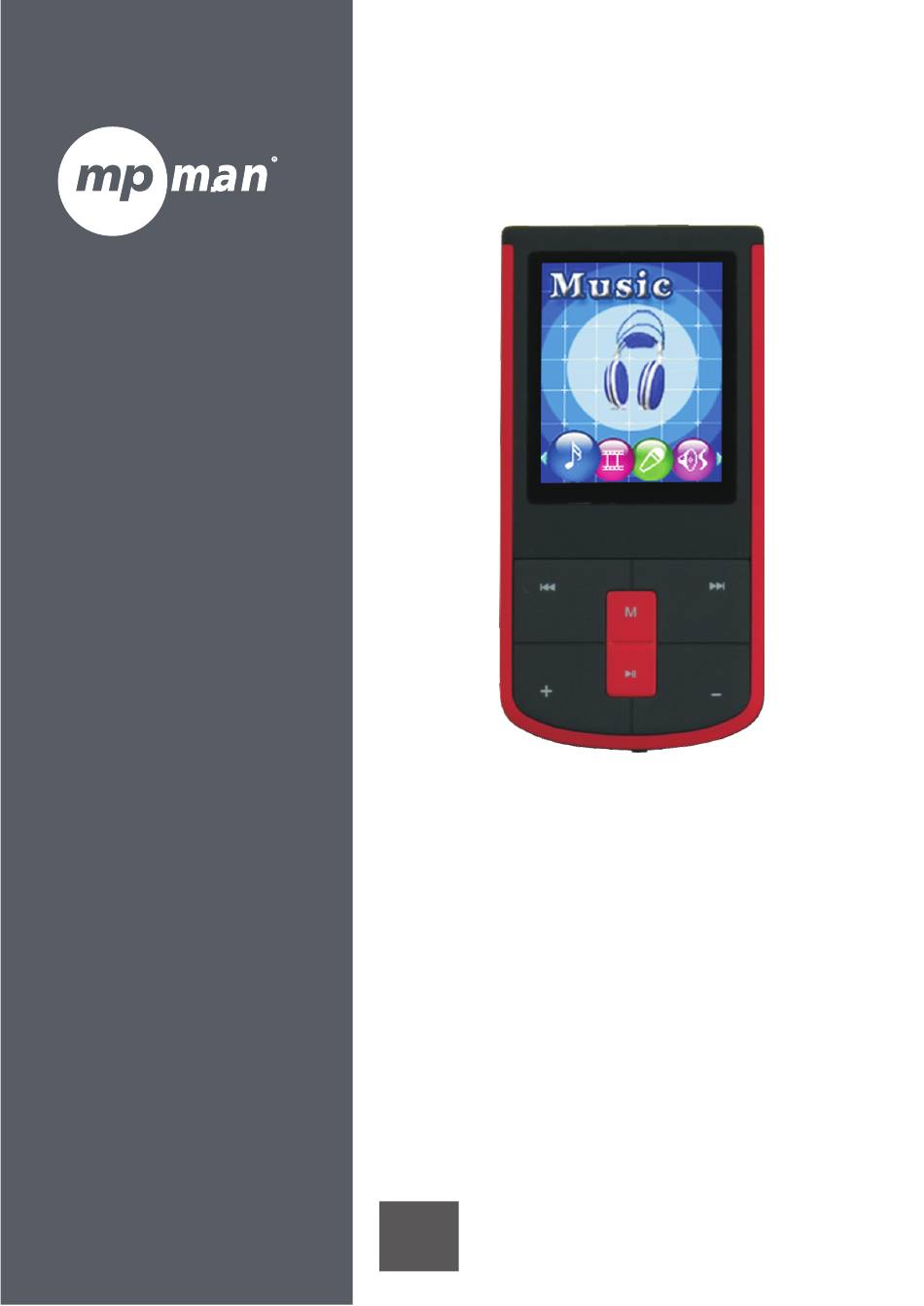

  • Page 1 Mp4 Player Instruction Manual FOR MODEL NO MP103WOM Please read this instruction carefully before the operation...

  • Page 2: Key Definitions

    User manual Key Definitions  1. NEXT: Next Music/Fast-Forward 2. LAST: Previous Music/Rewind 3. Volume increase 4. Volume decrease 5. Menu: Menu button 6. Play: Play/Pause button 7. Micro SD card 8. USB jack 9. Power ON/OFF 10. Earphone jack 1. Play music Simple actions 1.

  • Page 3: Play Videos

    Select an equalizer: Detail of each equalizer (EQ): Natural, Rock, Pop, Classic, Soft, Jazz, DBB Push Next to select an EQ and press Mode to confirm. Synchronous Lyric Display The player supports lyric files with *.LRC suffix, and displays synchronously. How to use lyric files? Please make sure the lyric has the same name as the music file.

  • Page 4: Using Fm Radio

    2. Push next scrolling into ‘Record type’ submenu then presses Mode to select it. 4. Press Next to choose appropriate type and press Mode to select it 5. Press Play to start recording. 4. Voice Enter main menu Push Next to choose ‘Play mode’ Push Mode to enter playing interface Press Play again to play the file.

  • Page 5: Photo Browsing

    Auto search “20 pressets maximum” Hold Last/Next 2 seconds to start the channel search in 100 KHz interval upwards or downwards. To stop tuning,push Last/Next. Manual tuning Push Last: Downward 100 KHz Push Next: Upward 100 KHz Save current channel: Push Mode to enter FM submenu Press Mode again to save channel.
  • Page 6 Options introduction: (System time) Setting system date and time (LCD set) Screensaver setting (Language) Choosing different languages Setting a count down time in minutes, the player will shut off (Power off) when time out. (Memory info) Check memory space and usage status (Firmware Ver.) Version of player’s firmware (Firmware upgrade)

  • Page 7: Using Usb Disk

    10. Using USB Disk The player is also a standard USB disk. Supported by Windows / Mac/XP. The player supports USB power supply, can be used without using the battery when connected to a PC. To enter, when in’ waiting mode’ press Mode return to main menu and choose the operation you need. When connected to PC, The player works on the three modes below: 1.

  • Page 8: Troubleshooting

    When the battery is almost /completely run out. The battery icon will be complety white and the unit should be charged to through of the mini USB. Without the use of the player, please try to turn off the power. 13.

  • Page 9: Technical Specifications

    Technical Specifications Dimension 80mm x 40mm x 9.8mm Weight 23.6g Screen 1.8 TFT (128*160) Connecting to PC High Speed USB2.0 Memory Nor Flash Voice Recorder Format (32K 64K,128K ,256Kbps) Music Formats MP3, WMA Max. Output (L) 10mW + (R)10mW (32Ohm) MP3, WMA MP3 Bit rate 8K bps –...
  • Page 10 For more information please check our website www.mpmaneurope.com...
