Summary of Contents for Rishabh 610 TRMS

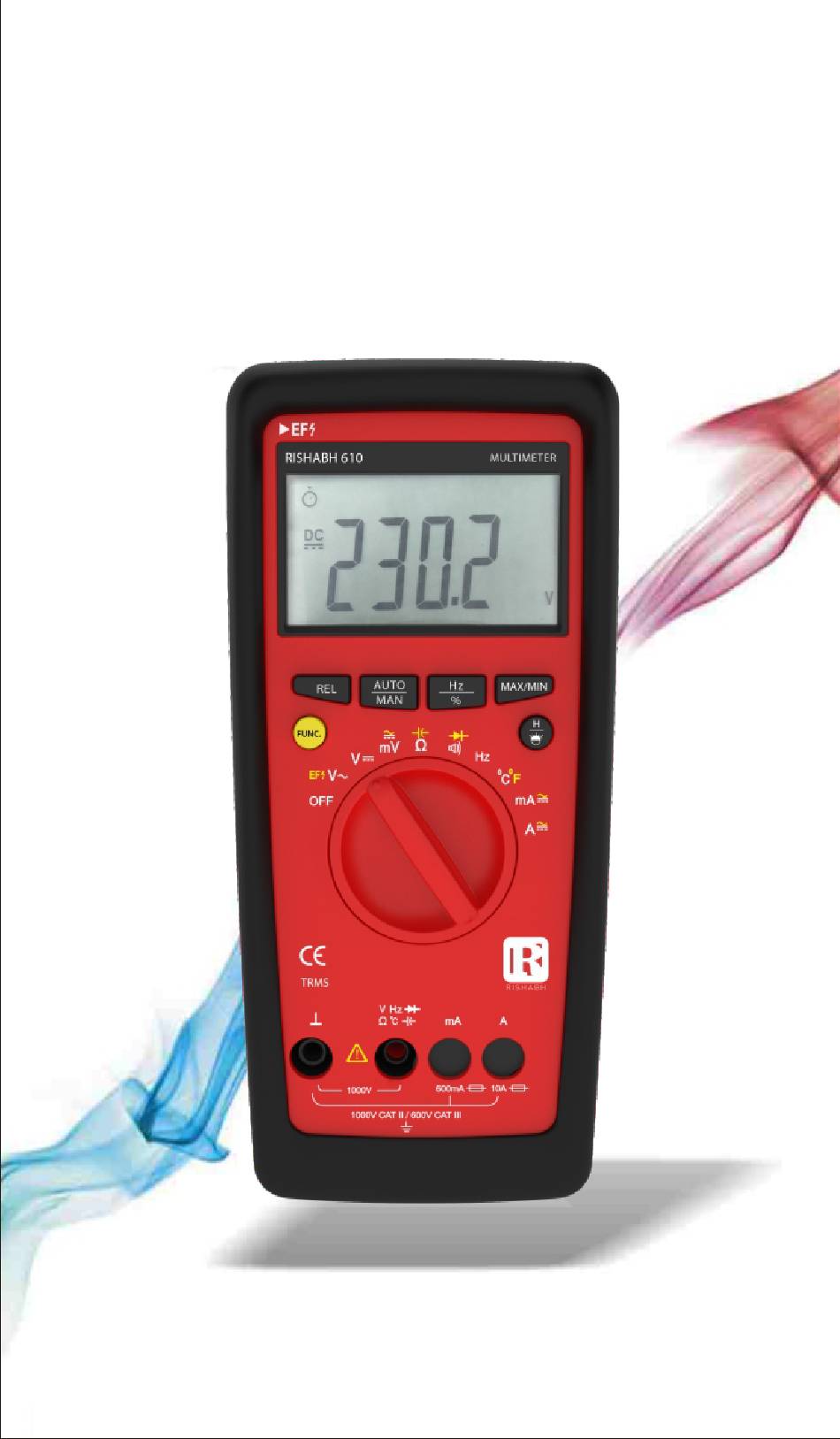

- Page 1 User Manual RISHABH 610 TRMS Digital Multimeters RISHABH 410 Multimeter...
- Page 3 MAX/MIN FUNC. 600 mA...
-
Page 4: Lcd Display
Multimeter Operating Elements Hz/% Pushbutton for VAC/AAC. Max/Min Pushbutton Backlight/Hold Pushbutton . 9 Terminal Sockets LCD Display This symbol means meter in auto power off mode... -
Page 5: Table Of Contents
1. Safety Features and Precautions ....2. Initial Start-up ........... 3. Selecting Measuring Functions & Ranges ..3.1 Measuring Function Selection......3.2 Automatic Measuring Range Selection....3.3 Manual Measuring Range Selection....4. Liquid Crystal Display ........4.1 Digital Display ........... 4.2 Display with Backlit(optional)...... -
Page 6: Safety Features And Precautions
1000 V... - Page 7 600 V Meaning of the symbols Warning of a danger point (Attention, refer to the user manual) Earth (ground) terminal. Double or reinforced insulation Instrument for over voltage CAT II / III category II / III or IV EU conformity mark.
-
Page 9: Selecting Measuring Functions & Ranges
Battery Saver (Sleep Mode) Approximate 1 minute before the meter is auto power off, the buzzer will raise constantly 5 sounds to warning. Before the meter is power off, the buzzer will raise one long sound to warn the user. Press any key to wake the meter up. -
Page 10: Automatic Measuring Range Selection
In the autorange mode, the Meter selects the best range for the input detected. This allows you to switch test points without having to reset the range.The Meter defaults to the autorange mode in measurement functions that have more than one range. When the Meter is in the autorange mode, AUTO is displayed. -
Page 11: Liquid Crystal Display
600V 1000V 60mV 600mV 600V 1000V 600mA 60mA 60mA 60KΩ 600KΩ 600Ω 6KΩ 60MΩ 6MΩ 60MΩ Note : For Temperature (C), Frequency (Hz), Duty cycle (%) and Capacitance (F) measuring range is always Auto. No manual range selection is possible. The digital display is updated thrice per sec- ond for V, A, W, Cap Freq and duty cycle measurements. -
Page 12: Max-Min
5. Max-Min This key is for measuring maximum value and minimum value. 1. Press it to enter Max/Min mode. 2. Press it again; the LCD will display the Maximum Value. 3. Press it again; the LCD will display the Minimum Value. 4.Press it again;... - Page 13 The Meter's voltage ranges are 600.0mV, 6.000V, 60.00V, 600.0V and 1000V and buzzer will sound AC/DC Voltage>1000 V To measure ac or dc voltage. 1. Set rotary switch to the DCV, ACV or AC/DCmV range. 2. Connect the black and red test leads to the COM and V terminals respectively.
-
Page 14: Current Measurement
After selection of this function with the selector switch, the Current type DC is always activated. -
Page 15: Ac Measurement With (Clip-On) C.t
AC/DC A > 10 A, the buzzer will keep sounding as the overload warning. 600 mA... -
Page 16: Diode Testing & Continuity Measurement
600 mA 10 Diode Testing & Continuity Measurement 10.1 Diode Testing Press the yellow multifunction key to switch to the Diode Measuring range.Display of the symbol is activated... -
Page 17: Continuity Testing
‘OL’ 600 mA 10.2 Continuity Testing... -
Page 18: Resistance Measurement
600 mA 11 Resistance Measurement 600 mA... -
Page 19: Capacitance Measurement
On 60M range, the meter may take a few seconds to stabilize reading. This is normal for high resistance measuring. When the input is not connected, i.e. at open circuit, the figure "OL" will be displayed for the over range condition. 600 mA... - Page 20 The meter may take a few seconds(>30 seconds in 600.0uF range) to stabilize reading. This is normal for high capacitance measuring. Below 100pF, the accuracy of measurements is unspecified.
-
Page 21: Frequency & Duty Cycle Measurement
13 Frequency & Duty Cycle Measurement 13.1 Frequency Measurement Linear Frequency The Meter can measure Frequency or Duty Cycle while making either an AC Voltage or AC Current measurement. To measure frequency or Duty Cycle: 1. With the meter in the desired function (AC Voltage or AC Current), press the Hz % key. -
Page 22: Temperature Measurement
600 mA 14 Temperature Measurement To measure temperature: 1. Set the rotary switch to C range and the LCD will show the current environment temperature. 2. Insert ‘K’ type thermocouples into the COM terminal and C terminal (or you can insert it by using Multi Function Socket) Takings care to observe the correct polarity. -
Page 23: Specifications
15 Specifications Digital Display Inherent Measuring Measuring Deviation at referance Resolution Input Impedance Overload Capacity Function Range conditions ±(..% of rdg + ...digits) Overload Value Overload Duration 6.000V Ω 60.00 V 10mV 0.8+5 Ω V(AC) 1000Vac rms Continous 100mV 600.0 V Ω... - Page 24 31.4 4 Digits 6000 Counts...
- Page 25 Variation Influence Range of Measured Quantity/ ± (….% of rdg. + ….digits) Quantity Measuring Range Influence mV,VDC mV,VAC mA,ADC mA,AAC 0 ºC +21 ºC Ω 0.1 X Intrinsic error / K Temperature Diode +25 ºC…+50ºC ºC 20 Hz..< 50 Hz 2.0+3 Frequency of the 2.5+3...
- Page 26 IEC 61326-1:2012,Table A.1...
-
Page 27: Maintenance
Simply unscrew the battery compartment cover from base housing. No need to remove whole base housing. -
Page 28: Fuses
Screw the battery compartment cover to base housing. Unscrew the base housing cover from front housing. Screw the base housing cover to front housing. Be absolutely certain that only the specified fuses as above are used. The use of fuse with different specifications may place the operator, the system &... -
Page 29: Housing
RISHABH INSTRUMENTS LTD Domes c (India): +91 253 2202028/99 | marke ng@rishabh.co.in Interna onal: +91 253 2202004/06/08/99 | global@rishabh.co.in www.rishabh.co.in... - Page 31 RISHABH INSTRUMENTS LTD. Factory: F-31, MIDC, Satpur, Nashik-422 007 India Domestic (India): +91 253 2202028/99 International: +91 253 2202004/06/08/99 E-mail : International: global@rishabh.co.in India: marketing@rishabh.co.in www.rishabh.co.in Printed in India, Subject to change without Notice Rev A: 14/5/2024 Item Code DMAN-00IM-1090...
