User's Manual
Digital Multimeters
1000 V
fused
30893
FUNC
RISHABH INSTRUMENTS
0
C
AUTO/MAN
REL
HOLD/ON
OFF
F
V~
mA
V
A
0
C
0
C
V~
A~
Hz/%
mA~
F
OFF
2

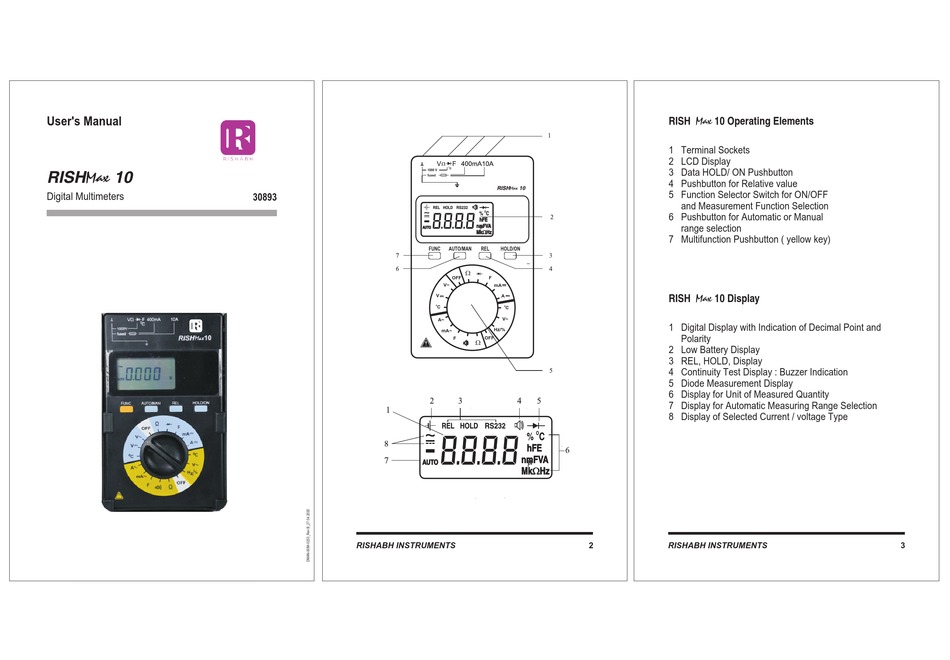

RISH Max 10 Operating Elements
1 Terminal Sockets
2 LCD Display
3 Data HOLD/ ON Pushbutton
4 Pushbutton for Relative value
5 Function Selector Switch for ON/OFF
and Measurement Function Selection
6 Pushbutton for Automatic or Manual
range selection
7 Multifunction Pushbutton ( yellow key)
RISH Max 10 Display
1 Digital Display with Indication of Decimal Point and
Polarity
2 Low Battery Display
3 REL, HOLD, Display
4 Continuity Test Display : Buzzer Indication
5 Diode Measurement Display
6 Display for Unit of Measured Quantity
7 Display for Automatic Measuring Range Selection
8 Display of Selected Current / voltage Type
RISHABH INSTRUMENTS
