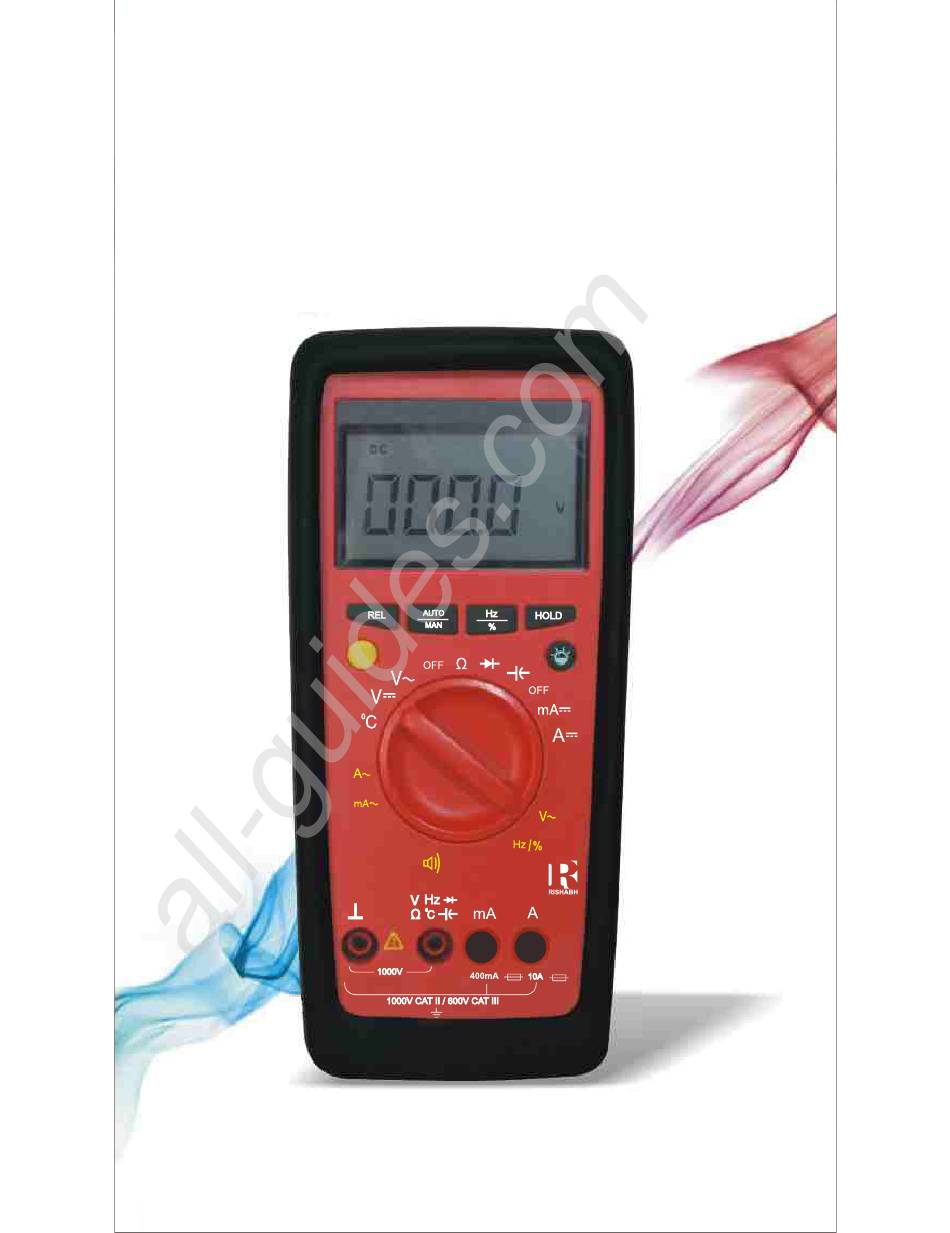

- Page 1 All manuals and user guides at all-guides.com User Manual RISHABH 410 Digital Multimeters RISHABH 410 Multimeter...
- Page 2 All manuals and user guides at all-guides.com...
- Page 3 All manuals and user guides at all-guides.com 400 mA...
- Page 4 All manuals and user guides at all-guides.com Multimeter Operating Elements Hz/% Pushbutton for VAC & VDC. Data HOLD Pushbutton Backlight Pushbutton (optional). 9 Terminal Sockets LCD Display...
-
Page 5: Table Of Contents
All manuals and user guides at all-guides.com 1. Safety Features and Precautions ....2. Initial Start-up ........... 3. Selecting Measuring Functions & Ranges ..3.1 Measuring Function Selection......3.2 Automatic Measuring Range Selection....3.3 Manual Measuring Range Selection....4. Liquid Crystal Display ........4.1 Digital Display ........... -
Page 6: Safety Features And Precautions
All manuals and user guides at all-guides.com 1000 V... - Page 7 All manuals and user guides at all-guides.com 600 V Meaning of the symbols Warning of a danger point (Attention, refer to the user manual) Earth (ground) terminal. Double or reinforced insulation Instrument for over voltage CAT II / III category II / III or IV EU conformity mark.
-
Page 8: Initial Start-Up
All manuals and user guides at all-guides.com... -
Page 9: Selecting Measuring Functions & Ranges
All manuals and user guides at all-guides.com white or yellow print color white half circle is reactivated . -
Page 10: Automatic Measuring Range Selection
All manuals and user guides at all-guides.com... -
Page 11: Liquid Crystal Display
All manuals and user guides at all-guides.com Note : For Temperature ( C), Frequency (Hz), Duty cycle (%) and Capacitance (F) measuring range is always Auto. No manual range selection is possible. The digital display is updated thrice per sec- ond for V, A, W , Cap Freq and duty cycle measurements. -
Page 12: Buzzer
All manuals and user guides at all-guides.com ,Hz\% , Backlight . When measuring AC Voltage > 750 V, DC Voltage > 1000 V, AC/DC mA > 400.0 mA, AC/DC A > 10 A, the buzzer will keep sounding as the overload warning. Approximate 1 minute before the meter is auto power off, the buzzer will raise constantly 5 sounds to warning. - Page 13 All manuals and user guides at all-guides.com 400 mA...
-
Page 14: Current Measurement
All manuals and user guides at all-guides.com After selection of this function with the selector switch, the Current type DC is always activated. -
Page 15: Ac Measurement With (Clip-On) C.t
All manuals and user guides at all-guides.com 400 mA... -
Page 16: Diode Testing & Continuity Measurement
All manuals and user guides at all-guides.com 400 mA 10 Diode Testing & Continuity Measurement 10.1 Diode Testing... -
Page 17: Continuity Testing
All manuals and user guides at all-guides.com ‘OL’ 400 mA 10.2 Continuity Testing... -
Page 18: Resistance Measurement
All manuals and user guides at all-guides.com 400 mA 11 Resistance Measurement 400 mA... -
Page 19: Capacitance Measurement
All manuals and user guides at all-guides.com Deleting Zero Adjustment Short the leads connected to meter and then press REL key. or Activate the function selector switch. or Switch the Multimeter off. 400 mA... - Page 20 All manuals and user guides at all-guides.com...
-
Page 21: Frequency & Duty Cycle Measurement
All manuals and user guides at all-guides.com 13 Frequency & Duty Cycle Measurement 13.1 Frequency Measurement Set the function selector switch to VAC and press Hz/% key, as shown on page 20. The frequency measurement mode is activated. “Hz” symbol is displayed on the LCD. -
Page 22: Temperature Measurement
All manuals and user guides at all-guides.com Connections are made the same way as for Voltage measurement measuring range for duty cycle and maximum allowable voltage can be found in chapter “Specifications”. Press Press Press Press Hz/% key Hz/% key Hz/% key Hz/% key 400 mA... -
Page 23: Specifications
All manuals and user guides at all-guides.com 15 Specifications Input Impedance Meas. Measuring Resolution Function Range V(AC) / V(DC) 100m 400.0mV >20MW 11MW 4.000V 40.00V 10mV 10MW 400.0V 100mV 10MW 1000V 10MW 100m 400.0mV 11MW 11MW 4.000V 10mV 10MW 40.00V 400.0V 100mV 10MW... - Page 24 All manuals and user guides at all-guides.com Digital display inherent Meas. Measuring Overload capacity deviation at Function Range reference conditions Overload + (...% of rdg + ...digits) Overload value duration 400.0mV 0.75+2 4.000V 1050V(DC) 40.00V 0.5+2 Continuous 400.0V 1000V 400.0mV 1.5+5 4.000V 1050V(AC)
- Page 25 All manuals and user guides at all-guides.com 31.4...
- Page 26 All manuals and user guides at all-guides.com Intrinsic...
- Page 27 All manuals and user guides at all-guides.com...
-
Page 28: Maintenance
All manuals and user guides at all-guides.com Simply unscrew the battery compartment cover from base housing. No need to remove whole base housing. -
Page 29: Fuses
All manuals and user guides at all-guides.com Screw the battery compartment cover to base housing. Unscrew the base housing cover from front housing. Screw the base housing cover to front housing. Be absolutely certain that only the specified fuses as above are used. The use of fuse with different specifications may place the operator, the system &... -
Page 30: Housing
All manuals and user guides at all-guides.com... - Page 31 All manuals and user guides at all-guides.com...
- Page 32 All manuals and user guides at all-guides.com RISHABH INSTRUMENTS PVT. LTD. Factory: F-31, MIDC, Satpur, Nashik-422 007 India Phone(0253) 2202202, 2202162 Fax : 91 - 0253 - 2351064, 2202302 E-mail : International: exp.marketing@rishabh.co.in India: marketing@rishabh.co.in www.rishabh.co.in Printed in India, Subject to change without Notice...
