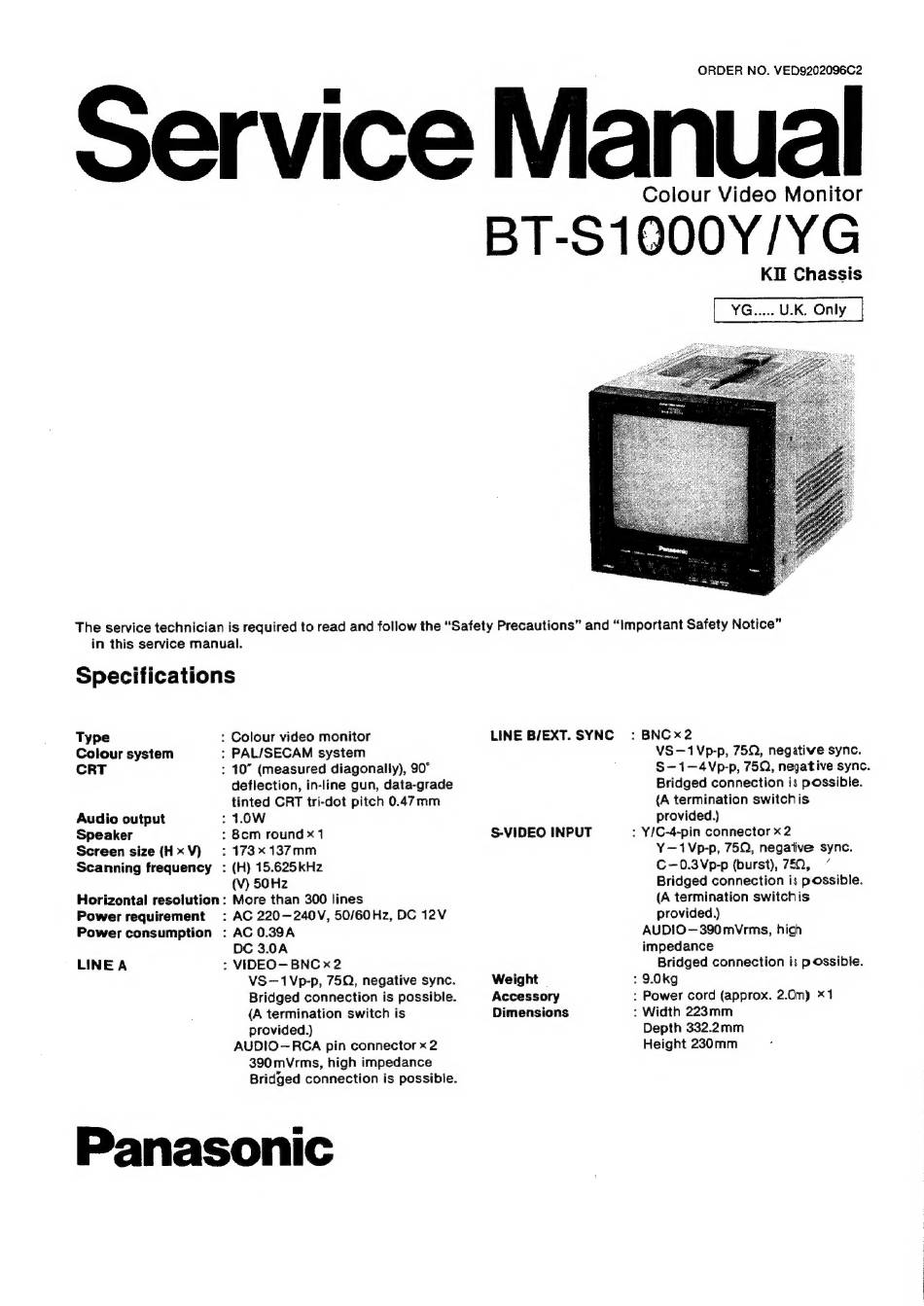

BT-S1000Y/YG
ORDER NO. VED9202096C2
Colour Video Monitor
KII Chassis
Specifications
Type
: Colour video monitor
Colour system
: PAL/SECAM system
CRT
: 10" (measured diagonally), 90°
deflection, in-line gun, data-grade
tinted CRT tri-dot pitch 0.47mm
Audio output
: 1.0W
Speaker
: Bcm round x 1
Screen size (HxV)
: 173
137mm
Scanning frequency
Horizontal resolution :
Power requirement
Power consumption
LINEA
> (H) 15.625kHz
(V) 50Hz
More than 300 lines
: AC 220—240V, 50/60Hz, DC 12V
> AC 0.39A
DC 3.0A
: VIDEO—BNCx2
VS—1Vp-p, 75Q, negative sync.
Bridged connection is possible.
(A termination switch is
provided.)
AUDIO—RCA pin connector x 2
390mVrms, high impedance
Bridged connection is possible.
Panasonic
LINE B/EXT. SYNC
S-VIDEO INPUT
Weight
Accessory
Dimensions
: BNCx2
VS—1Vp-p, 75Q, negative sync.
S-—1—4Vp-p, 75Q, negative sync.
Bridged connection is possible.
(A termination switchis
provided.)
: Y/C-4-pin connector x 2
¥Y—-—1Vp-p, 75Q, negative sync.
C—0.3Vp-p (burst), 78,
"
Bridged connection is possible.
(A termination switchis
provided.)
AUDIO —390mVrms,
high
impedance
Bridged connection is p ossible.
: 9.0kg
: Power cord (approx. 2.0m) <1
: Width 223mm
Depth 332.2mm
Height 230mm
