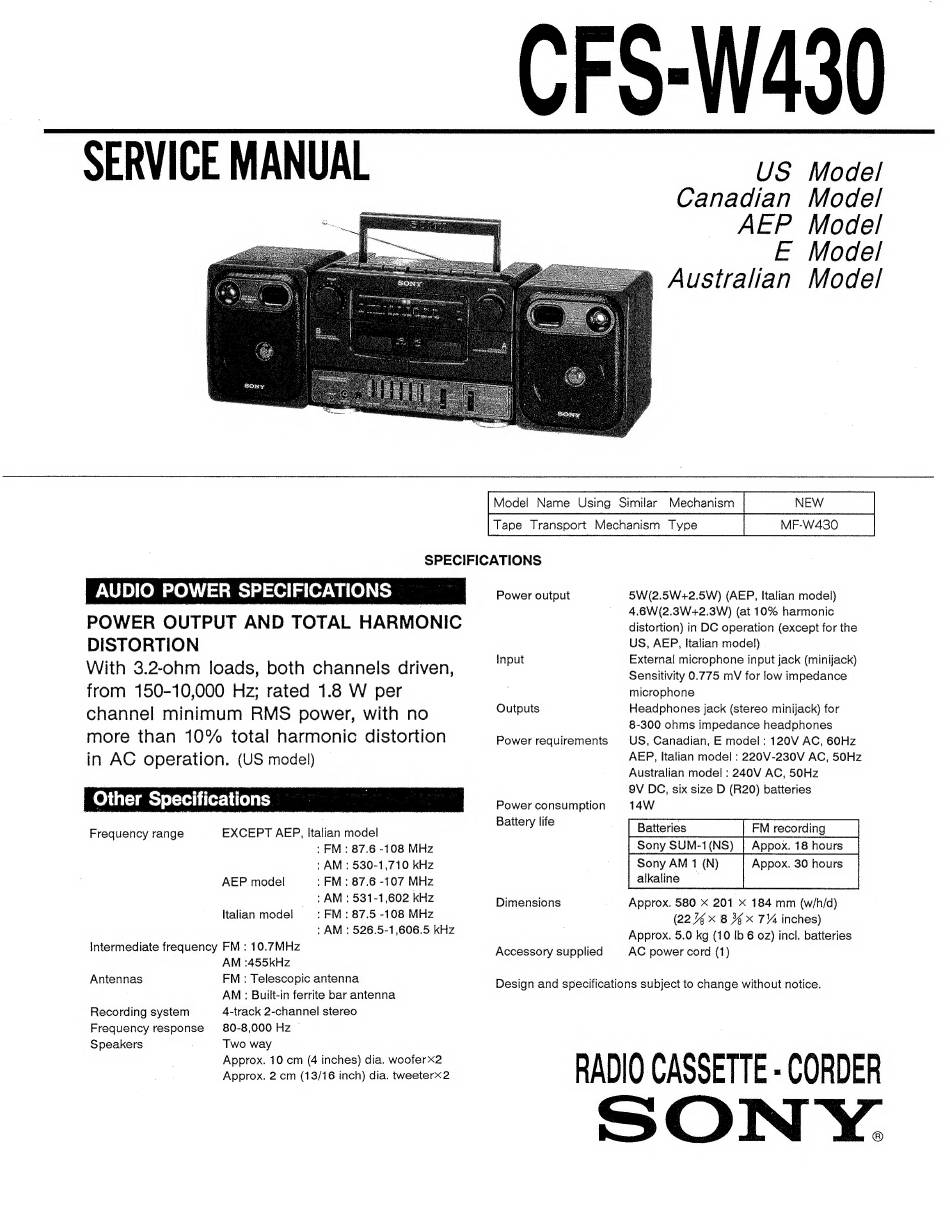

Sony CFS-W430 Service Manual

CFS-W430
SERVICE MANUAL US Model
Canadian Model
AEP Model
E Model
Australian Model
Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type MF-W430
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS Power output 5W(2.5W+2.5W) (AEP, Italian model)
4.6W(2.3W+2.3W) (at 10% harmonic
POWER OUTPUT AND TOTAL HARMONIC distortion) in DC operation (except for the
DISTORTION US, AEP, Italian model)
; . Input External microphone input jack (minijack
With 3.2-ohm loads, both channels driven, ' Sensi pee a ee
from 150-10,000 Hz; rated 1.8 W per microphone
channel minimum RMS power, with no Outputs Headphones jack (stereo minijack) for
, : : 8-300 ohms impedance headphones
more than 10% total harmonic distortion Power requirements US, Canadian, E model : 120V AC, 60Hz
in AC operation. (US model) AEP, Italian model : 220V-230V AC, 50Hz
Australian model : 240V AC, 50Hz
bee ae : 9V DC, six size D (R20) batteries
Other Specifications Power consumption 14W
> AM : 526.5-1,606.5 kHz Approx. 5.0 kg (10 Ib 6 02) incl. batteries
Intermediate frequency FM : 10.7MHz Accessory supplied AC power cord (1)
AM :455kHz
elise FM : Telescopic antenna Design and specifications subject to change without notice.
AM: Built-in ferrite bar antenna
Recording system 4-track 2-channel stereo
Frequency response 80-8,000 Hz ©
Speakers Two way
