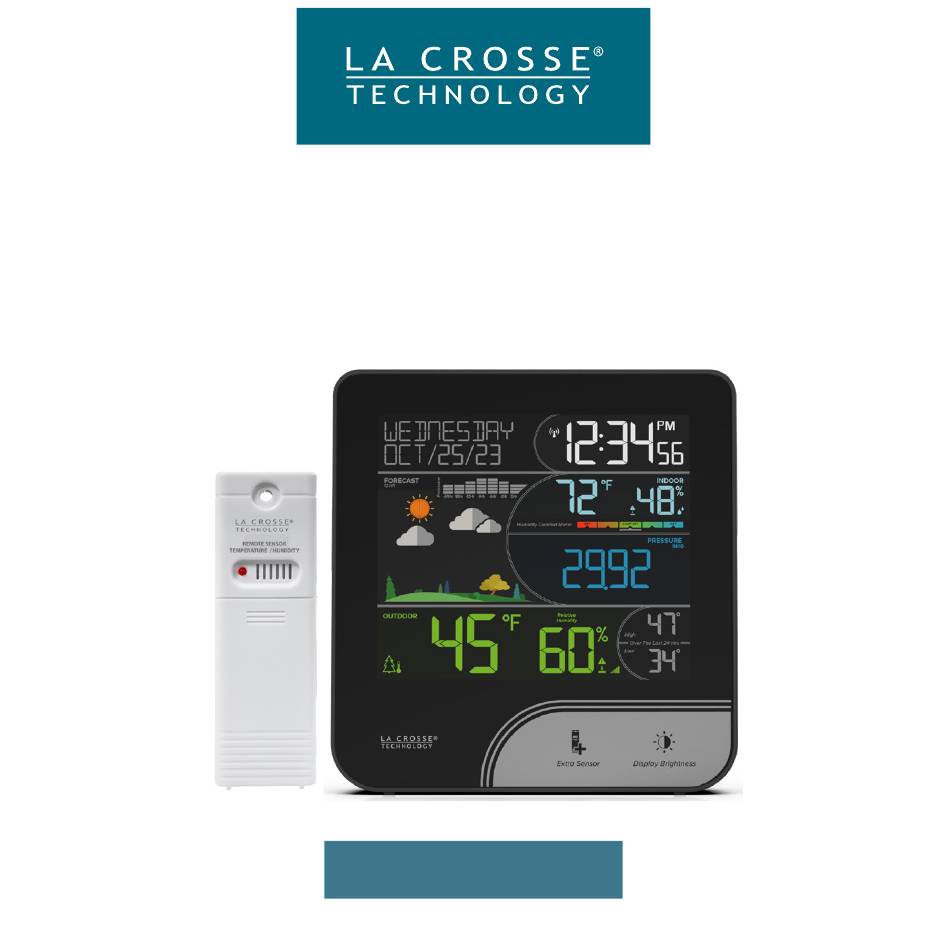

- Page 1 Wireless Color Weather Station SET UP GUIDE MODEL: S73071...
-
Page 2: Table Of Contents
Table of Contents TEMPERATURE/HUMIDITY EXTRA SENSOR AREA BASICS MAIN STATION Power Up Temp. & Humidity Icons Custom Extra Sensor Area Settings Menu History Records Add Sensors to Station Customizable Alerts View Add-on Sensors Atomic Time 24-Hour High/Low Clear Rain History Adjustable Backlight Auto-Dim Settings Readings... -
Page 3: Power Up
Atomic Time Signal at optimal times. Once the sensor is reading on your station, place it outside in a shaded location to protect it from the sun’s heat. Watch our sensor mounting video: bit.ly/th_sensor_mounting Outdoor Sensor Weather Station TX141TH-Bv4 S73071 Insulation Tab Power Jack... -
Page 4: Settings Menu
Settings Menu Hold the button until the LCD changes to enter the Settings Menu. Press and release the button to adjust values. Press and release the button to confirm values and move to the next setting. Press and release the DECIMAL button at any time to save and exit. -
Page 5: Atomic Time
Atomic Time • When your time and date have been set, your clock will automatically search for the Atomic Time Signal at UTC 7:00, 8:00, 9:00, 10:00, and 11:00. • Optional: ATOMIC Press and release the button to manually start or stop a search for the WWVB Atomic Time Signal. -
Page 6: Forecast Area
Forecast Area 1. PRESSURE HISTORY GRAPH Shows pressure changes over the past 24-hours. 2. MOON PHASE Shows current moon phase from 7:00pm to 6:59am FORECAST ICONS Indicates conditions the next 12-hours. 4. SEASONAL FOLIAGE Different Trees shown for different seasons. Pressure History Graph •... -
Page 7: Forecast Icons
Forecast Icons • The forecast icons use the station’s internal barometer to predict conditions to come within the next 12 hours. • Allow 7-10 days for the station to calibrate and provide the most accurate forecast. • The Snow Icon will show when temperatures are below 32°F (0°C) and precipitation or storms are predicted. -
Page 8: Temp. & Humidity Icons
Temperature & Humidity Icons FORECAST FORECAST INDOOR 12 HR 12 HR Humidity Comfort Meter Humidity Comfort Meter PRESSURE PRESSURE Relative Relative OUTDOOR OUTDOOR Humidity Humidity High High Over The Last 24 Hrs Over The Last 24 Hrs 1. INDOOR TEMPERATURE 2. -
Page 9: History Records
History Records From normal time display, press and release the TEMP button to toggle through indoor/outdoor temperature and humidity records with time and date stamps. Records Viewing Order • Outdoor High Temperature • Outdoor Low Temperature • Outdoor High Humidity •... -
Page 10: Customizable Alerts
Customizable Alerts Setting Custom Alerts Hold the ALERTS button until the display changes to enter the Alert Settings Menu. OUTDOOR OUTDOOR Press and release the buttons to activate/deactivate and adjust alert settings. Press ALERTS to confirm your selection. Your programmed alerts are active when the and / icon appear on the LCD. -
Page 11: 24-Hour High/Low
24-Hour High/Low Readings Press and release the 24Hr MODE button to toggle between Outdoor High and Low Temperature or Humidity records to display. These are rolling 24-hour High/Low readings. Temperature Decimal On/Off Press and release the DECIMAL button to turn the temperature decimals ON or OFF. -
Page 12: Search For Outdoor Sensor
Search for Outdoor Sensor If you are seeing “NO” or dashes for your outdoor readings, please try the following steps: Hold the TEMP button to search for the outdoor sensor. The Reception Indicator will begin to animate. If after 3 minutes the sensor still isn’t connected, bring the sensor inside, install fresh batteries, then hold the ALERTS DECIMAL ON/OFF... -
Page 13: Add Sensors To Station
Adding Sensors to Your Station Hold the EXTRA SENSOR ( ) button until the Sensor Reception Indicator ( starts to animate. Install batteries into your sensor. If the sensor has a button, press it to force a transmission signal. This button is usually located in or near the sensor’s battery compartment. -
Page 14: Stay In Touch
Mon-Fri 8am-6pm CST Warranty & Patents La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601 For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty... -
Page 15: Specifications
Specifications Weather Station (S73071) Temperature Range: 32ºF to 122ºF (0ºC to 50ºC) Humidity Range: 10% - 99% RH Relative Pressure Range: 23.62 to 32.48 inHg (800 to 1100 hPa) Power Requirements: 5-volt power adapter (included) GPU280500150WAOO The plug on the power adapter is intended to serve as the disconnect device, the socket-outlet shall be installed near the equipment and shall be easily accessible. -
Page 16: Coin Cell Battery
Coin Cell Battery WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN Swallowing may lead to serious injury in Replace the Coin Cell Battery as little as 2 hours or death, due to Use a screwdriver to turn the battery cover chemical burns and potential perforation to the left to remove it. -
Page 17: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
