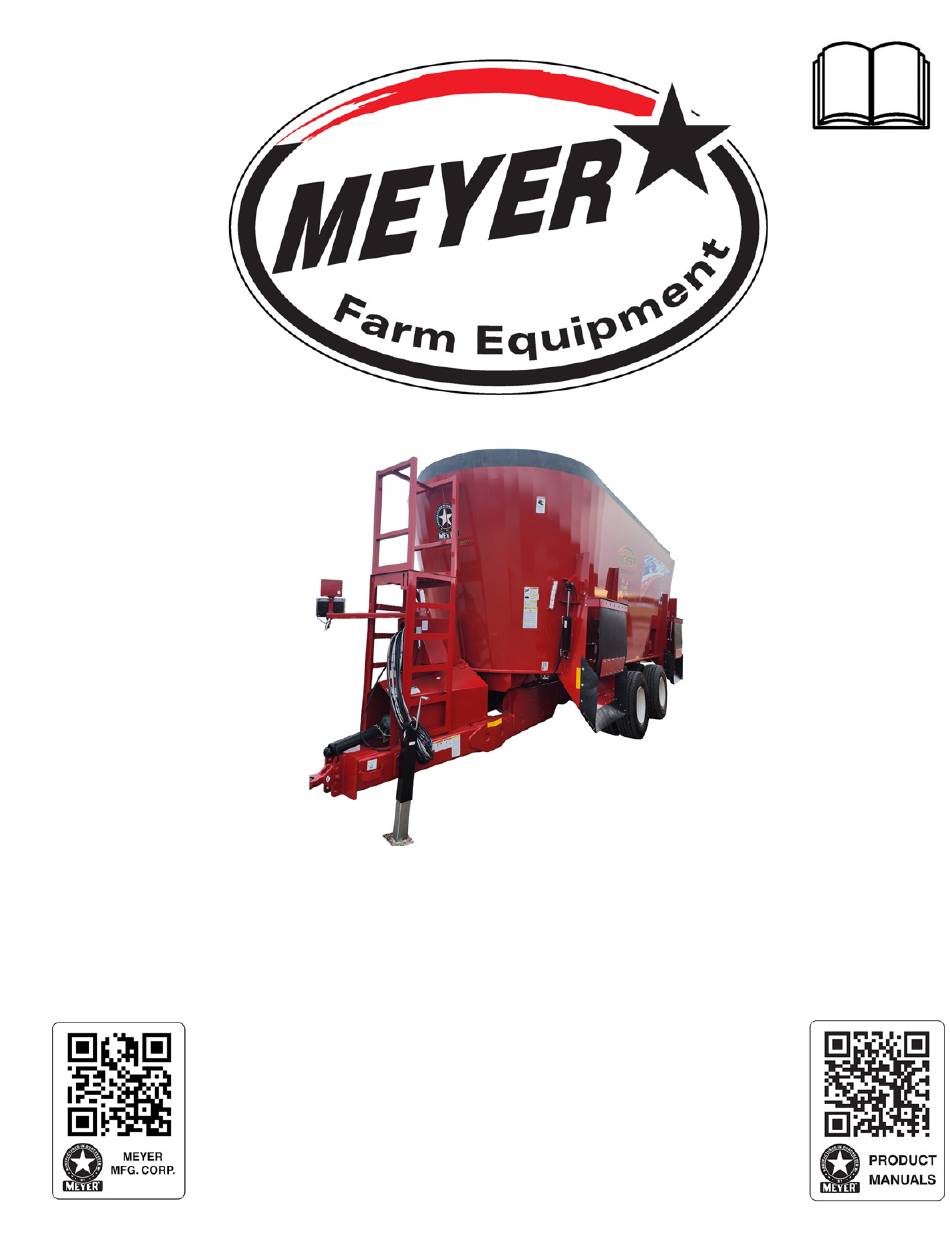

EXAMPLE: 24VM1460201 Model Year / Vertical Mixer / Model / Sequence Of Build Vertical Mixer Trailer / Model Year / Sequence Of Build 1460 Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone: 1-800-325-9103 Fax: 715-654-5513 Email: parts@meyermfg.com...
Owner’s Registration Form. PRE-DELIVERY CHECK LIST DELIVERY CHECK LIST After the new Meyer Mixer has been completely set- The following check list is an important reminder of up, check to be certain it is in correct running order valuable information that MUST be passed on to the before delivering it to the customer.
Meyer products the finest in the farm equipment industry today. There is no substitute for quality. That is why thousands of people like you have purchased Meyer farm equipment. They felt it was the best equipment to serve their farming needs, now and in years to come. We ask that you follow our policy of “safety first”, and we strongly suggest that you read through the “Owner /...
Except as stated above, Meyer Mfg. Corp. shall not be liable for injuries or damages of any kind or nature, direct, consequential, or contingent, to persons or property. This warranty does not extend to loss of crop or for any other reasons.
5.0 SAFETY The Meyer implement is manufactured with operator safety in mind. Located on the implement are various safety signs to aid in operation and warn of danger or caution areas. Pay close attention to all safety signs on the implement.
• Keep tractor / truck in a lower gear at all times when traveling down steep grades. • Stay away from overhead power lines. Electrocution can occur without direct contact. • Use only properly rated undercarriage and tires. Meyer Manufacturing Corporation - 14 - PB-MIXER-F3...
Page 15
Safety Precautions For Tractor Towed Units: • Do not exceed 20 mph (32 kph). Reduce speed on rough roads and surfaces. • Always install a SMV emblem on pull-type equipment when transporting on roadways and keep clean and bright. • Always yield to oncoming traffic in all situations and move to the side of the road so any following traffic may pass.
Safety signs are for operator protection and information. FRONT OF IMPLEMENT PART NO. 46-3600-2 (Located On Trailer Frame Underneath Housing) PART NO. 46-0004-2 PART NO. 46-3600-6 PART NO. 46-0800-6 PART NO. 46-0800-8 PART NO. 46-0800-7 Meyer Manufacturing Corporation - 16 - PB-MIXER-F3...
Page 17
FRONT OF IMPLEMENT PART NO. 46-0001-22 PART NO. 46-0001-208 PART NO. 46-8500-7 PART NO. 46-0001-35 PART NO. 46-0001-62 1-800-325-9103 PB-MIXER-F3 - 17 - www.meyermfg.com...
Page 18
FRONT OF IMPLEMENT PART NO. 46-0001-210 PART NO. 46-8500-7 PART NO. 46-0001-209 RIGHT SIDE OF IMPLEMENT PART NO. 46-0001-4 PART NO. 46-0001-207 (Located Under Shield - Not Shown) Meyer Manufacturing Corporation - 18 - PB-MIXER-F3...
Page 19
RIGHT SIDE OF IMPLEMENT PART NO. 46-0001-211 (Located Under Mixing Tub) LEFT SIDE OF IMPLEMENT PART NO. 46-0001-213 1-800-325-9103 PB-MIXER-F3 - 19 - www.meyermfg.com...
Page 20
BACK OF IMPLEMENT PART NO. 46-0001-213 SIDE/QUAD DOOR PART NO. 46-0001-208 PART NO. 46-8500-7 Meyer Manufacturing Corporation - 20 - PB-MIXER-F3...
SHUTOFF & LOCKOUT POWER Any individual that will be adjusting, servicing, maintaining, or CAUTION clearing an obstruction from this machine needs to ensure that this machine stays safely OFF until the adjustment, service, or maintenance has been completed, or when the obstruction has been cleared, and that all guards, shields, and covers have been restored to their original position.
6.0 PRE-OPERATION Always keep all shields and guards in place and securely fastened. WARNING Keep hands, feet and clothing away from moving components. DO NOT allow anyone to operate, service, inspect or otherwise CAUTION handle this implement until all operators have read and understand all of the instructional materials in this Owner / Operator’s and Parts Manual and have been properly trained in its intended usage.
Requires 25 GPM @ 3000 PSI. Pull Type: Call the factory if additional information is needed. Note: The PTO horsepower and/or hydraulic requirements may not reflect adequate tractor size for towing the machine. Meyer Manufacturing Corporation - 24 - PB-MIXER-F3...
PTO DRIVELINE OPTION Do not operate without PTO guard on implement and tractor. DANGER Maintain PTO drive shaft guard in good operating condition. Replace them if damaged and not turning freely. Shutoff and lockout power before adjusting, servicing, CAUTION maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF &...
With initial hook-up to your implement test PTO travel by turning equipment in both directions observing the minimum (A) and maximum (B) travel dimensions. PTO PART NUMBER 118-VM-0024-55 38.19” 50.98” 118-VM-0001-2600 37.80” 49.45” Meyer Manufacturing Corporation - 26 - PB-MIXER-F3...
HITCHING TO TRACTOR WARNING Do not allow anyone to stand between the tongue or hitch and the tractor when backing up to the implement. Before hitching to the tractor, make sure that there is sufficient ballast on the front axle of the tractor. Depending on conditions, the ballast weight needs to be adjusted to optimize tractor drive.
3. Fully lower all doors. 4. Raise slide trays or conveyors, if equipped. 5. Park the mixer on a flat, level surface. 6. Engage the parking brake, stop the engine and exit the tractor. Meyer Manufacturing Corporation - 28 - PB-MIXER-F3...
OPERATIONAL CHECKS Always keep all shields and guards in place and securely fastened. WARNING Keep hands, feet and clothing away from moving components. Shutoff and lockout power before adjusting, servicing, CAUTION maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. DO NOT allow anyone to operate, service, inspect or otherwise handle this implement until all operators have read and understand all of the instructional materials in this Owner / Operator’s and...
“High” (Key 2). The power shift transmission will only shift to “High”, once selected, if the PTO RPM is at 650RPM. The “High” speed light (Key 3) will light up indicating the power shift transmission is in “High” speed. Figure 6.3 Remote Figure 6.4 “High” Speed Indicator Light Meyer Manufacturing Corporation - 30 - PB-MIXER-F3...
TRANSPORTING • DO NOT allow anyone to operate, service, inspect or otherwise CAUTION handle this implement until all operators have read and understand all of the instructional materials in this Owner/ Operator’s and Parts Manual and have been properly trained in its intended usage. •...
If you do not have a safety chain, or a replacement safety chain is IMPORTANT needed, see your local Meyer dealer and do not operate on public roads until you are able to travel with the safety chain properly installed.
6.9.2 Tractor Towing Size Requirements Use the following charts to help calculate the minimum tractor weight when towing without implement brakes. The minimum tractor weight, up to 20 mph (33 kph) needs to be two thirds of the box Gross Weight (GW). Gross Weight is calculated by the empty weight of the box and undercarriage combined added to the Load Weight.
Lock the steering axles and back the implement in a straight line to the desired location. 6.10 OPTIONAL EQUIPMENT Refer to scale indicator (Item 1) manufacturer’s operators manual for operation. See 8.5.2 Digital Scale Indicator for additional scale maintenance information. Figure 6.6 Scale Indicator Meyer Manufacturing Corporation - 34 - PB-MIXER-F3...
OPERATION • DO NOT allow anyone to operate, service, inspect or otherwise CAUTION handle this implement until all operators have read and understand all of the instructional materials in this Owner/ Operator’s and Parts Manual and have been properly trained in its intended usage. •...
The PTO can then be re-engaged to restart the mixer. The cutout clutch will either re-engage upon shut down of the PTO or just before it comes to a complete stop. Figure 7.7 Cutout Clutch Meyer Manufacturing Corporation - 36 - PB-MIXER-F3...
LOADING DO NOT ENTER MIXING CHAMBER WHILE MIXER IS RUNNING! DANGER Shuttoff and lockout power before attempting to clear an obstruction or to perform work inside the mixing chamber. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. Be aware of power lines and other overhead obstructions when WARNING loading with a telescopic arm or loader.
3. Load minerals, proteins and other small quantity ingredients. 4. Load grains, wet and dry commodities, etc. 5. Load all liquid fats, water and other liquids. Always load liquids at the center of the mixing chamber. Meyer Manufacturing Corporation - 38 - PB-MIXER-F3...
MIXING DO NOT ENTER MIXING CHAMBER WHILE MIXER IS RUNNING! DANGER Shuttoff and lockout power before attempting to clear an obstruction or to perform work inside the mixing chamber. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. Always operate at the rated PTO speed but DO NOT EXCEED THE IMPORTANT RATED PTO SPEED.
Engage the parking brake. NOTE: Always maintain a three-point contact at all times when getting on and off the ladder. Use the ladder rails and steps when climbing the ladder. Figure 7.8 Viewing Platform Meyer Manufacturing Corporation - 40 - PB-MIXER-F3...
UNLOADING DO NOT ENTER MIXING CHAMBER WHILE MIXER IS RUNNING! DANGER Shuttoff and lockout power before attempting to clear an obstruction or to perform work inside the mixing chamber. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. Shutoff and lockout power before adjusting, servicing, CAUTION maintaining, or clearing an obstruction from this machine.
6. Remove the jack from the storage mount and reinstall the jack on the hitch tongue. Crank the jack down until the hitch lifts off the tractor drawbar. 7. Remove the hitch pin. 8. Unhook safety chain from tractor drawbar and intermediate support. 9. Slowly drive the tractor away from the implement. Meyer Manufacturing Corporation - 42 - PB-MIXER-F3...
HAY STOP ADJUSTMENT DO NOT adjust the hay stops while the mixer is running. Moving CAUTION feed inside the mixer can make the hay stop move suddenly causing injury to the person making the adjustment. IMPORTANT Never operate the mixer without the hay stop lock bolt installed. 7.7.1 Hay Stop Lock Bolt The hay stop lock bolt (Item 1) prevents the hay stop from rotating past the intended range of operation.
8.0 MAINTENANCE GENERAL Shutoff and lockout power before adjusting, servicing, CAUTION maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. When welding do not allow electrical current to flow through IMPORTANT bearings, roller chains, or scale weigh bars. Ground the welder directly to the part being welded.
(See 8.2.11.2 Power Shift Transmission) if the oil level is not at the sight grass (Item 2). Check for any oil leaks. If leaks occur, correct the source of the leak. Figure 8.12 Power Shift Transmission Sight Glass Meyer Manufacturing Corporation - 46 - PB-MIXER-F3...
8.2.2 Every 8 Hours Grease all PTO driveline zerks Primary 1. Grease PTO locations every 8 hours. 2. Lubricate the outer CV cross kit with about 5 pumps of grease every 8 hours. 3. Grease telescoping members until it adequately covers the sliding members every 8 hours.
8.2.4 Every 40 Hours Oil door pivots (Item 1). Figure 8.15 Door Pivots 8.2.5 First 50 Hours First oil change in the planetaries (See 8.2.11.1 Planetary Planetary Gearbox Gearbox). Figure 8.16 Planetary Gearbox Meyer Manufacturing Corporation - 48 - PB-MIXER-F3...
8.2.6 Every 250 Hours Grease the four (4) front cross conveyor bearings (Item 1) (If Equipped). Figure 8.17 Front Cross Conveyor - Left Side Figure 8.18 Front Cross Conveyor - Right Side Grease the four (4) side door conveyor bearings (Item 2) (both sides) (If Equipped).
Change oil in the planetary gearboxes. (See 8.2.11.1 Planetary Gearbox Planetary Gearbox) Figure 8.22 Planetary Gearbox 8.2.10 Every 5000 Hours Replace all planetary bearings. Change external planetary O-rings. Check the extent of wear on all planetary gears. Meyer Manufacturing Corporation - 50 - PB-MIXER-F3...
8.2.11 Gearbox/Transmission Oil & Filter Change Procedures Shutoff and lockout power before adjusting, servicing, CAUTION maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. Fluid such as hydraulic fluid, grease, etc., must be disposed of in IMPORTANT an environmentally safe manner.
8.2.11.2 Power Shift Transmission Check the transmission oil levels regularly to prevent abnormal IMPORTANT component wear. Add oil to the transmission if oil level is not at the oil level mark. Draining • Be sure the mixer is positioned on level ground/ surface.
If work must be done inside the mixer, put a protective cover over the auger knives to avoid injury. The hopper and flighting may be slippery. Use caution when stepping on or standing inside the mixer. Meyer Manufacturing Corporation - 54 - PB-MIXER-F3...
8.3.1 Side Discharge Conveyor To adjust tension of the chain, loosen the inner nut (Item 1) and either tighten or loosen the outer nut (Item 2) as needed. Count the number of turns you are adjusting so you can adjust the other end. Once you have proper tension, re-tighten the inner nut (Item 1) on both sides.
Step 7: With the belt tightened as shown in section 8.3.2 Belt Conveyor Tension and the non-primary discharge pulley square with the conveyor frame, tighten the adjuster lock nuts for both non-primary discharge pulley bearings. Meyer Manufacturing Corporation - 56 - PB-MIXER-F3...
Page 57
Step 8: Run the mixer conveyor for 2-3 minutes (both directions for front flat conveyors) at full RPM. If you notice the belt walking to the left or right while looking at the primary discharge end of the conveyor, stop the conveyor.
Auger timing is critical. Whenever disconnecting the PTO connecting the three planetaries, it is critical that all the auger lead edges be facing the front of the mixer as shown. Figure 8.36 Auger Timing Meyer Manufacturing Corporation - 58 - PB-MIXER-F3...
8.3.7 PTO Cutout Clutch Connection The cutout clutch end of the PTO driveline must always be attached to the implement. The PTO driveline is equipped with a 1-3/4” x 20 spline on the implement half for attaching to the spreader. Remove the M17-hexagon bolt from the splined hub and slide the PTO onto the implement splined input shaft.
When knives become worn and rounded on the leading edge their efficiency is greatly reduced. This results in longer processing times and increased horsepower requirements. Refer to your parts manual and contact your Meyer MFG dealer for replacement part ordering. 8.3.9 Brake Adjustment Take up the slack when the stroke reaches about two thirds of the maximum travel.
8.4 FASTENER TORQUE SPECIFICATIONS Shutoff and lockout power before adjusting, servicing, CAUTION maintaining, or clearing an obstruction from this machine. Refer to section 5.3 SHUTOFF & LOCKOUT POWER. After an initial break in period approximately four months and periodically thereafter, ALL bolts and nuts should be checked to ensure that recommended torque values are being maintained.
8.4.2 Wheel Torque PRESS FORMED HEAVY DUTY BOLT/STUD SIZE SOCKET SIZE BOLT TYPE WHEEL CENTER WHEEL CENTER 22MM 32MM Flange Nut 450 lb-ft ELECTRICAL 8.5.1 Power Shift Remote Control Programming 1. Apply a temporary 12 Volt positive (Key 1) and negative (Key 2) source to the receiver.
BRAKES Any corrosive materials (saltwater, fertilizers) are destructive to WARNING metals. To properly maintain the life of the brake system flushing with a high pressure water hose is recommended. After washing be sure to grease actuator bearings (slides) and oil all moving parts.
For accurate inflation use a special low-pressure gauge with one-pound gradations. Gauges should be checked occasionally for accuracy. Always use sealing valve caps to prevent loss of air. Meyer Manufacturing Corporation - 66 - PB-MIXER-F3...
8.7.3 Implement Tires Agricultural tires are designed to carry a specified load at a specified inflation pressure when mounted on a specified width rim. When these conditions are met, the deflection of the tire carcass is in the optimum range and maximum tire performance can be expected.
• Place the equipment flat on the ground. RETURN THE IMPLEMENT TO SERVICE After the Meyer mixer has been in storage, it is necessary to follow a list of items to return the equipment to service. • Be sure all shields and guards are in place.
8.10 MIXER TROUBLESHOOTING GUIDE PROBLEM POSSIBLE SOLUTIONS • Reduce load size. • Adjust hay stops to a less aggressive or neutral position. • The load size may need to be reduced until the unit is polished Requiring High Horsepower inside. •...
Instruction sheets may be provided with the parts order. Otherwise, if available, instruction sheets can be e-mailed or faxed for your convenience. Call Meyer Manufacturing Corporation toll free at 1-800-325-9103 or email parts@meyermfg.com. NOTE: Be environmentally friendly and dispose of any waste materials properly. Recycle when appropriate.
LIGHTS Cable Color Code Brown Wire-Tail Lights Green Wire-Right Side Brake/Turn Signal Yellow Wire-Left Side Brake/Turn Signal White Wire-Ground To Tractor Tractor End Plug Front View Light Cord To 7-Pin White Wire To #1 Brown Wire To #6 Green Wire To #5 Yellow Wire To #3 J-Box Wire To 7-Pin Cord Screw...
WEIGH BAR WIRING DIAGRAM See Digital Scale Indicator on page 64 for configuration and custom numbers. FM-F3-0001-1 Meyer Manufacturing Corporation - 74 - PB-MIXER-F3...
Page 75
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 58-0002-407120 EZ2500 Scale Indicator Monitor With Serial Port 1460 58-0002-407094 EZ2500 Scale Indicator Monitor 1460 58-0002-404516 EZ2400 Scale Indicator Monitor 1460 58-0002-281023 EZ2810 Scale Indicator Monitor 1460 58-0002-408944 EZ3400V Scale Indicator Monitor 1460 58-0002-406552 EZ3600V Scale Indicator Monitor 1460...
POWER SHIFT ELECTRICAL SYSTEM WITH COOLERS To 7-Pin 7-Pin Plug White-1 Front View Black-7 White Black Cord Screw FM-F3-0002-1 POWER SHIFT ELECTRICAL SYSTEM WITHOUT COOLERS 7-Pin Plug Front View White To 7-Pin White-1 Black Black-7 Cord Screw FM-F3-0003-1 Meyer Manufacturing Corporation - 76 - PB-MIXER-F3...
Page 77
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL See Page 78 Junction Box Assembly 1460 56-0377 Fan Harness Assembly 1460 56-0111-BT Amber Light 1460 56-0381 Monitor Y-Harness (Optional) 1460 56-0382 Battery Extension Harness 1460 56-0378 Battery Harness Assembly 1460 56-0390 Strobe Light Power Harness Assembly 1460 56-0375 Coil/Sensor Harness Assembly...
FRONT FLAT & INCLINE BASE BELT CONVEYOR RH Incline Only LH Incline Only FM-ML-0008-1 Meyer Manufacturing Corporation - 96 - PB-MIXER-F3...
Page 97
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL VAL-FDB-36-2MI 2 Motor Front Discharge Flat Belt Conveyor 1460 (Incline Ready) M3-1-10-0017-1 Incline Base Conveyor Weldment 1460 813-5013-Z 1/2”-13 Nut 1460 810-5013-Z 1/2” Spin Lock Nut 1460 M3-1-5-0044-1 Front Conveyor Bearing Mount 1460 See Page 150 Bearing Mount Weldment (RH Power Magnet) 1460...
FRONT FLAT & INCLINE BASE BELT CONVEYOR (CONT’D) RH Incline Only LH Incline Only FM-ML-0008-1 Meyer Manufacturing Corporation - 98 - PB-MIXER-F3...
Page 99
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 49-0156-6-AS Conveyor Belt Lacing Pin Kit 1460 49-0156-MB Front Conveyor Mini Bite Belt 1460 M3-1-10-0017-7 Front Conveyor Skirt Bracket 1460 M3-1-10-0018 Base Conveyor Front Panel Weldment 1460 M3-1-8-0028 Front Conveyor Shield Mounting Bracket 1460 M3-1-10-0009 Front Conveyor Shield, Left (Flat Sliding...
FRONT FLAT BELT CONVEYOR HYDRAULIC SCHEMATIC Motor CW Rotation B - Out A - In Flat Left Flat Right Base Motor Base Motor FM-F3-0009-1 Meyer Manufacturing Corporation - 100 - PB-MIXER-F3...
Page 101
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-8010-15 #8 ORB Male Tip 1/2” Body Size 1460 155-6400-8-8 #8 JIC Male, #8 ORB Male Straight Connector 1460 155-08R17-234-1 1/2” x 234” Hose Assembly 1460 155-08R17-138-1 1/2” x 138” Hose Assembly 1460 155-BMRSY-12.25-1 Hydreco 12.25 Cubic Inch 2-Bolt Motor 1460...
FLAT CHAIN CONVEYOR HYDRAULIC SCHEMATIC Motor CW Rotation B - Out A - In Flat Right Base Motor FM-F3-0011-1 Meyer Manufacturing Corporation - 104 - PB-MIXER-F3...
Page 105
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-8010-15 #8 ORB Male Tip 1/2” Body Size 1460 155-6400-8-8 #8 JIC Male, #8 ORB Male Straight Connector 1460 Call 1-800-325-9103 ___” x ____” Hose Assembly 1460 155-6802-8-10 #8 JIC Male, #10 ORB Male Adjustable 45° 1460 155-BMRSY-12.25-1 Hydreco 12.25 Cubic Inch 2-Bolt Motor...
DOOR FM-ML-0024-1 Meyer Manufacturing Corporation - 106 - PB-MIXER-F3...
Page 107
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-2.5-12-1.125-1 2-1/2” x 12” x 1-1/8” Hydraulic Cylinder 1460 155-2.5-1.125-1CSK Chief 2-1/2” Bore Seal Kit 1460 155-2.5-1.125-1DSK Delevan 2-1/2” Bore Seal Kit 1460 155-2.5-1.125-2MSK Maxim 2-1/2” Bore Seal Kit 1460 MN6-14-0001 Rear / Front Door Weldment 1460 MN6-14-0004-S Front Left &...
QUAD DOOR HYDRAULIC SCHEMATIC FM-F3-0013-1 KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-8010-15 #8 ORB Male Tip 1/2” Body Size 1460 155-6400-6-8 #6 JIC Male, #8 ORB Male Straight Connector 1460 155-04R17-314-1 1/4” x 314” Hose Assembly (SN 22VM1460202 1460 Only) 155-04R17-278-1 1/4”...
POWER SHIFT TRANSMISSION OIL COOLING SYSTEM LEFT VIEW RIGHT VIEW Cooler Must Be Oriented Port P Port T As Shown Port P Port T FM-ML-0050-1 Meyer Manufacturing Corporation - 120 - PB-MIXER-F3...
Page 121
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL 155-OC-TT07-1 12V Hydraulic Cooler 1460 155-6400-16-16 Straight Adapter 1460 155-2406-16-8 Straight Adapter 1460 155-08R17-69-1 1/2" x 69" Hose 1460 155-6801-12-16 90° Adapter 1460 155-2406-12-08 Straight Adapter 1460 155-2404-08-08 Straight Adapter 1460 155-P08-08 Straight Adapter 1460 See Pages 116 &...
Page 123
KEY PART NUMBER QTY DESCRIPTION 119-30-24.3-2 3003 Series Planetary Gearbox 119-P-CI-4 1 Per Oil Seal 119-P-CI-5 1 Per Oil Seal 119-P-CI-6 1 Per Washer 119-P-CI-7 4 Per 1/2” Plug 119-P-CI-8 1 Per 1/2” Magnetic Plug 119-P-CI-10 1 Per O-Ring 119-P-CI-21 1 Per Shim Kit 119-P-CI-25 1 Per Cover...
PLANETARY GEARBOX OIL SYSTEM Front Use #48-0081 Synthetic Rear ISO220 or Equivalent For Planetary Gearboxes. FM-F3-0017-1 Meyer Manufacturing Corporation - 124 - PB-MIXER-F3...
Page 125
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL See Page 122 3003 Series Planetary Gearbox 1460 155-PB08-08 Straight Adapter 1460 55-0406 90° 1/2” Hose Barb 1460 55-0410 Straight 1/2” Hose Barb 1460 55-0039 Straight Adapter 1460 55-0082 90° Fitting 1460 55-0419 90°...
10.0 OPTIONAL PARTS FM-F3-0024-1 KEY DESCRIPTION PAGE # CAPACITY EXTENSION SIDE DOOR HANGING WEIGHT ASSEMBLY REMOTE SCALE MOUNT RUBBER SIDE DOOR CHUTE ASSEMBLY CONVEYOR HANGING WEIGHT ASSEMBLY CONVEYOR DEFLECTOR ASSEMBLY POWER MAGNET FRONT PLANETARY OIL COOLING SYSTEM MIDDLE PLANETARY OIL COOLING SYSTEM REAR PLANETARY OIL COOLING SYSTEM QUAD DOOR INDEPENDENT DOOR CONTROL 1-800-325-9103...
SIDE DOOR HANGING WEIGHT ASSEMBLY FM-F3-0025-1 KEY PART NUMBER QTY DESCRIPTION F3A-HDB-43-SL Clad Tuff 43” Belt Deflector (Front Left / Rear Right Doors) F3A-HDB-45-SR Clad Tuff 45” Belt Deflector (Front Right / Rear Left Doors) F3A-HDBS-43-SL Steel Plate 43” Belt Deflector (Front Left / Rear Right Doors) F3A-HDBS-45-SR Steel Plate 45”...
RUBBER SIDE DOOR CHUTE ASSEMBLY FM-ML-0040-1 Meyer Manufacturing Corporation - 146 - PB-MIXER-F3...
Page 147
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL F3A-SDBC-12-L 12” Front Left & Rear Right Side Door Belt Chute 1460 F3A-SDBC-12-R 12” Front Right & Rear Left Side Door Belt Chute 1460 MN11-1-0016-1 Chute Side Belt (12” Belt Chute) 1460 MN11-1-0016-5 Front Left &...
Page 149
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL VAML-HMB-F Hanging Magnet Kit For Left / Right Discharge 1460 (Front Flat Belt Conveyor) VAML-HDB-F Hanging Weight Kit For Left/Right Discharge 1460 (Front Flat Belt Conveyor) VAML-DBD-F Deflector Kit For Left/Right Discharge (Front Flat 1460 Belt Conveyor) M11-1-0004...
FRONT PLANETARY OIL COOLING SYSTEM Use #48-0081 Synthetic ISO220 or Equivalent For Planetary Gearboxes. FM-F3-0019-1 Meyer Manufacturing Corporation - 152 - PB-MIXER-F3...
Page 153
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL See Page 122 3003 Series Planetary Gearbox 1460 155-PB08-08 Straight Adapter 1460 55-0406 90° 1/2” Hose Barb 1460 55-0082 90° Fitting 1460 155-5405-08-12 Straight Adapter 1460 55-0039 Straight Adapter 1460 55-0410 Straight 1/2” Hose Barb 1460 155-5502-06-08 90°...
12.0 MAINTENANCE RECORDS MODEL NO. ______________________________ SERIAL NO. ______________________________ Date Service Performed Date Service Performed Manufactured by: Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone. 1-800-325-9103 Fax: 715-654-5513 Email: parts@meyermfg.com Website: www.meyermfg.com...
Page 164
Manufactured by: Meyer Manufacturing Corporation 674 W. Business Cty Rd A Dorchester, WI 54425 Phone. 1-800-325-9103 Fax: 715-654-5513 Email: parts@meyermfg.com Website: www.meyermfg.com...
