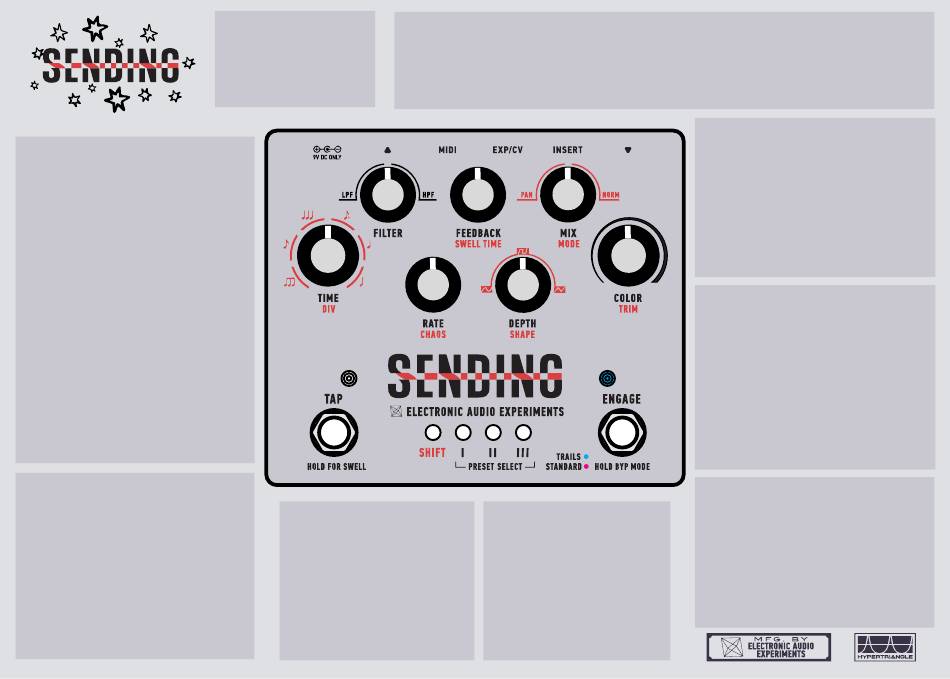

Electronic Audio Experiments SENDING Quick Reference Manual

DELAY LINE
TIME
Sets the base delay time, from 30ms to 1s.
Longer delay times introduce musical lo-fi
artifacts, but with zero clock noise.
DIV
Sets the relationship between the tempo and
the delay repeats. Use for precise short
delays, or for intentional underclocking of
the delay line.
FEEDBACK
Number of delay repeats, from a single echo
to exploding oscillations.
FILTER
Turn clockwise to cut lows for tape-like
echoes. Turn counterclockwise for dark,
murky echoes.
Secret filter alt function? (See page 2)
TAP TEMPO/SWELL
Tap four or more times to set the tempo.
Hold down to activate Swell mode, which
ramps up the feedback at a rate determined
by Swell Time.
When in swell mode you can set the max
feedback level separately.
Swell can be activated when in Trails mode
to momentarily activate the pedal.
QUICK
REFERENCE
GUIDE
firmware v2.0
SHIFT BUTTON
Press the Shiſt button to access
secondary functions. When the
button is lit, Alt Functions
Press again to revert to the normal
panel state.
(Shiſt has more advanced functions as
well. See page 2.)
I/O
Audio: low noise, high Power: 9VDC, 500mA.
headroom buffered dry Protected from over-
path with selectable voltage and reverse
regular or trails bypass. polarity conditions.
PRESETS
Long press a Preset button to save
to that slot. Press again to recall.
are active. When a preset is loaded, press that
button to revert to the previous
panel state.
When a preset is edited, the button
will blink. Long press again to save.
MIDI: 1/4" TRS, Type A (MIDI box not required)
EXP/CV: Expression pedal or 0-5V CV
INSERT: Delay line effect loop; tip = send, ring = return
ANALOG
COLOR
Gain control for the discrete input preamp,
which adds warm saturation to the dry and
delayed signals. Use the Trim
the output level by +/-6dB.
MIX
Delay/dry crossfade from full dry to full wet
(Pan mode). Effect level only
LFO
RATE/DEPTH
Change the speed and intensity of modulation
applied to the delay time, forming pitch bends.
CHAOS
Crossfade between the periodic LFO and a
smooth random waveform.
SHAPE
Gradually change the LFO waveform from
sine, to square, to triangle.
ENGAGE
Activates the effect. To change the bypass
mode, hold until the LED changes color.
Standard bypass uses a high-headroom buffer
with no coloration to the signal.
Trails mode keeps the preamp active in bypass.
When disengaged, repeats fade out naturally.
control to adjust
(Norm mode.)
