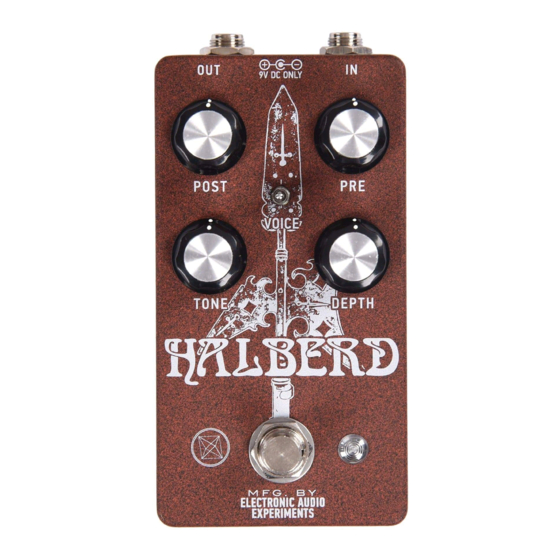

- Page 1 Technical Document Halberd Manual Version 0 [Draft Copy] Last Revised: 23-Oct-19 John Snyder...
- Page 2 EAE pedals. At the risk of diving into buzzwords, the Halberd’s signal path is comprised of discrete transistor gain stages. Integrated circuits, such as the op amps found in the Longsword, consist of many transistors working in tandem –...
- Page 3 100mA. Supplies with AC output or a DC voltage greater than 9V will risk damaging the pedal and voiding the warranty. The Halberd does not use batteries. The Halberd has soft-touch relay switching with buffered bypass. When the Halberd is disengaged, your signal passes through a high-headroom class A JFET buffer to preserve its integrity over long cable runs.
- Page 4 In conclusion… The Halberd is a powerful and versatile transistor drive with a deceptively simple set of controls. Thank you for supporting our design and manufacturing efforts, and we hope this pedal serves you well for many years to come.
