Craftsman CMZPWHPSB200 Manual

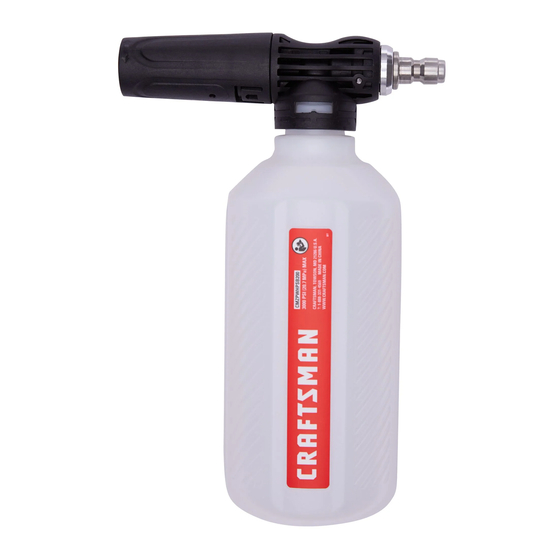

CMZPWHPSB200 High Pressure Soap Bottle / Bouteille de savon haute pression /
Botella de jabón de alta presión
Fig. A
7
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this attachment, basic safety precautions should always be
followed including the following:
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when a product is used
near children.
• Know how to stop the product and bleed pressures quickly. Be thoroughly familiar
with the controls.
• Stay alert – watch what you are doing.
• Do not operate the product when fatigued or under the influence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep good footing and balance at
all times.
• Follow the maintenance instructions specified in the manual.
1 . For use with electric pressure washers only.
2 . Risk of explosion. Do not spray flammable liquids.
3 . Only use detergents specifically recommended for use with high pressure
soap applicators.
4 . Risk of injection or severe injury. Do not direct spray at people, pets, or electrical apparatus
and wiring.
5 . Gun kicks back – hold with both hands.
6 . Disconnect power source prior to the detaching of the high pressure hose.
7 . For cold water use only.
8 . For outdoor use only - store indoors.
SAVE THESE INSTRUCTIONS
Intended Use
This high pressure soap bottle is intended for cleaning boats, cars, decks, driveways, grills, house
siding, motorcycles, patios, and outdoor furniture.
DO NOT let children come into contact with the tool. Supervision is required when
inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect
it from power source before making any adjustments or removing/installing
attachments or accessories. An accidental start-up can cause injury.
Attaching Foam Nozzle (Fig. A)
1. Shut OFF the pressure washer unit.
2. Pull trigger 1 on spray handle 2 to relieve any water pressure.
3. To connect the high pressure soap bottle to the spray wand
collar 4 toward the spray wand 3 and insert the soap bottle inlet connector
4. Push the 1/4" quick connect collar forward so that the quick connect collar locks the high
pressure soap bottle inlet connector in position. To ensure nozzle is locked into place, give the
nozzle a firm tug after the quick connect collar has locked into place.
5 3
4
6
To Fill Soap Bottle (Fig. A)
1. Shut OFF the pressure washer unit.
2. Pull trigger
3. Remove the soap bottle
4. Remove from the nozzle
NOTE: Follow the detergent manufacturer's directions for mixing or adding detergent.
5. To replace the refillable soap bottle align the tabs at the top with the notches in the nozzle.
6. Turn the soap bottle 90˚ counterclockwise to lock it into place.
7. Turn the pressure washer on and pull the trigger
soap foam begins to spray from nozzle
Removing Foam Nozzle (Fig. A)
1. Shut OFF the pressure washer unit.
2. Pull trigger
3. To disconnect the high pressure soap bottle from the spray wand
collar
MAINTENANCE

Nozzle (Fig. A)
If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may
develop. If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate.
Clean the nozzle immediately using the nozzle cleaner.
1. Shut OFF the pressure washer unit.
2. Pull trigger
3. To disconnect the high pressure soap bottle from the spray wand
collar
NOTE: Never point the nozzle at the face.
4. Using the spray tip cleaning tool, unclog any debris from the nozzle.
5. Run water from a faucet or garden hose through the nozzle.
SPECIFICATIONS
Connection
Maximum Pressure
Maximum Flow Rate
Maximum Water Temperature
3 , pull the 1/4" quick connect
5 .
WARNING: To reduce the risk of injury, read the
instruction manual.
AVERTISSEMENT : afin de réduire le risque de blessures, lire
le mode d' e mploi de l' o util.
ADVERTENCIA: Para reducir el riesgo de lesiones, lea el
manual de instrucciones.
1 on spray handle 2 to relieve any water pressure.
6 by twisting it 90˚ clockwise.
7 and set it aside.
7 .
1 on spray handle 2 to relieve any water pressure.
4 toward the spray wand 3 and pull the soap bottle nozzle
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect
it from power source before making any adjustments or removing/installing
attachments or accessories. An accidental start-up can cause injury.
1 on spray handle 2 to relieve any water pressure.
4 toward the spray wand 3 and pull the soap bottle nozzle
1/4" Quick Connect
3000 psi
1.2 gpm
104 °F (40 °C)
1
2
1 on spray handle 2 for 5 seconds until
3 , pull 1/4" quick connect
7 forward to remove.
3 , pull 1/4" quick connect
7 forward to remove.
