IPR Harpia 1100 User Manual

Displacement pump with a grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
manual
GUARANTEE:
The disadvantages of the product
are 36 months from the date of purchase.
Are required for a warranty claim
date of purchase and product code.

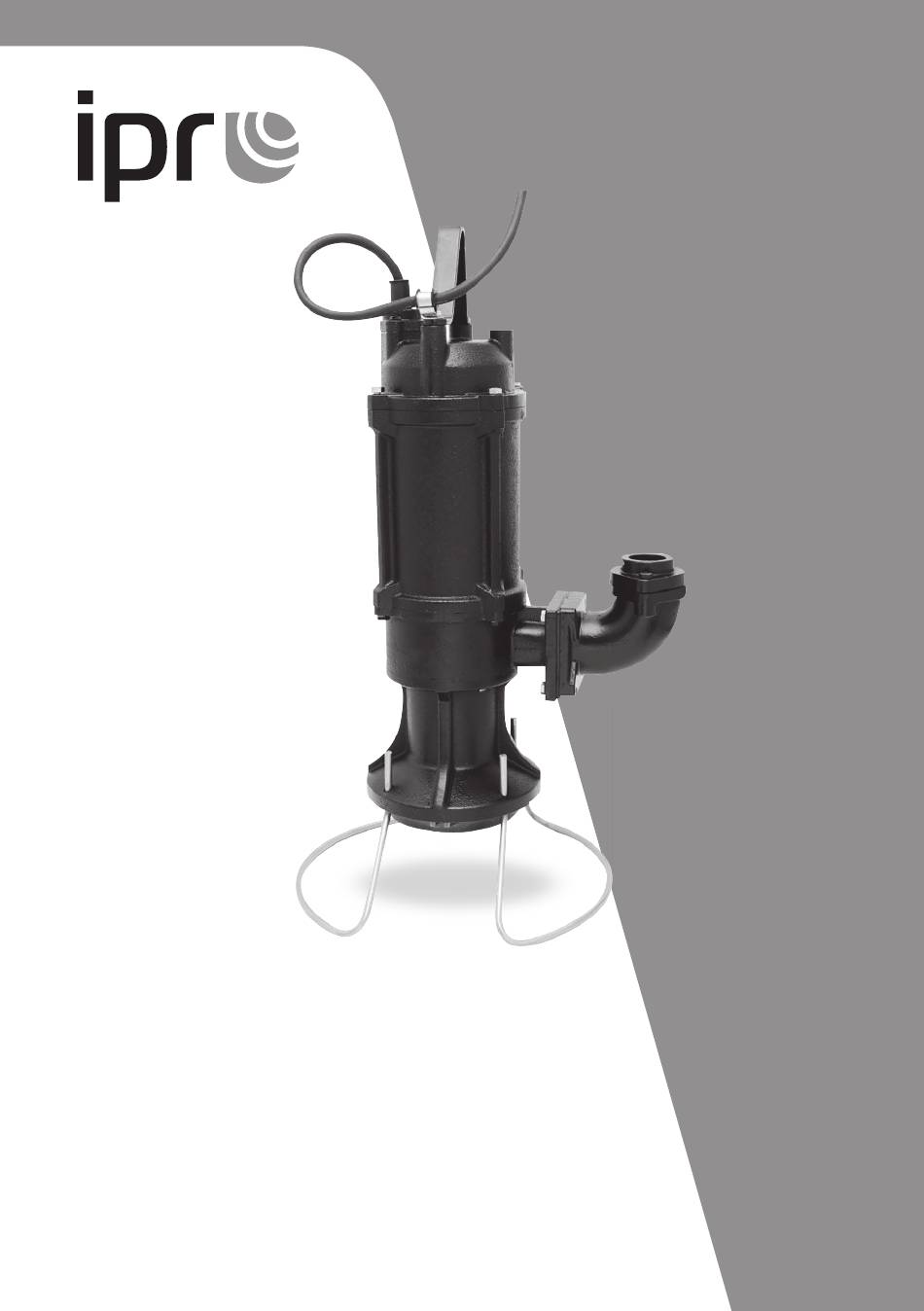

Displacement pump
with a grinder
Harpia 1100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harpia 1100 and is the answer not in the manual?

Questions and answers

Related Manuals for IPR Harpia 1100

Summary of Contents for IPR Harpia 1100

  • Page 1 User manual GUARANTEE: The disadvantages of the product are 36 months from the date of purchase. Are required for a warranty claim date of purchase and product code. Displacement pump with a grinder Harpia 1100...

  • Page 2: Table Of Contents

    CONTENTS PRODUCT APPLICATION WORKING CONDITIONS SPECIFICATION THE MOST IMPORTANT INFORMATION INSTALLATION Electrician Basic information Description of the pump unit inside OPERATION OF THE PUMP Operation of the pump MAINTENANCE Precautions Storage Check the direction of rotation Replacement of parts of the grinder Dismantling the grinding ring and grinding rotor Warning Notes General technical control...
  • Page 3 Warning! The symbol „danger” is used for notes that are not followed may cause danger to life or health on the part of the installation electricity. Before proceeding with activities marked with this symbol, the pump supply cable must be disconnected from the power supply.

  • Page 4: Product Application

    The Harpia 1100 M / T pump with a grinder has been designed using the latest materials and technologies. Before installation and operation, check the following points: •...

  • Page 5: Working Conditions

    2. WORKING CONDITIONS • Single-phase power supply 230 V / 50 Hz (M version) or three-phase 400 V / 50 Hz (T version) • The pumped medium should have a temperature not higher than 40 ° C and a den- sity of ≤1150 kg / m •...

  • Page 6: Installation

    • Usually the grinder pump is located indoors or outdoors, if used in a sewage sys- tem, please refer to local hydraulic codes for tank venting requirements. The pump must not be installed in a location classified as hazardous in accordance with the National Electrical Code, ANSI / NFPA70 •...

  • Page 7: Electrician

    Electrician Risk of dangerous or fatal electric shock: Disconnect the pump before its servicing. Do not operate the pump or try to work on the pump with wet hands or standing on a wet or damp floor. For your protection, always disconnect the pump from the power supply before servicing All electrical connections must be wired and grounded in accordance with the National Electrical Code and all applicable local codes and / or catalogs.

  • Page 8: Description Of The Pump Unit Inside

    Description of the pump unit inside Please see attached drawings recommended for stations as below, except items 5 and 6, other items will be needed to support indoor installation like list from 1 to 4, from 7 to 12 items, where: •...

  • Page 9: Operation Of The Pump

    Example of pump connection to the M131 controller Controller M131 13 S1 U1 V1 W1 14 1T 12 S2 Any electrical connections may only be made by a qualified electrician with appropriate permissions. 6. OPERATION OF THE PUMP Operation of the pump Warning: Accidental contact with the movable blades can cause serious injury.

  • Page 10: Maintenance

    1. It is not necessary to check the direction of rotation with a single-phase pump. 2. Fill the reservoir until the entire pump is covered. 3. Open the slide gate in the discharge line. 4. Turn on the pump. If the pump is running and the liquid in the tank is not pumped out, stop the pump and close the discharge gate.

  • Page 11: Storage

    of electrical switches, including switch contacts shut-off devices and contactor. Of the reasons mentioned, the most common one is blown or blown fuse on one of the phases. This indicates that the use of the same short-circuit fuse does not guarantee safe operation of the motor.

  • Page 12: Check The Direction Of Rotation

    Warning! Failure to heed warnings is likely to result in fatal accidents The pump and electronic control devices must be grounded well and reliably Never enter the drain or touch the pumped water while the pump is running. Before any maintenance operations, disconnect the pump from the electricity supply.

  • Page 13: Warning Notes

    2. Unlock the nut at the end of the shaft with a spanner or a ring spanner, fasten the cutter with pliers. Take care that the cutter slips off the shaft when turning the nut counter- clockwise. 3. Hold the cutter seat and clean each groove surrounding the inside diameter with a small diameter rod with a tip to clear the inside groove area.

  • Page 14: General Technical Control

    General technical control Before commissioning the system, it should be checked by a qualified technician. Lubrication procedures No lubrication is required. If pumps are to be stored for more than six months, see the storage procedure under Storage and Containment. Preventive maintenance Preventive maintenance is recommended to ensure a long product life.

  • Page 15: Troubleshooting

    6. A large red flashing light on the control box lights up. Check the pump for clogging or overload. For single-phase pumps, check the starting capacitor on the control panel. 7. The grease and solids collect in a sump around the pump. Break down the solids and run the pump with the water running down the sump.
  • Page 16 9. PUMP CROSS SECTION AND LIST OF COMPONENTS Part description Q-ty Part number Power cord set • Cable HARPIA 1100-01 • Cable gasket, bolts and washers Top cover • Screw plug, gasket HARPIA 1100-02 • O-ring • Bolted connections Motor housing and stator •...

  • Page 18: Dimensional And Indicative Drawings

    10. DIMENSIONAL AND INDICATIVE DRAWINGS Description Material Handle Steel Cable gasket Cable holder Cast iron Top cover Cast iron Bearing cover Cast iron Motor housing Cast iron Pump body Cast iron The knife socket Cast iron Elbow (ordered separately) Cast iron Flange (Order Separately) Cast iron Base...
  • Page 19 720 mm 316 mm 408 mm...

  • Page 20: Warranty Limitations

    11. WARRANTY LIMITATIONS The manufacturer guarantees to the buyer and subsequent owner during the warranty period that each new product will be free from defects in material and workmanship under normal use and service, with proper use and maintenance, for a period of 36 months from the date of purchase by the end user.

  • Page 21: Let's Take Care Of Our Environment

    12. LET’S TAKE CARE OF OUR ENVIRONMENT Each user can contribute to the protection of the environment. It is neither difficult nor Expensive. For this purpose, a cardboard box for waste paper, bags should be provided of plastics in the plastic container. Used device should be returned to an appropriate storage point.

  • Page 22: Deklaracja Zgodności

    DEKLARACJA ZGODNOŚCI 1. POMPY ZATAPIALNE HARPIA 1100 2. DAMBAT Jastrzębski S.K.A, Adamów 50, 05-025 Grodzisk Maz, POLSKA, e-mail: biuro@dambat.pl 3. Niniejsza deklaracja zgodności wydana zostaje na wyłączną odpowiedzialność producenta. 4. Pompy zatapialne z typoszeregu zawartego w punkcie 1. 5. Deklarujemy z pełną odpowiedzialnością, że pompy zatapialne do których niniejsza deklaracja się...

  • Page 23: Karta Gwarancyjna

    KARTA GWARANCYJNA Poniższa karta gwarancyjna ważna jest tylko wraz z oryginałem dokumentu zakupu, tzn. fakturą lub paragonem. Ponadto musi być potwierdzona przez sprzedawcę podpisem i pieczątką. Karta gwarancyjna bez załączonego oryginalnego dokumentu zakupu jest nieważna. 1. Gwarantem urządzenia jest DAMBAT Jastrzębski S.K.A, Adamów 50, 05-025 Grodzisk Maz, kompleks Panattoni. 2.
  • Page 24 Notatki...
