Summary of Contents for IPR VMH 1500/5

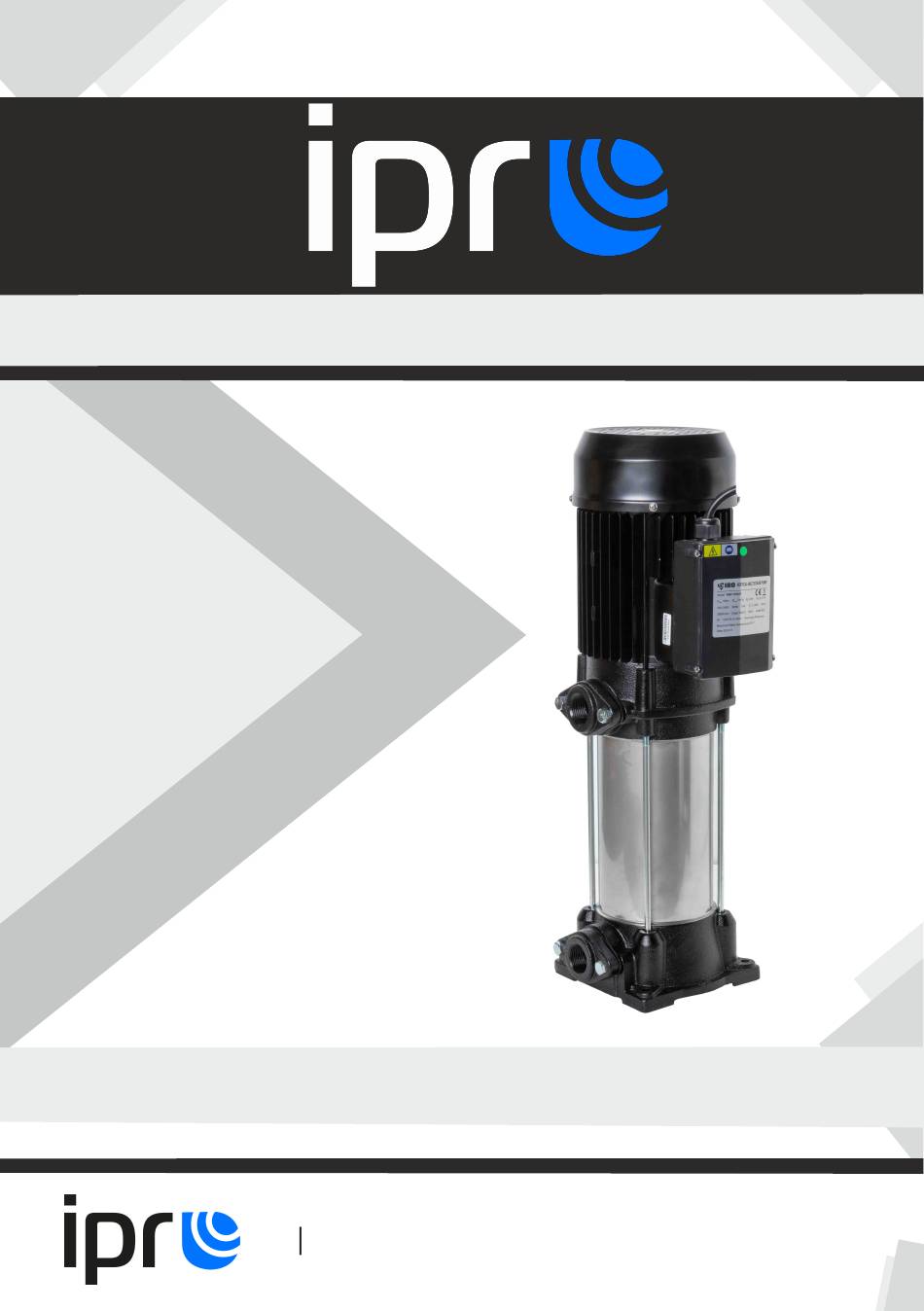

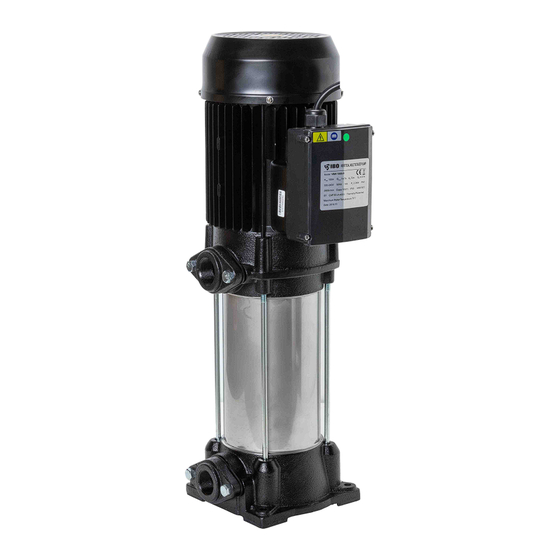

- Page 1 MULTISTAGE VERTICAL PUMPS Read the manual prior to commencement of use. For safety reasons, the device can only be operated by persons well-familiarised with the manual.
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 1. Security .........................p.14 2. Application ........................p.14 3. Installation of pumps and hydrophores …………………....………………p.16 4. Electrical connection ……………………………………......………………p.17 5. Start-up and operation ………………………………......……………….… p.17 6. Operation and maintenance of the pump / hydrophore......p.16 7. Storage ……………………………………………………………........…….. p.19 8. Possible operating problems and their solution ……..……...…………..p.20 9. -
Page 3: Application
SAFETY CAUTION Before operating, read the instruction manual carefully and follow its instructions, otherwise you may endanger your health, life, environmental damage or damage to the device. Fault-free and correct operation depends mainly on the selection of the device for the prevailing conditions and compliance with the recommendations contained in the operating instructions. - Page 4 Example: The booster set is set at the distance of 10 m from the well where the depth to the water level is 5 m. A suction pipe with 1” diameter was used in assembly. The negative pressure connected with the depth is 5 m. The negative pressure connected with the length and diameter of the suction pipe is (5vertical section+10horizontal section) x 0.15for diameter 1”...
-
Page 5: Installation Of Pumps And Hydrophores
INSTALLATION OF PUMPS AND HYDROPHORIES CAUTION It should be remembered that all connections coming out of the device and entering the device are tight because any leakage on the installation: pipes and connections will lead to the air pump sucking in through the pump. In this case, the pump will not get the declared parameters or it will work without water, which may lead to its destruction. -
Page 6: Electrical Installation
ELECTRICAL INSTALLATION CAUTION All work on the pump can only be carried out after disconnecting the electrical supply.The electrical network must have the same rating as on the nameplate. CAUTION The pump must be connected to the electrical installation by means of a plug with a socket that has an earthing connection (the yellow and green wire is connected to earth). - Page 7 CAUTION If the pump is running and water does not come out of taps, there is a suspicion that the installation is leaking, to make sure you put a piece of hose on the tap or place a tap outlet in a bowl of water and check for air bubbles.
-
Page 8: Storage
Dimensions (mm) Head Flow Motor power Voltage Amperage Inlet/outlet Weight Name (l/min) (inch) (kg) VMH 1500/5 1500 1 x 1 VMH 1500/6 1500 1 x 1 VMH 1500/8 2200 1 x 1 VMH2200/6 2200 1½ x 1¼ VMH2200/8 3000 10,5/6 1½... - Page 9 POSSIBLE CONSUMER PROBLEMS AND THEIR SOLUTION: SYMPTOMS POSSIBLE CAUSE: SOLUTION: Check that the electric plug of the pump is properly inserted into the socket. Check the "plugs" at home and all kinds of installation fuses that can turn off the Pump and pump power supply from the network No power supply...
-
Page 10: Disposal
DISPOSAL OF THE DEVICE The above symbol indicates that the disposal of used equipment together with other waste is prohibited. Detailed information on this subject can be found in municipal waste treatment plants, city offices, municipal offices. The used device is obliged to be disposed of as waste only in separate collection of waste organized by the Network of Municipal Electric and Electronic Waste Points.
