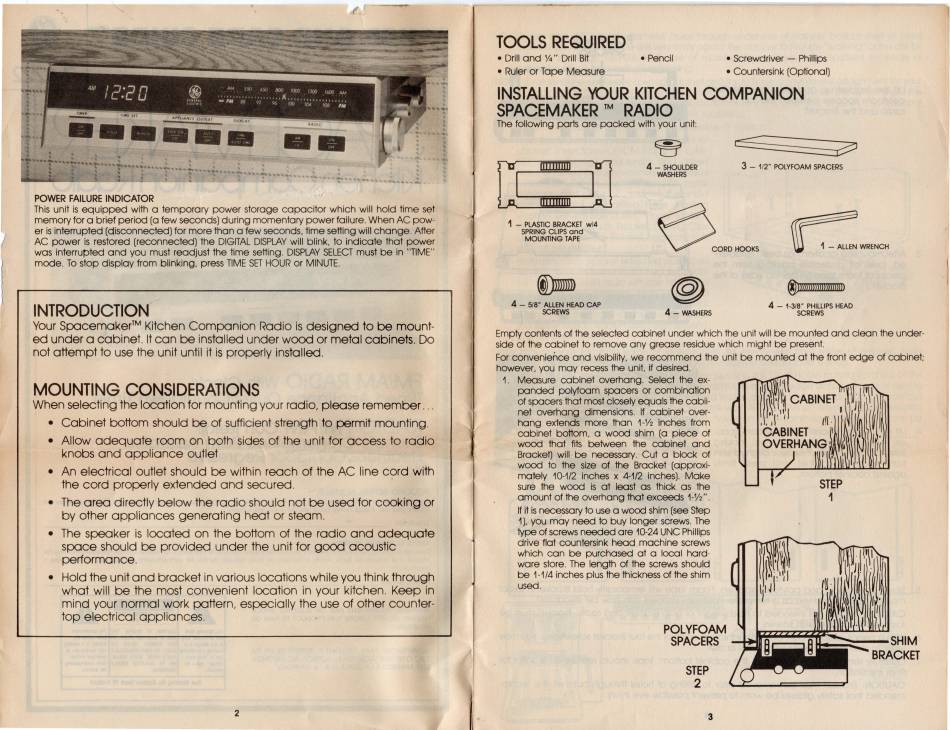

POWER FAILURE INDICATOR
./
This unit is equipped with a tempora ry power storage capacitor which will hold time set
memory for a brief period (a few seconds) during momentary power failure . When AC pow -
er is interrupted (disconnected) for more than a few seconds, time setting will change . After
AC power is restored (reconnected) the DIGITAL DISPLAY will blink, to indicate that power
was interrupted and you must readjust the time setting. DISPLAY SELECT must be in "TIME"
mode . To stop display from blinking, press TIME SET HOUR or MINUTE.
INTRODUCTION
Your Spacemaker™ Kitchen Companion Radio is designed to be mount-
ed under a cabinet . It can be installed under wood or metal cabinets. Do
not attempt to use the unit until it is properly installed.
MOUNTING CONSIDERATIONS
When selecting the location for mounting your radio, please remember . .
• Cabinet bottom should be of sufficient strength to permit mounting
• Allow adequate room on both sides of the unit for access to radio
knobs and appliance outlet
• An electrical outlet should be within reach of the AC line cord with
the cord properly extended ahd secured .
• The area directly below the radio should not be used for cooking or
by other appliances generating heat or steam.
• The speaker is located on the bottom of the radio and adequate
space should be provided under the unit for good acoustic
performance .
• Hold the unit and bracket in various locations while you think through
what will be the most convenient location in your kitchen . Keep in
mind your normal work pattern , especially the use of other counter-
top electrical appliances .
2
TOOLS REQUIRED
• Drill and ¼" Drill Bit • Pencil • Screwdriver - Phillips
• Ruler or Tape Measure
• Countersink (Optional)
INSTALLING YOUR KITCHEN COMPANION
SPACEMAKER
™
RADIO
The following parts are packed with your unit:
1 -
PLASTIC BRACKET
w/4
SPRING CLIPS and
MOUNTING TAPE
@»IDID
4 -
518" ALLEN HEAD CAP
SCREWS
4 -
SHOULDER
WASHERS
4 -
WASHERS
3 -
11 2" POLYFOAM SPACERS
@1m1m1111mm@
4 -
1-31 8" PHILLIPS HEAD
SCREWS
Empty contents of the selected cabinet under which the unit will be mounted and clean the under-
side of the cabinet to remove any grease residue which might be present.
For convenience and visibility , we recommend the unit be mounted at the front edge of cabinet:
however , you may recess the unit, if desired .
1. Measure cabinet overhang. Select the ex-
panded polyfoam spacers or combination
of spacers that most closely equals the cabii-
net overhang dimensions. If cabinet over-
hang extends more than 1-½ inches from
cabinet bottom, a wood shim (a piece of
wood that fits between the cabinet and
Bracket) will -be necessary. Cut a block of
wood to the size of the Bracket (approxi-
mately 10-1/2 inches x 4-1/2 inches). Make
sure the wood is at least as thick as the
amount of the overhang that exceeds 1-½".
If it is necessary to use a wood shim (see Step
1), you may need to buy longer screws. The
type of screws needed are 10-24 UNC Phillips
drive flat countersink head machine screws
which can be purchased at a local hard -
ware store. The length of the screws should
be 1-1/4 inches plus the thickness of the shim
used.
POLYFOAM
SPACERS
STEP
2
3
SHIM
BRACKET
