Magnolia Home 7010140 Assembly Instructions

Classic trestle, bench, trestle-collins

Advertisement

Quick Links

Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment.
all components from pack and
count all parts as specified below.
It is recommended to use two or more people during the assembly process.
PARTS LIST
No.
Description
A
Bench Top
B
Bench Leg
C
Stretcher
D
Wood Plug
E
Mounting Plate

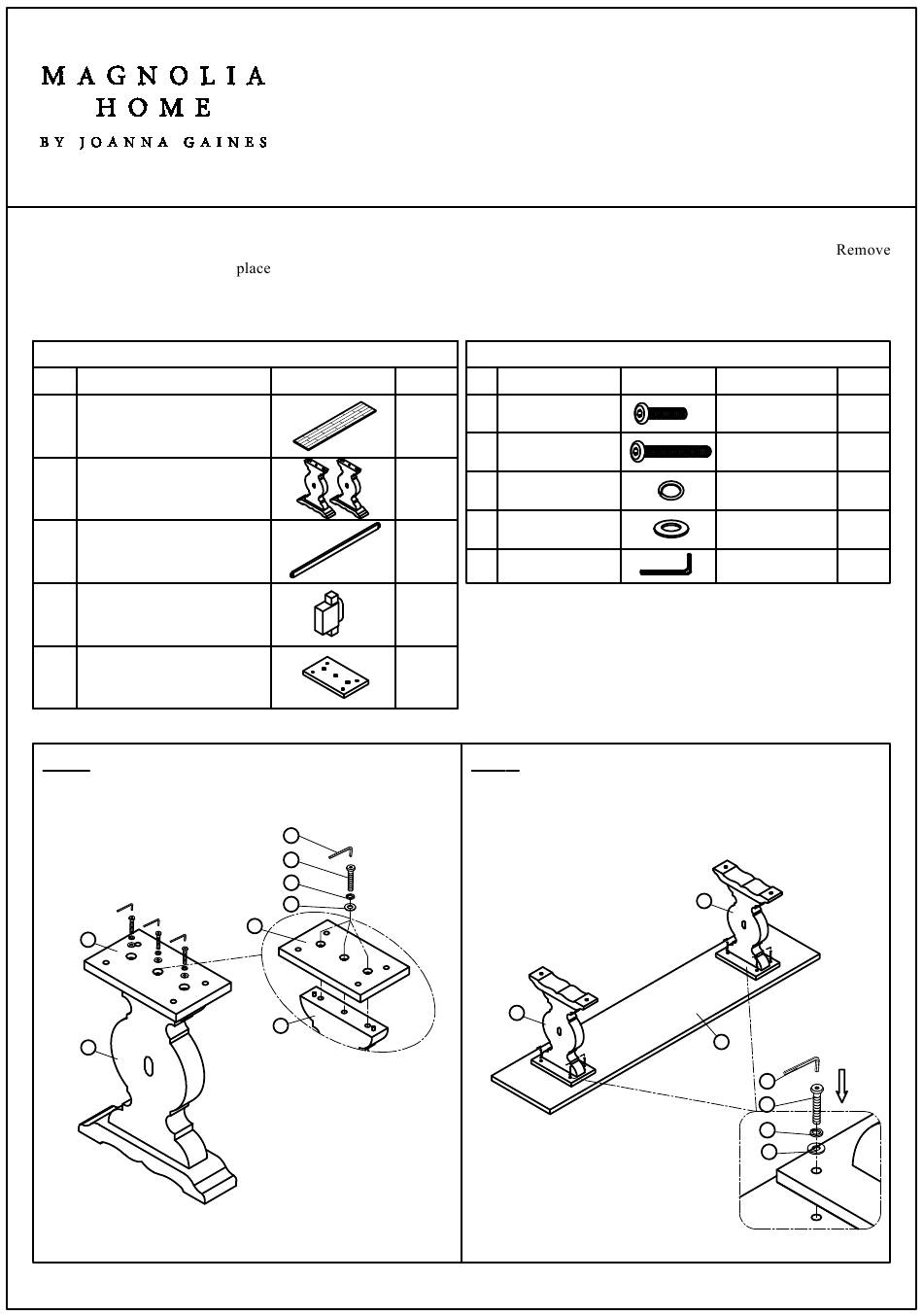

Step 1: Attach Mounting Plate (E) to Bench Leg (B) by using
Flat Washer (4), Spring Washer (3), Short Bolt (1) and tighten
with Allen Key (5).
E
B
Made in Viet Nam
ASSEMBLY INSTRUCTIONS
GROUP NO.: 7010140 CLASSIC TRESTLE
ITEM NO.: 7010145 BENCH, TRESTLE-COLLINS
top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and
Qty
Sketch
1 pc
2 pcs
1 pc
2 pcs
2 pcs
5
1
3
4
E
B
HARDWARE LIST
No.
Sketch
Description
1
Short Bolt
2
Long Bolt
3
Spring Washer
4
Flat Washer
5
Allen Key
Step 2: Attach the Bench Leg (B) and Mounting Plate (E) to
Bench Top (A) by using Flat Washer (4), Spring Washer (3),
Short Bolt (1) and tighten with Allen Key (5).
DO NOT fully tighten the bolts.
B
Qty
Size
ɸ 5/16'' x 40mm 14 pcs
4 pcs
ɸ 5/16'' x 50mm
18 pcs
ɸ 5/16''
ɸ 5/16'' x 19mm
18 pcs
1 pc
4mm
B
A
5
1
3
4
Page 1/2
