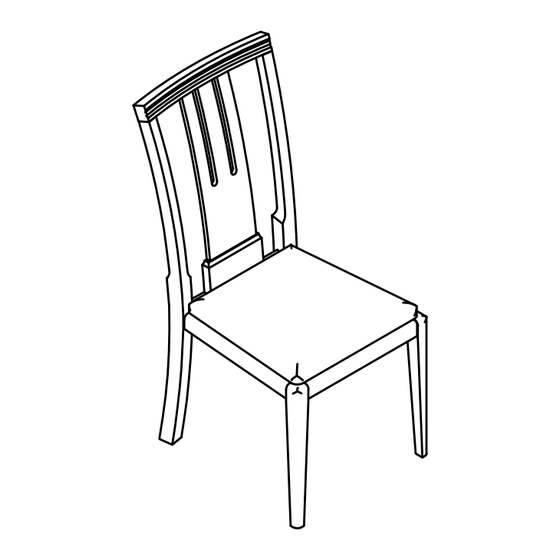

Magnolia Home Nora 7010147 Assembly Instructions

Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment.
all components from pack and
count all parts as specified below.
It is recommended to use two or more people during the assembly process.
PARTS LIST FOR 2 CHAIR
.
Description
No
A
Chair Back
B Seat Cushion Frame
C Front Leg

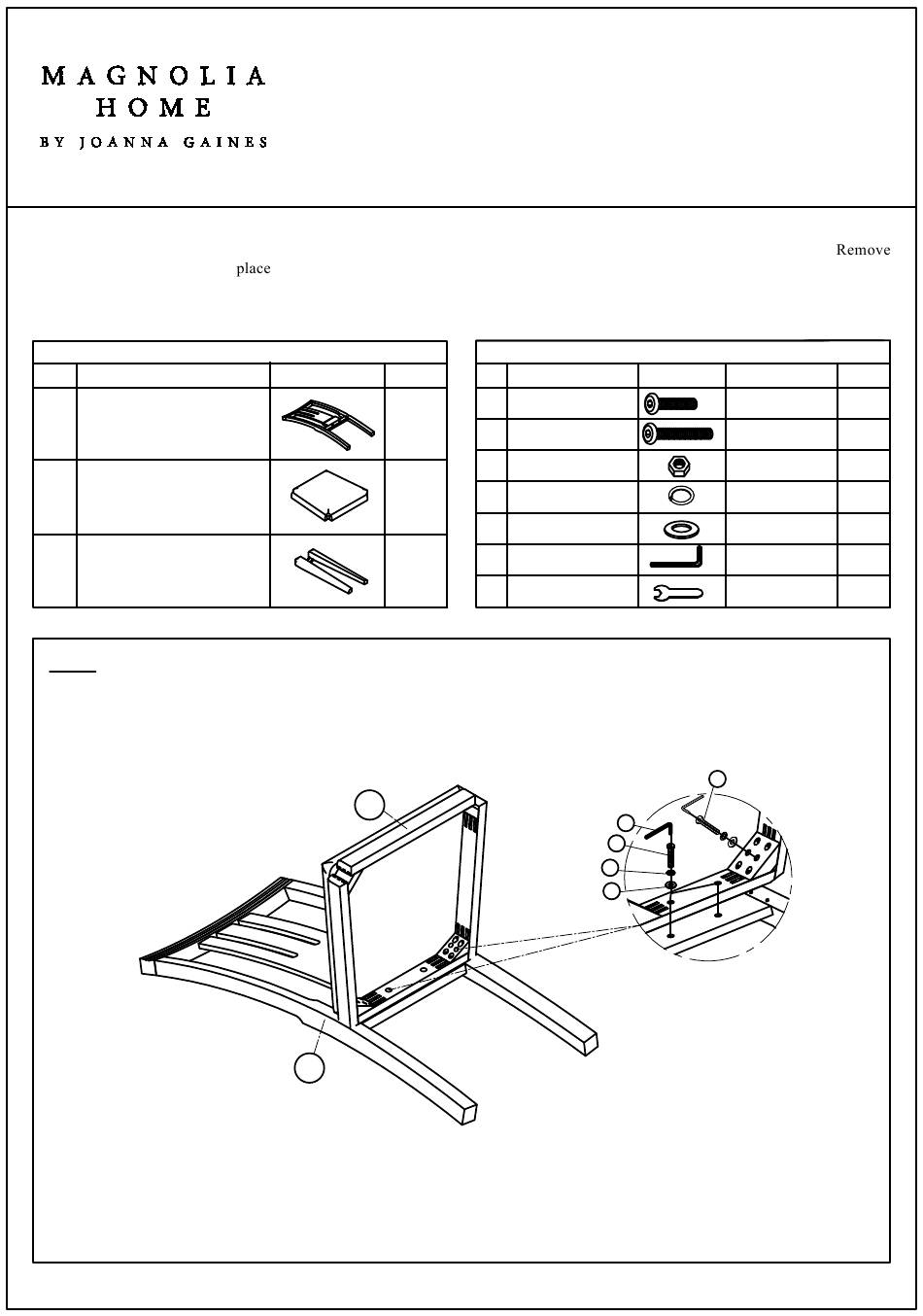

Step 1: Place the Chair Back (A) on a piece of cloth or carpet to prevent finish from scratching. Attach Seat Cushion Frame
(B) to Chair Back (A) by securing the Flat Washer (5), Lock Washer (4), Short Bolt (1) on back rail and Long Bolt (2) onto
Corner with Allen Key (6). Do not fully tighten.
Made in Viet Nam
ASSEMBLY INSTRUCTIONS
GROUP NO.: 7010140 CLASSIC TRESTLE
ITEM NO.: 7010147 NORA CHAIR,UPH SEAT, 2/CTN
top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and
Qty
Sketch
2 pcs
2 pcs
4 pcs
B
A
HARDWARE LIST FOR 2 CHAIR
No. Description
1 Short Bolt
Long Bolt
2
3 Hex Nuts
4
Lock Washer
5 Flat Washer
6
Allen Key
7 Open wrench
6
1
4
5
Sketch
Size
ɸ 5/16'' x 38mm
ɸ 5/16'' x 75mm
5/16'' x 10mm
ɸ 5/16''
ɸ 5/16'' x 19mm
4mm
2
Page 1/2
Qty
4 pcs
8 pcs
8 pcs
20 pcs
20 pcs
1 pc
1 pc
