Read instruction carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during
shipment. Remove all components from pack and place top down on soft surface such as carpet or cloth to
prevent scratching the finish. Identify and count all parts as specified below.
It is recommended to use two or more persons during the assembly process.
HARDWARE LIST:
No.
Description
A
Thread bolt
B Curve Washer
C Spring Washer
D
Screw
E
Allen Bolt
F
Flat Washer
G Spring Washer
H
Allen Key
I
Allen Bolt
K
Flat Washer
Hex Nut
L
M
Open Wrench

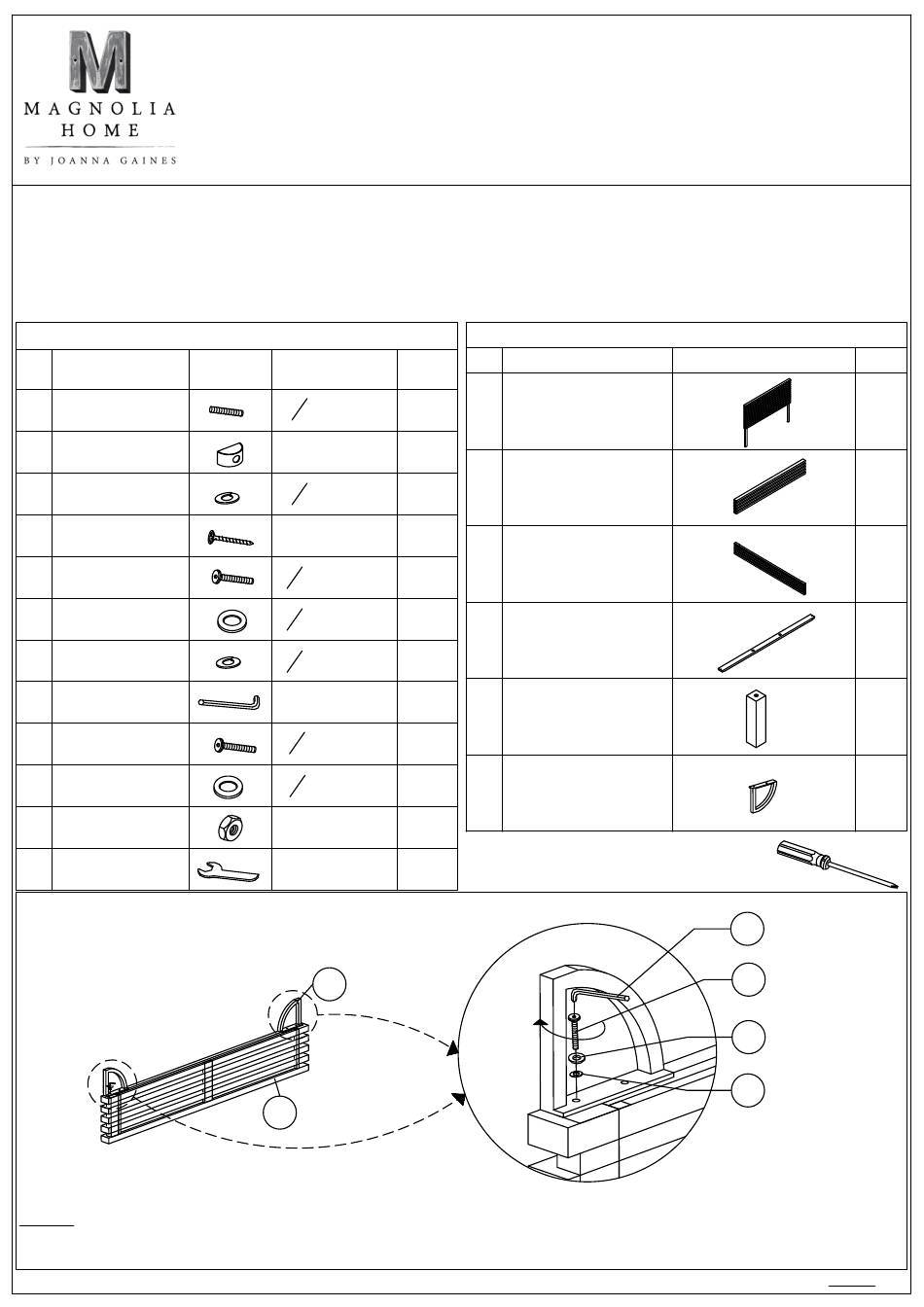

Step 1
Step 1: UPSIDE DOWN FOOTBOARD (2) ON SOFT SURFACE SUCH AS CARPET OR CLOTH THEN.
ATTACH METAL LEG (6) TO FOOTBOARD (2) USING ALLEN BOLT (I),FLAT WASHER (K), SPRING WASHER (G) AND
ALLEN KEY (H).
Made in Vietnam
ASSEMBLY INSTRUCTION
GROUP NO.: 50000007 - BOHO BEDROOM
ITEM NO.: 5070111N - 6/6 H/B,Wood Slat Bed - Barn door
5070104N - 5/0 -6/6 rail, Wood Slat Bed - Barn door
5070113N - 6/6 F/B, Wood Slat Bed w/slats - Barn door
Sketch
Size
ɸ 5 16 '' x 80mm
8 x 25mm
ɸ 5 16 '' x 13mm
4 x 38mm
ɸ 1 4 '' x 40mm
ɸ 1 4 '' x 13mm
ɸ 1 4 '' x 10mm
4 mm
ɸ 1 4 '' x 25mm
ɸ 1 4 '' x 19mm
12 mm
12 mm
6
2
No.
Description
Qty
8 pcs
1
HEADBOARD
8 pcs
2 FOOTBOARD
8 pcs
8 pcs
3 SIDERAIL
8 pcs
8 pcs
4 SLAT
12 pcs
1 pc
5
LEG SUPPORT
4 pcs
4 pcs
6
METAL LEG
8 pcs
Tool Required :Phillips Head Screw
1 pc
Driver (Not Provided)
PARTS LIST:
Sketch
H
I
K
G
Qty
1 pc
1 pc
2 pc
4 pc
8 pc
2 pc
Page: 1/2
