IMPROPER INSTALLATION
• Consult with US and/or European safety agencies and
their requirements when designing a machine control,
interface and all control elements that affect safety.
• Strictly adhere to all installation instructions.
Failure to comply with these instructions could result
in death or serious injury.
PRODUCT DESCRIPTION
The FF-SRE59292 Extension Module provides contact
multiplication for emergency stop modules, safety door
modules and other safety sensors with final switching
device monitoring capability (FF-SB, FF-LS, FF-SCAN,
FF-SPS4 or Detector 3 safety light curtains). This product
has two safety relays with positive-guided contacts to
ensure redundancy and offers four NO contacts and one
NC contact.
Its slim housing of only 22,5 mm (0.89 in) width allows
this safety control module to fit into most cabinets and
even helps to keep the overall cabinet size small.
APPROVALS
CE
The product, packaging and documentation
of FF-SR Series products carry the CE
mark; the CE declaration of conformity is
attached on the last page.
cURus
This product is currently being assessed
(pending)
by
Underwriters
according to Canadian and U.S. safety
requirements.
107080-10 -EN FR26 GLO 202 Printed in Germany

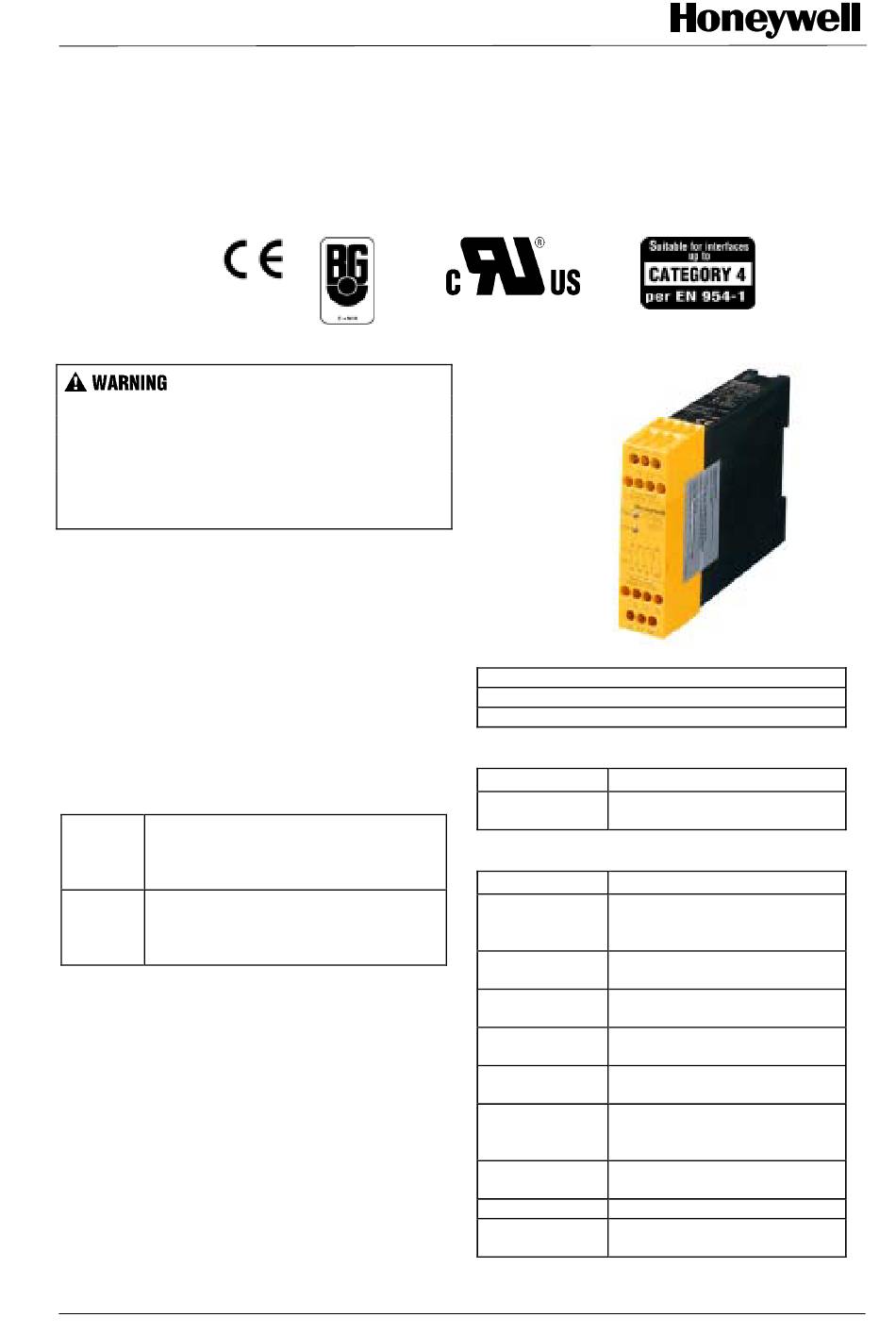

FF-SRE59292
Extension Module
Instructions for use
(pending)
Laboratories
Inc.
(pending)
DIRECTIVES COMPLIANCE
Machine Directive 98/37/EC
Low Voltage Directive 73/23/EC
Electromagnetic Compatibility Directive 89/336/EC
REGULATIONS COMPLIANCE
Regulation
Title
OSHA 29 CFR
Requirements and Safeguarding
1910.217
of Mechanical Power Presses
STANDARDS COMPLIANCE
Standard
Title
EN 292
Safety of Machinery – Basic
Concepts, General Principles for
Design
EN 60204
Safety of Machinery – Electrical
Equipment of Machines
EN 954-1
Safety of Machinery – Safety
related Parts of Control System
ANSI B11.1
Construction, Care and Use of
Mechanical Power Presses
ANSI B11.2
Construction, Care and Use of
Hydraulic Power Presses
ANSI B11.19
Safeguarding Performance
Criteria for the Design,
Construction, Care and Use
ANSI/RIA
Safety Requirements for Industrial
R15.06
Robots and Robot Systems
UL 508
Industrial Control Equipment
NFPA 79
Electrical Standard for Industrial
Machinery
1
