Delta Regis DR90-20004 User Manual

DR90-20004 DR90-20004
IMPORTANT SAFETY INSTRUCTIONS
Please read this manual carefully and follow its instructions. Improper use or failure to follow these
instructions could result in serious injury, death or property damage. Operators should be instructed on the
safe and proper use and maintenance of this product. Keep this manual for future reference.
The following safety precautions call attention to potentially dangerous conditions:
DANGER: Immediate hazards which WILL result in severe personal injury or death.
WARNING: Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION: Hazards or unsafe practices which MAY result in minor personal injury or product or property
damage.
NOTE: Instruct operators in the safe, proper use and maintenance. Keep this manual for future reference.
INSTALLATION
WARNING: Failure to read, understand, and follow these instructions may result in hazards or unsafe practices
COULD result in severe personal injury or death.
CAUTION: Operators need to be instructed on the safe, proper use and maintenance of this product. Keep this
manual for future referenced. Hazards and unsafe practices MAY result in minor personal injury or product or
property damage.

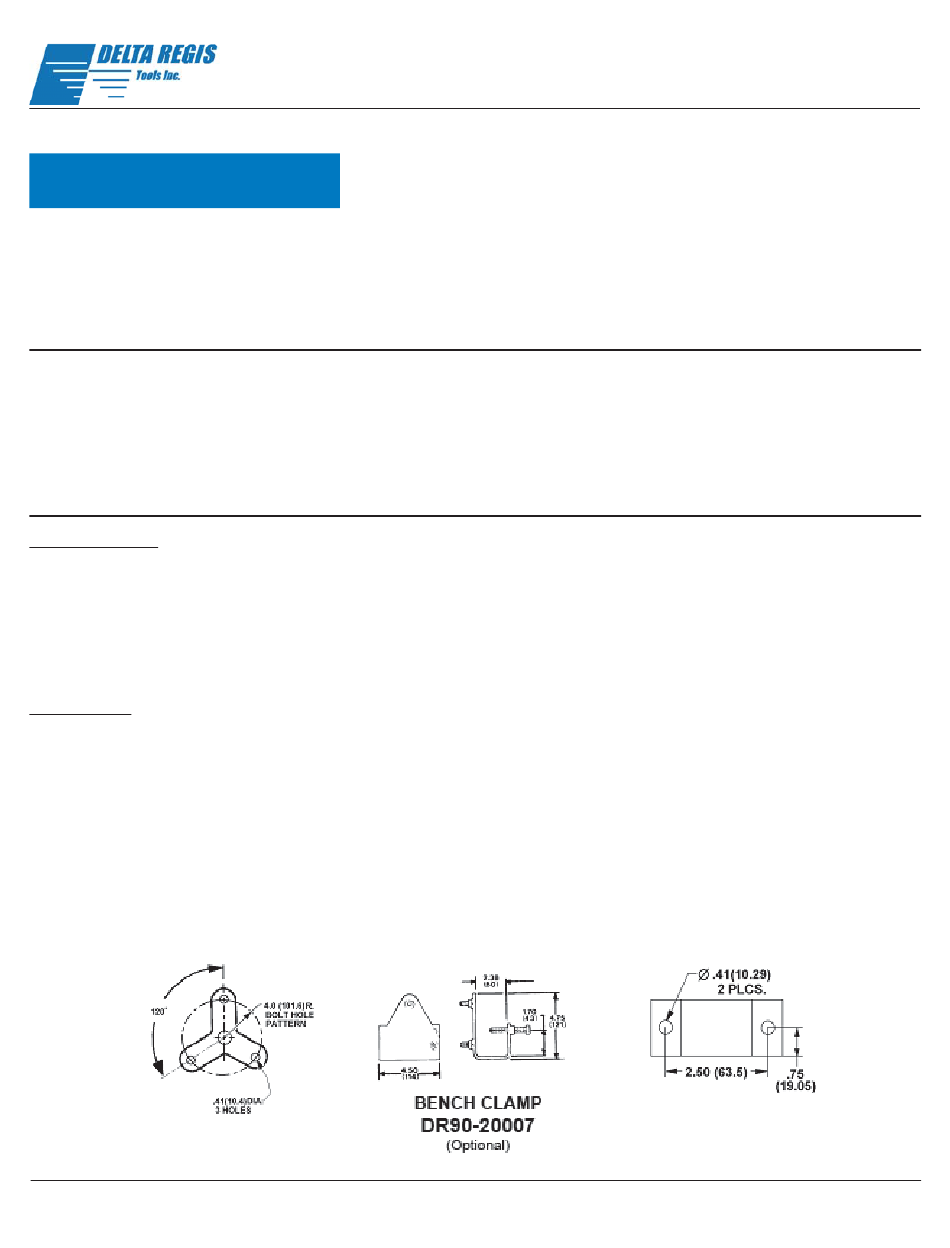

MOUNTING
NOTE: Do not over-tighten screws. This will cause clamps to break.
The torque arm mounts directly to standard workbenches or stations. Mount base to bench with 3/8inch
bolts (length to suit). Using mounting base as a template, mark and drill the 13/32-inch holes. Use of
optional bench clamp (DR90-20002) does not require holes to be drilled in the bench. Torque arm may be
mounted to the wall by using clamp assembly and 3/8 inch bolts. Drill horizontal holes 2.50 inches (63.5 mm)
apart. Use proper anchors to support arm and tools. Clamps may be used as a template for hole locations.
Torque arm model DR90-20004 has a maximum reach of 30 inches. This model has a maximum load capacity
of 5 lb. (2.3 kg). Torque arm unit may be adjusted up and down on vertical column by loosening socket head
screws on column mount.
