Delta Regis DR90-10105 Installation & Maintenance Instructions

INSTALLATION & MAINTENANCE INSTRUCTIONS
TOOL BALANCER

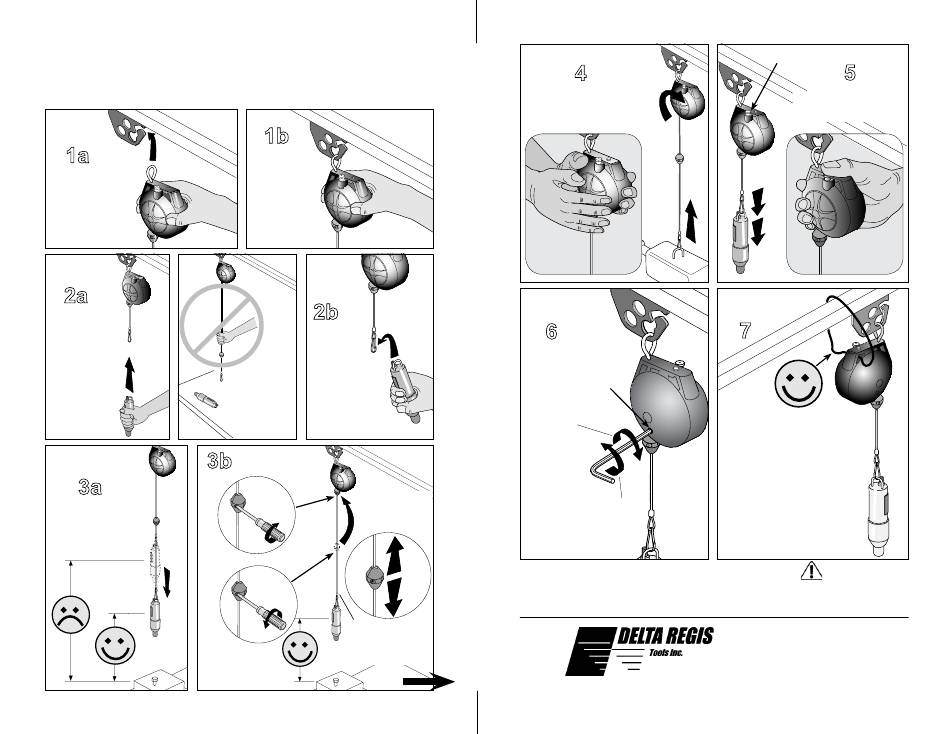

MOUNT
REEL
1a
Mount reel to
secure structure
directly above
work.
ATTACH
TOOL
2a
Raise tool and
attach to hook on
end of cable.
Do not pull cable
down. It is spring
loaded and could
allowed to snap
3b
ADJUST TOOL
HEIGHT
3a
Determine ideal height
for tool when tool is not
being used.
1b
NOTE:
Disregard this
step if reel is
pre-mounted to
Torq-Arm or other
equipment.
2b
Be sure tool is
CAUTION:
securely hooked to
cable. Do not drop
tool. Tool may be
heavier than spring
cause injury if
can lift before spring
is adjusted.
back.
+
Slide ball stop up
or down cable to
hold tool at
determined height.
-
Keep a minimum of
3 inches between
ball stop and end
of cable.
INCREASING LIFT
4
+
To INCREASE spring tension,
turn "palm knob" clockwise
until tool rises to ball stop.
ADJUST
DRAG
6
DRAG BRAKE adds friction
to the spool and allows you
to fine tune the reel. Add or
subtract friction by turning
screw on back of reel.
INCREASE
DRAG
DECREASE
DRAG
MAINTENANCE:
Periodically inspect cable and hook for wear
or looseness. Replace unit if required. Do not
lubricate; balance reel is permanently lubricated.
Printed in U.S.A.
-
REDUCING LIFT
5
To DECREASE spring
tension, repeatedly depress
button on top of the reel.
SAFETY
FIRST
7
It is recommended that a
safety cable be installed
to a second support in the
unlikely event of failure of
the first mounting point.
CAUTION:
Do not attempt to remove spring from its canister.
Damage or personal injury could result.
PH: 772-465-4302
www.deltaregis.com
630411.b
