DRFF-208R / DRFF-512R / DRFF-519R
Screw Feeder
Operation and Setup Manual
CAUTION — Please read, understand, and follow all operating and
safety instructions in this manual before using a DRFF screw feeder.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL USA 34951
Delta Regis_DRFF-208R_512R_519R_M_R0.0
Copyright © 2022 Delta Regis Tools Inc
Ph +1-772-465-4302
Fx +1-772-465-4368
Email: sales@deltaregis.com
Website: www.deltaregis.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRFF-208R and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta Regis DRFF-208R

  • Page 1 If you have any questions or concerns, please contact us at: Delta Regis Tools, Inc. Ph +1-772-465-4302 7370 Commercial Circle Fx +1-772-465-4368 Fort Pierce, FL USA 34951 Email: sales@deltaregis.com Website: www.deltaregis.com Delta Regis_DRFF-208R_512R_519R_M_R0.0 Copyright © 2022 Delta Regis Tools Inc...
  • Page 2 Do not attempt to disassemble or repair the screw feeder. Repairs should only be performed by qualified technicians properly trained in the safe operation, troubleshooting, and repair of these devices. Please consult Delta Regis for the location of the nearest service depot.
  • Page 3: Included Accessories

    DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual This machine has been set up according to the sample fasteners and/ or technical drawing you had provided us during your purchase. If fine tuning is required, please follow the instructions starting on page 5.
  • Page 4: Product Overview

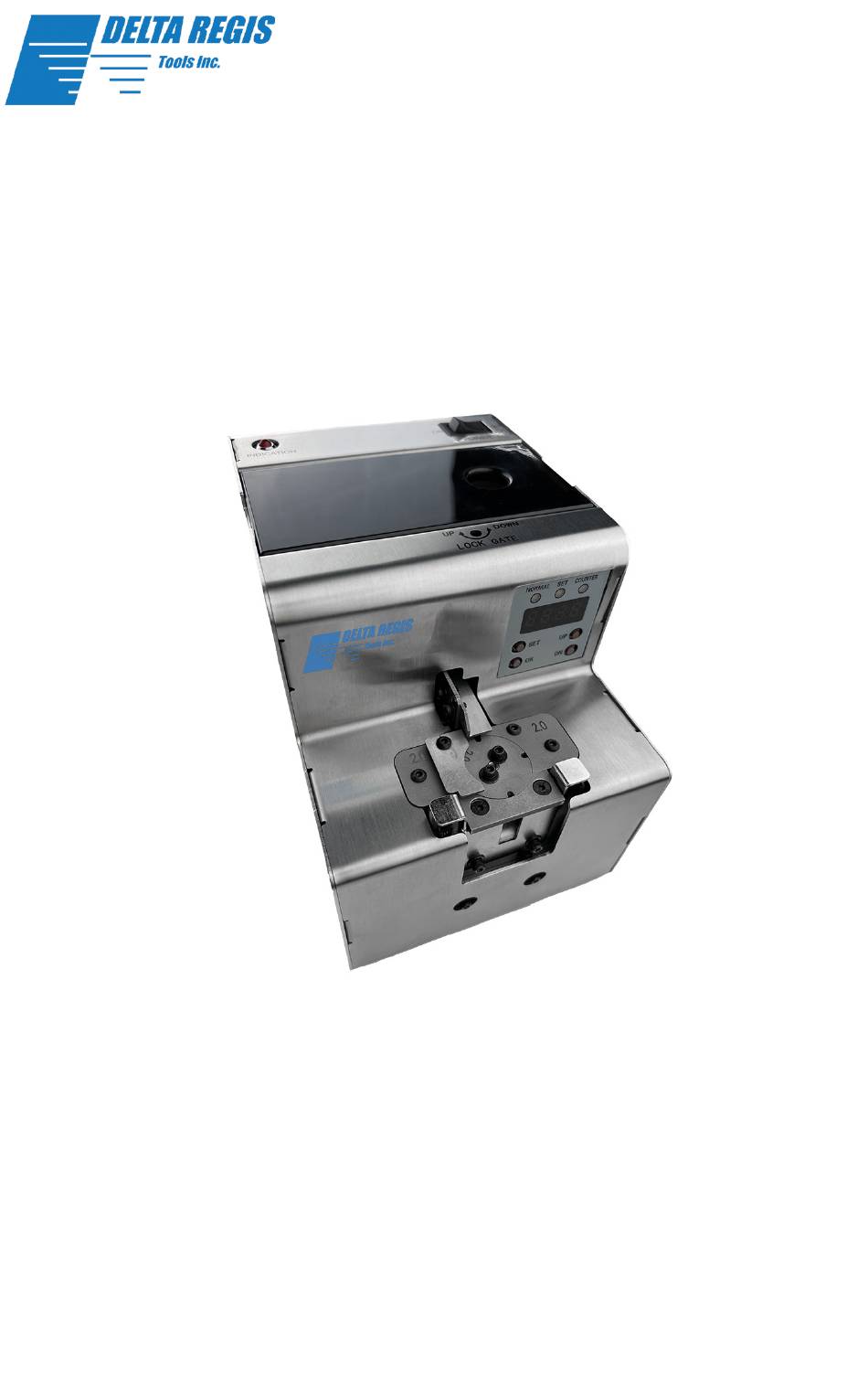

    DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Product Overview 1 - Rail Gates 2 - Power Switch 3 - Screw Present/Error LED 4 - Programming Key Pad w/ LCD 4 (under hopper cover) DRFF-208R DRFF-512R/519R 5 - DC Receptacle...
  • Page 5: User Adjustments

    DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual User Adjustments Screw Guide Plate 1. Locate and loosen highlighted screws using a 2mm hex key. DRFF-208R DRFF-512R/519R 2. Using the included shims, insert under the screw head guide, press down on the plate and tighten screws from step 1.
  • Page 6 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual User Adjustments Screw Guide Plate (Continued) 3. Add several screws into the rail assembly. Tilt the screw feeder forward, ensure the screws can smoothly pass under the guide plate.
  • Page 7 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Infrared Sensor Adjustment (Continued) 2. Adjust the infrared openings so only half of the opening is exposed, tighten screws from step 1. NOTE: Only half of the infrared opening can be exposed. If the screw cannot be detected, you can make further adjustments.
  • Page 8 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual User Adjustments Chute Adjustment (Continued) 2. Adjust the chute to align with the center of the rail. 0.8-1.0m m NOTE: The chute must not come into contact with the rail. A 0.8 - 1.0mm gap must be maintained.
  • Page 9 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual User Adjustments Brush Adjustment (Continued) 2. Insert several screws into the rail, under the brush. Manually sweep the brush across the screw heads. Adjust the brush so slightly touches the screw heads. Re-tighten the screws from step 1.
  • Page 10: Filling The Hopper

    DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Filling the Hopper Before filling the hopper, turn the machine OFF. Remove the hopper cover. Check for debris or foreign objects. Fill the hopper with screws leaving a minimum of 2 mm space under the rail for thread lengths up to 5mm, 4mm space for thread lengths over 5mm.
  • Page 11 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Programming LCD Display & Programming Keys DRFF-208 DRFF-512/519 1. In any state, long press the SET button for 3 seconds, the system enters programing mode, the SET light illuminates, and the program selection is activated.
  • Page 12 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual NOTE: Normal Mode = Accumulative Count Counter Mode = Batch Count Program Program Name Program Description (set by using UP/DN) Set the target number of fasteners to count Fastener Count...
  • Page 13: Error Codes

    DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Enters diagnostic mode and displays the DC Infrared Sensor voltage of the infrared sensors ~0470 when open, Voltage ~5000 when screw present (Program Value: 00: disable; 01 enable) Screw...
  • Page 14: Troubleshooting

    DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Troubleshooting In the event of a fault, immediately disconnect the power supply and perform the following troubleshooting. Problem Reason Solution The power supply is Check the AC adapter and...
  • Page 15 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual Problem Reason Solution Gate opening(s) too Adjust the gates (0.2mm tight gap) Height of screw head Adjust the height of the guide plate too low guide plate (see page 5)
  • Page 16: Maintenance

    Check all accessible fasteners to ensure they are tight before reinstalling the covers. Parts and Accessories If you require parts or accessories for your Delta Regis product, please refer to our website or contact us for further information. Use only genuine Delta Regis parts when servicing these products.
  • Page 17 There is no warranty of merchantability or fitness of purpose. In no event will Delta Regis Tools, Inc. be liable for business interruptions, loss of profits, harm, injury, damage, personal injury, cost of delay, or any other special, indirect, incidental, or consequential losses, costs, or damages.
  • Page 18 DRFF-208R / DRFF-512R / DRFF-519R Screw Feeder Operation and Setup Manual I/O Connection Note: When a screw is present, the signal is output through photo couplers to a relay circuit. Connection: Red wire is connected to PLC positive power terminal, black wire...
  • Page 19 Product: Screw Feeder Trade Name: Delta Regis Applicable Models: DRFF-312R, DRFF-519, DRFF-519R, DRFF-519E The undersigned hereby declares, on behalf of Delta Regis Tools, Inc., that the product designated in this declara�on is in conformity with the provisions of: MD Direc�ve 2006/42/EC...
  • Page 20 Product: Screw Feeder Trade Name: Delta Regis Applicable Models: DRFF-208R, DRFF-208 The undersigned hereby declares, on behalf of Delta Regis Tools, Inc., that the product designated in this declara�on is in conformity with the provisions of: MD Direc�ve 2006/42/EC Standards...
