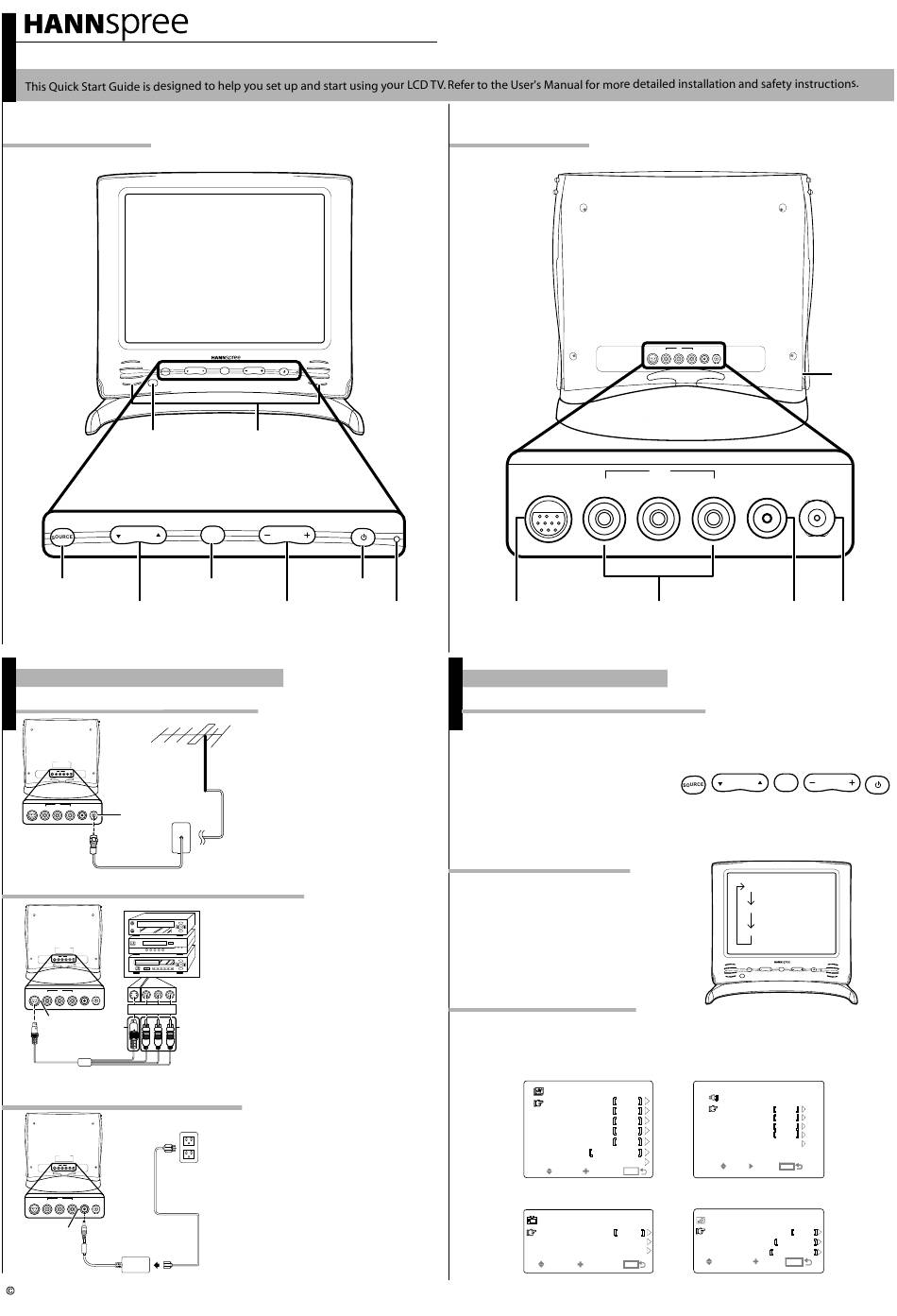

HANNspree ST40-12A1 Quick Start Manual

ST40-12A1 12.1" Liquid Crystal Display TV
Front View Front View
Signal sensor
CH
Source
Channel select
Making Connections
Connecting to Antenna/Cable TV
Antenna
AV1
AV2 R L VIDEO DC-IN ANT
ANT jack
AV1
AV2 R L VIDEO DC-IN ANT
(VHF/UHF
IN jack)
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD or DVD Player
AV1
AV2 R L VIDEO DC-IN ANT
AV1
AV2 R L VIDEO DC-IN ANT
B R W Y
AV2
S-Video AV
connector connectors
4-IN-1 cable
Connecting the Power Adapter
Power outlet
AV1
AV2 R L VIDEO DC-IN ANT
Power cord
AV1
AV2 ANT
R L VIDEO DC-IN
DC-IN
Power adapter
Copyright 2003 Hannspree, Inc. All rights reserved.
Quick Start Guide
CH MENU VOL
Speakers
VOL
MENU
Menu Power
Volume adjust
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
1. The illustration presented here
VCR
shows you how to connect your TV to a
VCD
VCR, VCD or DVD player. Refer to the
user's manual included with your device
DVD
for more detailed instructions.
2. The cables are color-coded black, red,
white, and yellow. Connect each color
-coded cable to the appropriate
connector on your device.
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the back of the TV.
3. Insert the three-pronged plug at the other
end of the power cord into a power outlet.
Rear View Rear View
AV2
Power LED
AV2
Getting Started
Watching Broadcast or Cable TV
1. Press the POWER button to turn on your TV.
2. Press the SOURCE button to select "TV".
3. Press the MENU button to open the OSD menu.
4. Use the CH UP/DOWN button to select "TV".
5. Press the VOL UP button to
enter the "TV" MENU.
6. Use the CH UP/DOWN button to select "TV/CATV".
7. Press the VOL UP button to enter.
8. Press the VOL UP button to select TV (broadcast TV) or CATV (cable TV).
Selecting AV1 or AV2
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button to select different
source signals.
The channel number, "AV1", or "AV2"
appears on the screen.
Adjusting OSD Settings
Press the MENU button to open the OSD menus. Use the arrow buttons on the
remote control to adjust settings.
TV
TV/CATV
CH
AUTO PROGRAM
AV1
AV2 R L VIDEO DC-IN ANT
AV1
R L VIDEO
AV1
Picture Menu
PICTURE MENU
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
SATURATION
COLOR
NEUTRAL
PRESET
ENTER ENTER ENTER
SEL SEL
MENU MENU
TV Menu
MENU
CUSTOMIZE
SLEEP
CATV
ADD/ERASE OSD
LANGUAGE
SEL
SEL ENTER ENTER ENTER
MENU
Headphone
DC-IN ANT
DC-IN ANT
CH VOL
MENU
CH: 4
AV1
AV2
CH MENU VOL
Audio Menu
AUDIO MENU
TREBLE 0
BASS 0
BALANCE 0
ON
ENHANCE
PRESET
SEL SEL SEL ENTER ENTER ENTER
MENU MENU MENU
Customize Menu
MENU
TIMER OFF
TIMEOUT 20 SEC
ENGLISH
ENTER ENTER ENTER
MENU
