Victory TANK Series Operator's Manual

Heavy duty 3-point offset ditch bank flail mower
Table of Contents

Advertisement

Quick Links

Operator's Manual
TANK SERIES
70" 78" 86"
Heavy Duty
3-Point Offset Ditch Bank Flail Mower
VERSION 1.0 - EN-US 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TANK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Victory TANK Series

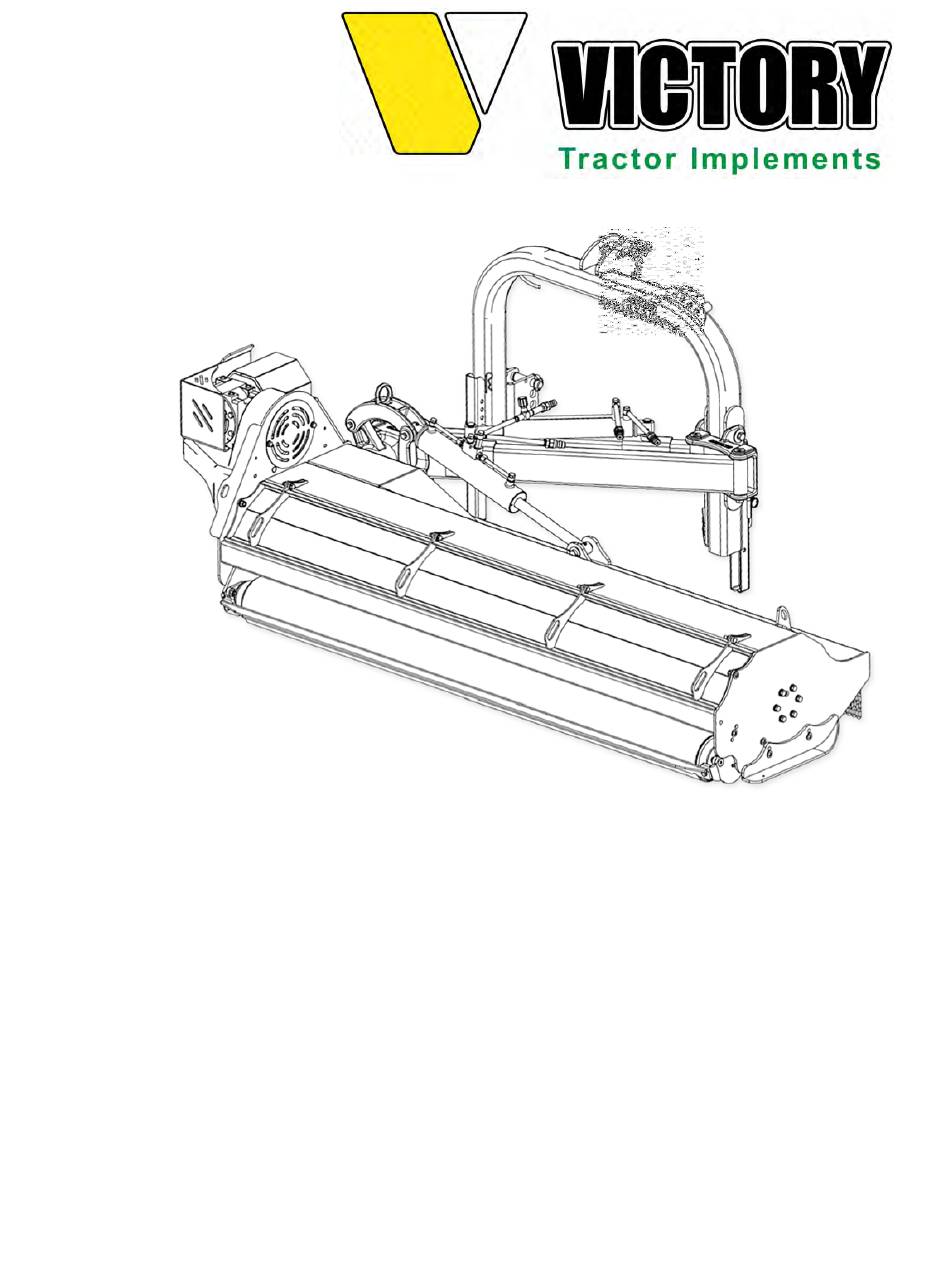

  • Page 1 Operator's Manual TANK SERIES 70” 78” 86” Heavy Duty 3-Point Offset Ditch Bank Flail Mower VERSION 1.0 - EN-US 2025...
  • Page 2 No part of this documentation may be reproduced in any form without the written permission of Victory Tractor Implements. History of changes: Operator’s Manual Date: Chapters: Description: Version: V1.0 31 Jan. 2025 First edition. Op. Manual TANK Series 70-78-86” - Page 2 of 80 - Version 1.0...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREFACE ............................. 6 Identification ........................6 CE Type Plate ........................6 VICTORY TRACTOR IMPLEMENTS WARRANTY ................6 Warranty Provisions ......................7 Liability ..........................7 INTRODUCTION .......................... 8 Features ..........................8 About This Manual ......................8 Manual Update ........................9 Explanation Documentation ....................
  • Page 4 Adjusting the Incline Angle ..................42 5.12 HYDRAULIC SYSTEM ......................43 OTHER ACTIVITIES ........................43 Ordering Parts ........................43 MAINTENANCE, ADJUSTMENTS, AND REPAIR ................44 Preventive Maintenance ....................45 Service ..........................46 Op. Manual TANK Series 70-78-86” - Page 4 of 80 - Version 1.0...
  • Page 5 SPARE PARTS AND WEARING PARTS ..................56 Spare Parts ........................56 Wearing Parts ........................56 EXPLODED VIEW DRAWINGS TANK 70-78-86” ................ 57 Torque Specifications ....................... 78 SPECIFICATIONS ........................79 Op. Manual TANK Series 70-78-86” - Page 5 of 80 - Version 1.0...
  • Page 6: Preface

    This Warranty is limited to the replacement of any defective part by Victory Tractor Implements. It does not cover wearable items, normal wear and tear, lost parts, or the PTO shaft. Victory Tractor Implements reserves the right to inspect any equipment or parts claimed to be defective in material or workmanship.
  • Page 7: Warranty Provisions

    This Warranty is not valid unless registered with Victory within 30 days from the date of purchase by the end-user. Registration link: https://etractorimplements.com/register-product/...
  • Page 8: Introduction

    Long reach for down slopes and vertical position to cut hedges and trees.  Quick connect fittings ½ -14 NPTF.  TANK Series is designed for 50-85 HP tractors with CAT II three-point Hitch with hitch adapter.  The hydraulic extension arm has up to 90″ reach. ...
  • Page 9: Manual Update

    (562) 534-8182. Victory has trained technicians, spare parts, and equipment to service the device. The parts on your machine are specially designed; replace these parts always with genuine Victory parts. Please reference your order number or serial number when calling.
  • Page 10: Safety Warning Messages In This Manual

    Always adhere to the recommendations and warnings in this manual.  They are the recommendations of Victory Tractor Implements and several essential component manufacturers. If you ignore these recommendations, there will be no warranty. Any warranty claim will be rejected if you exceed the maintenance intervals for the claim for ...
  • Page 11: Intended Use

    The operator performs the daily cleaning and maintenance work described in the operating  instructions. Generally Applicable Safety Rules This list contains general safety measures which must be complied with for personal safety reasons. Op. Manual TANK Series 70-78-86” - Page 11 of 80 - Version 1.0...
  • Page 12: Personal Protective Equipment

    Ensure that all hoisting equipment, such as lifting straps, hooks, or ropes, is in a good state of  repair and can safely bear the equipment’s weight. Never bypass door interlocks or safety sensors and switches.  Op. Manual TANK Series 70-78-86” - Page 12 of 80 - Version 1.0...
  • Page 13: Additional Safety Rules For Embankment Flail Mowers

    Otherwise, fire may start. Never leave the embankment flail mower unattended while it is running.  Dismounting from a moving tractor could cause severe injury or death.  Op. Manual TANK Series 70-78-86” - Page 13 of 80 - Version 1.0...
  • Page 14: More Safety Tips For Safe Operation

    Comply with state and local laws governing highway safety and movement of farm machinery  on public roads. The maximum transport speed for any Victory implement is twenty mph on paved surfaces and  ten mph maximum on an unpaved surface. Do not exceed. Never travel at a speed that does not allow adequate control of steering and stopping.
  • Page 15: Keep Riders Off Machinery

     emergency exits. Permanently remove spilled liquids immediately to prevent them from slipping.  Hydraulic liquids should not get into the ground or in surface water.  Op. Manual TANK Series 70-78-86” - Page 15 of 80 - Version 1.0...
  • Page 16: Driveline Safety

    On a driveline with torque limiting or overrunning devices, specify that this device is positioned  at the end of the driveline near the implement. Op. Manual TANK Series 70-78-86” - Page 16 of 80 - Version 1.0...
  • Page 17 Power take-off definitions and terminology of farming tractors.  S207 Operating requirements for tractors and power take-off driven equipment implements.  S318 Safety for agricultural equipment.  S331 Implement power take-off driveline specifications.  Op. Manual TANK Series 70-78-86” - Page 17 of 80 - Version 1.0...
  • Page 18: Not Allowed Use

    Read and follow their directions. Keep all safety decals clean and legible.  Replace all damaged or missing decals or labels. To order new ones, call Victory Tractor  Implements. Some new equipment installed during repair requires safety labels to be affixed to the replaced ...
  • Page 19 WARNING Decal ATTENTION Decal on the pulley cover. • Ad grease regularly to the desired nipple. • Follow the instructions for the correct tension for the drive belts. Op. Manual TANK Series 70-78-86” - Page 19 of 80 - Version 1.0...
  • Page 20: Safety For Starting And Stopping

    Concerning this flail mower, calamities arise when unauthorized persons use the machine.  Never lend the flail mower without the Operator's manual. Ensure that people always read and understand the manual content before use. Op. Manual TANK Series 70-78-86” - Page 20 of 80 - Version 1.0...
  • Page 21: Assembling And Operation

    (DUE TO DOT REGULATIONS). Scope of delivery: After unpacking the separate packs (3 or 4), please check the components in the following picture and the parts list. Op. Manual TANK Series 70-78-86” - Page 21 of 80 - Version 1.0...
  • Page 22: Assembling Preparation

    Occasionally, dried paint may cover the end of the nipples on the PTO shaft. Remove this by scraping the paint with a knife before injecting grease into these nipples. Op. Manual TANK Series 70-78-86” - Page 22 of 80 - Version 1.0...
  • Page 23: Tools, Parts, And Accessories For Assembling And Adjusting

    ½” Torque wrench 10-220 Nm. This manual.   Measuring tape.  W A R N I N G ! • Read and understand all instructions before assembling the TANK mower. Op. Manual TANK Series 70-78-86” - Page 23 of 80 - Version 1.0...
  • Page 24: Assembling The Tank Mower 70-78-86

    On the bottom side, fit the bolts (4), spring washers (5) and plain washers (2). Tighten the  bolts. Fit and tighten the grease nipples (5) on top of both swing pins.  Op. Manual TANK Series 70-78-86” - Page 24 of 80 - Version 1.0...
  • Page 25 Secure pin (5) using bolt (7), spring washer (8), and washer (9). Tighten the bolt.  Secure safety pin (6) using R-pin (10).  Fit and tighten the grease nipple (11) in the securing pin (5).  Op. Manual TANK Series 70-78-86” - Page 25 of 80 - Version 1.0...
  • Page 26 (2) with two linchpins in each pin. The picture shows universal pins need only one linchpin and one washer. Align the upper connection bar between the hitch and the tractor and fit the upper connection  pin. Op. Manual TANK Series 70-78-86” - Page 26 of 80 - Version 1.0...
  • Page 27: Function Of The Hitch Adapter Bracket

    Ensure the hitch adapter is installed  between the most extended hitch arm and the lower hitch connection bar. Ensure the connection pins are  secured properly using lynch or L- pins. Op. Manual TANK Series 70-78-86” - Page 27 of 80 - Version 1.0...
  • Page 28 The hammer blades should never be less than 2.5 cm above the ground.  The skids must always be at least 2 cm above the ground during operation.  See Chapter 7.5 for adjusting the height. Op. Manual TANK Series 70-78-86” - Page 28 of 80 - Version 1.0...
  • Page 29  Note: regular operation of the hydraulic cylinders is only achieved when all air in the system is gone. It takes some time to vent the system. Op. Manual TANK Series 70-78-86” - Page 29 of 80 - Version 1.0...
  • Page 30: Warnings And Rules For Safe Operation

    Before starting the tractor, disengage the PTO and place the transmission in neutral mode.  Do not reach or place any part of your body under the equipment until it is locked and secured  correctly. Op. Manual TANK Series 70-78-86” - Page 30 of 80 - Version 1.0...
  • Page 31 • Noise over 80 dB on a long-term basis can cause severe hearing loss. Noise over 90 dB adjacent to the operator over a long-term basis may cause permanent total hearing loss. Op. Manual TANK Series 70-78-86” - Page 31 of 80 - Version 1.0...
  • Page 32: Prepare Before First Start

     rules and Warnings. Ensure you understand all safety decals on the tractor and the implement. Adhere to PPE safety regulations as described in both manuals.  Op. Manual TANK Series 70-78-86” - Page 32 of 80 - Version 1.0...
  • Page 33: Preparing For Commissioning

    Secure the PTO shaft with the yoke locking device. Slide the PTO shaft's outer yoke (tractor end) over the output shaft. Secure the PTO shaft with the yoke locking device. Op. Manual TANK Series 70-78-86” - Page 33 of 80 - Version 1.0...
  • Page 34: Checking The Pto Shaft's Extended Length

    PTO shaft’s overall length does not exceed the full recorded size in step 2. Set the tractor’s 3-point lift height if needed to keep the PTO shaft from exceeding the maximum allowable length. Op. Manual TANK Series 70-78-86” - Page 34 of 80 - Version 1.0...
  • Page 35: Checking The Pto Shaft's Interference

    Contact may cause severe damage to the driveline and the mower and is dangerous. Op. Manual TANK Series 70-78-86” - Page 35 of 80 - Version 1.0...
  • Page 36: Machine Operating Checklist

    Check that the working area is relatively smooth and free of obstacles.  Always maintain a full view of the working area during operation.  Keep animals far away from the machine.  Op. Manual TANK Series 70-78-86” - Page 36 of 80 - Version 1.0...
  • Page 37: Important Operating Instructions

    General knowledge of operating and functioning farm machinery.  Basic knowledge and skills regarding embankment flail mower machinery.  5.10.3 Workplace The TANK mower is operated from the tractor’s seat. Op. Manual TANK Series 70-78-86” - Page 37 of 80 - Version 1.0...
  • Page 38: Emergency Stop Procedure

    After each use, clean all debris from the mower parts and replace any missing or illegible safety  decals. Inspect for any damaged or worn parts and replace them before subsequent use. Store the flail mower in a dry environment. Op. Manual TANK Series 70-78-86” - Page 38 of 80 - Version 1.0...
  • Page 39: Essential Instructions For Correct Use

    • Only operate the flail mower inclined when in the lateral extended configuration. When the mower is in the center configuration, only operate it horizontally. • Make sure that there are no persons or animals in the vicinity. Op. Manual TANK Series 70-78-86” - Page 39 of 80 - Version 1.0...
  • Page 40 Op. Manual TANK Series 70-78-86” - Page 40 of 80 - Version 1.0...
  • Page 41: Function Of The Hitch Adapter Bracket

    Function of the Floating Head System To adjust the offset design of the mower, the TANK Series is equipped with a hitch adapter bracket, also known as a Floating Head System. One of the lower arms of the 3-point hitch has one end that is longer than the other end.
  • Page 42: Adjusting The Incline Angle

    • Check every sloping surface the tractor travels for holes and unstable spots. A tractor wheel may suddenly fall into them, causing the tractor to tip over unexpectedly. Always avoid such unstable spots. Op. Manual TANK Series 70-78-86” - Page 42 of 80 - Version 1.0...
  • Page 43: Hydraulic System

    Refer to your tractor manual for Hydraulic system instructions. You should know to quickly stop the tractor and mower movements in an emergency. OTHER ACTIVITIES Ordering Parts Contact Victory Tractor Implements to order spare parts. When ordering spare parts, you must always have the following information: Machine name and type. ...
  • Page 44: Maintenance, Adjustments, And Repair

    This manual describes periodic maintenance that the owner can do. However, any care that requires special tools or technical experience should be left to Victory's authorized service technicians. Check the mower tines frequently. They must be sharp, free of nicks and cracks, and securely fastened.
  • Page 45: Preventive Maintenance

    To avoid skipping certain parts, a good practice is to follow the direction of the oil. Starting at  the reservoir. Op. Manual TANK Series 70-78-86” - Page 45 of 80 - Version 1.0...
  • Page 46: Service

    Check all nuts and bolts in connection parts; replace them if required.  Pump grease into each grease nipple three to five times.  Clean the implement; take away all debris and residue.  Clean the scraper.  Op. Manual TANK Series 70-78-86” - Page 46 of 80 - Version 1.0...
  • Page 47: Annual Maintenance

    Check the belts for wear and tear. Clean PTO Shaft Protection guard and cone: Inspect the rotor shaft and the scraper: Check gearbox oil: Gearbox oil change: Op. Manual TANK Series 70-78-86” - Page 47 of 80 - Version 1.0...
  • Page 48: Replace Belts Or Adjust The Belts Tensioner Force

    Turn the upper nut until the proper  tension is reached. See the previous picture. Secure both nuts (1).  Install the belt guard fender and the  protection shield. Op. Manual TANK Series 70-78-86” - Page 48 of 80 - Version 1.0...
  • Page 49: Top Up Or Change Gearbox Oil

    Fill the gearbox with oil until the oil  reaches the hole for the oil level plug Use Oil SAE-85/90. Fit and tighten the level plug.  Fit and tighten the breather nipple.  Op. Manual TANK Series 70-78-86” - Page 49 of 80 - Version 1.0...
  • Page 50: Skid's Height Adjustment

    Remove bolt (2) and move the skid to the  desired position for the back side height. Fit and hand-tighten bolt and nut (2).  Tighten bolts (1 & 2) according to  specifications. Op. Manual TANK Series 70-78-86” - Page 50 of 80 - Version 1.0...
  • Page 51: Rear Roller Height Adjustment

    Inspect the proper position of the fixed scraper; it removes the mud from the rear roller and prevents excess mud from sticking. Ensure the scraper is clean. Op. Manual TANK Series 70-78-86” - Page 51 of 80 - Version 1.0...
  • Page 52: Pto Shaft Maintenance

    Do not aim a high-pressure water beam directly at wiring, breathers, or hydraulic components'  sealings of drive components. Always protect venting spots from the inlet of large amounts of water.  Op. Manual TANK Series 70-78-86” - Page 52 of 80 - Version 1.0...
  • Page 53: General Troubleshooting

    If the procedures in this section do not solve the problem, the owner should contact the Victory Service department for assistance. The Flail mower is designed to work on an unplowed and plowed field. It is a simple and ...
  • Page 54: Packed Transport And Storage

    Use proper lifting equipment, such as a fork truck, a hand pallet jack, or a hoist.  Always transport the equipment without mechanical shocks, knocking, or jolting.  Op. Manual TANK Series 70-78-86” - Page 54 of 80 - Version 1.0...
  • Page 55: Decommissioning Requirements

    Information on different waste collection is available from your municipal environmental organization. 7.11 List of Consumables SAE 85/90 Gearbox oil.  Grease; Grade Type II.  Op. Manual TANK Series 70-78-86” - Page 55 of 80 - Version 1.0...
  • Page 56: Spare Parts And Wearing Parts

    Wear parts are permanently excluded from the warranty. Wearing parts for these flail mowers: Drive belts.  Flail hammer blades.  Scraper.  Defence parts.  Op. Manual TANK Series 70-78-86” - Page 56 of 80 - Version 1.0...
  • Page 57: Exploded View Drawings Tank 70-78-86

    EXPLODED VIEW DRAWINGS TANK 70-78-86” VICTORY TANK 70-78-86” Exploded view; Machine Assembly’s VICTORY TANK 70-78-86” Machine Assembly numbers No.: Code: Specification: Description: 2060106140 R01016A01000-000 Hood assembly 2060106141 R01017A01000-000 Hood assembly 2060106142 R01018A01000-000 Hood assembly 2060106146 R01022A01000-000 Hood assembly 2060106147 R01023A01000-000...
  • Page 58 R01015B10000-000 Protection components 2060106156 R01013A11000-000 Swing assembly 2060106157 R01013B11000-000 Swing assembly 2060106158 R01019A11000-000 Swing assembly 2060106162 R01013A12000-000 Rollover assembly 2060106163 R01013B12000-000 Rollover assembly 2060106164 R01019A12000-000 Rollover assembly Op. Manual TANK Series 70-78-86” - Page 58 of 80 - Version 1.0...
  • Page 59 VICTORY TANK 70-78-86” Exploded View; Hood Assembly - Parts VICTORY TANK 70-78-86” Hood Assembly - Part numbers Pos.: Part number: Specification: Description: 70” 78” 86” Qty: Qty: Qty: 2000000041 F01027A01000-001 Seal plate 2000000140 R01013A01000-002 Plate 2010000111 R01013A01000-001 2010000113 R01013A01000-003 2020000064...
  • Page 60 Hexagon Nuts 3050500007 GB/T889.1-M12-8-EP•Zn Locknut 3080100007 GB/T95-12-EP•Zn Plain washer 3080100013 GB/T95-24-EP•Zn Plain washer 3080500009 GB/T93-12-EP•Zn Spring washer 3120100107 GB/T91-5×40 Split pin 3170400005 DIN71412-A G1/8 304 Grease nipple Op. Manual TANK Series 70-78-86” - Page 60 of 80 - Version 1.0...
  • Page 61 VICTORY TANK 70-78-86” Exploded View; Rotor Shaft - Parts VICTORY TANK 70-78-86” Rotor Shaft - Part numbers Code: Specification: Description: Type: 2060108394 F01019E02000-000 Ordinary Rotor shaft + Hammer Blades (F.US.J185A) 70” 2060108395 F01020E02000-000 Ordinary Rotor shaft + Hammer Blades (F.US.J205A) 78”...
  • Page 62 VICTORY TANK 70-78-86” Exploded View; Hammer Blades - Parts VICTORY TANK 70-78-86” Hammer Blades - Part numbers Pos.: Part number: Specification: Description: Qty: 3040300061 GB/T5782-M16×95-10.9-O Hexagon head bolts 3051500003 GB/T6184-M16-8-EP•Zn Metal locknut 3220100683 MT01045 Hammer Blade Op. Manual TANK Series 70-78-86”...
  • Page 63 VICTORY TANK 70-78-86” Rear Roller Assy - Parts VICTORY TANK 70-78-86” Rear Roller Assy - Part numbers 70” 78” 86” Pos.: Part number: Specification: Description: Qty: Qty: Qty: 2000000038 F01027A03000-001 Mud scraper plate 2000000037 F01026A03000-001 Mud scraper plate 2000000036 F01025A03000-001...
  • Page 64 VICTORY TANK 70-78-86” Rotor Shaft Bearing Block Assy’s - Parts VICTORY TANK 70-78-86” Rotor Shaft Bearing Block Assy’s - Part numbers 70” 78” 86” Pos.: Part number: Specification: Description: Qty: Qty: Qty: 2060204983 F01027A04200-000 Right knife shaft bearing block assembly...
  • Page 65 VICTORY TANK 70-78-86” Expl. View; Rotor Bearing Block; Drive Side - Parts VICTORY TANK 70-78-86” Rotor Bearing Block, Drive Side - Part numbers Pos.: Part number: Specification: Description: Qty: 3040100069 GB/T5783-M12×35-8.8-EP•Zn Full-thread hexagon bolts 3080100007 GB/T95-12-EP•Zn Plain washer 3080500009 GB/T93-12-EP•Zn...
  • Page 66 VICTORY TANK 70-78-86” Expl. View; Rotor Bearing BLock, Blind Side - Parts VICTORY TANK 70-78-86” Rotor Bearing Block, Blind Side - Part numbers Pos.: Part number: Specification: Description: Qty: 3040100069 GB/T5783-M12×35-8.8-EP•Zn Full-thread hexagon bolts 3080100007 GB/T95-12-EP•Zn Plain washer 3080500009 GB/T93-12-EP•Zn...
  • Page 67 VICTORY TANK 70-78-86” Expl. View; Hinged Rear Gate Assembly - Parts VICTORY TANK 70-78-86” Hinged Rear Gate - Part numbers 70” 78” 86” Pos.: Part number: Specification: Description: Qty: Qty: Qty: 2020005157 R01021A05100-000 Covering plate weldment 2020005156 R01020A05100-000 Covering plate weldment...
  • Page 68 VICTORY TANK 70-78-86” Exploded View; Gearbox Assembly - Parts VICTORY TANK 70-78-86” Gearbox Assembly - Part numbers Pos.: Part number: Specification: Description: Qty: 2020000367 R01016A06100-000 Protective plate weldment 2020000368 R01022A06100-000 Protective plate weldment 3040100041 GB/T5783-M10×20-8.8-EP•Zn Full-thread hexagon bolts 3040100043 GB/T5783-M10×25-8.8-EP•Zn...
  • Page 69 GB/T93-10-EP•Zn Spring washer 3080500009 GB/T93-12-EP•Zn Spring washer 3160100016 XH50.300Z.03W-Black Gearbox 3160100052 XH50.300Z.03W-Red Gearbox 3210200605 M10×16 Pipe Plug 3210200606 M12×16 Pipe Plug 3210300014 MT50001 Guard 3210500603 Φ35×90 Rubber Op. Manual TANK Series 70-78-86” - Page 69 of 80 - Version 1.0...
  • Page 70 VICTORY TANK 70-78-86” Exploded View; Pulleys and Drive Belts - Parts VICTORY TANK 70-78-86” Pulleys and Drive Belts - Part numbers Pos.: Part number: Specification: Description: Qty: 2010005000 F01027A07000-001 Belt pulley (Tensioner roller) 2020000068 F01027A07100-000 Tension plate welded parts 3040100071 GB/T5783-M12×40-8.8-EP•Zn...
  • Page 71 VICTORY TANK 70-78-86” Expl. View; Drive System Protection Cover - Parts VICTORY TANK 70-78-86” Drive System Protection Cover - Part numbers Pos.: Part number: Specification: Description: Qty: 2020001462 R01019A08100-000 Belt shield welded parts-Upper 2000005175 R01016A08000-001 Observing window 2020001463 R01019A08200-000 Belt shield welded parts-Lower 3040100021 GB/T5783-M8×16-8.8-EP•Zn...
  • Page 72 VICTORY TANK 70-78-86” Exploded View; Hitch Assembly - Parts VICTORY TANK 70-78-86” Hitch Assembly - Part numbers Pos.: Part number: Specification: Description: Qty: 2000000139 R01001A08000-001 Raker 2010000017 G01001A16000-001 Raker pin 2010000028 W01006A01000-002 PTO shaft hook 2020007161 R01013B09100-000 Welding fittings of suspension frame 3040100007 GB/T5783-M6×20-8.8-EP•Zn Full-thread hexagon bolts...
  • Page 73 MT95002 3120500020 MT95001 3130400002 F02007A09000-003 Rope 3210100005 2-Φ16 Pipe Clamp 3210500035 LSQ-S1 MDC-1/2M Rubber 3220400602 G02001A12000-001 Spring clasp 2020007162 R01013B09200-000 Welded parts of lower suspension limit plate Op. Manual TANK Series 70-78-86” - Page 73 of 80 - Version 1.0...
  • Page 74 VICTORY TANK 70-78-86” Exploded View; Protective Assembly - Parts VICTORY TANK 70-78-86” Protective Assembly - Part numbers Pos.: Part number: Specification: Description: Qty: 2000000696 F01027A10000-001 Chain board 2010000025 F01027A10000-002 Chain mounted axle 3130100017 6×28×21-6 Galvanized chain 3040100043 GB/T5783-M10×25-8.8-EP•Zn Full-thread hexagon bolts 3080100006 GB/T95-10-EP•Zn...
  • Page 75 VICTORY TANK 70-78-86” Exploded View; Swing System Assembly - Parts VICTORY TANK 70-78-86” Swing System Assembly - Part numbers Pos.: Part number: Specification: Description: Qty: 2010000112 R01013A11000-001 2020000355 R01013A11100-000 Welding of connecting pipe 3080200012 GB/T96.2-16-EP•Zn Large plain washer 3080500011 GB/T93-16-EP•Zn...
  • Page 76 3220300021 R01013B11000-003 Lifting connector 3040100105 GB/T5783-M16×35-8.8-EP•Zn Full-thread hexagon bolts 2010006257 R01013A11000-005 2000006579 R01013A11000-006 washer 3080500008 GB/T93-10-EP•Zn Spring washer 3040100670 GB/T5783-M10×25-8.8-EP•Zn Full-thread hexagon bolts Op. Manual TANK Series 70-78-86” - Page 76 of 80 - Version 1.0...
  • Page 77 VICTORY TANK 70-78-86” Exploded View; Roll-over System Assembly - Parts VICTORY TANK 70-78-86” Roll-over System Assembly - Part numbers Pos.: Part number: Specification: Description: Qty: 3040100065 GB/T5783-M12×25-8.8-EP•Zn Full-thread hexagon bolt 3080200010 GB/T96.2-12-EP•Zn Large plain washer 3080500009 GB/T93-12-EP•Zn Spring washer 3100900015 SF-2-80×85×60...
  • Page 78: Torque Specifications

    Tighten all bolts to the torques specified unless otherwise noted. Check the tightness of bolts periodically, using this bolt torque chart as a guide. Replace fasteners with the same length and grade of bolt. Op. Manual TANK Series 70-78-86” - Page 78 of 80 - Version 1.0...
  • Page 79: Specifications

    83.3 cm 90° −70° 145.3 cm 165.3 cm 185.3 cm 171,2 cm Mowing width 185 cm 205 cm 225 cm 50 HP 50 - 85 (PTO) HP Op. Manual TANK Series 70-78-86” - Page 79 of 80 - Version 1.0...
  • Page 80 Side panels: 8 mm Flails circumferential speed 42 m/s Hinged rear door Hitch size Category CAT II Nr of Belts Weight 659 kg 689 kg 719 kg Op. Manual TANK Series 70-78-86” - Page 80 of 80 - Version 1.0...
