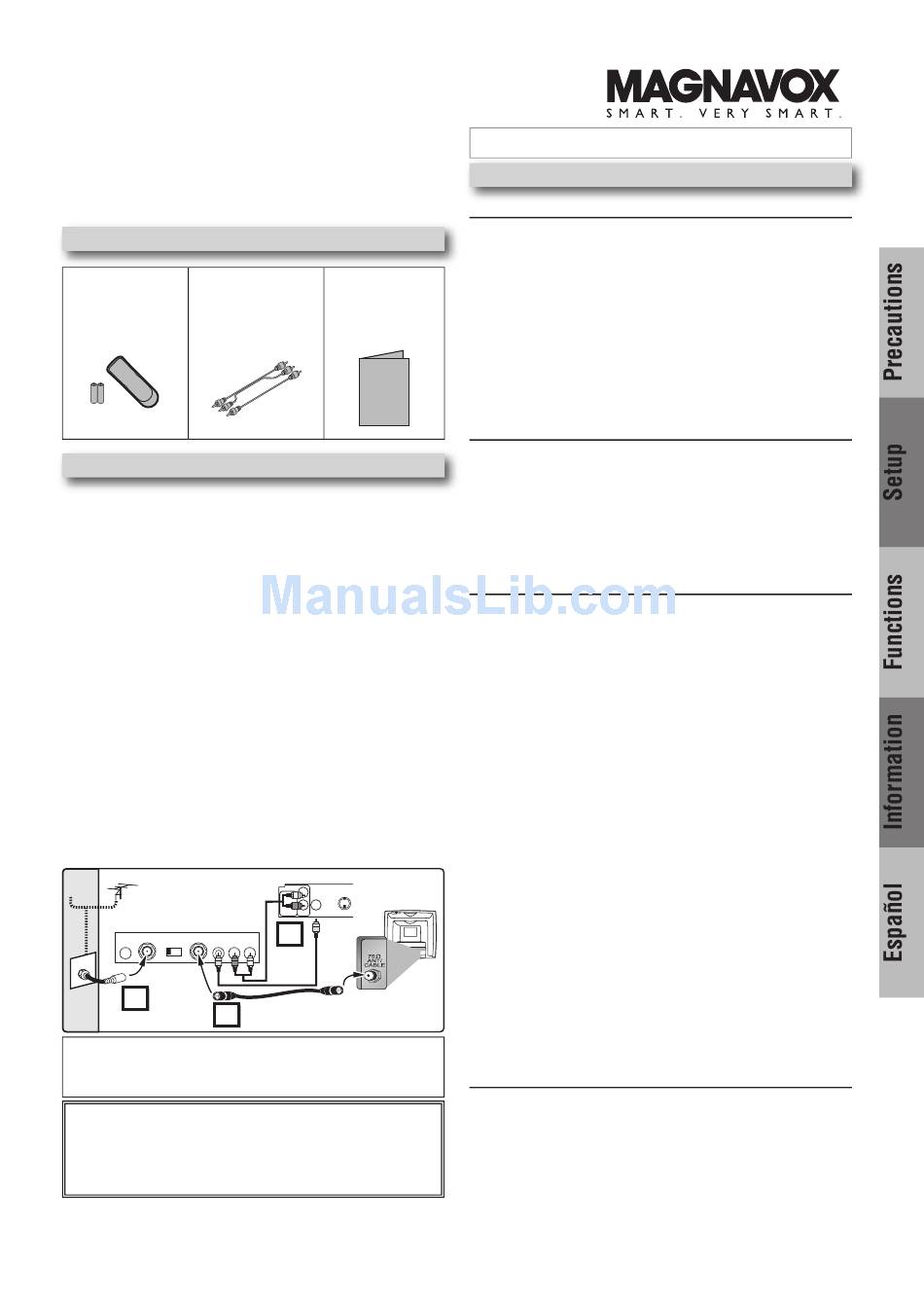

Owner's Manual
Please read before using this unit.
DVD/CD Player
MWD200G
Supplied Accessories
Remote control
Audio/Video cables
(NB070UD/
(WPZ0102TM015/
NB079UD) with
WPZ0102LTE01)
two AA batteries
Before Using Your Unit
If your TV has AUDIO/VIDEO input jacks, see the section
"Connections" on page 6. If not, it is still possible to con-
nect this unit to your TV by using a STEREO AUDIO/VIDEO
RF modulator (commercially available). In this case, follow
the instructions below.
1) Connect the AUDIO/VIDEO output jacks of this unit to the
AUDIO/VIDEO input jacks of your RF modulator by
Audio / Video cables.
2) The antenna input jack of your TV may have been already
occupied. If so, disconnect the RF cable from your TV,
and then connect the RF cable to your RF modulator
(usually marked "ANT IN").
) Connect your RF modulator to your TV by another RF
cable.
4) Set your RF modulator's channel /4 switch to either  or
4, whichever the TV channel is least used in your area. If
your RF modulator has a modulator/antenna switch, set it
according to your RF modulator's manual.
5) Turn on your TV and choose the same channel as you
set the RF modulator's channel /4 switch to. For more
details, follow the instructions supplied with the RF modu-
lator.
If your TV does not have AUDIO / VIDEO input jack.
Antenna
Cable
Signal
STEREO AUDIO / VIDEO RF Modulator
(commercially available)
AC 120V
ANT IN
CHANNEL
TO TV
VIDEO
AUDIO
3
4
R
2
3
Hint
The quality of picture may become poor if the unit is con-
•
nected to an RF modulator.
If you need additional operating assistance
after reading this owner's manual, please call
TOLL FREE : 1-800-605-8610
or visit our web site at http://www.funai-corp.com
Owner's Manual
(1VMN21954)
Owner's Manual
(Back of this unit)
L
AUDIO OUT
DIGITAL
AUDIO OUT
(Back of TV)
COAXIAL
R
VIDEO
S-VIDEO
OUT
OUT
1
L
Audio/Video
Cables
(Supplied)
Antenna in jack
RF Cable (Not supplied)
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Table of Contents

Precautions
Laser Safety ...................................................................2
■ IMPORTANT SAFEGUARDS ........................................3
Location and Handling . ...................................................4
Warning of Dew Formation . ............................................4
About Copyright . .............................................................4
Symbols Used in This Manual . .......................................4
Maintenance ...................................................................4
■ About the Media............................................................5
Playable Media ...............................................................5
Unplayable Media . ..........................................................5
■ Connections ..................................................................6
Connection to a TV . ........................................................6
Connection to an Audio System .....................................7
Rear Terminals ...............................................................7
■ About the Remote Control ...........................................8
Remote Control ..............................................................8
■ Playback ........................................................................9
■ On-Screen Display ......................................................10
■ Search Function .........................................................10
Using Track Search ......................................................10
Using Title / Chapter Search ........................................10
Using Time Search .......................................................11
Marker Setup ................................................................11
Repeat Playback ..........................................................12
Repeat A-B Playback ...................................................12
Random Playback ........................................................12
Programmed Playback .................................................12
■ Special Settings ..........................................................13
Subtitle Language . ........................................................1
Audio Language ...........................................................1
Camera Angles . ............................................................1
Black Level Setting .......................................................1
Stereo Sound Mode......................................................1
Virtual Surround . ...........................................................1
■ DVD Setup ...................................................................14
LANGUAGE Setting .....................................................14
DISPLAY Setting ..........................................................15
AUDIO Setting ..............................................................15
PARENTAL Setting ......................................................16
OTHERS Setting ..........................................................16
(except for PARENTAL Setting) ...................................17
■ Troubleshooting Guide ..............................................17
■ Specifications .............................................................18
■ Language Code List ...................................................18
■ Limited Warranty ........................................................ 18
■ Español ........................................................................19
■ Quick Use Guide ......................................... Back Cover
