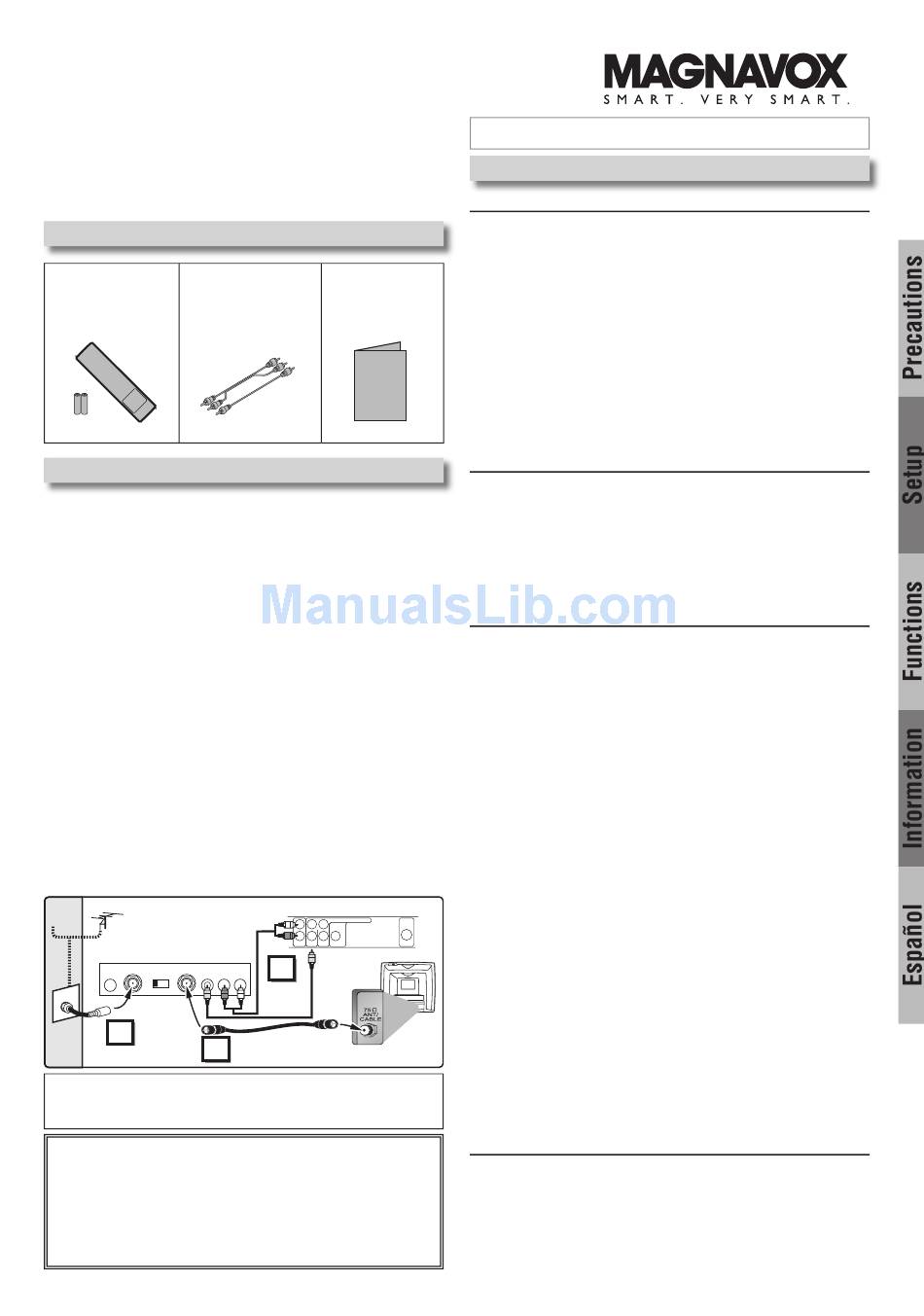

Owner's Manual
Please read before using this unit.
DVD/CD Player
MWD7006
Supplied Accessories
Remote control
Audio/Video cables
(NA470UD) with
(WPZ0102TM015/
two AAA batteries
WPZ0102LTE01)
Connecting to RF Modulator
If your TV has AUDIO/VIDEO input jacks, see the section
"Connections" on page 7. If not, it is still possible to
connect this unit to your TV by using a STEREO AUDIO/
VIDEO RF modulator (commercially available). In this
case, follow the instructions below.
1) Connect the AUDIO/VIDEO output jacks of this unit to the
AUDIO/VIDEO input jacks of your RF modulator by
Audio / Video cables.
2) The antenna input jack of your TV may have been already
occupied. If so, disconnect the RF cable from your TV and
then connect the RF cable to your RF modulator (usually
marked "ANT IN").
) Connect your RF modulator to your TV by another RF
cable.
4) Set your RF modulator's channel /4 switch to either  or
4, whichever the TV channel is least used in your area. If
your RF modulator has a modulator/antenna switch, set it
according to your RF modulator's manual.
5) Turn on your TV and choose the same channel as you set
the RF modulator's channel /4 switch to.
For more details, follow the instructions supplied with the
RF modulator.
If your TV does not have AUDIO / VIDEO input jack.
Antenna
Cable
Signal
STEREO AUDIO / VIDEO RF Modulator
(commercially available)
AC 120V
ANT IN
CHANNEL
TO TV
VIDEO
3
4
2
3
Hint
• The quality of picture may become poor if the unit is connected to
an RF modulator.
If you need additional operating assistance
after reading this owner's manual, please call
TOLL FREE : 1-800-605-8610
or visit our web site at
http://www.funai-corp.com
Owner's Manual
(1VMN2227)
Owner's Manual
(Back of this unit)
L
Y
C
R
/P
R
COMPONENT VIDEO OUT
COAXIAL
R
AUDIO
VIDEO
DIGITAL
C
/P
OUT
OUT
B
B
AUDIO OUT
(Back of TV)
1
AUDIO
R
L
Audio/Video
Cables
(Supplied)
RF Cable (Not supplied)
Antenna in jack
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Table of Contents

Precautions
Laser Safety ...................................................................2
■ Important Safeguards ..................................................3
Location and Handling . ...................................................4
Warning of Dew Formation . ............................................4
About Copyright . .............................................................4
Notice for Progressive Scan Outputs .............................4
Symbols Used in This Manual . .......................................4
Maintenance ...................................................................4
■ About the Media............................................................5
Playable Media ...............................................................5
Unplayable Media . ..........................................................5
®
■ Connections ..................................................................7
Connection to a TV . ........................................................7
Connection to an Audio System .....................................8
■ About the Remote Control ...........................................9
Remote Control ..............................................................9
■ Playback ......................................................................10
Playback ..........................................................11
®
■ Search Functions .......................................................12
Using Track Search ......................................................12
Using Title / Chapter Search ........................................12
Using Time Search .......................................................12
■ On-Screen Display ......................................................13
■ Marker Setup ...............................................................13
Repeat Playback ..........................................................14
Repeat A-B Playback ...................................................14
Random Playback ........................................................14
Programmed Playback .................................................14
■ Special Settings ..........................................................15
Subtitle Language . ........................................................15
Audio Language ...........................................................15
Camera Angles . ............................................................15
Black Level Setting .......................................................15
S-VIDEO
OUT
Stereo Sound Mode......................................................15
Virtual Surround . ...........................................................15
■ DVD Setup ...................................................................16
LANGUAGE Setting .....................................................17
DISPLAY Setting ..........................................................18
AUDIO Setting ..............................................................18
PARENTAL Setting ......................................................19
OTHERS Setting ..........................................................20
(Except for PARENTAL Setting) . ..................................21
■ Troubleshooting Guide ..............................................21
■ Specifications .............................................................22
■ Language Code List ...................................................22
■ Limited Warranty ........................................................22
■ Español ........................................................................23
■ Quick Use Guide ......................................... Back Cover
