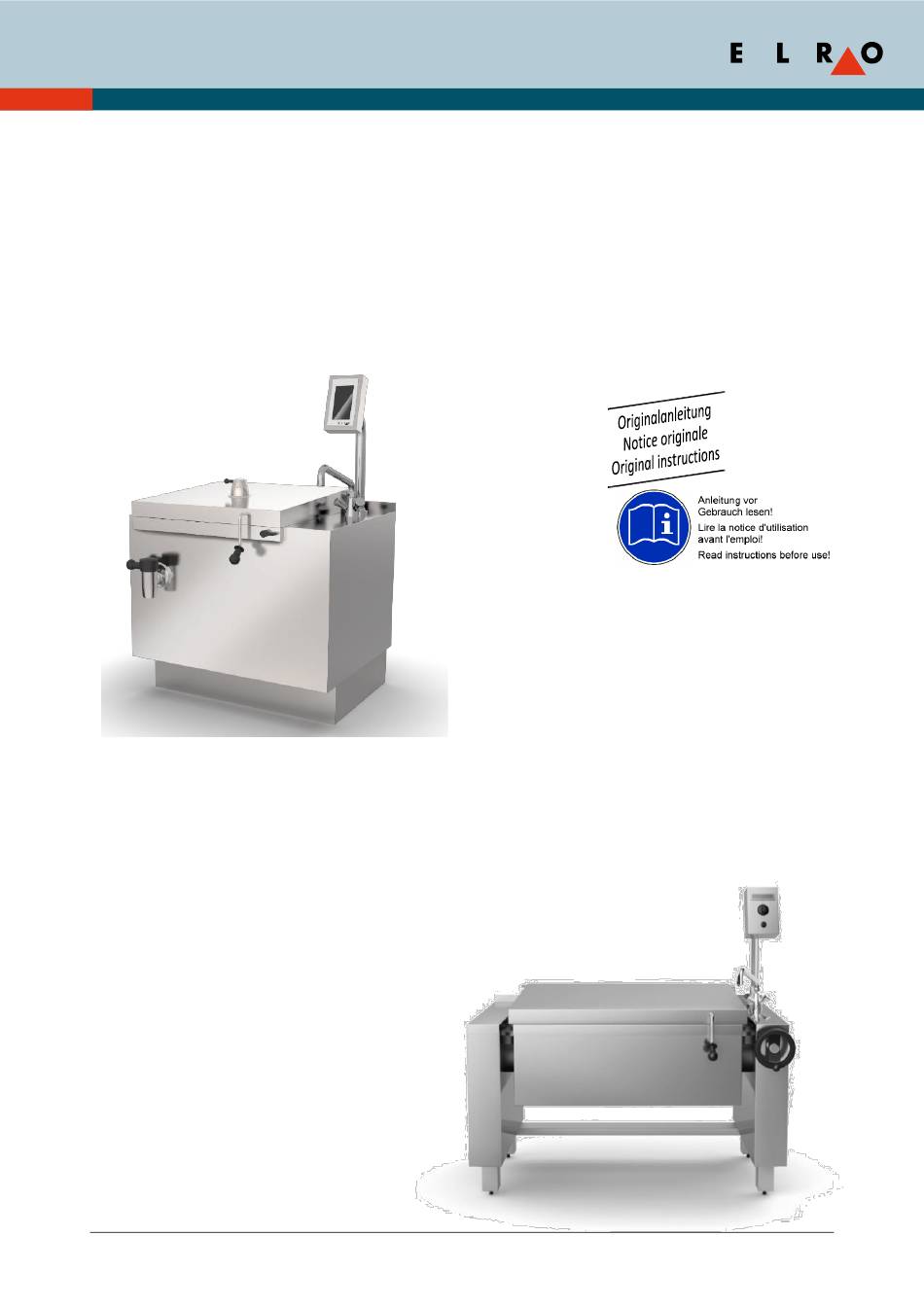

- Page 1 Installation and Initial Operating Instructions Appliances Series 2300 Control Touch (90) / Easy Control (30, 10) MetaTherm Cooking System VacuTherm Cooking System Datum 01.08.2023 Ersetzt 01.07.2022 Verfasser Verantwortlich Dok-Nr. X101924E Revision Seiten X101924E.docx...
-
Page 2: Safety Remarks
Safety remarks Setting up, connecting and first operation of appliances may only be carried out by concessionary specialists and personnel authorized by ELRO. Assembly and Operating Instructions must be read beforehand. Remark Warning Front appliance is visible when the cover plate... - Page 3 Service and maintenance may only be carried out by ELRO After Sales Service or service companies authorized by ELRO. In other cases, all guarantee and regress claims are invalid, and the appliance may not be cleaned with high pressure (HPC) or a water jet.
-
Page 4: Manufacturer
Manufacturer Wohlerstrasse 47 CH-5620 Bremgarten www.elro.ch ELRO After Sales Service +41 (0)56 648 94 11 cs@elro.ch... -
Page 5: Table Of Contents
Page Safety remarks..........................2 Manufacturer ............................ 4 ELRO After Sales Service ........................ 4 ELRO Appliance Series 2300 Touch / Easy ................. 6 Type designation ..........................6 Appliance number / Data plate ......................6 Declaration of conformity ......................... 6 Appliance overview ........................7 Technical data .......................... -
Page 6: Elro Appliance Series 2300 Touch / Easy
ELRO Appliance Series 2300 Touch / Easy Congratulations on your purchase of an ELRO series 2300 appliance. Please read these Assembly Instructions, as well as the Operating Instructions carefully. Pay attention to remarks and recommendations, as well as cleaning and maintenance instructions. These contribute to the proper functioning of appliances. -
Page 7: Appliance Overview
Appliance overview Image Abbreviation Description Abbreviation Image Kettle GN form Touch Control 90 Easy Control 30 Easy Control 10 Kettle, round Touch Control 90 Easy Control 30 Easy Control 10 Tilting kettle, round Touch Control 90 JK-C Easy Control 30 Easy Control 10 Pressure cooker Pressure cooker with High-speed... -
Page 8: Positioning Appliances
The connection cable is not damaged in any way (squashed, cut). • If a cable is damaged, the appliance may not be put into operation! Cables may only be replaced by ELRO After Sales Service or personnel instructed by ELRO, in order to guarantee high pressure cleaning HPC suitability. •... -
Page 9: Wall Mounting / Elro Installation Wall
Wall mounting / ELRO Installation wall Make sure that the mounting wall is suited for use with M10 straddling plugs! Measure the placement of the appliance on the finished wall (plaster, tiled). Use a marking gauge (1) or draw in the appliance contours (1) and the mounting holes according to the dimensional drawing/installation plan. -
Page 10: Lifting Truck (8)
5.5.2 Lifting truck (8) Mounting appliances with a height of 700 mm requires a lifting truck (8) with at least 100mm stroke and sufficient load capacity. Appliances with a height of 400mm (C) require a lifting truck with at least 500mm stroke. -
Page 11: Wall Panel
Push down the cover ring (1) and fix it with the grub screw (2). Wall panel In order to ensure that the appliance is suited for cleaning (IPx5 (Easy); IPx6 und IPx9 (Touch)), the wall panels for the first and last appliance of a cooking row must be installed with end angles and sealed with silicone. -
Page 12: Hygienic Link
5.9.1 Hygienic link Slide the hygienic link (4) over the assembly rail into the clip rail. Make sure seals have been assembled correctly! Secure the hygienic link with the help of an extended socket head wrench. (6) WZ12220 Place the hygienic link front (5) over the bolts (2) and tighten these with the screw (5.1) on the appliance under side. -
Page 13: Connection
Commissioning All functions which can be changed with the user code for cooking programs / settings and are described in the Operating Instructions. Other settings must be carried out by ELRO After Sales Service or personnel instructed by ELRO. Commissioning of mobile appliances must take place on a floor with absolutely no gradient and with the wheels locked. -
Page 14: High-Speed
Safety components must be replaced every 8 years Decommissioning and disposal For decommissioning and disposal of the appliance, contact ELRO customer service. Old units contain recyclable materials. Dispose of old devices in an environmentally friendly manner using a suitable collection system.
