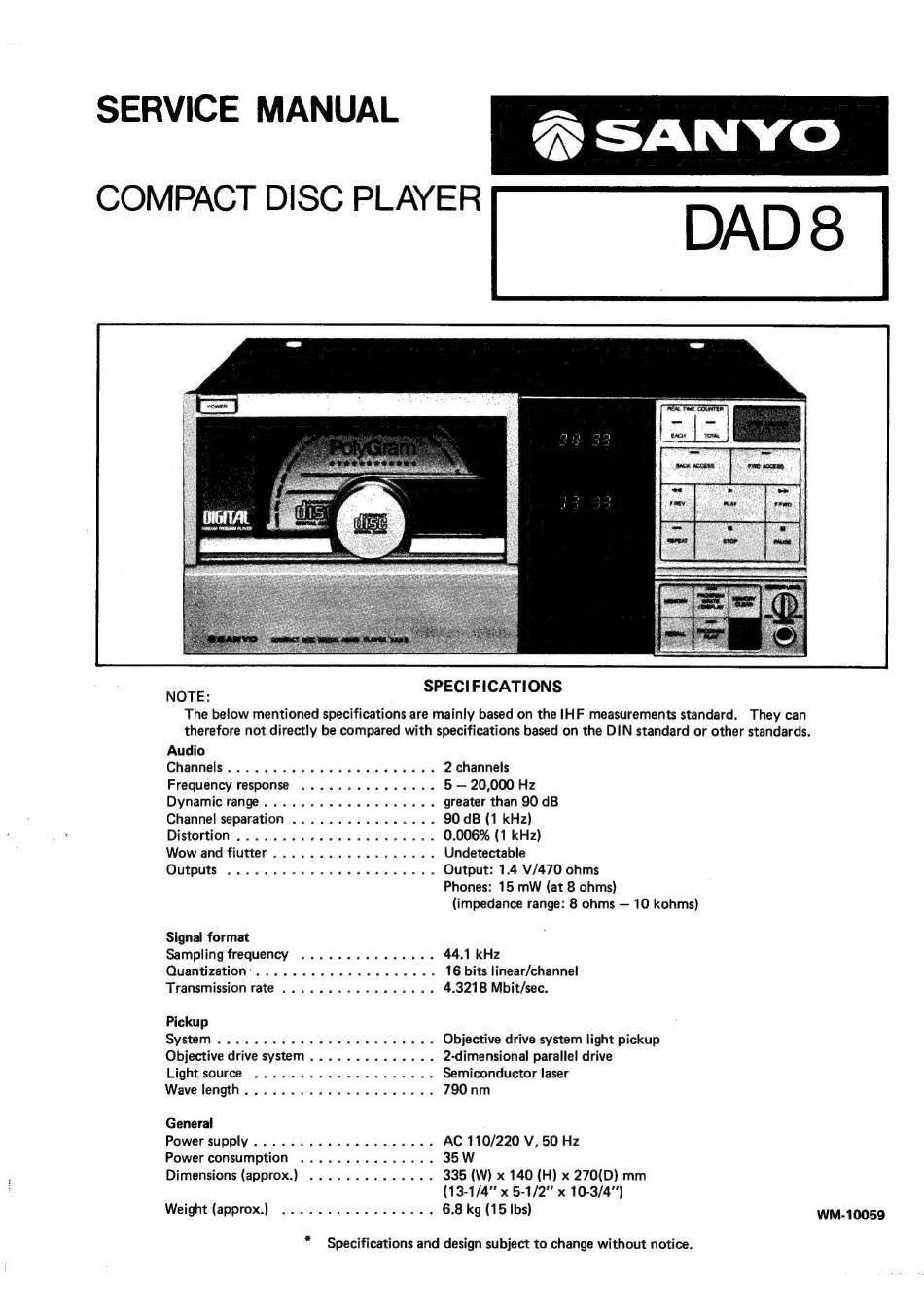

SERVICE MANUAL
se SANYO
COMPACT DISC PLAYER
DAD 8
SPECIFICATIONS
NOTE:
The below mentioned specifications are mainly based on the IHF measurements standard. They can
therefore not directly be compared with specifications based on the DIN standard or other standards.
Audio
Channels occnice cc pee e eee s ese nee 2 channels
Frequency response ........00+205% 5 — 20,000 Hz
Dynamic range.........000e0e reese greater than 90 dB
Channel separation .............00- 90 dB (1 kHz)
DIStOFtiON ies tk eee eee eee es oe 0.006% (1 kHz)
Wow and fiutter.................. Undetectable
Outputs. 2... be ee ew ee ERs ele Output: 1.4 V/470 ohms
Phones: 15 mW (at 8 ohms)
(impedance range: 8 ohms — 10 kohms)
Signal format
Sampling frequency ............000. 44.1 kHz
Quantization'... .. 0... eee ee eee 16 bits linear/channel
Transmission rate .... 2.2.20. c eee ees 4.3218 Mbit/sec.
Pickup
SYSEM scneewee oss Raew ewe sides Objective drive system light pickup
Objective drive system .............4. 2-dimensional parallel drive
Light source .........2202202000- Semiconductor laser
Wave length. ..........-.-022--55 790 nm
General
Power supply ...........20200000% AC 110/220 V, 50 Hz
Power consumption ...........000- 35W
Dimensions (approx.) ........000008 335 (W) x 140 (H) x 270(D) mm
(13-1/4" x 5-1/2" x 10-3/4")
Weight (approx.) .......... 200200 6.8 kg (15 Ibs) WM-10059
* Specifications and design subject to change without notice.
