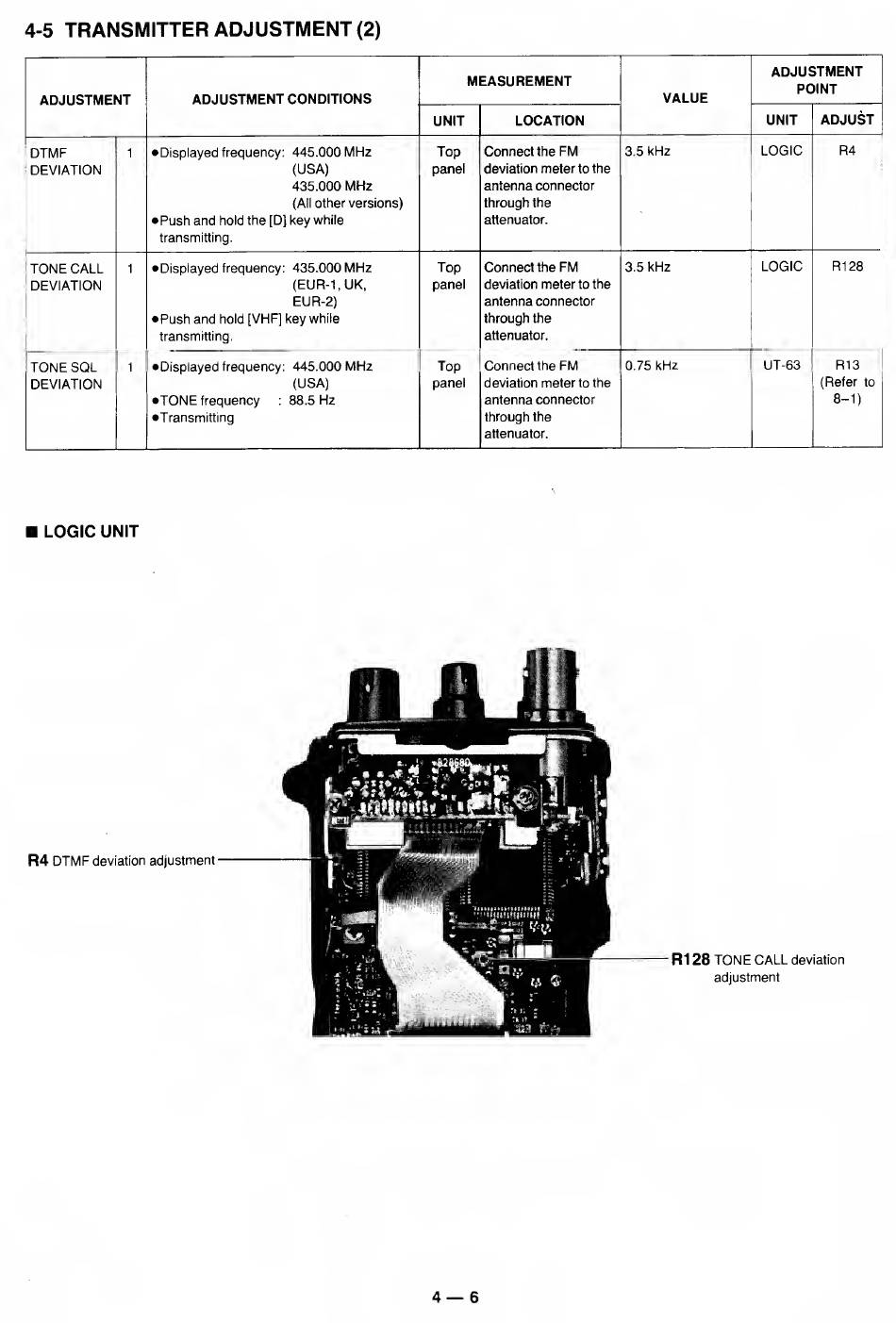

4-5
TRANSMITTER
ADJUSTMENT
(2)
ADJUSTMENT
ADJUSTMENT
CONDITIONS
MEASUREMENT
VALUE
ADJUSTMENT
POINT
UNIT
LOCATION
UNIT
ADJUST
DTMF
DEVIATION
1
• Displayed frequency:
445.000
MHz
(USA)
435.000
MHz
(All
other versions)
•
Push and
hold the
[D]
key
while
transmitting.
Top
panel
Connect
the
FM
deviation
meter
to
the
antenna
connector
through
the
attenuator.
3.5
kHz
LOGIC
R4
TONE
CALL
DEVIATION
1
• Displayed frequency:
435.000
MHz
(EUR-1,UK,
EUR-2)
•
Push and
hold
[VHP] key
while
transmitting.
Top
panel
Connect
the
FM
deviation
meter
to
the
antenna connector
through
the
attenuator.
3.5
kHz
LOGIC
R128
TONE SQL
DEVIATION
1
•Displayed
frequency:
445.000
MHz
(USA)
•TONE
frequency
:
88.5
Hz
•Transmitting
Top
panel
Connect
the
FM
deviation
meter
to
the
antenna
connector
through
the
attenuator.
0.75
kHz
UT-63
R13
(Refer
to
8-1)
LOGIC
UNIT
4
6
