Setup guide
For Emlid RS2 / RS2+ / RS3 with MALÅ
GX and EL WR systems and cable
Introduction
This document provides instructions on configuring the Emlid Reach RS2 / RS2+ / RS3 for use
with MALÅ GX Controller and EL WR Controller, connected by a serial RS232 cable to the Emlid
GNSS antenna.
The following four typical scenarios are defined and described in this guide:
•
Single Emlid RS2 / RS2+ / RS3 unit without any RTK correction
•
Single Emlid RS2 / RS2+ / RS3 unit using SIM card for RTK correction
•
Single Emlid RS2 / RS2+ / RS3 unit using hotspot on mobile device for RTK correction
•
Two Emlid RS2 / RS2+ / RS3 units used as base-rover set up
To set up and run the Emlid RS2 / RS2+ / RS3 unit, you will need a mobile phone or a tablet.
Download the Emlid Flow app from Google Play or App Store to your mobile device. More
information on GNSS measurements with Emlid RS2 / RS2+ / RS3 units are available on
https://emlid.com/support/reach-rs2/
Preparing the Emlid RS2 / RS2+ /RS3

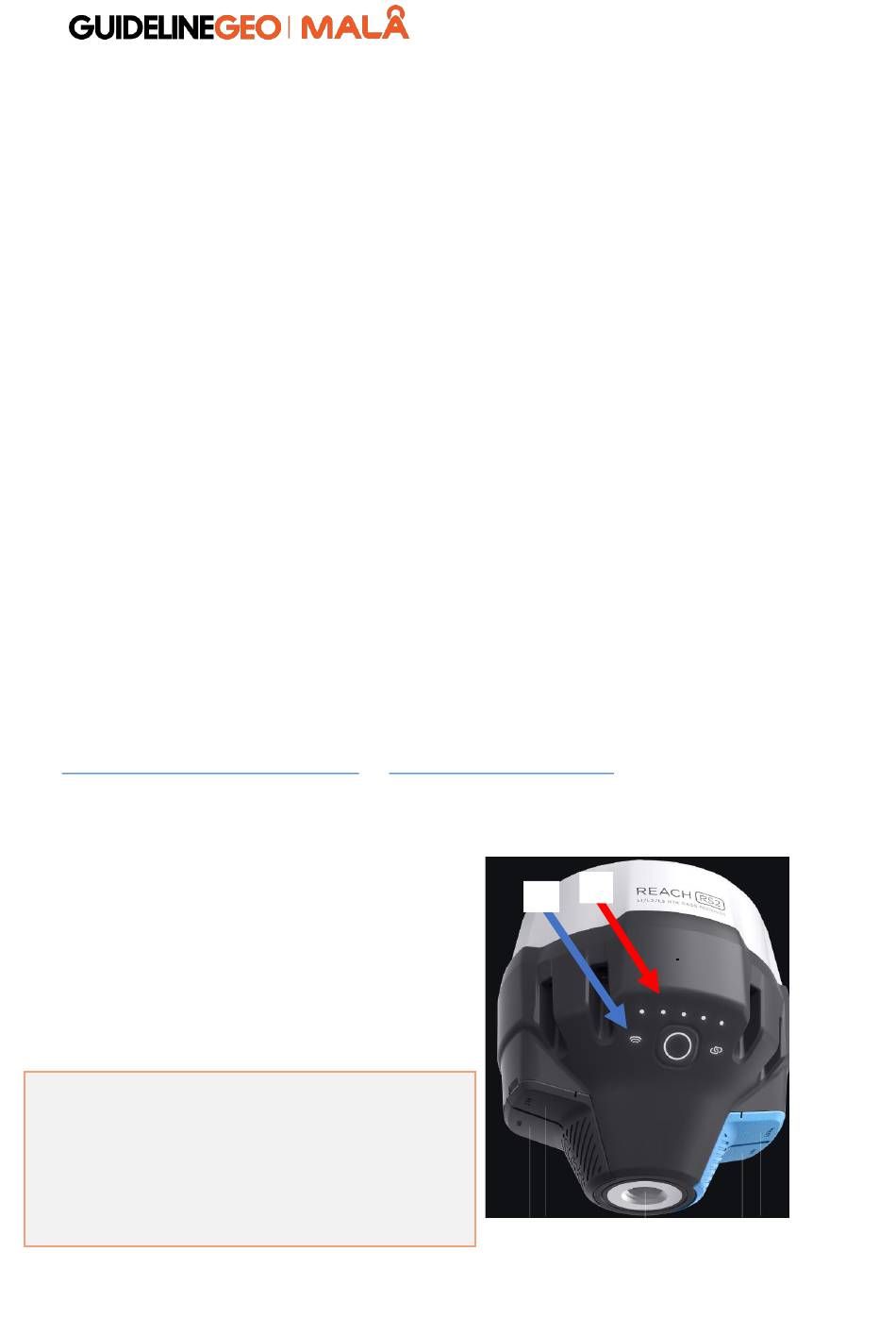

Start your Emlid unit by pressing and holding
the start button. When started, wait until the
battery indicators (nr 1 in the picture to the
right) becomes solid. This takes
approximately 60 seconds.
Make sure that the Wi-Fi indicator (No. 2 in
the picture) is white. This indicates that the
Emlid hotspot is active.
Note:
If the Wi-Fi indicator is blue, the Emlid
unit is connected to a Wi-Fi hotspot. Connect
to the same Wi-Fi network with your mobile
device or move the Emlid unit away from the
Wi-Fi network (to disconnect from the
network). Then restart the Emlid unit and
ensure the Wi-Fi indicator is white.
and
https://emlid.com/reachrs3/
1
1
2
1
Advertisement
Related Manuals for Emlid Reach RS2+
Summary of Contents for Emlid Reach RS2+
- Page 1 Two Emlid RS2 / RS2+ / RS3 units used as base-rover set up To set up and run the Emlid RS2 / RS2+ / RS3 unit, you will need a mobile phone or a tablet. Download the Emlid Flow app from Google Play or App Store to your mobile device. More information on GNSS measurements with Emlid RS2 / RS2+ / RS3 units are available on https://emlid.com/support/reach-rs2/...
- Page 2 Emlid unit. This is called reach:xx:xx Use the password emlidreach to connect. Note: If the Emlid is connected to a Wi-Fi network, you can connect your mobile device to the same network and proceed as below. Start the Emlid Flow app on your phone or tablet.
- Page 3 Set up for a single Emlid rover without correction Follow the guide above (Connecting the Emlid Flow App to the Emlid unit) to connect your phone or tablet to the Emlid Reach RS2 / RS2+ / RS3 unit. Go to the Settings menu in the Emlid Flow app and choose Settings and then Position Streaming 1 (Position streaming 2 should be OFF).
- Page 4 Set the refresh rate of the Emlid unit to 5 Hz or more to receive adequate coordinates to position the GPR effectively. Note: The settings used for Baud Rate must be the same in the Emlid Flow app as well as in the MALÅ GX or EL WR Controller. Go to the Settings menu in the MALÅ...
- Page 5 Reach RS2 / RS2+ / RS3 unit (see blue arrow). Follow the guide above (Connecting the Emlid Flow App to the Emlid unit) to connect your phone or tablet to the Emlid Reach RS2 / RS2+ / RS3 unit. Go to the Mobile data settings in the app, enter a PIN code if needed and fill out the information regarding APN (Access Point Name).
- Page 6 Choose this profile for setting the correction input. Follow the guide above (Set up for a single Emlid rover without correction) for settings on Positioning streaming (serial, baud rate and format) as well as settings for the MALÅ GX and WR...
- Page 7 Set up a single Emlid unit using hotspot on a mobile phone If you do not have a SIM card (with Internet subscription) you can use your mobile phone to provide the Emlid with an internet connection. This will allow the Emlid to receive corrections to your...
- Page 8 EL WR Controllers. Note: The value used for Baud Rate must be the same in the Emlid Flow app and the MALÅ GX or EL WR Controller. Now follow the sequence below to connect to the Wi-Fi hotspot provided by the mobile phone.
- Page 9 Base configuration Follow the guide above (Connecting the Emlid Flow app to the Emlid unit) to connect your phone or tablet to the Emlid Reach RS2 / RS2+ / RS3 unit. Choose Off as correction input and LoRa for correction output.
- Page 10 Place the base unit on a tripod at an open spot with good reception of GNSS satellites and restart the Emlid base unit. To achieve the highest level of positioning, leave the base on for several minutes before starting the rover. When sufficient time has passed, switch on the rover and place it at least >...
