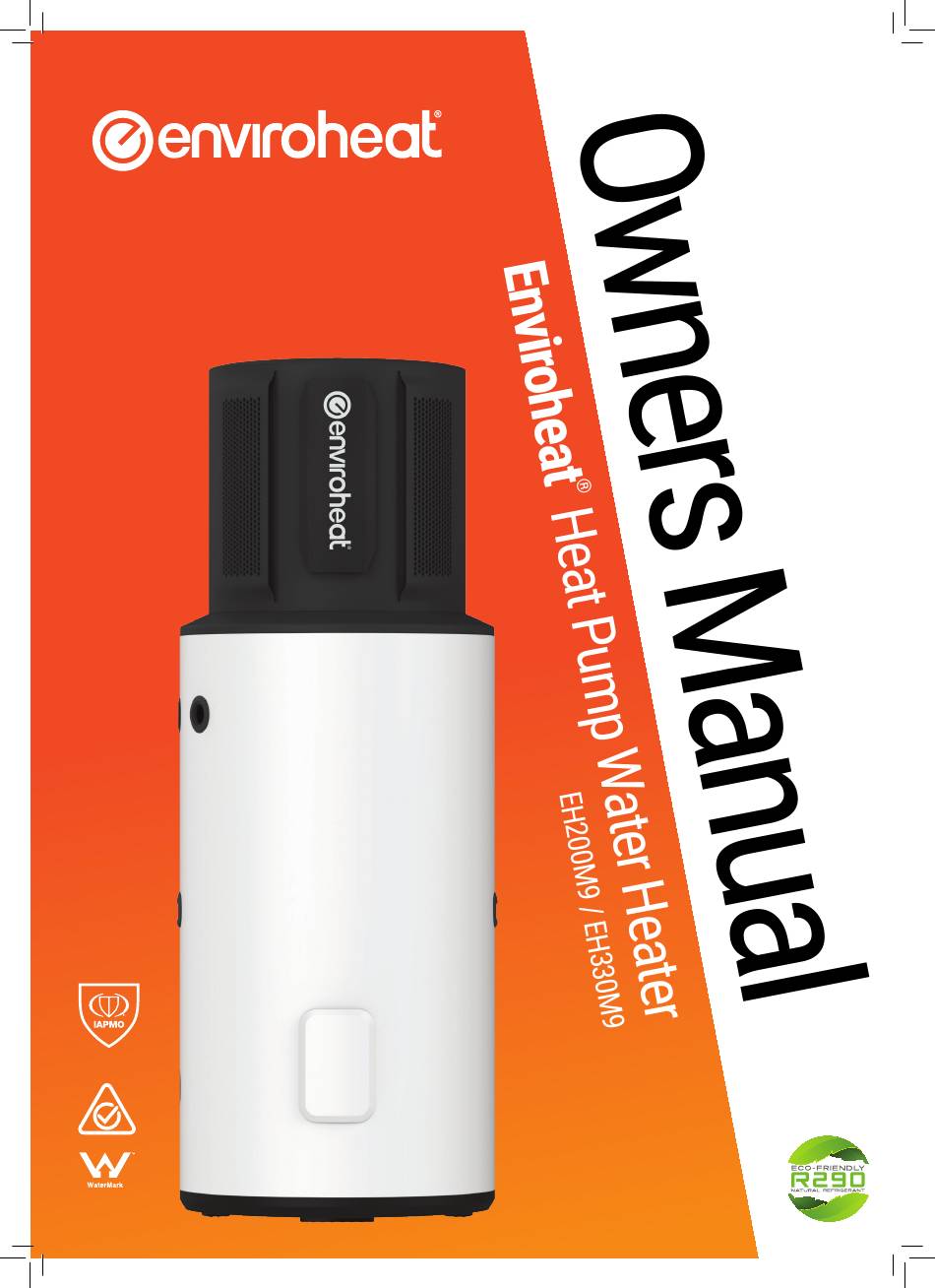

- Page 1 IMK22861 AS/NZS 2712 WM-022861 AS 3498 UserManual_2024-COMBINED_M9_v2.indd 1 UserManual_2024-COMBINED_M9_v2.indd 1 31/10/2024 2:42:46 PM 31/10/2024 2:42:46 PM...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK UserManual_2024-COMBINED_M9_v2.indd 2 UserManual_2024-COMBINED_M9_v2.indd 2 31/10/2024 2:42:47 PM 31/10/2024 2:42:47 PM...
-
Page 3: Table Of Contents
CONTENTS OPERATION AND FUNCTIONS �������������������������������������������������������� 16 IMPORTANT SAFETY INFORMATION ����������������������������������������������� 3 Functions and protections ............... 16 Interpretation of marks and symbols ..........3 Display screen ................. 16 Loading and unloading requirements ..........4 Description of the icons ..............17 Transport requirements ..............4 Initial power on ................ - Page 4 This product must be installed outdoors. 5. This product cannot be discarded or scrapped without correct retrieval of the refrigerant. If necessary, please contact Enviroheat to obtain the correct disposal method. 6. The product must not be stored in an area containing an open flame such as an open fire, gas appliance or electric heater.
-
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Interpretation of marks and symbols Failure to follow these instructions may lead to serious malfunctions of the device and danger to the user. Exclamat Instructions marked with this symbol must Instructions with this mark relate to wrench be followed. -
Page 6: Loading And Unloading Requirements
Scrapping and recovery requirements 1. Scrapping must only be carried out by a qualified professional. This professional must safely recover the appliance’s refrigerant before the appliance is scrapped. Contact Enviroheat to correctly dispose of this appliance. Draining and flushing the system EXCLAMAT The system must be completely drained of water before any plumbing work is commenced. -
Page 7: Functioning & Principle Of Operation
FUNCTIONING & PRINCIPLE OF OPERATION Your Enviroheat system is called a heat pump because it collects heat from the ambient air and “pumps” it into the water in the storage vessel. This is done in much the same way that an air conditioner removes heat from a room and expels it to the outside air. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Model EH200M9 EH330M9 Total water capacity 190L 330L Rated voltage / frequency 220-240V/50Hz 220-240V/50Hz Tank max pressure 700kPa 700kPa Corrosion protection Magnesium rod Magnesium rod Waterproof grade IPX4 IPX4 Performance (20°C/15°C Ambient air temperature, 15°C -55°C water temperature) COP*¹@ 20°C/15°C... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Transporting the appliance 1. During transport or storage, the heat pump water heater should remain in undamaged packaging to prevent damage to the appliance. 2. During long periods of transport or storage, the heat pump water heater must be in an upright position. 3. -
Page 10: Installation Dimensions And Clearances
Air outlet 30° 30° 30° 30° Model EH200M9 1746 EH330M9 1119 1923 Note: This appliance must be installed in a location where it can be quickly and easily drained and moved to an area with at least 1000mm clearance above it. This is necessary to allow the anodes to be removed for inspection and replacement during the five-year service. -
Page 11: Description Of Parts And Components (200L)
DESCRIPTION OF PARTS AND COMPONENTS (200L) 200L heat pump layout Condensate drain Hot water outlet PTR valve connection Cold water inlet Carton contents Part Name Heat Pump Water Heater Instruction Manual PTR Valve Quantity Page 9 of 30 ver 241031.14 UserManual_2024-COMBINED_M9_v2.indd 9 UserManual_2024-COMBINED_M9_v2.indd 9 31/10/2024 2:42:49 PM... -
Page 12: Exploded View Of The 200L Heat Pump
Exploded view of the 200L heat pump Electrical box cover Waterproof cover Electronic control board Heating element Electrical box Top cover Four-way valve Diversion air duct Electronic expansion valve Evaporator Front shell Support Display panel and cover DC motor Control panel and screen Fan blade Compressor Rear shell... -
Page 13: Description Of Parts And Components (330L)
DESCRIPTION OF PARTS AND COMPONENTS (330L) 330L heat pump layout Condensate drain Hot water outlet PTR valve connection Cold water inlet Carton contents Part Name Heat Pump Water Heater Instruction Manual PTR Valve Quantity Page 11 of 30 ver 241031.14 UserManual_2024-COMBINED_M9_v2.indd 11 UserManual_2024-COMBINED_M9_v2.indd 11 31/10/2024 2:42:49 PM... -
Page 14: Exploded View Of The 330L Heat Pump
Exploded view of the 330L heat pump Electrical box cover Waterproof cover Electronic control board Heating element Electrical box Top cover Four-way valve Diversion air duct Electronic expansion valve Evaporator Front shell Support Display panel and cover DC motor Control panel and screen Fan blade Compressor Rear shell... -
Page 15: Plumbing Installation
PLUMBING INSTALLATION THIS APPLIANCE MAY DELIVER WATER AT HIGH TEMPERATURE� REFER TO THE PLUMBING CODE OF AUSTRALIA (PCA), LOCAL REQUIREMENTS AND INSTALLATION INSTRUCTIONS TO DETERMINE IF ADDITIONAL DELIVERY TEMPERATURE Exclamat CONTROL IS REQUIRED� WARNING This installation should only be performed by an approved professional with suitable experience and licenses, authorised by Southern Cross Water Heating Pty Ltd to conduct the work�... -
Page 16: Seismic Strapping
Seismic strapping FOR NEW ZEALAND INSTALLS ONLY CIRCLE-I The Plumbing & Drainage standard (AS/NZS 3500.4) requires all storage water heaters in New Zealand to be installed with seismic restraints to avoid damage or personal injury if a seismic event should occur. To meet this requirement this appliance should be fitted with three stainless steel straps, 25mm wide x 1mm thick. -
Page 17: Electrical Installation
ELECTRICAL INSTALLATION EXCLAMAT In order to avoid inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility (off-peak electrical line). -
Page 18: Operation And Functions
OPERATION AND FUNCTIONS Functions and protections A. Electrical leakage protection This appliance features an electricity leakage protection function. B. Compressor protection When switched on, the appliance will take approximately 3 minutes to start the compressor for heat pump heating. C. Automatic defrosting function The defrosting mode is automatically activated if the outdoor temperature is low and the compressor has run for some time. -
Page 19: Description Of The Icons
Description of the icons Symbol Description Rotary Dial In the OFF state, simply press the rotary dial to turn the machine on. Hold down the rotary dial for 6 seconds to power off the machine. Menu Button Enter the menu. Return Button Return to the last operation or screen. - Page 20 Symbol Description Automatic Mode This mode ensures optimal management of both the heat pump and backup element to deliver consistent comfort. You can adjust the compressor’s maximum continuous AUTO working time (HP Duration) in the installer settings to suit your preferences. Timer Mode This mode prioritises heat pump heating.
-
Page 21: Initial Power On
Initial power on 08/08/2024 11:30 Temp unit Target temperature Current time ° 2024 – – ° C ˚C ° F : 00 Set the target heating temperature AUTO BOOST 35˚C–75˚C adjustable Figure 1 Figure 2 Figure 3 Figure 4 When the device is powered on for the first time, the screen lights up and enters startup mode. Begin setup by selecting the initial settings. Adjust the current time, set the temperature unit (℃/℉), and set the target temperature by turning the rotary dial. -
Page 22: Timer Mode
Timer mode Within the AUTO operation mode, select TIMER to access the TIMER program interface. Use the rotary dial to choose the heating schedule and click to confirm. Same heating schedule Timer programming Timer Provide hot water for 24h – Time 1 Same heating schedule Standard Recovery... -
Page 23: Mute Mode
Mute mode Mute Tips Reduce running noise – Time AUTO Setting TIMER ELEC succeeded Set the mute time. During the time period, the machine operates with low noise and STANDARD FAST MUTE the performance may change due to RECOVERY RECOVERY system changes. -
Page 24: Maintenance
MAINTENANCE The heat pump water heater is designed so that there is little to do in the way of regular system maintenance. Exclamat Personally inspecting or servicing any part of the system is not recommended� Shut down the machine and cut off the power before any work commences� Maintenance operations are important to guarantee optimum performance and extend the life of the appliance�... -
Page 25: Water Quality
It is normal for the Expansion Control Valve (ECV) to drip water when heating. If there is a discharge of more than 10 litres per day from any of the systems valves, it indicates there may be a problem with the valve or an increased water supply pressure. Contact your authorised Enviroheat dealer or installation service provider as soon as possible. -
Page 26: Faults And Protection
By properly disposing of this product, you are contributing to the preservation of the environment and the wellbeing of your fellow citizens. Improper disposal is hazardous to health and environment. You can obtain further information on how to dispose of this product correctly by calling Enviroheat. Page 24 of 30 ver 241031.14... -
Page 27: Standard Warranty
The initial point of contact for all Warranty claims is the Enviroheat Dealer from whom the Product was purchased. All warranty claims must be reported to Enviroheat no later than 14 days from the date the fault is reported to the Enviroheat Dealer. All terms of this warranty are effective from the date of installation of the Product and the attending service person reserves the right to verify this date by requesting a copy of the certificate of compliance... -
Page 28: Warranty Exclusions
LESS DEPRECIATION, upon its return. Enviroheat or a Enviroheat Dealer will provide labour to resolve warranty issues during the warranty period. Repair service shall be available at the purchaser’s location. Enviroheat will determine how and where repair services are provided, and the purchaser may, at Enviroheat’s reasonable cost, be required to deliver product to an authorised location. -
Page 29: Oh&S Disclaimer
OH&S Disclaimer Enviroheat and its Authorised Dealers work with and recommend various installation and plumbing companies to install, test and certify correct operation of solar hot water systems or the Product. Enviroheat is a supplier of systems only. Each installation must be covered by the installer’s insurances, commercial terms and conditions and by the applicable OH&S legislation. Each person that installs assembles or services must comply with all OH&S requirements relevant to the type of work being conducted including, but not limited... - Page 30 THIS PAGE INTENTIONALLY LEFT BLANK UserManual_2024-COMBINED_M9_v2.indd 28 UserManual_2024-COMBINED_M9_v2.indd 28 31/10/2024 2:42:52 PM 31/10/2024 2:42:52 PM...
- Page 31 THIS PAGE INTENTIONALLY LEFT BLANK Page 29 of 30 ver 241031.14 UserManual_2024-COMBINED_M9_v2.indd 29 UserManual_2024-COMBINED_M9_v2.indd 29 31/10/2024 2:42:52 PM 31/10/2024 2:42:52 PM...
-
Page 32: Installation Record
INSTALLATION RECORD PLEASE COMPLETE THIS PAGE AS A RECORD OF THE INSTALLATION DETAILS FOR YOUR REFERENCE TO DETERMINE WHEN THE SYSTEM IS DUE FOR SERVICE OR IF A WARRANTY MATTER SHOULD ARISE. SCAN THE QR CODE WITH YOUR PHONE AND REGISTER YOUR WARRANTY ONLINE� Energie Group Pty Ltd IMPORTANT! ABN 50 166 500 787...
