Summary of Contents for Enviroheat 200EH1-14

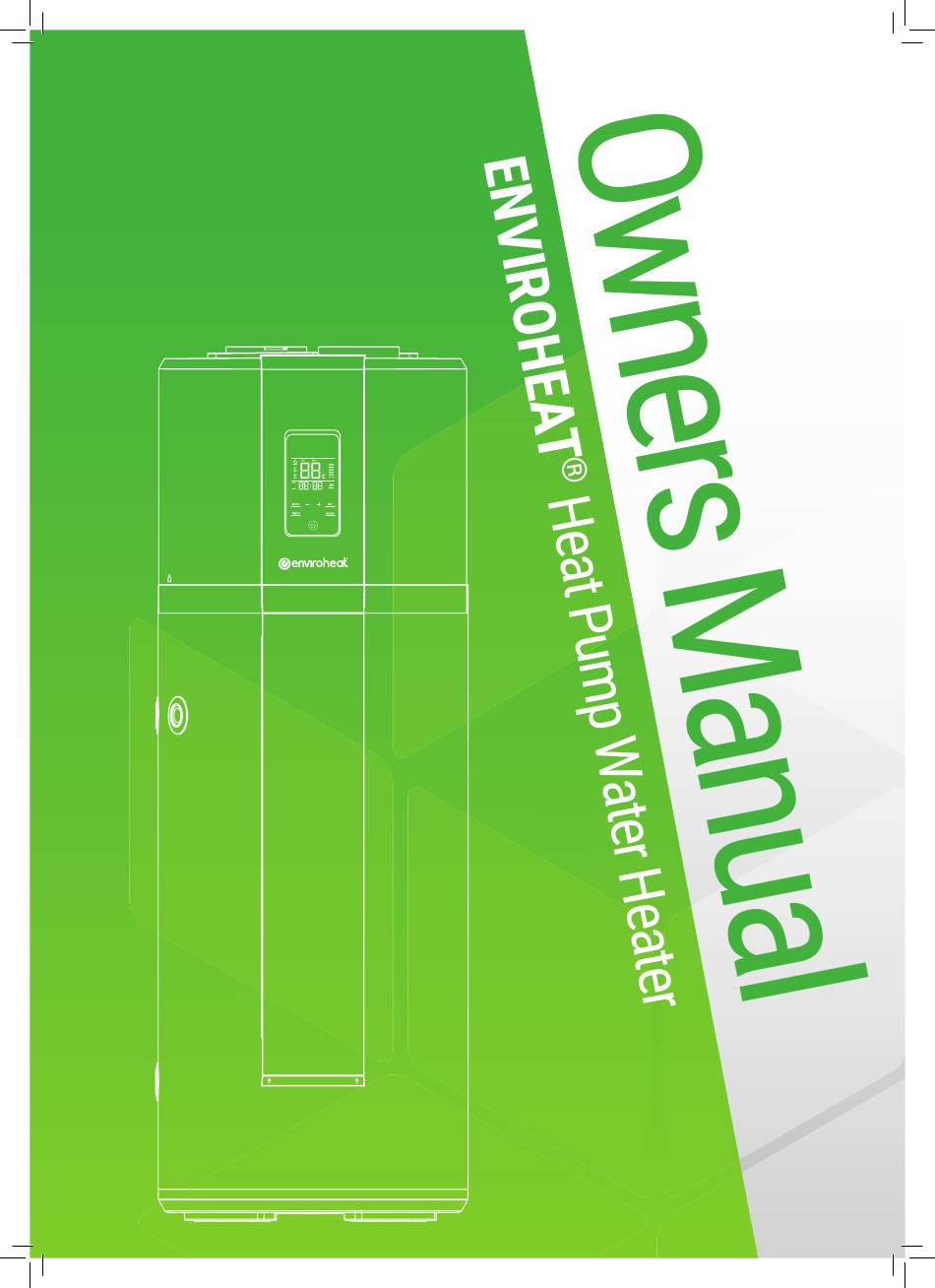

- Page 1 Models: 200EH1-14 250EH1-15 UserManual_2021-Enviroheat.indd 1 UserManual_2021-Enviroheat.indd 1 1/09/2021 11:47:37 PM 1/09/2021 11:47:37 PM...
-
Page 2: Table Of Contents
STANDARD WARRANTY ...................................... 17 Warranty Terms ........................................17 Warranty Conditions ......................................17 Warranty Exclusions ....................................... 19 OH&S Disclaimer ........................................19 INSTALLATION RECORD ..................................... 20 Page 2 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 2 UserManual_2021-Enviroheat.indd 2 1/09/2021 11:47:38 PM 1/09/2021 11:47:38 PM... -
Page 3: Important Safety Information
Improper disposal is hazardous to your health and the environment. You can obtain further information on how to recycle thus product from your municipality, your waste management service or the Enviroheat dealer where you purchased the appliance. rev. 01/09/21 Page 3 of 20 UserManual_2021-Enviroheat.indd 3... -
Page 4: Functioning & Principle Of Operation
FUNCTIONING & PRINCIPLE OF OPERATION Your Enviroheat system is called a heat pump because it collects heat from the ambient air and “pumps” it into the water in the storage vessel. This is done in much the same way that an air conditioner removes heat from a room and expels it to the outside air. A refrigerant is used to transfer the heat via a compressor to a heat exchanger wrapped around the storage tank. -
Page 5: Specifications
SPECIFICATIONS Model 200EH1-14 250EH1-15 Tank volume 195L 246L Rated voltage/ frequency 220V~240V/50Hz 220V~240V/50Hz Tank rated pressure 0.7MPa 0.7MPa Corrosion protection Magnesium rod Magnesium rod Insulation Protection Rating IPX4 IPX4 Type of system Monobloc air source heat pump COP@7 ℃ 3.04 3.02... -
Page 6: Overall Dimensions
Overall Dimensions Condensate Outlet Safety Valve Hot Water Outlet Inlet for Cold Water/Drain Outlet Air Outlet Air Inlet Model 200EH1-14 1,692 250EH1-15 1275 1,987 Page 6 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 6 UserManual_2021-Enviroheat.indd 6 1/09/2021 11:47:39 PM 1/09/2021 11:47:39 PM... -
Page 7: Installation Introduction
CAUTION Your Enviroheat system emits very low noise level however there are certain times of the day where any noise may be objectionable. This is especially the case if the system is located near a bedroom and is running while the occupants are sleeping. It is highly recommended that the system be programmed to run when noise is not objectionable, for example between 5am and 9pm, or that the system be located away from bedrooms rev. -
Page 8: Installation Dimensions
Installation Dimensions ~400mm ~50mm Air Outlet Air Inlet Display Page 8 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 8 UserManual_2021-Enviroheat.indd 8 1/09/2021 11:47:39 PM 1/09/2021 11:47:39 PM... -
Page 9: Local Standards
The installation shall conform to the Plumbing Code of Australia (PCA). The following standards and regulations must be taken into account when planning the installation of the Enviroheat water heater system. • AS/NZS 3500.4.2 Notational plumbing and drainage code hot water supply systems – acceptable solutions. -
Page 10: Plumbing Connections
If hydrogen is discharged through the tap, it will probably make an unusual noise as with air escaping. Do not place hands or any part of your body beneath the tap during this procedure. Page 10 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 10 UserManual_2021-Enviroheat.indd 10 1/09/2021 11:47:39 PM 1/09/2021 11:47:39 PM... -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS EXCLAMAT Your Enviroheat system is equipped with a 10 Amp plug and cord that enables connection to power via a weatherproof power outlet. CAUTION Electrical Protection Precautions For safe performance this water heater is fitted with a thermostat and an over temperature cut-out. These devices should not be tampered with or removed. -
Page 12: Operation And Functions
63°C. This display gives you an indication of how much hot water capacity is available in your system. Page 12 of 20 Page 12 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 12 UserManual_2021-Enviroheat.indd 12 1/09/2021 11:47:41 PM 1/09/2021 11:47:41 PM... -
Page 13: Screen Lock Function
You have now set the START and STOP time and time of day. Whilst in ECO mode, the system will only run between the programmed times. Whilst the running noise level of the Enviroheat system is quite low, it is not advisable to allow the unit to run during the night when ambient noise levels are low. -
Page 14: Troubleshooting
Water discharge through the pressure relief valve All Enviroheat heat pump water heaters have two pressure valves located within the system configuration. The cold water expansion control valve (ECV), located in the cold water supply pipe, may release a small amount of water from time to time during the heating cycle of the system. The water discharge is water expanding due to the heating process. -
Page 15: Maintenance
MAINTENANCE The Enviroheat heat pump water heater is designed so that there is little to do in the way of regular system maintenance. Exclamat Personally inspecting or servicing any part of the system is not recommended. Shut down the machine and cut off the power before any work commences. -
Page 16: Contact Details
For after sales service: 1300 560 944 For sales or new product: 1300 560 944 info@consolidatedenergy.com.au www.enviroheatpump.com Head Office Consolidated Energy 11 Cressall Road Balcatta WA 6021 Page 16 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 16 UserManual_2021-Enviroheat.indd 16 1/09/2021 11:47:41 PM 1/09/2021 11:47:41 PM... -
Page 17: Standard Warranty
The initial point of contact for all Warranty claims is the Enviroheat Dealer from whom the Product was purchased. All warranty claims must be reported to Enviroheat no later than 14 days from the date the fault is reported to the Enviroheat Dealer. All terms... -
Page 18: Warranty Exclusions
LESS DEPRECIATION, upon its return. Enviroheat or an Enviroheat Dealer will provide labour to resolve warranty issues during the warranty period. Repair service shall be available at the purchaser’s location. Enviroheat will determine how and where repair services are provided, and the purchaser may, at Enviroheat’s reasonable cost, be required to deliver product to an authorised location. -
Page 19: Oh&S Disclaimer
OH&S Disclaimer Enviroheat and its Authorised Dealers work with and recommend various installation and plumbing companies to install, test and certify correct operation of solar hot water systems or the Product. Enviroheat is a supplier of systems only. Each installation must be covered by the installer’s insurances, commercial terms and conditions and by the applicable OH&S legislation. Each person that installs assembles or services must comply with all OH&S requirements relevant to the type of work being conducted including, but not limited... -
Page 20: Installation Record
............................................Installers Name ............................................Installers Address ......................Installers Telephone ........................................................................................Comments ..........................................Customer Signature Installer Signature ..../ ..../ ....Date Page 20 of 20 rev. 01/09/21 UserManual_2021-Enviroheat.indd 20 UserManual_2021-Enviroheat.indd 20 1/09/2021 11:47:42 PM 1/09/2021 11:47:42 PM...
