Summary of Contents for SUNTECK ASPEN STFP 3 50

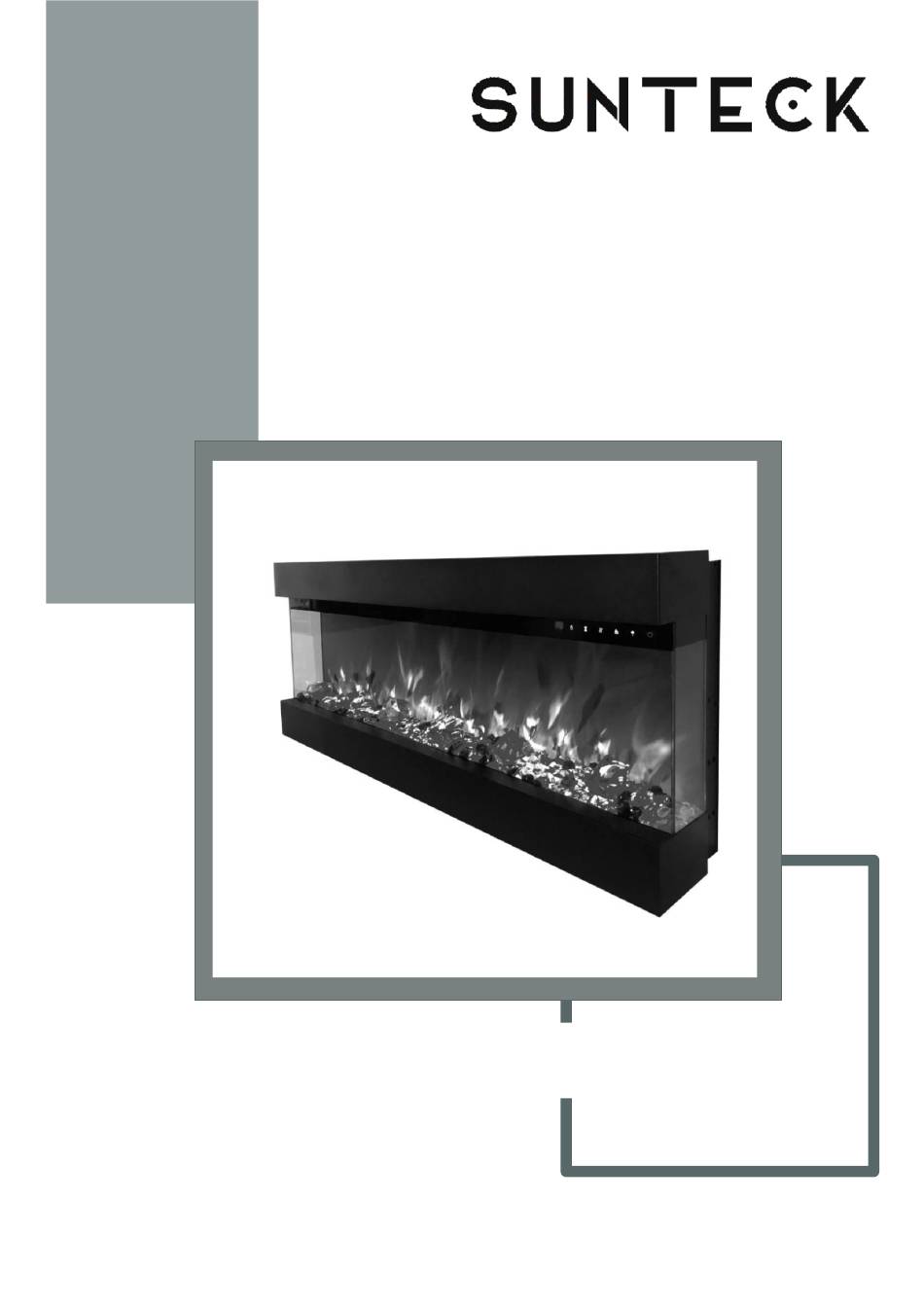

- Page 1 INSTALLATION MANUAL RO BEF WM - ASPEN...
- Page 2 Failure to do so WARNING could result in fire, electric shock, or serious personal injury. Keep this owner's manual for future reference. If you sell or give this product away, make sure this manual accompanies this product CAUTION www.sunteck.ca info@sunteck.ca...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before using this heater This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles when moving this heater. -
Page 4: Parts And Hardware
Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for wall-hanging or recessing use. -
Page 5: Installation And Assembly
PRODUCT DIMENSIONS PRODUCT DIMENSIONS Model Number 50" 19.1" 7.9" 48.9" 18.3" 10.1" 49.8" ASPEN 50 127cm 48.4cm 20cm 124.2cm 46.56cm 25.61cm 126.57cm 60" 19.1" 7.9" 58.9" 18.3" 10.1" 59.8" ASPEN 60 152.4cm 48.4cm 20cm 149.6cm 46.56cm 25.61cm 151.97cm Installation and Assembly Your appliance is a wall-mounted, recessed and/or mantel installed appliance. - Page 6 RECESSED TO WALL INSTALLATION Hole Size ( A ) STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart Figure ( A ) FRAMING HOLE SIZE Model Number ASPEN 50 49.29” (125.2CM) 18.84”...
- Page 7 ( B ) ( D ) ( E ) STEP D. Fix the metal brackets (E) to the BOTTOM and (F) to the TOP of the fireplace box. Figure (D,E) NOTE: Metal brackets can be use as movable, please adjust to the best location as need...
- Page 8 STEP E. Have two adult people to lift of the fireplace box and put it inside of the wall opening hole. Using the screw driver to fix all wood screws and drywall anchors to through the metal brackets to the wall and fixing tightly. NOTE: Making sure that all screws and drywall anchors are well screwed.
-
Page 9: Wall Mounted Installation
Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A.Select a location that is not prone to moisture and is located at least 36" (914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc. - Page 10 BEF-60WM/BEF-72WM Wall Bracket Illustrated...
-
Page 11: Hard Wiring Installation
Log-set / Crystal Ember Installation (NOTE:Please make the installation according to the embers which you bought or selected.) Glass front must be removed and the appliance must be mounted in its final location before the log-set / crystal / pebble embers are installed. - Page 12 HARD WIRING CONNECTION If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. This appliance must be electrically connected and grounded in accordance with local codes, if hard wired.
-
Page 13: Operation
Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). - Page 14 COLOR button: Makes the color flame effect 1. Press once. Flame color effect gets changing. changing. NOTE: color effect stays on until power button 2. Press again until desired setting is is turned off. Color flame effect must be on for reached.total 3 colors.
-
Page 15: Care And Maintenance
Care and Maintenance Cleaning ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury. - Page 16 info@sunteck.ca...
