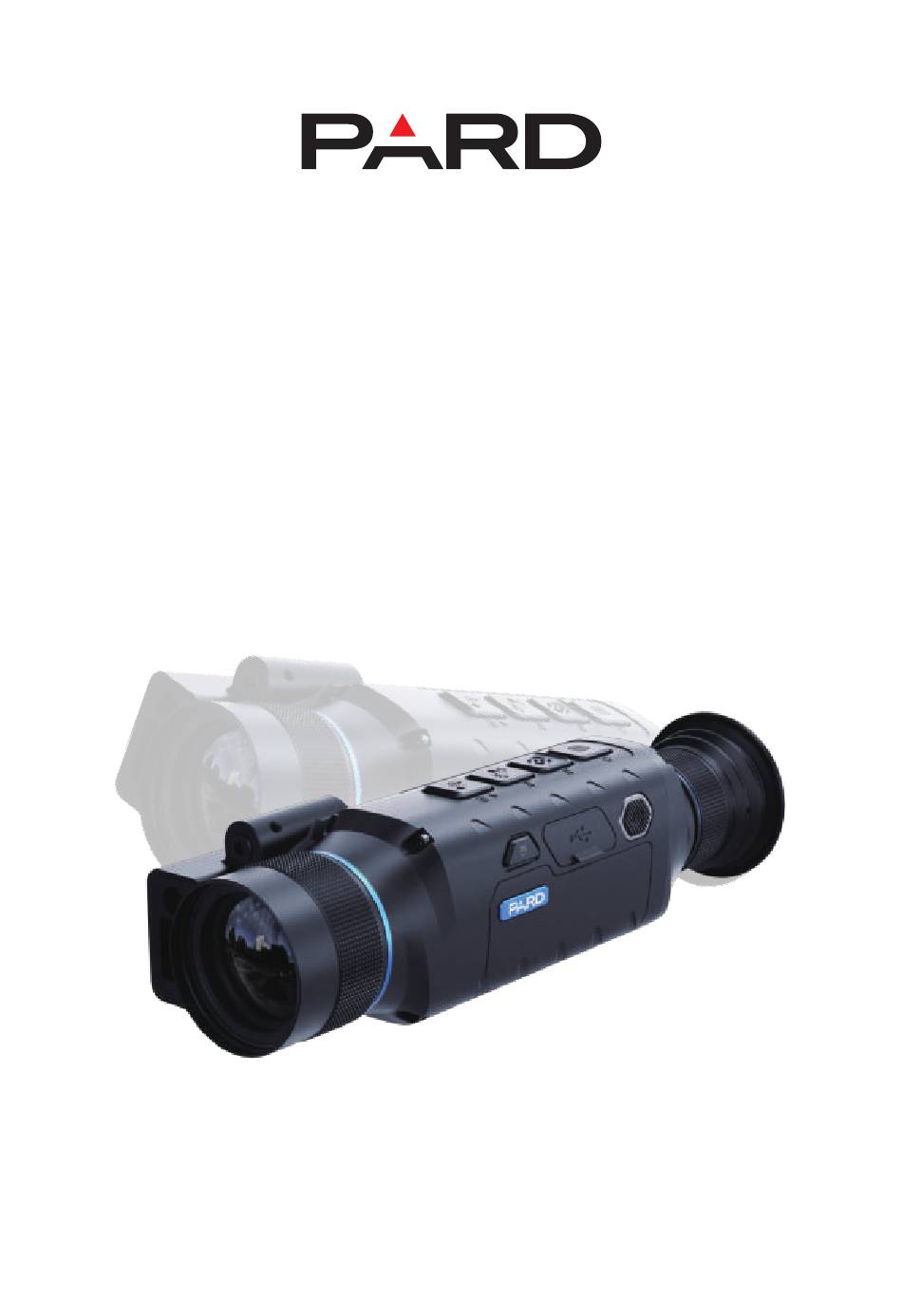

- Page 1 Thermal Imaging Monocular Leopard Series User Manual...
-
Page 3: Important Reminder
All PARD products are exclusively designed for civilian use and strictly prohibited for any military purposes. All PARD products are not authorized for export to, including but not limited to Russia, Belarus, Palestine, Israel, Sudan, South Sudan, and other conflict zones. - Page 4 Scan To Enjoy Privilege Scan The QR Code To Join Our Membership Extend warranty Enjoy 1 on 1 expert service Get the product experience officer opportunity...
-
Page 5: Table Of Contents
Contents 1.Introduction 2. Precautions 3. Package Contents 4. Description & Key Features 5. Specifications 6. Components 7. Installation 8. Operation Instruction 1) Shortcut Mode 2) Menu Mode 9. FCC Warning... -
Page 6: Introduction
Please note that PARD reserves the right to update this manual without prior individual notifications. For the latest information and updates, we recommend you to visit our official website. -
Page 7: Package Contents
Package Contents Quantity Icon Contents Leopard 480/640 Type-C cable 18650 Rechargeable Lithium-Ion battery User’s manual After-sales card Lanyard Description & Key Features Leopard, a super compact monocular, tiny but powerful, completely fits in the palm of your hand. Featuring a self-developed detector with a high resolution of 640*512/480*360 and NETD ≤20mK, ensuring clear visibility of abundant target details and characteristics. -
Page 8: Specifications
Key Features 1000m/1200yds LRF Photo & video recording NETD ≤ 20mK Dispaly resolution: 1920*1080 6 Image modes WiFi connection 18650 rechargeable Li-ion battery IP67 rating Specifications Model Leopard 480 Leopard 640 Sensor Uncooled VOx Uncooled VOx Type (vanadium oxide) (vanadium oxide) Resolution(pixel) 480*360 640*512... - Page 9 .JPG .JPG Video Resolution(pixel) 1440*1080 1440*1080 .MP4 Video Format .MP4 Micro SD card(Max. 128) Micro SD card(Max. 128) Storage(GB) Pard IREA Pard IREA Image Engine Main function 1000/1200 1000/1200 LRF Detection Range(m/yd) Gyroscope Loop Recording Hot Track E-compass Mechanical shutter...
-
Page 10: Components
-30 ~ +55 / -22 ~ +131 Operating temp(°C/°F) Material Housing Aluminum Alloy+Composite Aluminum Alloy+Composite Eyepiece All-glass multi-coated lens All-glass multi-coated lens Components Leopard Series Fig. Name Name objective lens Battery compartment switch Objective Lens Focusing wheel Diopter Adjustment wheel LRF Module Type-C charging Port... -
Page 11: Installation
1.4. To turn on the device, press and hold 1.3. Put the positive pole (+) of the the power button for about 3 seconds. battery inwards, then close the battery (When the PARD Logo appears on the screen, compartment. the device is ready for use. 2. Diopter Focusing Diopter focusing is used to clearly see the content displayed on the screen. -
Page 12: Operation Instruction
Opera�on Instruc�on Scence mode Image mode Gyroscope Gyroscope WiFi Battery Magnification Compass Time Shortcut Key Mode Press and hold Single press Double press Keypad Power on/off Sleep mode File/Turn off WiFI Turn on/off PIP Zoom in/Up Shu�er correc�on OK/LRF Record/Save video Switch image mode/Down Take photos Switch scene mode... - Page 13 Explanation: Key 1 1. Single press： ① Home screen mode: single press [Key 1] to to zoom in; ② Menu mode: single press [Key 1] to scroll up or adjust the values; 2.Press and Hold ① Home screen mode: After pressing and hold [Key 1], the video and picture files stored on the micro SD card will be displayed.
-
Page 14: Menu Mode
Key 3 1. Single press： ① Home screen mode: single press [Key 3] to switch image mode among WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY; ② Menu mode: single press [Key 3] to scroll down and adjust relative values. 2.Press and Hold Home screen mode: press and hold [Key 3] to take photos; Key 4 1. -
Page 15: Display Brightness
2. Display Brightness Users can adjust the display brightness of the screen to adapt to different surroundings. Press [Key 4] to enter the menu, press [Key 3] to move the cursor to the display brightness option, press [Key 2] to enter the sub-menu. Press [Key 1]/[Key 3] to move the cursor to select “level 0”/“level 1”/“level 2”/ “level 3”/“level 4”/“level 5”/“level 6”/“level 7”... -
Page 16: Picture In Picture
6. Picture in Picture The PIP mode displays a 2x magnified center area in the top of the screen, allowing you to see magnified target details without losing the field of view. Press [Key 4] to enter the menu, press [Key 3] to move the cursor to the PIP setting option, and press [Key 2] to enter the sub-menu. -
Page 17: Loop Recording
10. Loop Recording Users can customize the segment recording duration. This can be set up under loop recording. When the capacity of the memory card is full, the new recording will automatically overwrite the previous saved files. When you select “Off”, the recording will stop when the memory card is full, and the oldest video file will not be overwritten. - Page 18 Turn on the WiFi on your device and on your mobile device. Search the WiFi on your mobile device (the device WiFi network is a string of characters starting with PARD, which is a string of numbers). Please enter the password: 12345678 to connect.
-
Page 19: Default Settings
Press [Key 4] to enter the menu, press [Key 3] to move the cursor to the blind pixel compensation option, click [Key 2] to enter it and you will see a prompt: ① Please put on lens cap; Long press the menu key to execute; Short press the ok key to exit;... -
Page 20: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 22 Follow Us @pard_usa @pardusaofficial @PARDusa Please Search and follow our channel for more information Website Business Cooperation Service Center sales.support@optimaxtechnologyllc.com support@pard-tech.com www.pard.com PARD Tell：+1 (800) 986 4370 Add：3500 Lakeside Court, Suite 101, Rm 122, Reno, NV 89509...
