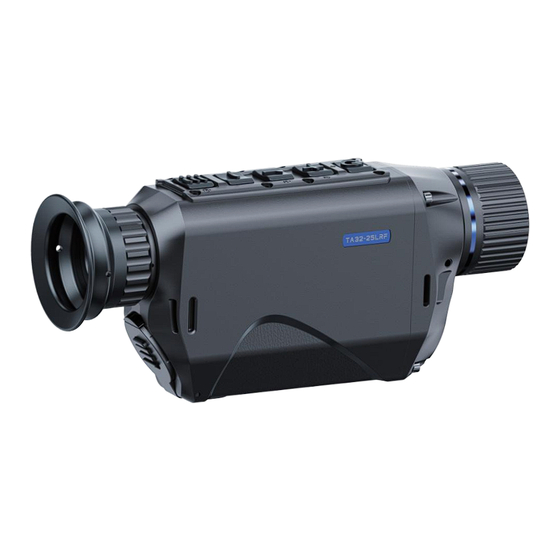

Pard TA32-LRF User Manual

Thermal monocular

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Thermal Monocular

User Manual

TA32/62-LRF

Europe & Global

Table of Contents

Summary of Contents for Pard TA32-LRF

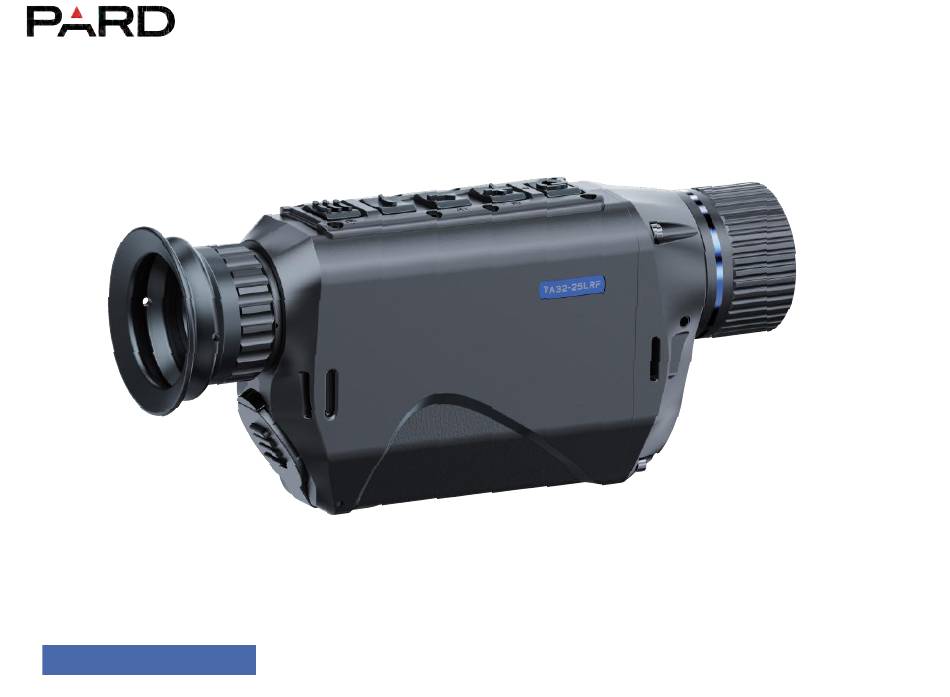

Page 1 Thermal Monocular User Manual TA32/62-LRF Europe & Global...
Page 3 Rangefinder Version...
Page 4 Scan To Enjoy Privilege Scan The QR Code To Join Our Membership Extend warranty Enjoy 1 on 1 expert service Get the product experience officer opportunity...
Page 5: Table Of Contents
CONTENTS 1. To Users 2. Precau�ons 3. Package Contents 4. Descrip�on & Key Features 5. Speciﬁca�ons 6. Components & Controls 7. Installa�on 8. Opera�on Instruc�on 8.1 Shortcut Mode 8.2 Menu Mode 9. Statement...
Page 6: To Users
PARD reserves the right to amend this manual at any �me without prior no�ce to individual users. For the most up-to-date informa�on, we recommend visi�ng PARD's oﬃcial website. PARD reserves the ﬁnal right of interpreta�on of this manual.
Page 7: Package Contents
A�en�on ! Export of all PARD night-vision and thermal imaging devices outside your country requires a license . PACKAGE CONTENTS Quan�ty Icon Contents Thermal monocular 3.7V 18650 Rechargeable lithium-ion ba�ery Hand strap Type-C cable Shoulder bag Cloth bag Lens cap Oxford fabric bag User’s manual...
Page 8: Descrip�On & Key Features
Depending on your needs, you can choose from two diﬀerent thermal imaging sensors: the 640 x 480 (TA62-LRF) or the 384 x 288 (TA32-LRF). Thanks to its next-genera�on vanadium oxide IR sensor pixeliza�on of 12 micrometers and a noise equivalent temperature diﬀerence (NETD) of ≤25mK (TA32-LRF NETD ≤35mK), this device is incredibly sensi�ve and can detect even the slightest thermal contrast in low-light environments, even at great distances.
Page 9: Specifica�Ons
SPECIFICATIONS Model TA32-LRF TA62-LRF Sensor Resolu�on(pixel) 384*288 640*480 Pixel size(μm) 12*12 12*12 NETD(mK) 35(0.035 ) 25(0.025 ) Frame rate(Hz) Human detec�on 800/1100/1400/1700 1200/1500/1800 distance(m) Vehicle detec�on 2500/2900/3300 1800/2200/2600/3000 distance(m) Op�cs Objec�ve lens(mm) 19/25/35 25/35 Op�cal magniﬁca�on(x) 2/2.6/3.7 1.6/2.2 Digital zoom(x)
Page 10 Model TA32-LRF TA62-LRF Field of view (diagonal) 17.2°/13.1°/9.4° 21.7°/15.6° Eye relief(mm) ±5 ±5 Diopter adjustment(D) Display 1024*768 1024*768 Resolu�on(pixel) Scene mode City/Rain/Forest City/Rain/Forest WhiteHot/BlackHot/RedHot/Fusion1 Image mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY /Fusion2/Iron Red1/IronRed2 Photo / Video Photo resolu�on(pixel) 2592*1944 2592*1944 Photo format .JPG .JPG Video resolu�on(pixel)
Page 11 TA32-LRF Model TA62-LRF TF card max(128 ) Storage(GB) TF card max(128 ) Pard IREA Image Engine Pard IREA Main Func�on LRF detec�on range ( m) 1000 1000 Gyroscope Loop recording Red dot Hot track Shu�er Mechanical shu�er Mechanical shu�er Microphone...
Page 12 Power Supply Ba�ery type Li-ion Ba�ery 18650*1 Li-ion Ba�ery 18650*1 Output voltage(V) Opera�ng �me(h) ≤6 ≤6 Type-C Type-C External power supply Environmental Characteris�c Degree of protec�on IP67 IP67 Opera�ng temp(°C/°F) -20°C ~ 50°C/-4°F ~ 122°F -20°C ~ 50°C/-4°F ~ 122°F Material Housing Aluminum Alloy+Composite...
Page 13: Components & Controls
COMPONENTS & CONTROLS...
Page 14: Installa�On
Name Name LRF module Menu bu�on Objec�ve lens Eyepiece focusing Power/ Sleep bu�on TF Card slot + bu�on Type-C charging port LRF bu�on HDMI port -Bu�on INSTALLATION 1.Unboxing Before using this device, please do the following: Open the box and remove the device. Check to ensure that the package contents listed above are all included in the box.
Page 15 ﬁrst and then push and pull the ba�ery bu�on for about 3 seconds. (When the power light buckle backward to lock the ba�ery cover. illuminates and the PARD Logo appears on the screen, the device is ready for use.) Note: Please use a single 18650 rechargeable lithium-ion ba�ery rated 3.7V voltage.
Page 16 3. Diopter focusing Diopter focusing is used to adjust users with diﬀerent levels of corrected vision to clearly see the content displayed on the screen, as shown in picture 1. A�er power on the device, rotate the diopter focusing wheel un�l you can see the screen clearly. Please note that the image may not be clearly visible before objec�ve lens focus adjusted, only the wording and symbols on the display screen are clearly visible at this stage.
Page 17: Opera�On Instruc�On
Opera�on Instruc�on： 1. Shortcut Mode Picture 3 Single press Press and hold Double press Key1 Power/Sleep Power on/oﬀ Key2 Up/Zoom File / (turn oﬀ WiFi) Turn on/oﬀ PIP Key3 Shu�er correc�on Record video/Save video Key4 Down/Switch image modes Take a photo Key5 Menu/Back Red dot pointer...
Page 18 Explana�on Key 1 1. Single press: Press [Key 1] to put device into sleep mode when the device is on. Press [Key 1] again to wake up device from sleep mode. 2. Press and hold: Press and hold [Key 1] to turn on / turn oﬀ the device. Key 2 1.
Page 19 1)Delete: 2)File protec�on: 3)Slide show: Two seconds Delete current Lock current Five seconds Delete all Unlock current Eight seconds Lock all Unlock all Press and hold the [Key 5] bu�on to return. When the WiFi is turned on: Menu interface cannot be opened when the Wi-Fi is turned on, press and hold the [Key 2] to turn oﬀ...
Page 20 Key 4 1. Single press: Home screen mode:press [Key 4] to switch image modes : ① TA32-LRF ：WhiteHot/BlackHot/RedHot/Fusion1/Fusion2/IronRed1/IronRed2 TA62-LRF： White hot/Sky/Edge/Black hot/Red hot/Iron mode. Menu mode: press [Key 4] to scroll down or adjust the relevant op�on se�ngs. ② 2. Press and hold：...
Page 21: Menu Mode
2. Menu Mode Home screen mode: single press [Key 5] to enter the menu se�ng mode to set various func�on op�ons (the shortcut key func�on is invalid at this �me), as shown in Picture 4. 1. Image se�ng Users can adjust the image contrast, brightness, sharpness and mode under this se�ng. Press [Key 2]/[Key4] move the cursor to the image se�ng op�on, press [Key 3] to enter the sub-menu.
Page 22 Picture 4...
Page 23 Press [Key 2]/[Key 4] to move the cursor to the scene op�on, press [Key 3] to enter the sub-menu. Press [Key 2]/[Key 4] to move the cursor to select "City", "Forest" or "Rain" mode. Press [Key3] to save and return to the previous page.
Page 24 Press [Key 2]/[Key 4] to move the cursor to select “Auto shu�er" and "Shu�erless" op�on. Press [Key 3] to save and return to the previous page. TA32-LRF No Shu�er Correc�on： Yes Double press [ LRF ] key to manually execute the shu�er correc�on.
Page 25 Press [Key 2]/[Key 4] to move the cursor to select “Oﬀ” and “On” op�on. Press [Key 3] to save and return to the previous page. 9. Auto recording A�er auto recording is on, device will start recording and con�nue to record a�er the next startup. Press [Key 4] to move the cursor to the auto recording se�ng op�on and press [Key 3] to enter the sub-menu.
Page 26 Turn on the WiFi on your device and on your mobile device. Search the WiFi on your mobile device (the device WiFi network is a string of characters star�ng with PARD, which is a unique string of numbers). Please enter the password: 12345678 to connect.
Page 27 Press [Key 4] to move the cursor to the language se�ng op�on, press [Key 3] to enter the sub-menu. Press [Key 2] / [Key 4] to move the cursor to select the desired language. Press [Key 3] to switch the system language and return to the previous page.
Page 28 TA32-LRF Press [Key 4] to move the cursor to the blind pixel compensa�on op�on, press [Key 3] to enter the sub-menu. You will see an important reminder: please put on lens cap, long press the menu key to execute, short press the ranging key to exit.
Page 29 TA62-LRF Press [Key 4] to move the cursor to the blind pixel compensa�on op�on, press [Key 3] to enter the sub-menu. You will see an important reminder: please put on lens cap, long press the menu key to execute, short press the ranging key to exit.
Page 30 18. Default se�ng If users decide to reset the device, it will restore the device to the factory default se�ngs and all of the user data and personalized se�ngs will be deleted. Please operate with cau�on! Press [Key 4] to move the cursor to restore default se�ng op�on, press [Key 3] to enter the sub-menu. Press [Key 2] / [Key 4] to move the cursor to select "Cancel"...
Page 31: Statement
Statement： FCC WARNING This device complies with part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Page 32 Follow Us Instagram Facebook YouTube LinkedIn Website Business Coopera�on Service Center info@pard.com support@pard.com www.pard.com PARD PARD Europe +86-755-29484438 400-099-2599 Headquarter: Building A Hengxingchan Industry Park, Żwirki i Wigury 16B, Warsaw, Baoshi East Road, Shiyan, Baoan, Shenzhen 518000, China NIP: 5223189907,Poland...
