Aram ASW-100 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
-100
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASW-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aram ASW-100

Summary of Contents for Aram ASW-100

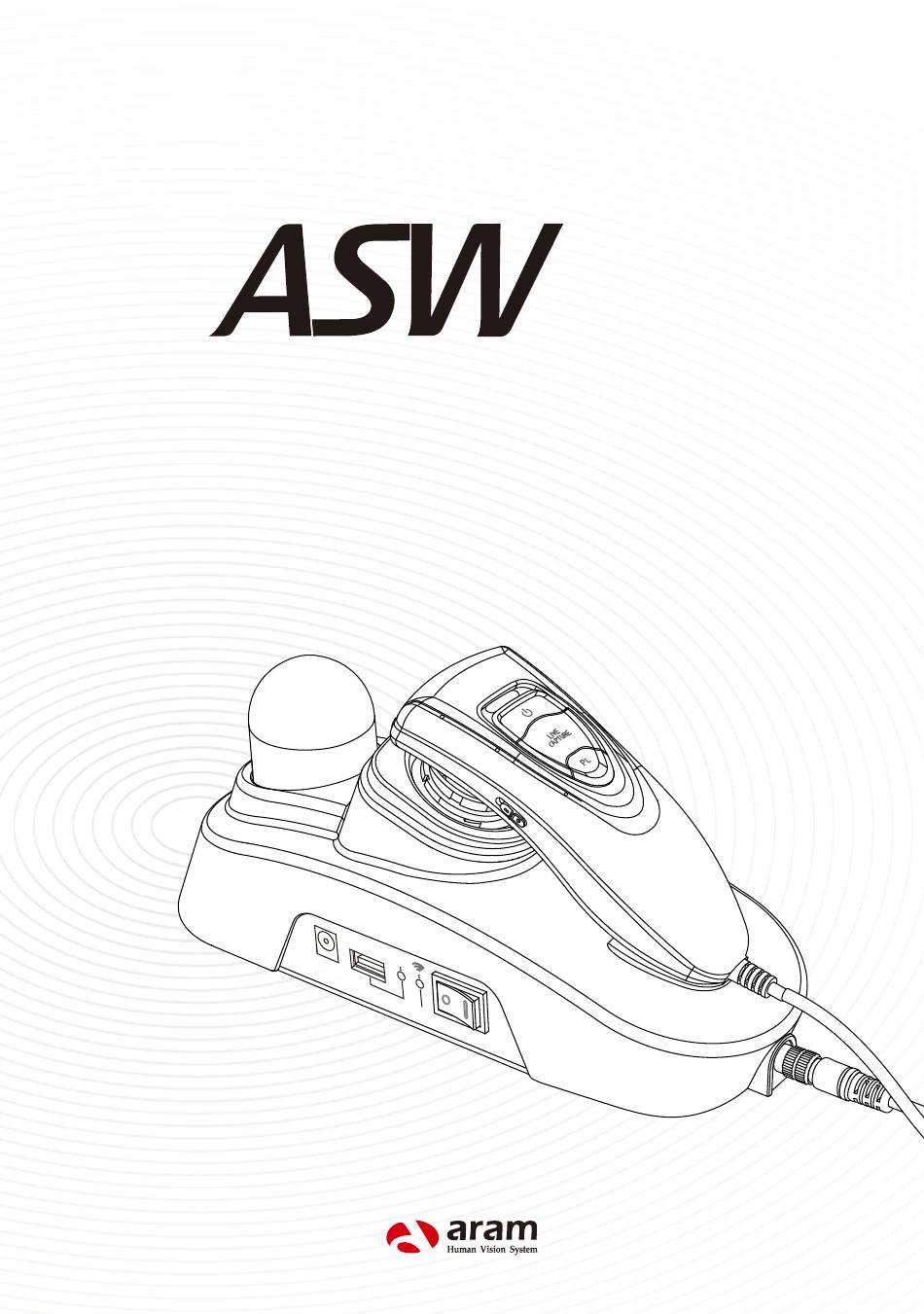

  • Page 1 -100 User Manual...

  • Page 2: Table Of Contents

    Contents A. Components B. H/W Parts ⅰ . Both Sides ⅱ. Settings C. System Settings ⅰ . Download & Install ⅱ. How to connect with the program ⅲ.USB Connection / Automatic focusing lens set D. Program Settings E. Application ⅰ . Start Analysis ⅱ.

  • Page 3: Components

    Components Main body with camera Lens x1 Lens x30 Charger set Air blower Sebum paper 50ea Cleaning cloth Manual A. Components...

  • Page 4: H/W Parts

    H/W Parts Both Sides Wi-Fi&USB Initial deco LED Adaptor 12V DC Power LED USB 2.0 Port Start / Result USB connection indicator lamp Mode up Wi-Fi connection indicator lamp Mode down Power on/o S/W Moisture sensor Optical LED AF single Lens change knob MF + MF -...

  • Page 5: Ⅱ. Settings

    H/W Parts Settings To turn on & o the power Switch on the power. LED will be turned in blue light. While the wi-fi is turning on, the light twinkles and once it stops, the device is ready to use. To replace lens Press the button.

  • Page 6: System Settings

    System Settings Download & Install PC User Go to link on the browser as below. http://www.aramhuvis.com/download Install "Wizard" program. Tablet device or Smartphone user iOS : Go to "App Store" and search "aramhuvis" then download "Wizard-AramHuvis" application. Android : Go to "Google Play Store" and search "aramhuvis" then download "Wizard-AramHuvis"...

  • Page 7: Ⅱ. How To Connect With The Program

    System Settings How to connect with the program SSID : ASW_XXXX PW : SSID : ASW_XXXX PW : First of all, check the Wi-Fi name and password which is described at back side of camera. Wi-Fi name is "ASW_XXXX". Turn on the device. While turning on the device, prepare PC, Tablet to run the S/W.
  • Page 8 System Settings How to connect with the program Once “ASW” device is turned on, please go to network setting to set up the Wi-Fi connection. Among Wi-Fi lists, find “ASW-XXXX” and select it. C. System Settings - How to connect with the program...
  • Page 9 System Settings How to connect with the program When above code is connected, run the program "Wizard". To check working properly, please check the program and see the le below side. If it is correctly set up, you can see the beige light of Wi-Fi singal. C.

  • Page 10: Ⅲ.usb Connection / Automatic Focusing Lens Set

    System Settings USB Connection - PC: Wi-Fi & USB simultaneous support - For PC, you can use the program by connecting the cable to wifi or usb port. Automatic Focusing Lens Set X 1 Lens : X 30 Lens : Customer face Moisture / Sebum / Pore / Melanin Acne / Wrinkle / Sensitivity...

  • Page 11: Program Settings

    Program Settings General settings Change the language, analysis mode and etc. Analysis settings Set up the skin type and analysis parameter. Recommended products Available for each analysis result. Color filter It is a function that calibrates the screen color according to the user's convenience. Device Activation With the model name and serial code, you can activate your device and download recommended products.

  • Page 12: Application

    Application Start Analysis Select “Analysis” to start. Remote Control During analysis, you can control the device in "Wizard" program. You can make use of this function in all analysis pages. E. Application - Start Analysis...

  • Page 13: Crm

    Application Input the information. - full name, email address, gender and age group Take picture of customer's face with built-in camera or use the picture you already have in device. Among the customer lists, select the client to check or start analysis.

  • Page 14: Moisture

    Application Moisture Press "live capture" button and when you hear "beep" sound, please put the sensor onto your skin and wait until you hear "beep" sound again. Moisture sensor Analyzing hydration... Check the result. To analyze next step, select button or press "PL" or button.

  • Page 15: Sebum

    Application Sebum Put the sebum paper onto the U-zone on the cheek, then press it for 2~3 seconds. U-zone Place camera on the pink area and take picture. (U-zone) Sebum paper Put the sebum paper onto the T-zone on face, then press it for 2 ~3 seconds.

  • Page 16: Pore

    Application Pore Select button to activate camera or "live capture" button to activate camera mode. Press "live capture" button to take picture and press it again to analyze. The result will appear. Select “Compare” button to check the sample images as . To analyze the next step, select the below button.

  • Page 17: Melanin

    Application Melanin Select button to activate camera or "live capture" button to activate camera mode. Press "live capture" button to take picture and press it again to analyze. The result will appear. Select “Compare” button to check the sample images as . To analyze the next step, select the below button.

  • Page 18: Acne

    Application Acne Select button to activate camera or "live capture" button to activate camera mode. Press "live capture" button to take picture and press it again to analyze. The result will appear. Select “Compare” button to check the sample images as . To analyze the next step, select the below button.

  • Page 19: Wrinkle

    Application Wrinkle Select button to activate camera or "live capture" button to activate camera mode. Press "live capture" button to take picture and press it again to analyze. The result will appear. Select “Compare” button to check the sample images as . To analyze the next step, select the below button.

  • Page 20: Sensitivity

    Application Sensitivity Select button to activate camera or "live capture" button to activate camera mode. Press "live capture" button to take picture and press it again to analyze. The result will appear. Select “Compare” button to check the sample images as . To analyze the next step, select the below button.

  • Page 21: Summary

    Application Summary The diagnostic icon in the pentagon or the name of each diagnostic select to see the results below. If you select a recommended product, you can see the product. Available to check product image. E. Application - Summary...

  • Page 22: Ⅲ. View Mode

    Application View Mode In view mode, it is able to take pictures with capture button in many times. The user can select analysis parameter to take picture. In one screen, you can see 4 di erent images maximum. The user can mark the defect or concern according to the image with note function.

  • Page 23: Warranty

    Within warranty : Sending delivery(Buyer), repair cost and returning delivery(Aram) - If the product is broken by user's fault, repair cost could be charged. A er warranty : Sending delivery and repair cost(Buyer), returning delivery(Aram) How to send : - As sending a present from person to person by EMS or FEDEX.

  • Page 24: Service Request Form

    Warranty Service request form Date of Company purchase Contact person Address : Tel : Product name, serial no : Problems : Shipping address: 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : support@aramhuvis.com Tel : +82 70 4687 1712 / Fax : +82 31 732 6330 F.
  • Page 25 MEMO...
  • Page 26 MEMO...
  • Page 27 MEMO...
  • Page 28 HEAD OFFICE #401~402 Bundang Seoul National University Hospital Health Care Innovation Park, 172, Dolma-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13605 Rep. Korea PRODUCTION DIVISION & FACTORY #909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Rep. Korea Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: info@aramhuvis.com http://www.aramhuvis.com...
