Summary of Contents for Aram ASNII-203

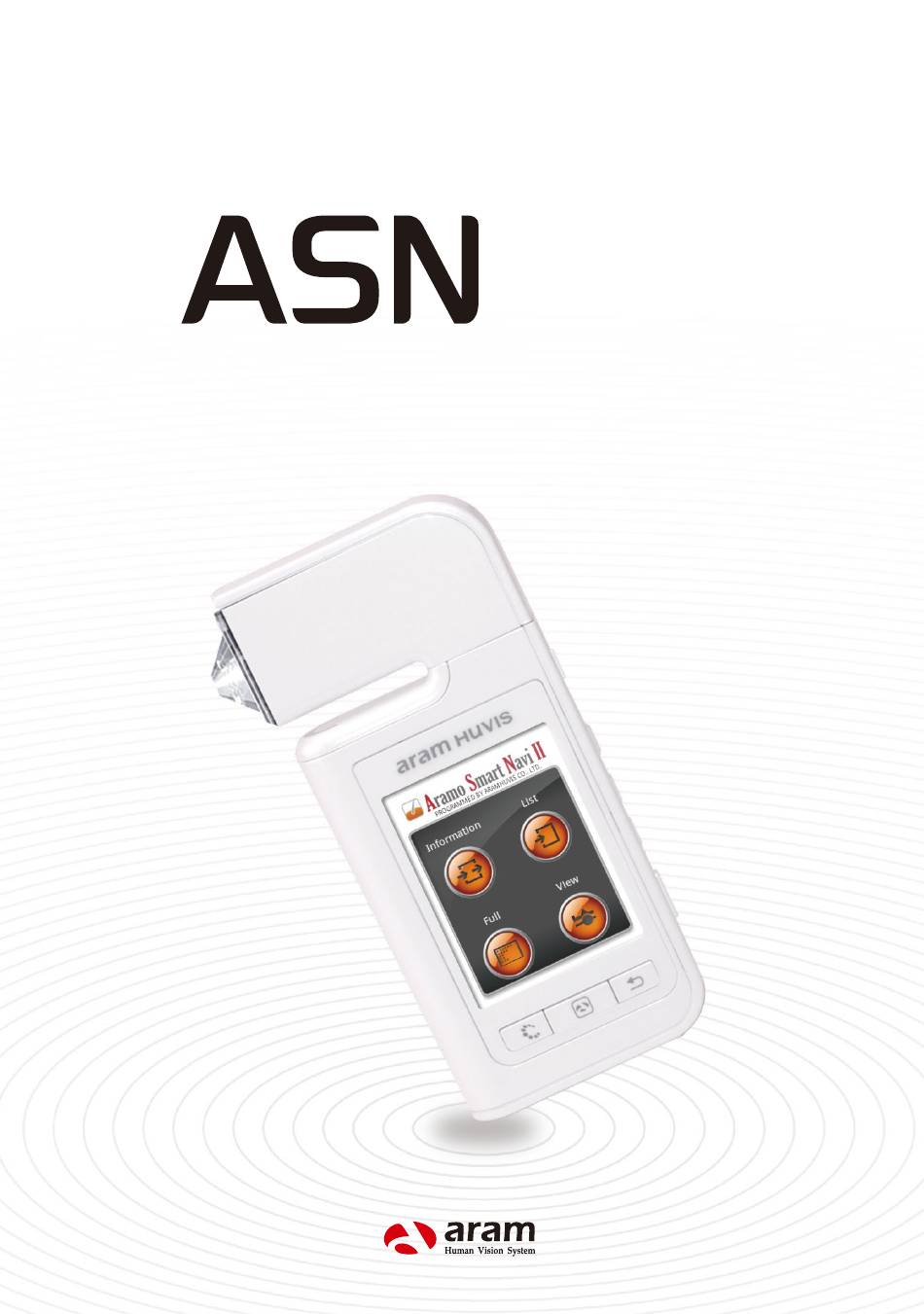

- Page 1 Ⅱ -203 User Manual...
-
Page 2: Table Of Contents
Content A.Components B.H/W Parts ⅰ . Both Sides ⅱ. Settings C. System Settings ⅰ . Date & Time ⅱ. Wi-Fi ⅲ. Screen Timeout ⅳ.Language D. Application ⅰ . Settings ⅱ.Full Diagnosis Pore Thickness Cuticle Result Send Result ⅰ . Email ⅱ... -
Page 3: A.components
Components Main body with hair lens(ASNⅡ203) Cradle Battery (2EA) Charger USB cable Pen (2EA) Hand strap Cleaning cloth Leather case Manual A. Components... -
Page 4: B.h/W Parts
H/W Parts Both Sides LED light & lens Touch screen Back button Capture button Set up button On/off button Volume on MP3 Capture button Battery cover External adaptor connection SD memory card slot B. H/W Parts - Both Sides... - Page 5 H/W Parts Settings Insert the battery Open the battery cover by pushing it left to right way with thumbs. Insert the battery and gently press the battery into place. Close the cover. To turn on & off the power Press and hold “power” button. Then “Indicate LED”...
-
Page 6: Ⅱ. Settings
H/W Parts Settings Charger can be used for Amercian type & European type. The default is European type . Push the plug up. Then 220V European type is disassembled and you can see the 110V-220V American type inside of the charger. Choose the one you want to use and connect USB cable in adaptor. -
Page 7: System Settings
System Settings Date & Time Touch “Date & time”. Press button. Touch button. Touch “Set date”. Change the date and touch Please check the setting is “Set” button. correctly applied. C. System Settings - Date & Time... - Page 8 System Settings Date & Time Touch “Select time zone” Change into the current time Please check the setting button. zone . is correctly applied. Change into the current time Touch “Set time”. Please check the setting and touch “Set” button. is correctly applied.
-
Page 9: Ⅱ. Wi-Fi
System Settings Wi-Fi Touch “Wireless & networks”. Touch “Wi-Fi settings”. Check the square box. Among the lists, select the Wi-Fi Wait until the device is Wi-Fi list will be appeared. connection you could use. connected to with Wi-Fi. C. System Settings - Wi-Fi... -
Page 10: Ⅲ. Screen Timeout
System Settings Wi-Fi Once the device is connected to Wi-Fi, you can see the wi-fi signal as left image. Wi-Fi Usage E - mail ☞ In order to send the analysis data. Software update ☞ In order to update the software version. Screen Timeout Touch “Display”. -
Page 11: Ⅳ.language
System Settings Language Touch “Language & keyboard”. Touch “Select language”. Among the lists, touch your language. C. System Settings - Language... -
Page 12: Application
Application Settings Touch button. Touch button. Language, version, email setting is available. Touch “Setup” button. D. Application - Settings... -
Page 13: Crm
Application Touch “Full” button. Touch “SKIP”. Input the information. Enter Age group and Gender of customer. D. Application - CRM... -
Page 14: Pore
Application Pore Wait until the camera activates Touch to activate camera. and take image. Adjust the brightness by touching. Touch “Analysis”. D. Application - Pore... - Page 15 Application Pore Sample image When drag the screen, select the types. Customer’s image. Choose types of sample which is Show the diagnosed result by number similar with your image. and level on the capture page. Touch “SAVE”. D. Application - Pore...
-
Page 16: Thickness
Application Thickness Wait until the camera activates Touch “Analysis”. Touch to activate camera. and take image. Measure the length of Choose the area by Show the diagnosed result by hair by using touch pen. moving the white box. number and level on the capture page. Touch “SAVE”. -
Page 17: Cuticle
Application Cuticle Choose the mode Adjust the brightness by touching. Touch to activate camera. “MANUAL” or “Auto.” Choose the range you Touch “Analysis”. want to analyze. D. Application - Cuticle... - Page 18 Application Cuticle Sample image Touch “SCAN”. Show the diagnosed result by Customer’s image. number on the capture page. Touch “Analysis”. When drag the screen, Choose types of sample Show the diagnosed result by select the `types. which is similar with your image. number and level on the capture Touch “SAVE”.
-
Page 19: Result
Application Result - Hair Type The result will be shown by bar type. Result - Analysis Result Check the instruction. Touch D. Application - Result... -
Page 20: Send Result Ⅰ . Email
Application Send Result - Email Only available when the device is connected to internet. Enter the customer’s email address. Touch “OK” button. D. Application - Send Result... -
Page 21: Ⅱ . Mirroring
Application Send Result - Mirroring Touch button. Touch button. Touch “Option” button. Touch “Setup” button. D. Application - Send Result... - Page 22 Application Send Result - Mirroring Touch “Mirroring” button. It is able to connect to “Android” With your mobile device, & “iOS ” system when AP success capture QR code. is shown up on the screen. Then program will be installed. Open the “aramVIEWER”...
-
Page 23: Troubleshooting & Faq
Troubleshooting & FAQ I cannot turn on the device. Connect and charge the device (or the battery) using the adaptor provided the supplier. (The battery charging indicator will be shown on the system main page.) I cannot power on the device even the battery is still full. The battery might be dislocated on the device. - Page 24 Troubleshooting & FAQ The touchscreen doesn’t react to my finger commands. Before using for the first time remove the protective plastic film. I cannot connect to Blue-tooth. Make sure to use the Bluetooth hosting devices that have Bluetooth certified with the logo. You may need an external Bluetooth dongle for those devices that do not have Bluetooth feature.
-
Page 25: Warranty
For this product, warranty period is 14 months from the Invoice date. Cost Within warranty : Sending delivery(Buyer), repair cost and returning delivery(Aram) - If the product is broken by user's fault, repair cost could be charged. After warranty : Sending delivery and repair cost(Buyer), returning delivery(Aram) How to send : - As sending a present from person to person by EMS or FEDEX. - Page 26 Warranty Service request form Date of Company purchase Contact Person Address : Tel : Product name, serial No : Problems : Shipping address: 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : support@aramhuvis.com Tel : +82 70 4687 1712 / Fax : +82 31 732 6330 F.
- Page 27 Memo...
- Page 28 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : info@aramhuvis.com...
