Aram API-203 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
-203
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the API-203 and is the answer not in the manual?

Questions and answers

Related Manuals for Aram API-203

Summary of Contents for Aram API-203

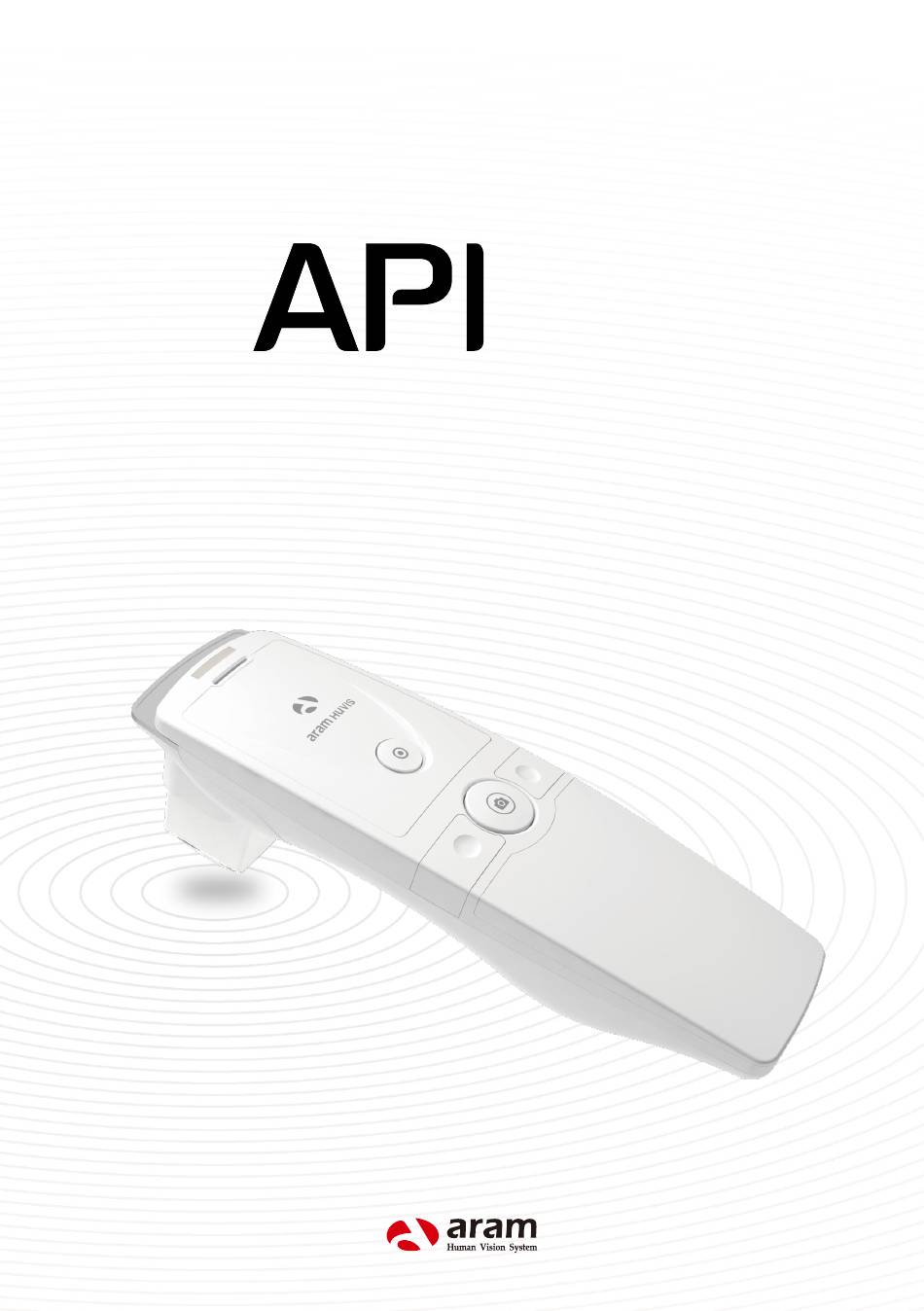

  • Page 1 -203 User Manual...
  • Page 2 Contents A. Components B. H/W Parts ⅰ . Both Sides ⅱ. Settings ⅲ. Battery / Light Functions C. System Settings ⅰ . Download & Install / How to connect with the program ⅱ. D. Program Settings . Device Certification ⅰ E.
  • Page 3 Components API 203 Main body with hair lens Cradle Battery Charger USB cable Cleaning cloth Manual A. Components...
  • Page 4 H/W Parts Both Sides Start, Analysis, Result Capture Mode up Mode down Battery cover External adaptor connection Power on & o LED light & lens B. H/W Parts - Both Sides...
  • Page 5 H/W Parts Settings Insert the battery Open the battery cover by pushing it down with finger. Insert the battery and gently press the battery into place. Close the cover. To turn on the power Press and hold “power” button. "Indicate LED" starts twinkling in blue light. When it stops, the device is ready to use.
  • Page 6 H/W Parts Settings Charger can be used for Amercian type & European type. The default is European type. Push the plug up. Then 220V European type is disassembled and you can see the 110V-220V American type inside of the charger. Choose the one you want to use and connect USB cable in adaptor.
  • Page 7 H/W Parts Battery / Light Functions Battery / Light Functions CAMERA POSITON STATUS In use While Turning it on Flashing blue light In use Connected Blue light In use Low Battery Flashing Red/blue light In use While turning it off Flashing Red light Plugged to the base Charging...

  • Page 8: System Settings

    System Settings Download & Install PC User Go to link on the browser as below. http://www.aramhuvis.com/downloads Install the program. Tablet device or Smartphone user iOS : Go to "App Store" and search "Solutionist" to download the program. Android : Go to "Google Play Store" and download it. How to connect with the program First of all, check the Wi-Fi name and password which is described at back side of battery cover.

  • Page 9: Program Settings

    Program Settings General Settings Change the language, analysis mode and etc. Analysis Settings Set up the HAIR type and analysis parameter. Recommended Products Available for each analysis result. About Check the current version and update is available in Wi-Fi connection. D.
  • Page 10 Device Certification Solutionist program includes three programs. But when you start “Solutionist” program with API-203 device you can see the pop message saying that the program is compatible with only “HAIRⅢ” device. Touch “OK” button. Then you will see now only “HAIRⅢ”...
  • Page 11 Program Settings Device Certification Device certification is complete. Please touch “OK” button. When it is done, you could touch “Product Download” button to load in server. If you have the recommended product data in server, the product will be downloaded by clicking “Product download”.
  • Page 12 Application Start Analysis Touch “Analysis” to start. Remote Control (Only Tablet) During analysis, you can control the device in "Solutionist" program. In screen, touch "Control Menu On" to activate "Remote". You can make use of this function in all analysis pages. E.
  • Page 13 Application Input the information. - full name, email address, gender and age group Take picture of customer's face with built-in camera or use the picture you already have in device. Among the customer lists, select the client to check or start analysis. Check the customer information and analysis result list.
  • Page 14 Application Hair Loss Satus Touch button to activate the built-in camera. Take pictures of "Front" and "Temporal" head by button and touch button. Then select the type which is similar with your hair loss shape. The result will appear. To analyze the next step, touch the below button.
  • Page 15 Application Hair Pore Status Touch button to activate the camera. Take pictures of the pore by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To analyze the next step, touch the below button.
  • Page 16 Application Hair Thickness Touch button to activate the camera. Take pictures of the hair by button and touch button. Choose one hair and touch little bit down side of the hair. Then touch little bit upside of the hair. It will make a green line to measure the thickness.
  • Page 17 Application Cuticle Status Touch button to activate the camera. Take pictures of the hair by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To check all the results, touch "Show All Results"...
  • Page 18 Application Summary Check the result. Touch button or each parameter's name on pentagon graph. Once you select "Show Recommended Product", product image will pop up as Available to check product image. E. Application -Summary...
  • Page 19 Application View Mode In view mode, it is able to take pictures with capture button in many times. The user can select analysis parameter to take picture. In one screen, you can see 4 di erent images maximum. The user can mark the defect or concern according to the image with note function.

  • Page 20: Warranty

    Within warranty : Sending delivery(Buyer), repair cost and returning delivery(Aram). - If the product is broken by user's fault, repair cost could be charged. A er warranty : Sending delivery and repair cost(Buyer), returning delivery(Aram) How to send : - As sending a present from person to person by EMS or FEDEX.

  • Page 21: Service Request Form

    Warranty Service request form Date of Company purchase Contact person Address : Tel : Product name, serial no : Problems : Shipping address: 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230, Rep. of KOREA E-mail : support@aramhuvis.com Tel : +82 70 4687 1712 / Fax : +82 31 732 6330 F.
  • Page 22 MEMO...
  • Page 23 MEMO...
  • Page 24 HEAD OFFICE #401~402 Bundang Seoul National University Hospital Health Care Innovation Park, 172, Dolma-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13605 Rep. Korea RODUCTION DIVISION & FACTORY #909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Rep. Korea el: 070-4687-1712 / Fax: 031-732-6330 / Email: info@aramhuvis.com http://www.aramhuvis.com...
