Avoid using sharp objects such as a knife to cut open packing as you may
accidentally damage the item.
ITEM
DESCRIPTION
HW1
Screw : 1/4x70mm
HW2
Dowel : 10x40mm
HW3
Screw : 4x30mm
HW4
Screw : 7x90mm
HW5
Allen Key
HW6
Screw : 7x60mm
HW7
Elliptical Nut : 1/4x25mm
A
Bed Footrest
B
C
Left Foot
D
Right Foot
E
F
Central Foot Support
G
Center Foot
H
Right foot headboard
Left foot headboard
I
J
Headboard Top Cross Bar
K
Narrow central headboard bar
L
Central headboard bar
M
Headboard Lower Crossbar

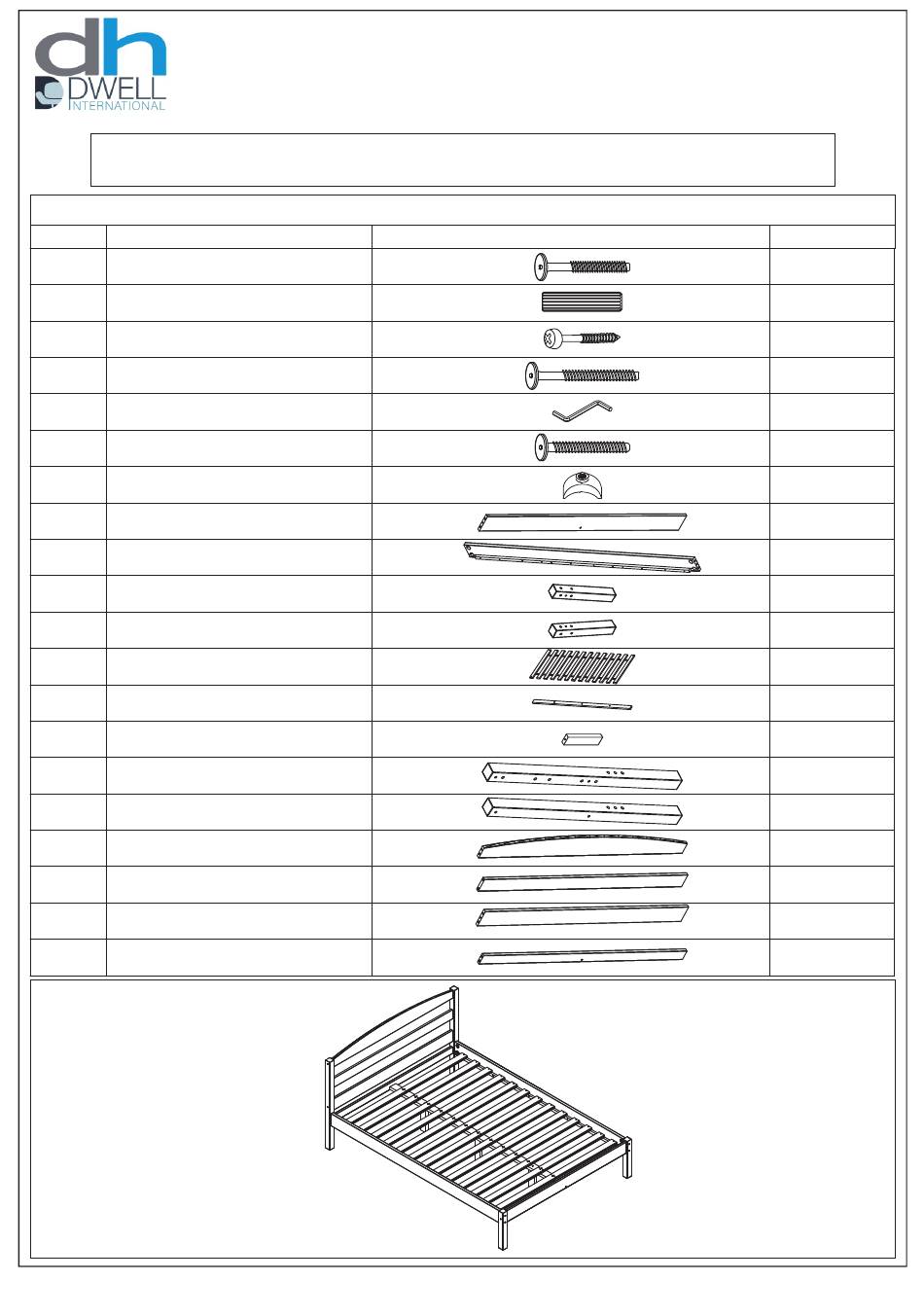

ASSEMBLY INSTRUCTIONS
Alexander Platform Bed-Full
PARTS LIST
Bar
Slat
SKETCH
1-3
QUANTITY
8x
22x
12x
6x
1x
5x
8x
1x
2x
1x
1x
2x
1x
3x
1x
1x
1x
1x
1x
1x
Advertisement
Related Manuals for Dwell dh Alexander Platform Bed-Full
Summary of Contents for Dwell dh Alexander Platform Bed-Full
- Page 1 ASSEMBLY INSTRUCTIONS Alexander Platform Bed-Full Avoid using sharp objects such as a knife to cut open packing as you may accidentally damage the item. PARTS LIST QUANTITY ITEM DESCRIPTION SKETCH Screw : 1/4x70mm Dowel : 10x40mm Screw : 4x30mm Screw : 7x90mm Allen Key Screw : 7x60mm Elliptical Nut : 1/4x25mm...
- Page 2 ASSEMBLY INSTRUCTIONS Do not fully tighten bolts until assembly is complete. Step 1 Step 2 Step 1: Insert the dowels HW2 in parts B Step 2: Insert the dowels HW2 in parts A, J, K, L and M. Step 3 Step 4 HW4+HW5 HW4+HW5...
- Page 3 ASSEMBLY INSTRUCTIONS Do not fully tighten bolts until assembly is complete. Step 7 Step 8 HW1+HW5 HW1+HW5 HW5+HW6 HW1+HW5 HW1+HW5 Step 7: Join mounted headboard M with bars B, use screw HW1 with HW5 wrench and HW7 nut Step 8: Fit the platforms E and fix with screws HW3 Fix the support F with screw HW6 and key HW5 CLEANING INSTRUCTIONS: Clean with Soft cloth, brush, or lightly vacuum.
