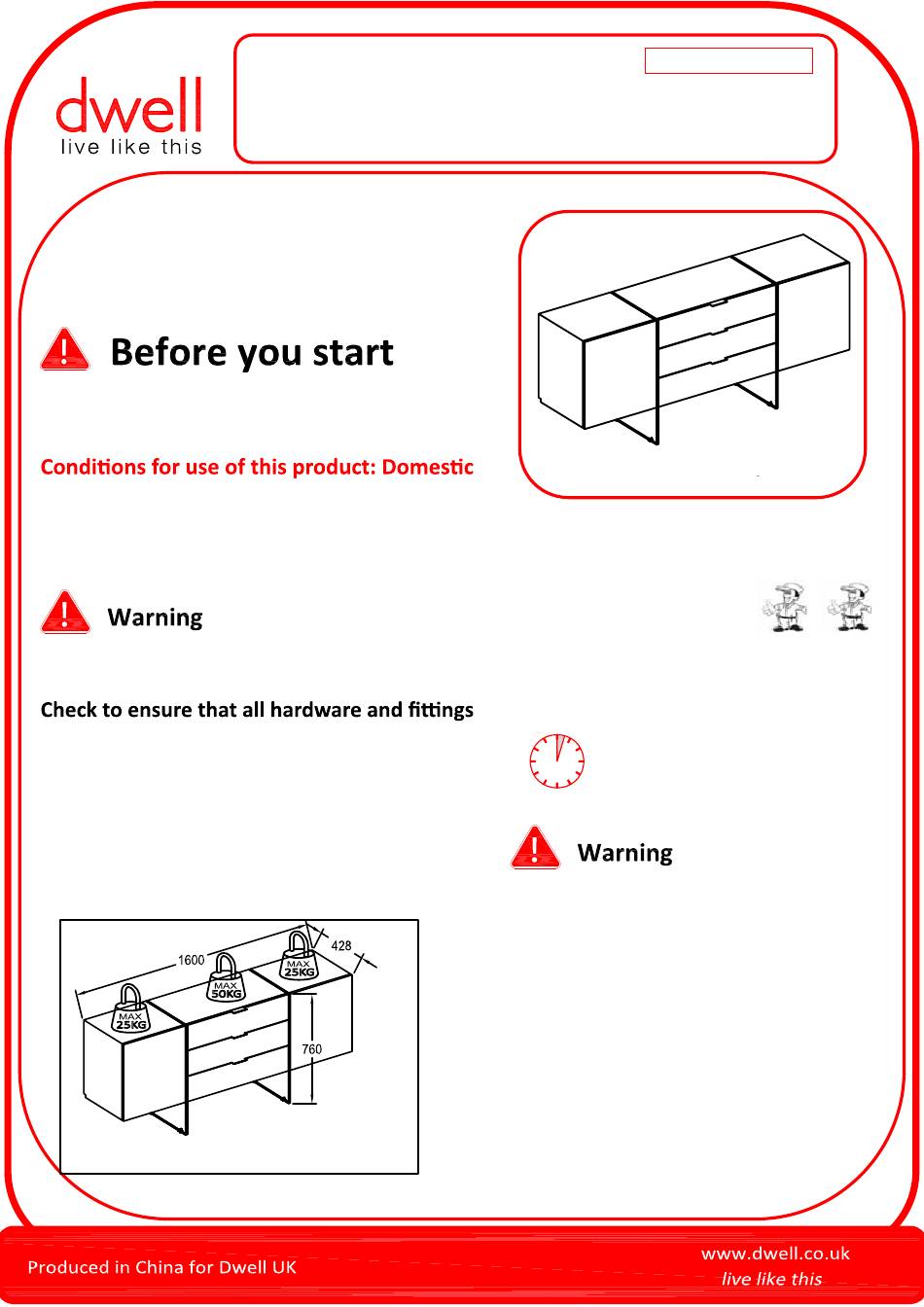

Dwell 140044 Assembly Manual

Treble sideboard

Advertisement

Quick Links

140044 light grey+natural walnut
144502 white
145592 natural walnut
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
Please read Do's and Don'ts carefully before
assembly start.
Ensure that there are no cracks or damages
to this product before assembly.
are present. Refer to page 3.
Keep small parts out of reach of children.
50KG
25KG
Dimensions 1600 X 428 X 760 MM
Treble sideboard
25KG
1 of 9
AI-HC-BU-001-C
Product outlook
Professional DIY skills required to assemble
this product
Number of People required
to assemble this product
Time taken to
assemble this
product
45 Minutes
Please be careful to move the product
components during assembly.
Tempered glass is fragile easily. No
sharp, hard tools placed on the
product surface.
Forbidden child to climb the product.
Max loading weight is 50kgs.
Tools required
refer to
components list
(page 3)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 140044 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dwell 140044

  • Page 1 AI-HC-BU-001-C Treble sideboard 140044 light grey+natural walnut 144502 white 145592 natural walnut IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Product outlook Please read Do’s and Don’ts carefully before assembly start. Professional DIY skills required to assemble this product Number of People required...
  • Page 2 Protection under the product If you are missing any fixtures or fittings for your product please contact 08456 781 010 and we will be happy to send you a replacement part free of charge. Dwell UK Unit 2 Brockley Way Ridgmont BEDFORD...
  • Page 3 AI-HC-BU-001-C Treble Sideboard COMPONENTS HARDWARE TOOLS INCLUDED a x 8 PCS b x 7 PCS c x 3 PCS e x 4 PCS f x 15 PCS (M 8*40) (M 8*50) (10MM ) (Φ8/Φ19) (5MM) gx6PCS hx1PC ix1PC jx1PC kx1PC lx2PCS (3.5*12) (4 *15)
  • Page 4: Tools Needed

    AI-HC-BU-001-C Treble Sideboard RELEASE THE SCREW AND TAKE OUT THE METAL TUBE FIRST. DO NOT FULLY TIGHTEN THE SCREWS AT FIRST DURING THIS STEP. PLEASE CHECK WHETHER THE CASE AND GLASS ARE EVEN FROM ALL VIEWS. IF NOT, RELEASE SCREWS A LITTLE TO ADJUST IT TO BE EVEN. THEN FULLY TIGHTEN THE SCREWS.
  • Page 5 AI-HC-BU-001-C Treble Sideboard IF THE CASES ARE NOT EVEN WITH GLASS FROM ANY VIEWS AT THIS STEP, PLEASE REFER TO THE ADJUSTMENT IN STEP 2. TOOLS NEEDED HARDWARE a x4 f x4 (5MM) (M8*40) (Φ8/Φ19) 5 of 9...
  • Page 6 AI-HC-BU-001-C TOOLS NEEDED HARDWARE b x 7 e x 4 f x 7 (5MM) Φ8/Φ19) (M8*50) (10MM) NOTE: 1. All doors are with push-opened mechanism. 2. If no opening during pushing the door, Please twist the head of mechanism out slightly until the door can be push-opened smoothly.
  • Page 7 AI-HC-BU-001-C Treble Sideboard WARNING: THE WALL TIE IS SUPPLIED TO ATTACH THE PRODUCT TO THE WALL. PLEASE ENSURE THE CORRECT FIXING PLUG IS USED FOR THE TYPE OF WALL. IF YOU ARE UNSURE, WE RECOMMEND YOU CONSULT A PROFESSIONAL. LEFT VIEW TOOLS NEEDED HARDWARE h x1...
  • Page 8 Treble Sideboard Care Instruction Furniture: We at dwell take great care in supplying products that are of the best quality. To help prolong the life of your furniture we recommend the following best of care advice. Wood / Cabinet: • Our furniture will sustain normal wear and tear with general use.
  • Page 9 AI-HC-BU-001-C Treble Sideboard Care Instruction Chrome: • Be sure to clean the Chrome parts on a regular basis with a dry cloth. • Any spillages on Chrome make sure to wipe it up immediately to cut down on any staining. •...

This manual is also suitable for:

144502145592
