Avoid using sharp objects such as a knife to cut open packing as you may
accidentally damage the upholstery.
DESCRIPTION
ITEM
Sofa Leg
A
Seat Cushions
B
C
Backrest Cushions
Sofa Body
D
Do not fully tighten bolts until assembly is complete.
STEP 1
Attach Legs (A) to Sofa Body (D) by inserting the Threaded
ASSEMBLY INSTRUCTIONS

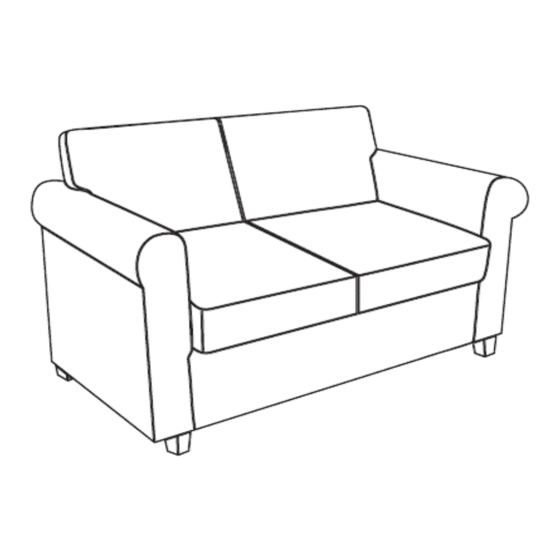

Devon Sofa Sleeper
PARTS LIST
SKETCH
ASSEMBLY INSTRUCTIONS
Place Seat Cushion (B) onto Sofa Body (D).
QUANTITY
4
1
1
1
STEP 2
Version [1]
1 of 2
